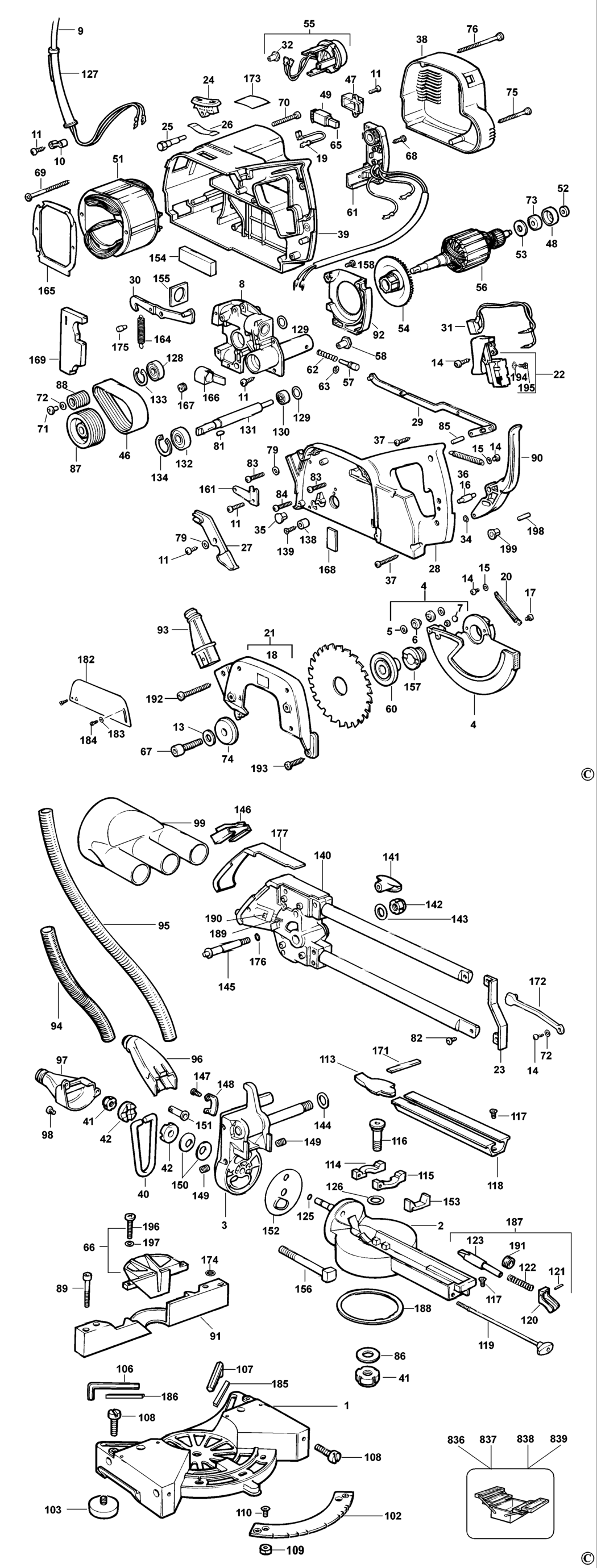

An exploded drawing and spare parts listing for the Black & Decker 1707E Type 1 Crosscut Mitre Saw
Ex VAT Inc VAT
1 - TABLE SA BDE-861848-00.A0 861848-00 -
2 - NO LONGER AVAILABLE BDE-000000-00.A42337 000000-00 -
3 - SEGMENT BDE-947000-00.A5 947000-00 -
4 - GUARD SA BDE-861361-01.A3 861361-01 -
5 - QUICKLOCK BDE-861366-00.A11 861366-00 £1.50 £1.80
6 - ROLLER BDE-861367-01.A6 861367-01 £1.66 £1.99
7 - INSERT BDE-760298-01.A43 760298-01 £1.66 £1.99
8 - CARRIAGE SA BDE-947645-00.A3 947645-00 £113.07 £135.68
9 - CABLE SA BDE-947108-09.A0 947108-09 £5.72 £6.87
10 - CLAMP BDE-720748-00.A15 720748-00 -
11 - SCREW BDE-860084-12.A13 860084-12 £1.50 £1.80
13 - WASHER BDE-949876-19.A0 949876-19 £1.50 £1.80
14 - SCREW BDE-860084-20.A70 860084-20 £1.50 £1.80
15 - WASHER BDE-860073-00.A178 860073-00 £1.50 £1.80
16 - PIVOT BDE-760296-01.A8 760296-01 £1.50 £1.80
17 - SCREW BDE-860084-20.A72 860084-20 £1.50 £1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A42338 000000-00 -
19 - LEAD BDE-942589-00.A21 942589-00 -
20 - SPRING BDE-760295-01.A26 760295-01 £1.66 £1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A42339 000000-00 -
22 - SWITCH SA BDE-947486-00.A3 947486-00 £37.35 £44.82
23 - BRACKET BDE-947613-00.A4 947613-00 £2.78 £3.34
24 - LOCK BUTTON BDE-946871-00.A2 946871-00 -
25 - ECCENTRIC BDE-947016-00.A3 947016-00 £10.57 £12.68
26 - LEAF SPRING BDE-946876-00.A7 946876-00 -
27 - LEVER BDE-946880-00.A3 946880-00 £3.80 £4.56
28 - HANDLE & COVER BDE-946999-03.A0 946999-03 -
29 - KIT SA BDE-861765-00.A10 861765-00 £16.03 £19.24
30 - LEVER BDE-947010-01.A3 947010-01 -
31 - CAPACITOR BDE-947025-00.A27 947025-00 -
32 - PLASTIC ADAPTOR BDE-401167-00.A3 401167-00 -
34 - CIRCLIP BDE-949728-02.A2 949728-02 -
35 - PLUG BDE-947067-00.A15 947067-00 £1.50 £1.80
36 - SPRING BDE-947019-00.A7 947019-00 £1.82 £2.19
37 - SCREW BDE-949896-10.A27 949896-10 £1.50 £1.80
38 - END CAP BDE-946877-01.A1 946877-01 -
39 - FIELDCASE BDE-946997-03.A0 946997-03 -
40 - LOCK HANDLE BDE-947063-00.A3 947063-00 -
41 - LOCK-NUT BDE-943016-01.A16 943016-01 £3.70 £4.44
42 - WASHER BDE-947062-00.A8 947062-00 -
46 - BELT BDE-760215-00.A8 760215-00 £14.57 £17.48
47 - CLAMP BDE-942569-00.A7 942569-00 -
48 - SLEEVE BDE-934409-00.A7 934409-00 -
49 - BRUSHBOX SA BDE-761202-00.A32 761202-00 £3.30 £3.96
51 - FIELD BDE-868405-01.A6 868405-01 -
52 - PICK UP BDE-945893-00.A14 945893-00 £16.03 £19.24
53 - SPACER BDE-944975-00.A0 944975-00 -
54 - FAN BDE-946857-01.A7 946857-01 £5.72 £6.87
55 - BRAKE SA 230V BDE-401204-00.A2 401204-00 -
56 - ARMATURE 230V BDE-861379-09.A4 861379-09 £94.12 £112.94
57 - LOCK BUTTON BDE-947011-01.A6 947011-01 -
58 - NO LONGER AVAILABLE BDE-000000-00.A42340 000000-00 -
60 - INNER FLANGE BDE-947022-00.A3 947022-00 -
61 - NO LONGER AVAILABLE BDE-000000-00.A42341 000000-00 -
62 - SPRING BDE-947070-00.A7 947070-00 £1.50 £1.80
63 - CIRCLIP BDE-949728-01.A3 949728-01 £1.50 £1.80
65 - BRUSH CUT OFF BDE-949736-01.A7 949736-01 £10.85 £13.02
66 - INSERT SA BDE-401457-00.A0 401457-00 £17.48 £20.97
67 - SCREW BDE-949886-27.A13 949886-27 -
68 - SCREW BDE-760299-00.A15 760299-00 -
69 - SCREW BDE-760251-00.A7 760251-00 £1.42 £1.70
70 - SCREW BDE-949894-02.A8 949894-02 £1.50 £1.80
71 - SCREW BDE-949886-26.A4 949886-26 £1.82 £2.19
72 - WASHER BDE-760261-00.A12 760261-00 £1.42 £1.70
73 - BEARING BDE-577745-00.A134 577745-00 £7.85 £9.42
74 - OUTER FLANGE BDE-942959-03.A0 942959-03 £10.85 £13.02
75 - SCREW BDE-931298-02.A0 931298-02 -
76 - SCREW BDE-930082-01.A37 930082-01 £1.50 £1.80
79 - WASHER BDE-860073-00.A180 860073-00 £1.50 £1.80
81 - KEY BDE-940441-00.A17 940441-00 £1.50 £1.80
82 - SCREW BDE-949609-01.A10 949609-01 £1.42 £1.70
83 - SCREW BDE-949894-04.A8 949894-04 £1.50 £1.80
84 - SCREW BDE-330045-05.A279 330045-05 £1.50 £1.80
85 - PIN BDE-949739-01.A11 949739-01 £1.50 £1.80
86 - WASHER BDE-860073-05.A72 860073-05 £1.50 £1.80
87 - PULLEY BDE-861356-00.A4 861356-00 £18.91 £22.69
88 - PULLEY BDE-401166-00.A3 401166-00 £7.85 £9.42
89 - SCREW BDE-330045-26.A3 330045-26 £1.82 £2.19
90 - LEVER BDE-946869-02.A7 946869-02 £7.85 £9.42
91 - FENCE BDE-946853-03.A9 946853-03 £24.39 £29.27
92 - BAFFLE BDE-946863-00.A7 946863-00 -
93 - ADAPTOR BDE-760311-00.A14 760311-00 £2.41 £2.89
94 - HOSE BDE-947113-00.A12 947113-00 £7.18 £8.62
95 - HOSE BDE-947113-01.A3 947113-01 £10.85 £13.02
96 - ADAPTOR BDE-760312-00.A6 760312-00 £2.49 £2.99
97 - ADAPTOR BDE-947620-00.A13 947620-00 £3.80 £4.56
98 - SCREW BDE-860094-03.A250 860094-03 £1.50 £1.80
102 - SCALE BDE-946861-01.A9 946861-01 -
103 - FOOT SA BDE-861809-00.A18 861809-00 £7.85 £9.42
106 - WRENCH 6 MM BDE-860098-04.A47 860098-04 £1.50 £1.80
107 - WRENCH 4 MM BDE-949882-01.A96 949882-01 £1.50 £1.80
108 - SCREW BDE-N409486.A6 N409486 £1.50 £1.80
109 - NUT M6 BDE-860083-12.A103 860083-12 £1.50 £1.80
110 - SCREW BDE-949889-07.A7 949889-07 -
113 - SEAL BDE-947020-00.A0 947020-00 -
114 - CLAMP BDE-946858-01.A10 946858-01 -
115 - CLAMP BDE-946858-00.A2 946858-00 £10.57 £12.68
116 - BOLT BDE-946848-00.A2 946848-00 £7.64 £9.17
117 - SCREW BDE-949894-06.A53 949894-06 £1.50 £1.80
118 - INSERT BDE-946856-00.A0 946856-00 £24.39 £29.27
119 - HANDLE SCREW SA BDE-947015-01.A4 947015-01 £18.91 £22.69
120 - LEVER BDE-946864-00.A1 946864-00 £5.88 £7.06
121 - PIN BDE-949734-01.A0 949734-01 -
122 - SPRING BDE-946866-00.A2 946866-00 £1.50 £1.80
123 - LATCH BDE-401176-00.A0 401176-00 -
125 - O RING BDE-935857-00.A14 935857-00 £1.50 £1.80
126 - WASHER BDE-949705-01.A7 949705-01 £1.50 £1.80
127 - PROTECTOR BDE-720703-00.A62 720703-00 £1.50 £1.80
128 - BEARING BDE-861721-13.A6 861721-13 £7.85 £9.42
129 - WASHER BDE-930117-00.A3 930117-00 -
130 - BEARING 608 BDE-N110358.A97 N110358 £3.32 £3.99
131 - SPINDLE BDE-947012-01.A4 947012-01 £25.70 £30.84
132 - BEARING BDE-861721-10.A6 861721-10 £7.85 £9.42
133 - CIRCLIP BDE-949729-02.A1 949729-02 £1.50 £1.80
134 - CIRCLIP BDE-949729-03.A24 949729-03 £1.50 £1.80
138 - BUMPER BDE-761306-00.A10 761306-00 £1.50 £1.80
139 - SCREW BDE-761307-00.A15 761307-00 -
140 - FSO SUPPORT SA BDE-401172-01.A0 401172-01 £187.30 £224.76
141 - KNOB BDE-941756-00.A106 941756-00 £1.50 £1.80
142 - LOCK NUT BDE-943016-00.A1 943016-00 £1.50 £1.80
143 - WASHER BDE-860226-02.A16 860226-02 £1.50 £1.80
144 - WASHER BDE-947290-01.A3 947290-01 £1.42 £1.70
145 - PIN BDE-947616-00.A2 947616-00 -
146 - CABLE CLAMP BDE-947021-00.A8 947021-00 £7.18 £8.62
147 - SCREW BDE-949894-12.A18 949894-12 £1.50 £1.80
148 - SCALE BDE-946862-01.A4 946862-01 £10.85 £13.02
149 - SCREW BDE-949743-02.A24 949743-02 £1.66 £1.99
150 - WASHER BDE-949613-01.A4 949613-01 £1.42 £1.70
151 - CHANGE LEVER SA BDE-947619-00.A1 947619-00 £5.72 £6.87
152 - PLATE BDE-947614-00.A27 947614-00 £2.08 £2.50
153 - SEAL BDE-947641-00.A0 947641-00 £1.42 £1.70
154 - BAFFLE BDE-947653-00.A2 947653-00 -
155 - SEAL BDE-947638-00.A3 947638-00 £1.50 £1.80
156 - BOLT BDE-946859-00.A1 946859-00 £10.57 £12.68
157 - FLANGE BDE-947017-00.A8 947017-00 -
158 - SCREW BDE-860094-03.A251 860094-03 £1.50 £1.80
161 - LOCKING DEVICE BDE-947617-01.A8 947617-01 -
164 - SPRING BDE-947642-00.A8 947642-00 £1.50 £1.80
165 - BAFFLE BDE-947573-00.A2 947573-00 -
166 - INSERT BDE-947018-00.A3 947018-00 £1.50 £1.80
167 - ADJUSTER BDE-946874-00.A3 946874-00 £1.66 £1.99
168 - SEAL BDE-947610-00.A8 947610-00 £1.42 £1.70
169 - SEAL BDE-401174-00.A10 401174-00 -
171 - SEAL BDE-947640-00.A9 947640-00 -
172 - SPRING BDE-947650-00.A8 947650-00 £10.85 £13.02
173 - WARNING LABEL MIN 5^ BDE-947752-00.A8 947752-00 -
175 - PIN BDE-760279-00.A1 760279-00 -
176 - O RING BDE-943030-00.A4 943030-00 £1.50 £1.80
177 - COVER BDE-868689-00.A7 868689-00 -
182 - COVER BDE-942577-01.A3 942577-01 -
183 - WASHER BDE-860073-01.A36 860073-01 £1.50 £1.80
184 - SCREW BDE-943023-00.A29 943023-00 £1.50 £1.80
185 - MAGNET BDE-947068-02.A4 947068-02 -
186 - MAGNET BDE-947068-02.A5 947068-02 -
187 - LEVER SA BDE-401177-02.A3 401177-02 -
188 - WASHER SPECIAL BDE-947868-01.A7 947868-01 £3.70 £4.44
189 - NUT BDE-860083-14.A40 860083-14 £1.50 £1.80
190 - SCREW BDE-760242-00.A17 760242-00 £1.50 £1.80
191 - BUSH BDE-401178-00.A6 401178-00 £10.57 £12.68
192 - SCREW BDE-949896-11.A23 949896-11 £1.50 £1.80
193 - SCREW BDE-949896-12.A105 949896-12 £1.50 £1.80
194 - WASHER SPRING BDE-944650-00.A17 944650-00 £1.50 £1.80
195 - SCREW BDE-401208-00.A0 401208-00 £1.42 £1.70
196 - SCREW BDE-860090-05.A3 860090-05 £1.50 £1.80
197 - WASHER BDE-720959-00.A28 720959-00 £1.50 £1.80
198 - PIN BDE-949739-01.A12 949739-01 £1.50 £1.80
199 - BUSH BDE-861736-00.A5 861736-00 £1.82 £2.19
836 - SPANNER TOOL BDE-279663-99.A8 279663-99 £72.28 £86.73
837 - SOCKET BDE-559506-99.A3 559506-99 £47.08 £56.49
838 - SOCKET BDE-559570-99.A13 559570-99 £47.08 £56.49
839 - BOLT BDE-559572-99.A7 559572-99 £10.85 £13.02
