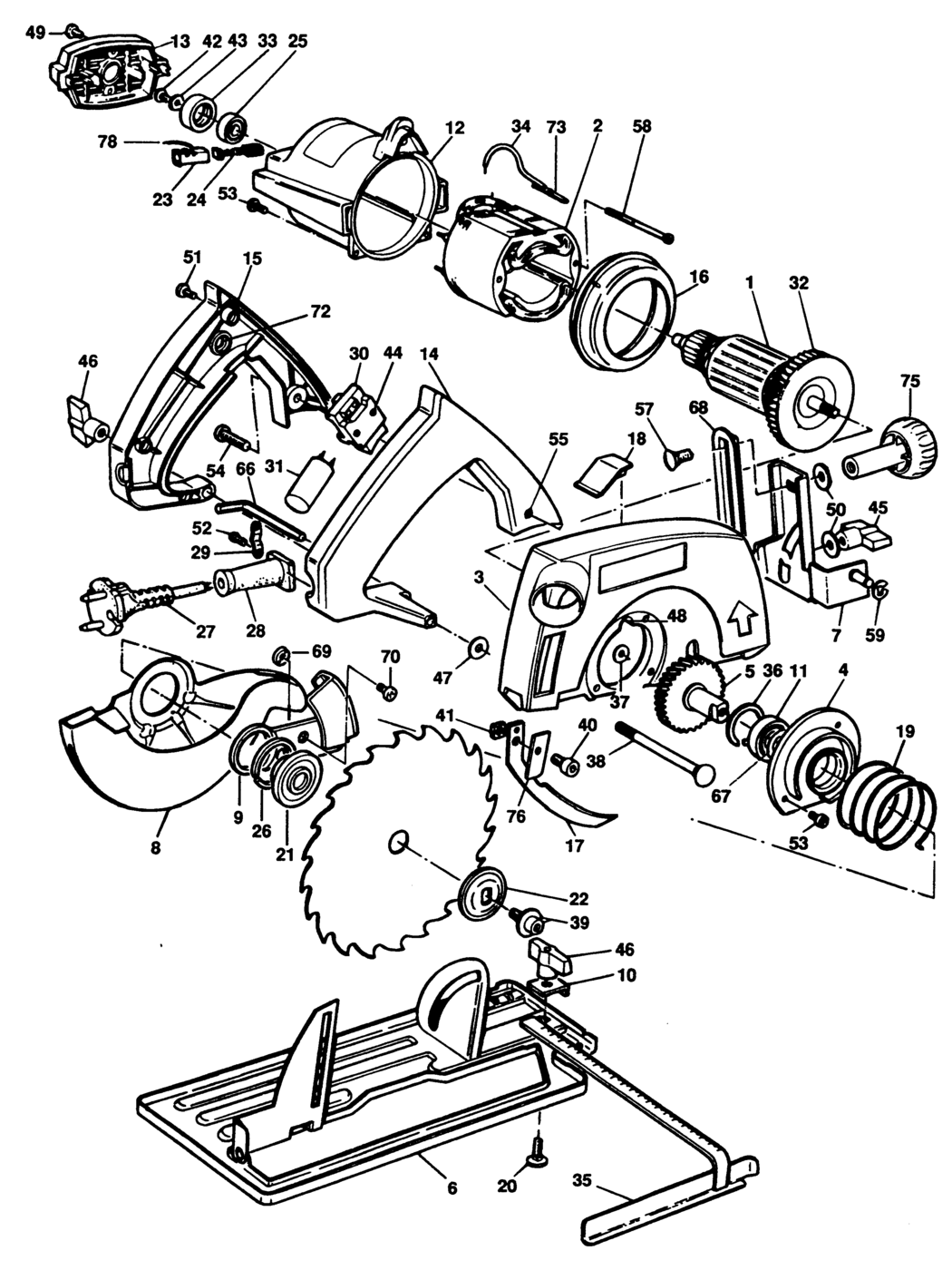

An exploded drawing and spare parts listing for the Black & Decker DN59 Type 1 Circ. Saw
Ex VAT Inc VAT
1 - ARMATURE 230V BDE-369454-13.A2 369454-13 -
2 - FIELD 230V BD59 FR (TY Y1-Y2) BDE-373007-13.A35 373007-13 -
2 - FIELD 230V BD59 FR (TY Y3) BDE-373007-13.A36 373007-13 -
2 - FIELD 230V BD59 SL-HU (TY Y1-2) BDE-373007-13.A37 373007-13 -
2 - FIELD 230V BD59 CH (TY Y1-Y2) BDE-373007-13.A38 373007-13 -
2 - FIELD 230V BD59 DE (TY Y1-Y2) BDE-373007-13.A39 373007-13 -
2 - FIELD 230V BD59 DE (TY Y3) BDE-373007-13.A40 373007-13 -
2 - FIELD 230V BD59 GB (TY Y1-Y2) BDE-373007-13.A41 373007-13 -
2 - FIELD 230V BD59 SL-HU (TY Y3) BDE-373007-13.A42 373007-13 -
2 - FIELD 230V BD59 CH (TY Y3) BDE-373007-13.A43 373007-13 -
3 - NO LONGER AVAILABLE BDE-000000-00.A70405 000000-00 -
4 - COVER GEARCASE BDE-876522.A0 876522 -
5 - NO LONGER AVAILABLE BDE-000000-00.A70390 000000-00 -
6 - NO LONGER AVAILABLE BD59 (TY Y1-Y2) BDE-000000-00.A70391 000000-00 -
6 - NO LONGER AVAILABLE DN59 BDE-000000-00.A70392 000000-00 -
6 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70393 000000-00 -
7 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70394 000000-00 -
7 - NO LONGER AVAILABLE BD59 (TY Y1-Y2) BDE-000000-00.A70395 000000-00 -
8 - NO LONGER AVAILABLE BDE-000000-00.A70396 000000-00 -
9 - NO LONGER AVAILABLE BDE-000000-00.A70397 000000-00 -
10 - NO LONGER AVAILABLE DN59 BDE-000000-00.A70398 000000-00 -
10 - CLAMP BD59 (TY Y1-Y2) BDE-328233-01.A11 328233-01 -
10 - CLAMP BD59 (TY Y3) BDE-328233-01.A12 328233-01 -
11 - BEARING BDE-915358.A0 915358 -
12 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70399 000000-00 -
12 - NO LONGER AVAILABLE BD59 (TY Y1-Y2) BDE-000000-00.A70400 000000-00 -
12 - NO LONGER AVAILABLE DN59 BDE-000000-00.A70401 000000-00 -
13 - NO LONGER AVAILABLE BDE-000000-00.A70402 000000-00 -
14 - NO LONGER AVAILABLE BDE-000000-00.A70403 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A70404 000000-00 -
16 - BAFFLE FAN BDE-916128.A47 916128 -
17 - NO LONGER AVAILABLE BDE-000000-00.A70406 000000-00 -
18 - NO LONGER AVAILABLE BDE-000000-00.A70407 000000-00 -
19 - SPRING BDE-912748-00.A7 912748-00 £1.42 £1.70
20 - NO LONGER AVAILABLE BDE-000000-00.A70410 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A70411 000000-00 -
22 - FLANGE BDE-911795.A34 911795 -
23 - NO LONGER AVAILABLE BD59 (TY Y1-Y2) BDE-000000-00.A70408 000000-00 -
23 - NO LONGER AVAILABLE DN59 BDE-000000-00.A70409 000000-00 -
23 - BRUSH & HOLDER 230V BD59 (TY Y3) BDE-324826-00.A12 324826-00 £5.88 £7.06
24 - BRUSH BD59 (TY Y1-Y2) BDE-914633.A14 914633 £7.85 £9.42
24 - BRUSH DN59 BDE-914633.A15 914633 £7.85 £9.42
25 - BEARING BDE-330003-31.A160 330003-31 £2.78 £3.34
26 - CIRCLIP BDE-913784.A6 913784 £1.42 £1.70
27 - NO LONGER AVAILABLE BD59 CH (TY Y3) BDE-000000-00.A70412 000000-00 -
27 - NO LONGER AVAILABLE BD59 FR (TY Y1-Y2) BDE-000000-00.A70413 000000-00 -
27 - NO LONGER AVAILABLE BD59 SL-HU (TY Y3) BDE-000000-00.A70414 000000-00 -
27 - NO LONGER AVAILABLE BD59 CH (TY Y1-Y2) BDE-000000-00.A70415 000000-00 -
27 - NO LONGER AVAILABLE BD59 DE (TY Y3) BDE-000000-00.A70416 000000-00 -
27 - NO LONGER AVAILABLE BD59 FR (TY Y3) BDE-000000-00.A70417 000000-00 -
27 - NO LONGER AVAILABLE BD59 GB (TY Y1-Y2) BDE-000000-00.A70418 000000-00 -
27 - NO LONGER AVAILABLE BD59 SL-HU (TY Y1-2) BDE-000000-00.A70419 000000-00 -
28 - NO LONGER AVAILABLE BD59 DE (TY Y1-Y2) BDE-000000-00.A70420 000000-00 -
28 - NO LONGER AVAILABLE BD59 GB (TY Y1-Y2) BDE-000000-00.A70421 000000-00 -
28 - NO LONGER AVAILABLE BD59 DE (TY Y3) BDE-000000-00.A70422 000000-00 -
28 - CORD PROTECTOR BD59 CH (TY Y3) BDE-916968.A38 916968 -
28 - NO LONGER AVAILABLE BD59 FR (TY Y1-Y2) BDE-000000-00.A70432 000000-00 -
28 - NO LONGER AVAILABLE BD59 SL-HU (TY Y1-2) BDE-000000-00.A70433 000000-00 -
28 - NO LONGER AVAILABLE BD59 SL-HU (TY Y3) BDE-000000-00.A70434 000000-00 -
28 - CORD PROTECTOR BD59 CH (TY Y1-Y2) BDE-916968.A39 916968 -
28 - NO LONGER AVAILABLE BD59 FR (TY Y3) BDE-000000-00.A70447 000000-00 -
29 - CABLE CLAMP BDE-910556.A16 910556 £1.42 £1.70
30 - NO LONGER AVAILABLE BD59 FR (TY Y3) BDE-000000-00.A70423 000000-00 -
30 - NO LONGER AVAILABLE BD59 GB (TY Y1-Y2) BDE-000000-00.A70424 000000-00 -
30 - NO LONGER AVAILABLE BD59 SL-HU (TY Y1-2) BDE-000000-00.A70425 000000-00 -
30 - NO LONGER AVAILABLE BD59 CH (TY Y3) BDE-000000-00.A70426 000000-00 -
30 - NO LONGER AVAILABLE BD59 DE (TY Y1-Y2) BDE-000000-00.A70427 000000-00 -
30 - NO LONGER AVAILABLE BD59 FR (TY Y1-Y2) BDE-000000-00.A70428 000000-00 -
30 - NO LONGER AVAILABLE BD59 SL-HU (TY Y3) BDE-000000-00.A70429 000000-00 -
30 - NO LONGER AVAILABLE BD59 CH (TY Y1-Y2) BDE-000000-00.A70430 000000-00 -
30 - NO LONGER AVAILABLE BD59 DE (TY Y3) BDE-000000-00.A70431 000000-00 -
31 - CAPACITOR BDE-321384.A15 321384 £1.50 £1.80
33 - HOLDER BDE-911897.A5 911897 -
34 - NO LONGER AVAILABLE BDE-000000-00.A70435 000000-00 -
35 - NO LONGER AVAILABLE BDE-000000-00.A70436 000000-00 -
36 - NO LONGER AVAILABLE BD59 (TY Y1-Y2) BDE-000000-00.A70437 000000-00 -
36 - NO LONGER AVAILABLE DN59 BDE-000000-00.A70438 000000-00 -
36 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70439 000000-00 -
37 - BEARING BDE-910560.A51 910560 £1.50 £1.80
38 - NO LONGER AVAILABLE BDE-000000-00.A70440 000000-00 -
39 - NO LONGER AVAILABLE BDE-000000-00.A70441 000000-00 -
40 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70442 000000-00 -
40 - NO LONGER AVAILABLE BD59 (TY Y1-Y2) BDE-000000-00.A70443 000000-00 -
40 - NO LONGER AVAILABLE DN59 BDE-000000-00.A70444 000000-00 -
41 - NO LONGER AVAILABLE BDE-000000-00.A70445 000000-00 -
42 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70446 000000-00 -
42 - SCREW BD59 (TY Y1-Y2) BDE-911276.A105 911276 £1.42 £1.70
42 - SCREW DN59 BDE-911276.A106 911276 £1.42 £1.70
43 - WASHER BD59 (TY Y3) BDE-725165.A12 725165 £1.50 £1.80
43 - WASHER BD59 (TY Y1-Y2) BDE-330016-01.A65 330016-01 £1.50 £1.80
43 - WASHER DN59 BDE-330016-01.A66 330016-01 £1.50 £1.80
44 - SCREW BDE-911026.A226 911026 £1.50 £1.80
45 - NO LONGER AVAILABLE BDE-000000-00.A70448 000000-00 -
46 - NUT WING BDE-915848.A2 915848 -
47 - WING NUT BDE-478905-00.A9 478905-00 -
48 - BEARING NEEDLE BDE-330004-31.A18 330004-31 £3.80 £4.56
49 - SCREW BDE-894748.A102 894748 £1.42 £1.70
50 - WASHER BDE-249092-20.A5 249092-20 £1.42 £1.70
51 - NO LONGER AVAILABLE BDE-000000-00.A70449 000000-00 -
52 - SCREW BDE-911059.A53 911059 £1.42 £1.70
53 - NO LONGER AVAILABLE BDE-000000-00.A70450 000000-00 -
54 - NO LONGER AVAILABLE BDE-000000-00.A70451 000000-00 -
55 - NO LONGER AVAILABLE BDE-000000-00.A70452 000000-00 -
57 - SCREW BDE-860301-00.A195 860301-00 £1.50 £1.80
58 - NO LONGER AVAILABLE BDE-000000-00.A70480 000000-00 -
59 - NO LONGER AVAILABLE BDE-000000-00.A70481 000000-00 -
66 - HEX KEY BDE-322929.A25 322929 -
67 - WASHER BDE-910623.A1 910623 -
68 - INSERT BDE-917101.A6 917101 £1.78 £2.13
69 - NO LONGER AVAILABLE BDE-000000-00.A70482 000000-00 -
70 - SCREW BDE-911141.A0 911141 £1.50 £1.80
72 - NO LONGER AVAILABLE BD59 CH (TY Y1-Y2) BDE-000000-00.A70453 000000-00 -
72 - NO LONGER AVAILABLE BD59 SL-HU (TY Y1-2) BDE-000000-00.A70454 000000-00 -
72 - NO LONGER AVAILABLE BD59 DE (TY Y1-Y2) BDE-000000-00.A70455 000000-00 -
72 - NO LONGER AVAILABLE BD59 GB (TY Y1-Y2) BDE-000000-00.A70456 000000-00 -
73 - NO LONGER AVAILABLE BDE-000000-00.A70457 000000-00 -
76 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70458 000000-00 -
78 - NO LONGER AVAILABLE BD59 (TY Y3) BDE-000000-00.A70459 000000-00 -
