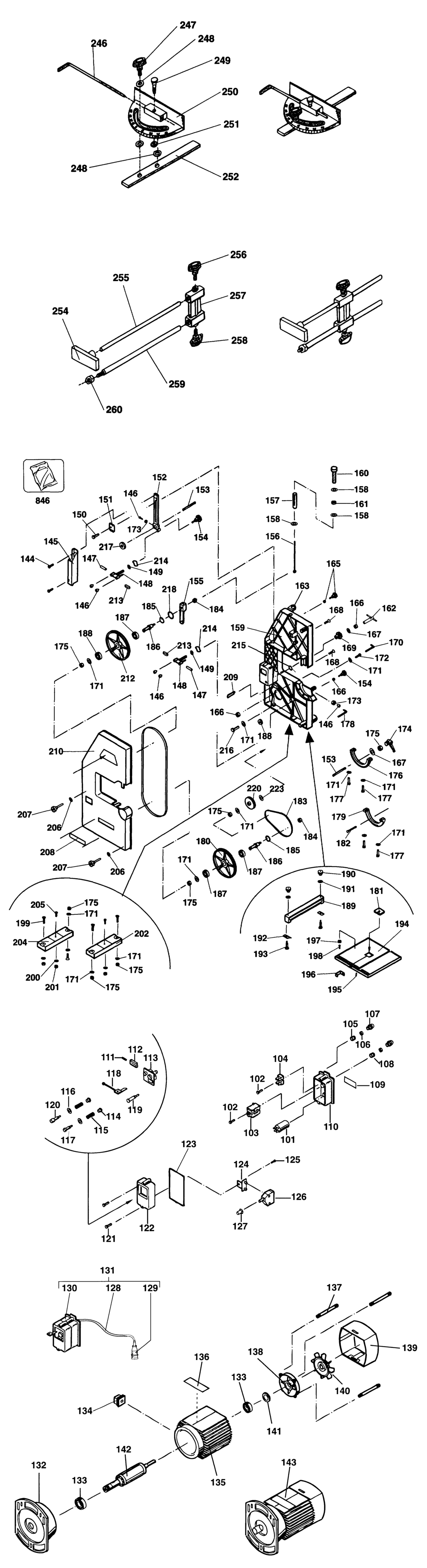

An exploded drawing and spare parts listing for the Black & Decker P3315 Type 1 Bandsaw
Ex VAT Inc VAT
101 - NO LONGER AVAILABLE EBS3401 / P3315 BDE-000000-00.A73958 000000-00 -
102 - SCREW BDE-860084-08.A15 860084-08 £1.50 £1.80
103 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A73959 000000-00 -
103 - NO LONGER AVAILABLE EBS3401 ES BDE-000000-00.A73960 000000-00 -
103 - NO LONGER AVAILABLE EBS3401 UK BDE-000000-00.A73961 000000-00 -
103 - NO LONGER AVAILABLE EBS3403 BDE-000000-00.A73962 000000-00 -
104 - CONNECTOR EBS3403 BDE-860468-02.A12 860468-02 £1.50 £1.80
105 - BUSHING BDE-860452-00.A6 860452-00 £1.50 £1.80
106 - CLAMP BDE-860463-00.A5 860463-00 £1.50 £1.80
107 - NUT BDE-860462-00.A17 860462-00 £1.50 £1.80
108 - GASKET BDE-860452-01.A16 860452-01 £1.50 £1.80
109 - NO LONGER AVAILABLE EBS3401 ES BDE-000000-00.A73963 000000-00 -
109 - NO LONGER AVAILABLE EBS3401 UK BDE-000000-00.A73964 000000-00 -
109 - NO LONGER AVAILABLE EBS3403 ES BDE-000000-00.A73965 000000-00 -
110 - NO LONGER AVAILABLE BDE-000000-00.A73966 000000-00 -
111 - SPRING BDE-860112-06.A7 860112-06 £1.50 £1.80
112 - BLOCKING DEVICE BDE-860469-00.A6 860469-00 £16.03 £19.24
113 - SWITCHBOX BDE-860461-01.A5 860461-01 £10.85 £13.02
114 - GASKET BDE-860466-00.A17 860466-00 £1.50 £1.80
115 - SPRING BDE-860112-05.A16 860112-05 £1.66 £1.99
116 - WASHER BDE-860077-01.A52 860077-01 £1.50 £1.80
117 - BUTTON BDE-860464-00.A17 860464-00 £1.66 £1.99
118 - SAFETY KEY BDE-863301-00.A19 863301-00 £14.57 £17.48
119 - NO LONGER AVAILABLE EBS3403 BDE-000000-00.A73967 000000-00 -
119 - NEON EBS3401 / P3315 BDE-949785-02.A19 949785-02 £3.80 £4.56
120 - BUTTON BDE-860465-00.A5 860465-00 £1.66 £1.99
121 - SCREW BDE-860084-17.A3 860084-17 £1.50 £1.80
122 - COVER BDE-860460-00.A12 860460-00 £3.80 £4.56
123 - GASKET BDE-863122-01.A9 863122-01 £3.80 £4.56
124 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A9137 000000-00 -
125 - SCREW C/W MICRO SWITCH BDE-860084-04.A34 860084-04 £1.50 £1.80
126 - MICRO SWITCH C/W MICRO SWITCH BDE-863124-15.A5 863124-15 -
127 - NO LONGER AVAILABLE C/W MICRO SWITCH BDE-000000-00.A9138 000000-00 -
128 - NO LONGER AVAILABLE EBS3403 BDE-000000-00.A9139 000000-00 -
128 - CABLE SA EBS3401 EURO BDE-860472-00.A17 860472-00 £24.39 £29.27
129 - PLUG 3 PHASE EBS3403 BDE-860637-00.A8 860637-00 £14.57 £17.48
130 - NO LONGER AVAILABLE EBS3401 ES BDE-000000-00.A9140 000000-00 -
130 - NO LONGER AVAILABLE EBS3403 BDE-000000-00.A9141 000000-00 -
130 - SWITCHBOX SA EBS3401 UK BDE-864519-29.A8 864519-29 -
131 - NO LONGER AVAILABLE EBS3401 UK BDE-000000-00.A9142 000000-00 -
131 - SWITCHBOX SA EBS3401 ES BDE-864519-29.A7 864519-29 -
131 - NO LONGER AVAILABLE EBS3403 BDE-000000-00.A9143 000000-00 -
132 - CALOTTE FRONT BDE-860442-01.A7 860442-01 £24.39 £29.27
133 - BEARING BDE-868768-07.A47 868768-07 £7.85 £9.42
134 - BUSHING BDE-860447-00.A34 860447-00 £7.85 £9.42
135 - NO LONGER AVAILABLE EBS3403 BDE-000000-00.A9144 000000-00 -
135 - STATOR SA EBS3401 / P3315 BDE-868412-01.A19 868412-01 £157.18 £188.61
136 - NO LONGER AVAILABLE EBS3401 UK BDE-000000-00.A9145 000000-00 -
136 - NO LONGER AVAILABLE EBS3401 ES BDE-000000-00.A9146 000000-00 -
136 - NO LONGER AVAILABLE EBS3403 ES BDE-000000-00.A9147 000000-00 -
137 - TIE ROD BDE-863119-00.A16 863119-00 £1.50 £1.80
138 - END CAP BDE-860443-00.A35 860443-00 £4.69 £5.63
139 - COVER BDE-860445-00.A47 860445-00 £7.18 £8.62
140 - FAN BDE-860444-00.A32 860444-00 £4.69 £5.63
141 - RING BDE-860080-02.A85 860080-02 £1.50 £1.80
142 - ROTOR BDE-868532-00.A3 868532-00 £71.44 £85.73
143 - NO LONGER AVAILABLE EBS3403 BDE-000000-00.A9148 000000-00 -
143 - MOTOR SA 230V EBS3401 / P3315 BDE-868392-03.A1 868392-03 £393.38 £472.06
144 - SCREW BDE-860428-00.A31 860428-00 £1.50 £1.80
145 - GUARD BDE-863263-01.A21 863263-01 £10.85 £13.02
146 - SCREW BDE-949853-02.A10 949853-02 £1.50 £1.80
147 - GUIDE BLOCK BDE-863797-00.A8 863797-00 £2.08 £2.50
148 - GUIDE BLOCK BDE-862183-01.A21 862183-01 £9.41 £11.29
149 - RETAINER BDE-860077-00.A13 860077-00 £1.50 £1.80
150 - SCREW BDE-949891-04.A21 949891-04 £1.82 £2.19
151 - PLATE BDE-863126-00.A11 863126-00 £3.80 £4.56
152 - ROD BDE-862012-01.A8 862012-01 £16.03 £19.24
153 - PIN BDE-863795-00.A9 863795-00 £3.80 £4.56
154 - ADJUSTER BDE-863128-00.A11 863128-00 £16.03 £19.24
155 - BRACKET BDE-862188-00.A15 862188-00 £14.57 £17.48
156 - SCREW BDE-949891-02.A19 949891-02 £7.85 £9.42
157 - SPRING BDE-949722-04.A8 949722-04 £3.30 £3.96
158 - WASHER BDE-860073-14.A55 860073-14 £1.50 £1.80
159 - NO LONGER AVAILABLE BDE-000000-00.A9149 000000-00 -
160 - KNOB BDE-863471-00.A4 863471-00 £17.48 £20.97
161 - BEARING BDE-949755-02.A19 949755-02 £4.69 £5.63
162 - SPANNER BOX BDE-869235-00.A45 869235-00 £17.48 £20.97
163 - GUIDE BDE-863287-00.A8 863287-00 £1.50 £1.80
164 - NUT M6 BDE-860083-12.A35 860083-12 £1.50 £1.80
165 - KNOB SA BDE-863468-03.A10 863468-03 £1.50 £1.80
166 - NUT BDE-860092-01.A1 860092-01 £1.50 £1.80
167 - WASHER BDE-941602-00.A196 941602-00 £1.50 £1.80
168 - SCREW.TEMP BDE-860094-00.A80 860094-00 £1.50 £1.80
169 - KNOB SA BDE-863697-00.A9 863697-00 £5.88 £7.06
170 - WRENCH 6 MM BDE-860098-04.A103 860098-04 £1.50 £1.80
171 - WASHER BDE-860074-03.A316 860074-03 £1.50 £1.80
172 - SCREW BDE-860093-00.A50 860093-00 £1.50 £1.80
173 - NUT M5 BDE-860083-18.A35 860083-18 £1.50 £1.80
174 - NO LONGER AVAILABLE BDE-000000-00.A9150 000000-00 -
175 - NUT BDE-860083-04.A218 860083-04 £1.50 £1.80
176 - SERVICE KIT BDE-869431-00.A23 869431-00 £30.08 £36.10
177 - BOLT BDE-860085-03.A80 860085-03 £1.50 £1.80
178 - HEX KEY BDE-949882-03.A12 949882-03 £1.50 £1.80
179 - SERVICE KIT BDE-869431-00.A22 869431-00 £30.08 £36.10
180 - WHEEL DRIVING SA BDE-864550-02.A9 864550-02 £93.62 £112.35
181 - INSERT BDE-863467-00.A15 863467-00 £3.80 £4.56
182 - SCREW BDE-949891-07.A0 949891-07 £1.82 £2.19
183 - BELT BDE-N230396.A7 N230396 £24.39 £29.27
184 - NUT RH BDE-860083-05.A100 860083-05 £1.50 £1.80
185 - RING BDE-949745-01.A9 949745-01 £1.82 £2.19
186 - AXLE BANDWHEEL BDE-863299-00.A11 863299-00 £10.85 £13.02
187 - BEARING BDE-861721-06.A8 861721-06 £7.85 £9.42
188 - BEARING 608 BDE-N110358.A34 N110358 £3.32 £3.99
189 - SERVICE KIT BDE-869175-00.A5 869175-00 £34.00 £40.80
190 - KNOB BDE-946469-00.A60 946469-00 £1.50 £1.80
191 - WASHER BDE-860075-00.A145 860075-00 £1.50 £1.80
192 - CLAMP BDE-862205-90.A11 862205-90 £1.82 £2.19
193 - SCREW BDE-949702-17.A7 949702-17 -
194 - TABLE BDE-862203-02.A8 862203-02 £84.42 £101.30
195 - PIN BDE-949734-05.A11 949734-05 -
196 - PLATE BDE-863257-00.A8 863257-00 £1.50 £1.80
197 - SCREW BDE-949853-09.A14 949853-09 £1.50 £1.80
198 - INSERT BDE-949760-02.A19 949760-02 £1.50 £1.80
199 - BOLT BDE-860301-09.A22 860301-09 £1.50 £1.80
200 - WASHER BDE-860073-04.A36 860073-04 £1.50 £1.80
201 - NUT RH BDE-860083-05.A101 860083-05 £1.50 £1.80
202 - NO LONGER AVAILABLE BDE-000000-00.A9151 000000-00 -
203 - SCREW BDE-942043-00.A51 942043-00 £1.50 £1.80
204 - NO LONGER AVAILABLE BDE-000000-00.A9152 000000-00 -
205 - SCREW BDE-860085-01.A9 860085-01 £1.50 £1.80
206 - RETAINER BDE-949745-02.A11 949745-02 -
207 - KNOB BDE-863468-02.A3 863468-02 £1.50 £1.80
208 - NO LONGER AVAILABLE BDE-000000-00.A9153 000000-00 -
209 - BRUSH BDE-863801-00.A14 863801-00 £3.30 £3.96
210 - NO LONGER AVAILABLE BDE-000000-00.A9154 000000-00 -
212 - WHEEL DRIVING SA BDE-864550-01.A9 864550-01 £87.82 £105.39
213 - GUIDE BLOCK BDE-863796-00.A13 863796-00 £2.08 £2.50
214 - SPRING BDE-949873-01.A9 949873-01 £1.50 £1.80
215 - RING BDE-949727-03.A18 949727-03 £1.50 £1.80
216 - SCREW BDE-860093-04.A23 860093-04 £1.82 £2.19
217 - BEARING 608 BDE-N110358.A33 N110358 £3.32 £3.99
218 - WASHER BDE-860076-03.A12 860076-03 £1.50 £1.80
220 - PULLEY BDE-862185-00.A0 862185-00 £16.03 £19.24
223 - WASHER SPACER BDE-860073-06.A29 860073-06 £1.50 £1.80
246 - GAUGE E37460 BDE-863844-00.A4 863844-00 £10.85 £13.02
247 - KNOB E37460 BDE-861452-01.A13 861452-01 £1.82 £2.19
248 - WASHER E37460 BDE-860074-03.A317 860074-03 £1.50 £1.80
249 - NO LONGER AVAILABLE E37460 BDE-000000-00.A9155 000000-00 -
250 - PLATE E37460 BDE-862007-01.A11 862007-01 £7.85 £9.42
251 - NUT E37460 BDE-860083-03.A249 860083-03 £1.50 £1.80
252 - BAR E37460 BDE-863803-00.A5 863803-00 £17.48 £20.97
254 - NO LONGER AVAILABLE E37462 BDE-000000-00.A9156 000000-00 -
255 - NO LONGER AVAILABLE E37462 BDE-000000-00.A9157 000000-00 -
256 - NO LONGER AVAILABLE E37462 BDE-000000-00.A9158 000000-00 -
257 - NO LONGER AVAILABLE E37462 BDE-000000-00.A9159 000000-00 -
258 - NO LONGER AVAILABLE E37462 BDE-000000-00.A9160 000000-00 -
259 - NO LONGER AVAILABLE E37462 BDE-000000-00.A9161 000000-00 -
260 - NUT E37462 BDE-949726-07.A6 949726-07 £1.50 £1.80
846 - PARTS PACK SA BDE-864782-01.A6 864782-01 £34.00 £40.80
