Elu MH85 Type 1 Circ. Saw Spare Parts

Home Details Reviews Delivery

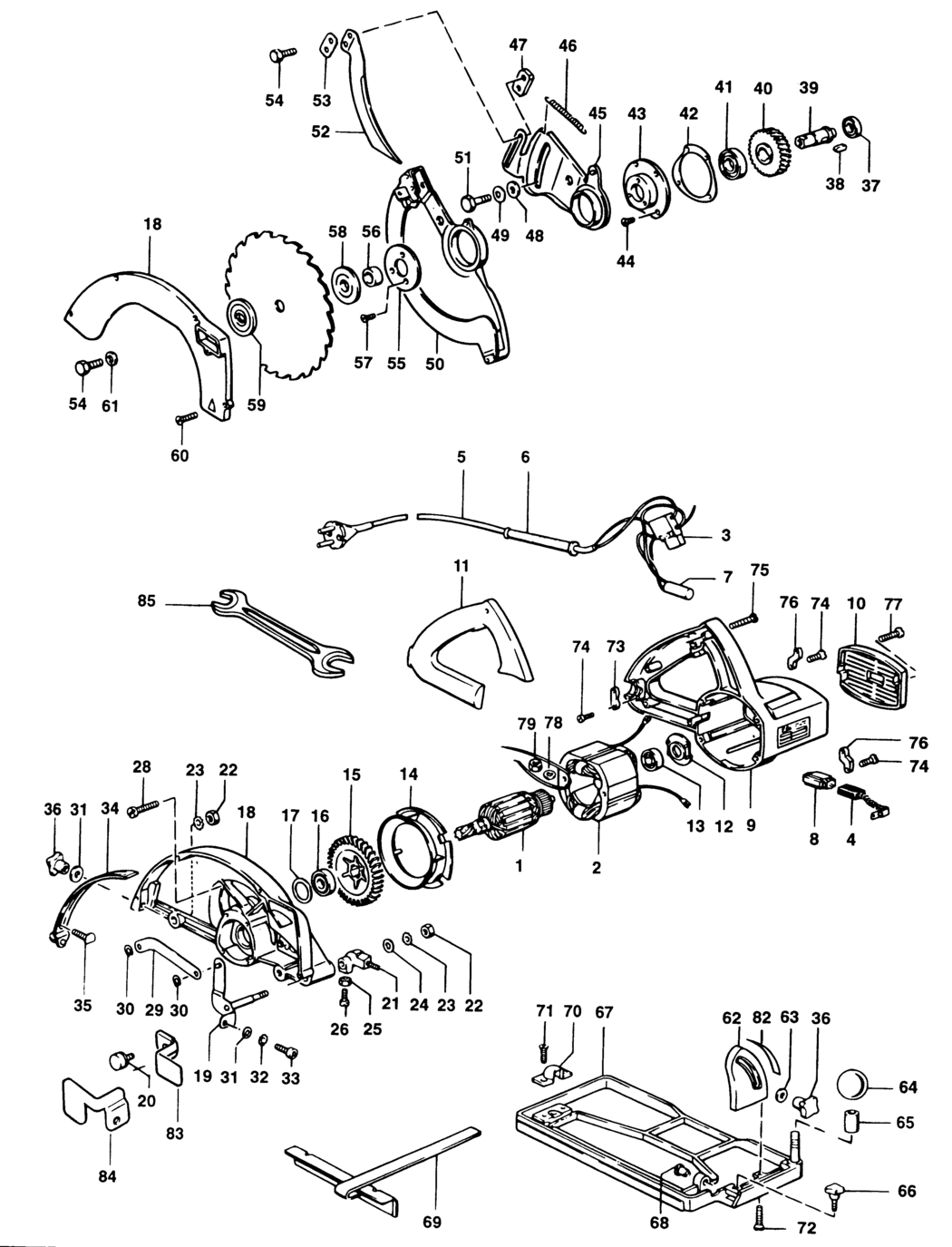

An exploded drawing and spare parts listing for the Elu MH85 Type 1 Circ. Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A17477 000000-00	-
1 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A17478 000000-00	-
2 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A17479 000000-00	-
2 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A17480 000000-00	-
3 - SWITCH GB 115V BDE-864720-05.A21 864720-05	-
3 - SWITCH GB 240V BDE-864720-05.A22 864720-05	-
4 - BRUSH 115V 115 VOLT BDE-940146-01.A13 940146-01	£9.41	£11.29
4 - BRUSH 230V 220 VOLT BDE-941618-00.A1 941618-00	£5.88	£7.06
5 - CORDSET GB 115V BDE-378990.A43 378990	£9.41	£11.29
5 - CORDSET GB 240V BDE-379092.A19 379092	£19.40	£23.28
6 - PROTECTOR BDE-720703-00.A37 720703-00	£1.50	£1.80
7 - CAPACITOR BDE-320842-03.A70 320842-03	-
8 - BRUSHBOX SA BDE-761202-00.A56 761202-00	£3.30	£3.96
9 - NO LONGER AVAILABLE BDE-000000-00.A17481 000000-00	-
11 - NO LONGER AVAILABLE BDE-000000-00.A17482 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A17483 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A17484 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A17485 000000-00	-
16 - BEARING BDE-868768-07.A83 868768-07	£7.85	£9.42
17 - NO LONGER AVAILABLE BDE-000000-00.A17486 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A17487 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A17488 000000-00	-
20 - FOOT BDE-941614-00.A43 941614-00	£1.50	£1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A17489 000000-00	-
22 - NUT BDE-249411-10.A8 249411-10	-
23 - WASHER BDE-860078-02.A18 860078-02	£1.50	£1.80
24 - SPRING BDE-860491-01.A21 860491-01	£1.50	£1.80
25 - NUT BDE-860083-02.A124 860083-02	£1.50	£1.80
26 - SCREW BDE-249424-21.A3 249424-21	£1.42	£1.70
28 - NO LONGER AVAILABLE BDE-000000-00.A17490 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A17491 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A17492 000000-00	-
31 - WASHER M6 BDE-249221-00.A116 249221-00	£1.50	£1.80
32 - WASHER BDE-743415.A52 743415	£1.50	£1.80
33 - SCREW BDE-249408-10.A8 249408-10	-
34 - NO LONGER AVAILABLE BDE-000000-00.A17505 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A17506 000000-00	-
36 - KNOB BDE-941536-01.A16 941536-01	£1.42	£1.70
37 - BEARING 6001 RSZ BDE-050830000.A26 050830000	-
38 - KEY BDE-021827000.A8 021827000	£3.70	£4.44
39 - NO LONGER AVAILABLE BDE-000000-00.A17507 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A17508 000000-00	-
41 - BEARING BDE-861721-12.A66 861721-12	£7.85	£9.42
42 - NO LONGER AVAILABLE BDE-000000-00.A17493 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A17494 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A17495 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A17496 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A17497 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A17498 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A17499 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A17500 000000-00	-
50 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17501 000000-00	-
50 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A17502 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A17503 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A17504 000000-00	-
54 - SCREW BDE-249409-10.A8 249409-10	-
55 - NO LONGER AVAILABLE BDE-000000-00.A17509 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A17510 000000-00	-
57 - SCREW BDE-249412-10.A16 249412-10	£1.50	£1.80
59 - NO LONGER AVAILABLE BDE-000000-00.A17511 000000-00	-
60 - SCREW BDE-249413-03.A5 249413-03	£1.50	£1.80
61 - WASHER BDE-249218-00.A7 249218-00	£1.42	£1.70
62 - NO LONGER AVAILABLE BDE-000000-00.A17512 000000-00	-
63 - WASHER BDE-249092-20.A7 249092-20	£1.42	£1.70
64 - NO LONGER AVAILABLE BDE-000000-00.A17513 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A17514 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A17515 000000-00	-
68 - NO LONGER AVAILABLE BDE-000000-00.A17516 000000-00	-
69 - FENCE BDE-249226-00.A21 249226-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A17517 000000-00	-
71 - NO LONGER AVAILABLE BDE-000000-00.A17518 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A17519 000000-00	-
73 - CABLE CLAMP BDE-910556.A84 910556	£1.42	£1.70
74 - SCREW BDE-249416-06.A51 249416-06	£1.42	£1.70
75 - SCREW BDE-249220-00.A13 249220-00	£1.50	£1.80
76 - NO LONGER AVAILABLE BDE-000000-00.A17520 000000-00	-
77 - SCREW BDE-949896-11.A12 949896-11	£1.50	£1.80
78 - NO LONGER AVAILABLE BDE-000000-00.A17530 000000-00	-
79 - NUT M4 BDE-249232-00.A1 249232-00	£1.42	£1.70
82 - NO LONGER AVAILABLE BDE-000000-00.A17521 000000-00	-
83 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A17522 000000-00	-
83 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17523 000000-00	-
84 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17524 000000-00	-
84 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A17525 000000-00	-
85 - SPANNER 13-17MM BDE-941580-00.A27 941580-00	£7.85	£9.42

Attribute Name	Value
Brand	Elu
