Elu ST18K Type 1 Cordless Jigsaw Spare Parts

Home Details Reviews Delivery

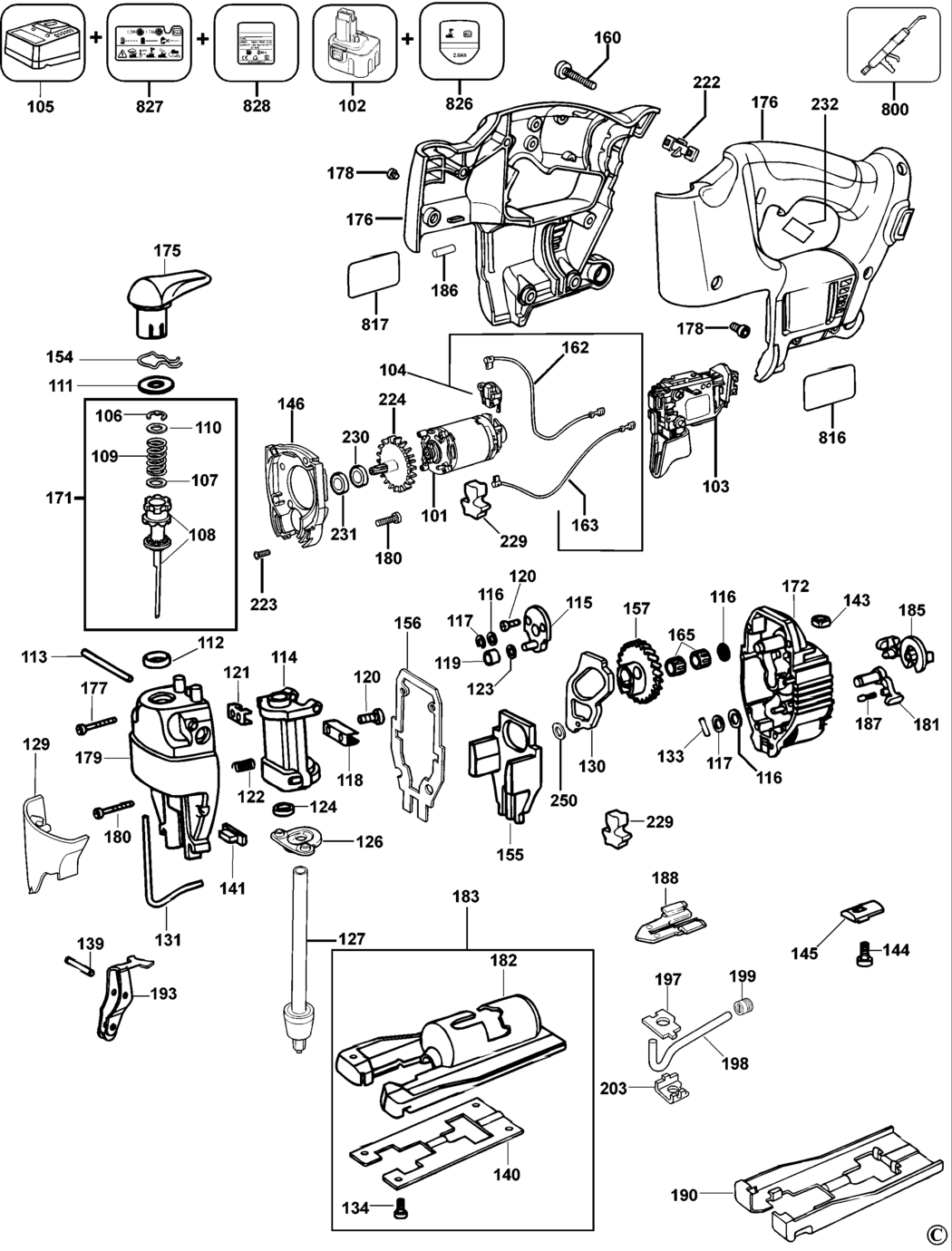

An exploded drawing and spare parts listing for the Elu ST18K Type 1 Cordless Jigsaw

	Ex VAT	Inc VAT
101 - MOTOR SA BDE-606047-00SV.A1 606047-00SV	-
103 - SWITCH BDE-152274-19SV.A26 152274-19SV	£43.02	£51.63
104 - BRUSH PAIR BDE-389025-01.A1 389025-01	-
106 - CIRCLIP BDE-860322-01.A21 860322-01	£1.50	£1.80
107 - WASHER BDE-388957-00.A2 388957-00	£1.42	£1.70
108 - CLUTCH SA BDE-402960-00.A8 402960-00	£24.39	£29.27
109 - SPRING BDE-402110-00.A8 402110-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A51047 000000-00	-
111 - WASHER BDE-949876-21.A3 949876-21	£1.42	£1.70
112 - NO LONGER AVAILABLE BDE-000000-00.A51048 000000-00	-
113 - NO LONGER AVAILABLE BDE-000000-00.A51049 000000-00	-
114 - NO LONGER AVAILABLE BDE-000000-00.A51050 000000-00	-
115 - ECCENTRIC SA BDE-402161-00SV.A20 402161-00SV	-
116 - WASHER BDE-932302-00.A32 932302-00	£1.50	£1.80
117 - CIRCLIP BDE-949728-04.A20 949728-04	-
118 - YOKE BDE-402118-00.A18 402118-00	-
119 - BUSH BDE-402155-00.A20 402155-00	£14.19	£17.03
120 - SCREW TORX BDE-N056875.A28 N056875	£1.50	£1.80
121 - CLAMP BDE-399146-00.A5 399146-00	£1.82	£2.19
122 - NO LONGER AVAILABLE BDE-000000-00.A51051 000000-00	-
123 - WASHER BDE-949876-20.A23 949876-20	-
124 - NO LONGER AVAILABLE BDE-000000-00.A51052 000000-00	-
126 - NO LONGER AVAILABLE BDE-000000-00.A51053 000000-00	-
127 - NO LONGER AVAILABLE BDE-000000-00.A51054 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A51055 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A51056 000000-00	-
131 - GUARD BDE-402116-00.A10 402116-00	£3.70	£4.44
133 - PIN BDE-330041-08.A1 330041-08	-
134 - SCREW TORX FROM DC 9913 BDE-N056875.A27 N056875	£1.50	£1.80
139 - PIN BDE-330041-29.A5 330041-29	£1.50	£1.80
140 - NO LONGER AVAILABLE FROM DC 9913 BDE-000000-00.A51057 000000-00	-
141 - NO LONGER AVAILABLE BDE-000000-00.A51058 000000-00	-
143 - NO LONGER AVAILABLE BDE-000000-00.A51059 000000-00	-
144 - NO LONGER AVAILABLE BDE-000000-00.A51060 000000-00	-
145 - PLATE BDE-402652-00.A2 402652-00	-
146 - NO LONGER AVAILABLE BDE-000000-00.A51061 000000-00	-
154 - SPRING BDE-402111-00.A11 402111-00	-
155 - NO LONGER AVAILABLE BDE-000000-00.A51062 000000-00	-
156 - NO LONGER AVAILABLE BDE-000000-00.A51063 000000-00	-
157 - GEAR SA BDE-611147-00.A9 611147-00	£17.48	£20.97
160 - SCREW BDE-330065-07.A93 330065-07	£1.50	£1.80
162 - NO LONGER AVAILABLE BRASS BOX ONLY BDE-000000-00.A51064 000000-00	-
163 - NO LONGER AVAILABLE BRASS BOX ONLY BDE-000000-00.A51065 000000-00	-
165 - NO LONGER AVAILABLE BDE-000000-00.A51066 000000-00	-
171 - CLUTCH SA BDE-402158-03.A6 402158-03	-
172 - NO LONGER AVAILABLE BDE-000000-00.A51067 000000-00	-
175 - NO LONGER AVAILABLE BDE-000000-00.A51068 000000-00	-
176 - NO LONGER AVAILABLE BDE-000000-00.A51069 000000-00	-
177 - SCREW BDE-330045-09.A3 330045-09	£1.50	£1.80
178 - SCREW BDE-330045-45.A25 330045-45	£1.50	£1.80
179 - NO LONGER AVAILABLE BDE-000000-00.A51079 000000-00	-
180 - SCREW BDE-330045-15.A171 330045-15	£1.50	£1.80
181 - NO LONGER AVAILABLE BDE-000000-00.A51070 000000-00	-
182 - NO LONGER AVAILABLE FROM DC 9913 BDE-000000-00.A51071 000000-00	-
183 - NO LONGER AVAILABLE UPTO DC 9912 BDE-000000-00.A51072 000000-00	-
185 - NO LONGER AVAILABLE BDE-000000-00.A51073 000000-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A51074 000000-00	-
187 - DETENT BDE-326467-00.A119 326467-00	£1.50	£1.80
188 - ANTI SPLINTER DEVICE BDE-402140-00.A27 402140-00	£1.82	£2.19
190 - NO LONGER AVAILABLE BDE-000000-00.A51075 000000-00	-
193 - NO LONGER AVAILABLE BDE-000000-00.A51076 000000-00	-
197 - NO LONGER AVAILABLE BDE-000000-00.A51077 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A51078 000000-00	-
199 - LEVER BDE-493248-00.A0 493248-00	£3.80	£4.56
203 - PLATE BDE-402149-00.A0 402149-00	-
222 - LEVER LOCK-OFF BDE-607100-00.A5 607100-00	£1.82	£2.19
223 - NO LONGER AVAILABLE BDE-000000-00.A51080 000000-00	-
224 - NO LONGER AVAILABLE BDE-000000-00.A51081 000000-00	-
229 - NO LONGER AVAILABLE BDE-000000-00.A51082 000000-00	-
230 - NO LONGER AVAILABLE BDE-000000-00.A51083 000000-00	-
231 - BEARING BDE-605040-06.A126 605040-06	£3.80	£4.56
232 - WARNING LABEL BDE-385250-01.A1 385250-01	£1.42	£1.70
250 - NO LONGER AVAILABLE BDE-000000-00.A51084 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A242 870889-02	£7.85	£9.42
816 - NO LONGER AVAILABLE BDE-000000-00.A51085 000000-00	-
817 - NO LONGER AVAILABLE BDE-000000-00.A51086 000000-00	-
826 - IDENTITY LABEL BDE-371133-03.A8 371133-03	£1.42	£1.70
827 - NO LONGER AVAILABLE BDE-000000-00.A51087 000000-00	-
828 - NO LONGER AVAILABLE BDE-000000-00.A51088 000000-00	-

Attribute Name	Value
Brand	Elu
