Elu TGS172----J Type 1 Motor Spare Parts

Home Details Reviews Delivery

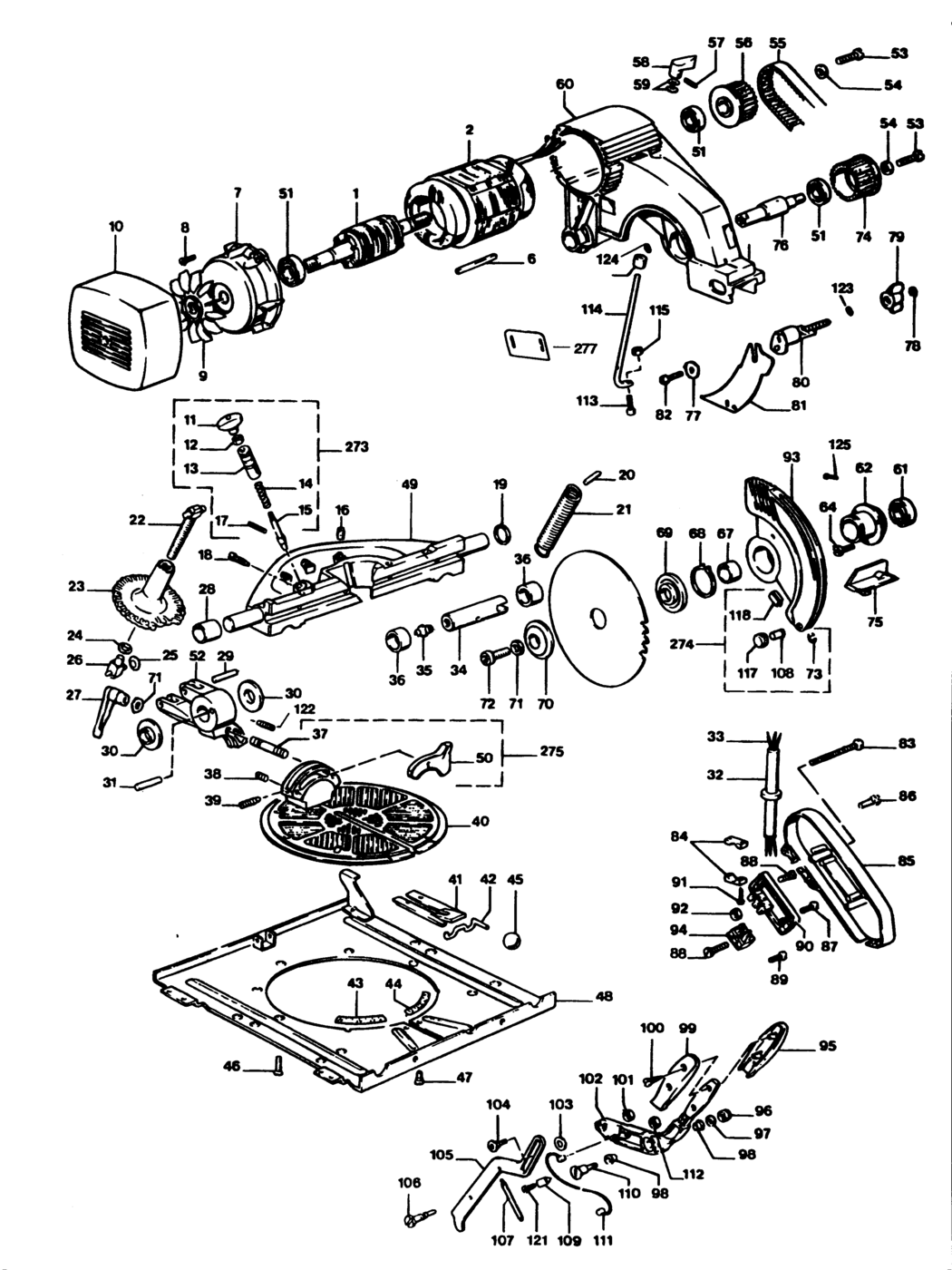

An exploded drawing and spare parts listing for the Elu TGS172----J Type 1 Motor

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A89051 000000-00	-
2 - MOTOR SA 230V BDE-868395-09.A13 868395-09	-
5 - CABLE SA BDE-860472-00.A16 860472-00	£24.39	£29.27
6 - NO LONGER AVAILABLE BDE-000000-00.A89052 000000-00	-
7 - END CAP BDE-861085-04.A15 861085-04	£23.75	£28.50
8 - SCREW.TEMP BDE-860089-17.A22 860089-17	£1.50	£1.80
10 - END CAP BDE-861036-02.A6 861036-02	£10.85	£13.02
11 - KNOB BDE-942453-00.A2 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A8 949726-05	£1.50	£1.80
13 - BARREL BDE-941802-00.A12 941802-00	-
14 - SPRING BDE-761054-00.A10 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A28 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A2 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A44 761065-00	£1.50	£1.80
18 - SCREW BDE-941880-00.A30 941880-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A89053 000000-00	-
20 - PIN BDE-860649-01.A3 860649-01	-
21 - NO LONGER AVAILABLE BDE-000000-00.A89054 000000-00	-
22 - SPINDLE BDE-942363-00.A1 942363-00	£34.00	£40.80
23 - WHEEL REGULATOR BDE-942472-01.A1 942472-01	-
24 - NO LONGER AVAILABLE BDE-000000-00.A89055 000000-00	-
25 - WASHER BDE-860074-02.A209 860074-02	£1.50	£1.80
26 - SPINDLE BDE-172112601.A1 172112601	-
27 - LOCK HANDLE BDE-942518-00.A7 942518-00	£7.85	£9.42
28 - NO LONGER AVAILABLE BDE-000000-00.A89056 000000-00	-
29 - PIN BDE-942045-00.A18 942045-00	£1.42	£1.70
30 - WASHER LOCK BDE-941800-00.A4 941800-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A89057 000000-00	-
32 - PROTECTOR BDE-942277-00.A3 942277-00	£1.66	£1.99
33 - CABLE BDE-942354-00.A4 942354-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A89058 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A89059 000000-00	-
36 - BUSH BDE-941886-00.A17 941886-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A89060 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A89061 000000-00	-
39 - SCREW BDE-949743-01.A4 949743-01	£1.50	£1.80
40 - NO LONGER AVAILABLE BDE-000000-00.A89062 000000-00	-
41 - PLATE BDE-942364-00.A21 942364-00	-
42 - LOCKING PIN BDE-942234-00.A1 942234-00	-
43 - SCALE LH BDE-942208-00.A1 942208-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A89063 000000-00	-
45 - KNOB BDE-942450-00.A22 942450-00	£1.42	£1.70
46 - SCREW BDE-868256-00.A32 868256-00	£1.50	£1.80
47 - SCREW BDE-942272-00.A25 942272-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A89064 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A89065 000000-00	-
50 - PLATE BDE-942400-00.A1 942400-00	-
51 - BEARING BDE-330003-14.A32 330003-14	£7.85	£9.42
52 - LEVER BDE-942367-00.A2 942367-00	-
53 - SCREW BDE-860085-13.A16 860085-13	£1.50	£1.80
54 - WASHER BDE-949876-04.A12 949876-04	£1.42	£1.70
55 - BELT DRIVE BDE-922456-00.A1 922456-00	£37.35	£44.82
56 - PULLEY ARMATURE BDE-942397-01.A0 942397-01	-
57 - PIN BDE-760233-00.A59 760233-00	£1.50	£1.80
59 - SPRING BDE-860491-01.A23 860491-01	£1.50	£1.80
60 - NO LONGER AVAILABLE BDE-000000-00.A89066 000000-00	-
61 - BEARING BDE-860155-08.A15 860155-08	£7.85	£9.42
62 - NO LONGER AVAILABLE BDE-000000-00.A89067 000000-00	-
64 - SCREW.TEMP BDE-860094-00.A139 860094-00	£1.50	£1.80
67 - NO LONGER AVAILABLE BDE-000000-00.A89068 000000-00	-
68 - CIRCLIP BDE-860079-05.A34 860079-05	£1.50	£1.80
69 - NO LONGER AVAILABLE BDE-000000-00.A89069 000000-00	-
70 - NO LONGER AVAILABLE BDE-000000-00.A89070 000000-00	-
71 - WASHER BDE-860073-04.A104 860073-04	£1.50	£1.80
72 - NO LONGER AVAILABLE BDE-000000-00.A89071 000000-00	-
73 - CIRCLIP BDE-860322-03.A14 860322-03	-
74 - PULLEY SHAFT BDE-942396-01.A1 942396-01	£24.39	£29.27
75 - NO LONGER SUPPLIED BDE-PARTNLS.A4 PARTNLS	-
76 - NO LONGER AVAILABLE BDE-000000-00.A89072 000000-00	-
77 - WASHER BDE-860073-04.A105 860073-04	£1.50	£1.80
78 - CIRCLIP BDE-860322-00.A33 860322-00	£1.50	£1.80
79 - NO LONGER AVAILABLE BDE-000000-00.A89073 000000-00	-
80 - RIVING KNIFE KIT BDE-944902-01.A3 944902-01	-
82 - SCREW BDE-942831-00.A1 942831-00	£1.50	£1.80
83 - SCREW BDE-860089-13.A22 860089-13	£1.42	£1.70
84 - CABLE CLAMP BDE-941544-00.A33 941544-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A89074 000000-00	-
86 - SCREW BDE-860089-18.A37 860089-18	£1.50	£1.80
87 - SCREW.TEMP BDE-760996-00.A15 760996-00	£1.42	£1.70
88 - NO LONGER AVAILABLE BDE-000000-00.A89075 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A89076 000000-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A89077 000000-00	-
91 - SCREW BDE-860084-13.A16 860084-13	-
92 - NUT M4 BDE-249232-00.A43 249232-00	£1.42	£1.70
93 - NO LONGER AVAILABLE BDE-000000-00.A89078 000000-00	-
94 - NO LONGER AVAILABLE BDE-000000-00.A89079 000000-00	-
95 - NO LONGER AVAILABLE BDE-000000-00.A89080 000000-00	-
96 - NUT BDE-941563-00.A11 941563-00	£1.50	£1.80
97 - WASHER BDE-860073-08.A56 860073-08	£1.50	£1.80
98 - BOSS BDE-171120901.A3 171120901	-
99 - HANDLE COVER BDE-171120202.A2 171120202	-
100 - SCREW BDE-860084-11.A24 860084-11	£1.50	£1.80
101 - NUT M6 BDE-860083-12.A178 860083-12	£1.50	£1.80
102 - LEVER BDE-942251-00.A6 942251-00	£37.35	£44.82
103 - NO LONGER AVAILABLE BDE-000000-00.A89085 000000-00	-
104 - SCREW BDE-171127003.A1 171127003	-
105 - NO LONGER AVAILABLE BDE-000000-00.A89081 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A89082 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A89083 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A89084 000000-00	-
109 - CLAMP BDE-140931226.A12 140931226	£3.70	£4.44
110 - NO LONGER AVAILABLE BDE-000000-00.A89086 000000-00	-
111 - CORD BDE-942458-00.A1 942458-00	-
112 - NUT M4 BDE-249232-00.A41 249232-00	£1.42	£1.70
113 - SCREW BDE-860085-17.A10 860085-17	-
114 - NO LONGER AVAILABLE BDE-000000-00.A89087 000000-00	-
115 - NUT M6 BDE-860083-12.A179 860083-12	£1.50	£1.80
116 - NO LONGER AVAILABLE BDE-000000-00.A89088 000000-00	-
117 - ROLLER BDE-861096-01.A16 861096-01	£12.17	£14.60
118 - BUFFER BDE-861095-01.A13 861095-01	£1.50	£1.80
273 - LOCKING PIN SA BDE-944909-00.A3 944909-00	-
274 - ROLLER SA BDE-944898-01.A2 944898-01	-
277 - NO LONGER AVAILABLE BDE-000000-00.A89089 000000-00	-
279 - NUT M4 NOT DRAWN PLATE BDE-249232-00.A42 249232-00	£1.42	£1.70
280 - WASHER NOT DRAWN PLATE BDE-860073-00.A28 860073-00	£1.50	£1.80
281 - NO LONGER AVAILABLE NOT DRAWN PLATE BDE-000000-00.A89090 000000-00	-
282 - GUARD SA NOT DRAWN GUARD BDE-867037-01.A4 867037-01	-
283 - GUARD SA NOT DRAWN GUARD BDE-867037-01.A5 867037-01	-
284 - SCREW NOT DRAWN GUARD BDE-860084-17.A12 860084-17	£1.50	£1.80
285 - SCREW NOT DRAWN GUARD BDE-949896-12.A39 949896-12	£1.50	£1.80
286 - NO LONGER AVAILABLE NOT DRAWN GUARD BDE-000000-00.A89093 000000-00	-
288 - WRENCH 6 MM PARTS NOT DRAWN BDE-860098-04.A147 860098-04	£1.50	£1.80
289 - NO LONGER AVAILABLE PARTS NOT DRAWN BDE-000000-00.A89091 000000-00	-
290 - NO LONGER AVAILABLE PARTS NOT DRAWN BDE-000000-00.A89092 000000-00	-
