Stanley STSC2135 Type 2 Chop Saw Spare Parts

Home Details Reviews Delivery

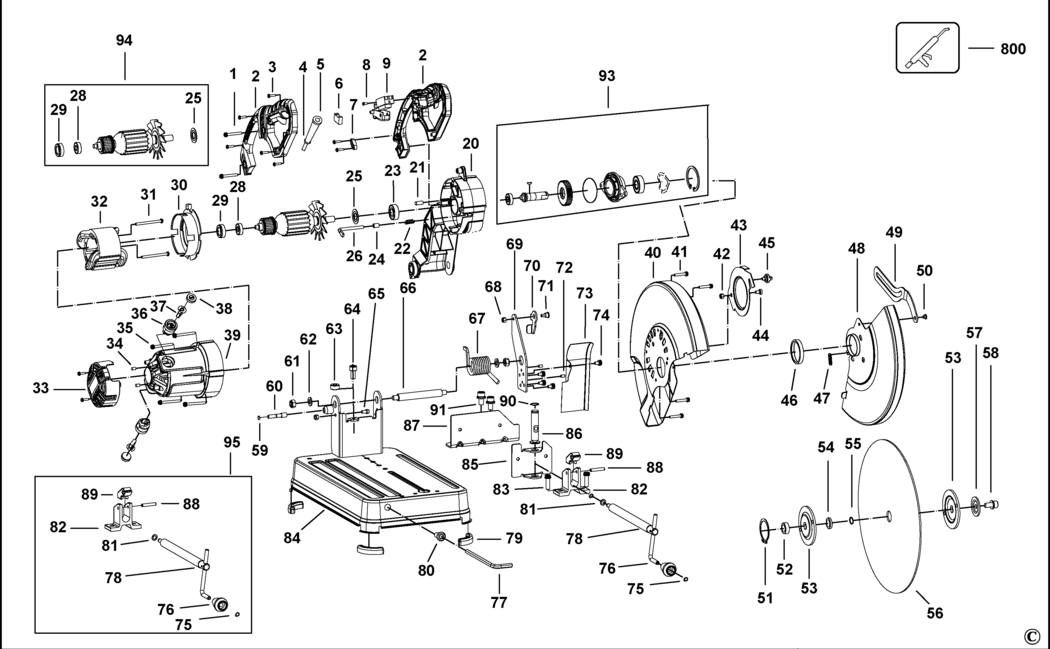

An exploded drawing and spare parts listing for the Stanley STSC2135 Type 2 Chop Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-5140063-20.A12 5140063-20	£1.50	£1.80
2 - HANDLE SA PAIR BDE-5170007-04.A0 5170007-04	£16.03	£19.24
3 - SCREW BDE-5140063-10.A10 5140063-10	£1.50	£1.80
5 - CORD PROTECTOR BDE-5140063-19.A4 5140063-19	£7.18	£8.62
6 - CAPACITOR BDE-5170003-12.A0 5170003-12	£1.50	£1.80
7 - CORD CLAMP BDE-5140063-26.A12 5140063-26	£1.50	£1.80
8 - SCREW BDE-5140062-93.A8 5140062-93	£1.50	£1.80
9 - SWITCH BDE-5170003-13.A6 5170003-13	£24.39	£29.27
20 - ARM ELEVATING BDE-6010394-29 6010394-29	£63.87	£76.64
21 - PIN BDE-5140062-89.A14 5140062-89	£1.50	£1.80
22 - SPRING BDE-5170002-88.A6 5170002-88	£1.50	£1.80
23 - BEARING BDE-5170002-91.A0 5170002-91	£10.85	£13.02
24 - SLEEVE BDE-5170002-89.A0 5170002-89	£1.50	£1.80
25 - WASHER BDE-5140062-92.A8 5140062-92	£1.50	£1.80
26 - PIN BDE-5170002-90.A6 5170002-90	£1.50	£1.80
28 - BEARING BDE-5170002-94.A0 5170002-94	£5.88	£7.06
29 - SLEEVE BEARING BDE-5140062-97.A16 5140062-97	£2.78	£3.34
30 - DUST DEFLECTOR BDE-5170002-95.A6 5170002-95	£1.50	£1.80
31 - SCREW BDE-5170002-96.A0 5170002-96	£1.50	£1.80
32 - FIELD BDE-5170002-98.A3 5170002-98	£78.12	£93.74
33 - COVER REAR BDE-5170003-01.A4 5170003-01	£3.30	£3.96
34 - SCREW BDE-5140063-08.A14 5140063-08	£1.50	£1.80
35 - SCREW BDE-5170003-00.A2 5170003-00	£1.50	£1.80
36 - BRUSH HOLDER BDE-5140063-04.A6 5140063-04	£2.78	£3.34
37 - BRUSH PAIR BDE-5140063-06.A6 5140063-06	£7.85	£9.42
38 - BRUSH CAP BDE-5140063-07.A2 5140063-07	£1.50	£1.80
39 - HOUSING MOTOR BDE-5170006-98.A3 5170006-98	£24.39	£29.27
40 - GUARD BDE-6010394-30 6010394-30	£36.42	£43.70
41 - SCREW BDE-5140062-51.A14 5140062-51	£1.50	£1.80
42 - NUT BDE-N403447 N403447	£1.50	£1.80
43 - GUARD PLATE BDE-6010394-31 6010394-31	£7.01	£8.41
44 - SCREW BDE-N403448 N403448	£1.50	£1.80
45 - KNOB BDE-N403450 N403450	£1.50	£1.80
46 - RING BDE-N403446 N403446	£1.50	£1.80
47 - SPRING BDE-N403441 N403441	£1.50	£1.80
48 - GUARD LOWER BDE-6010394-32 6010394-32	£25.05	£30.06
49 - BRACKET BDE-6010394-33 6010394-33	£3.22	£3.86
50 - RIVET BDE-N403449 N403449	£1.50	£1.80
51 - RING BDE-N403439 N403439	£1.50	£1.80
52 - BUSH BDE-6010394-34 6010394-34	£1.42	£1.70
53 - FLANGE BDE-5170002-62.A2 5170002-62	£7.85	£9.42
54 - BUSH BDE-5140062-48.A0 5140062-48	£1.50	£1.80
55 - O RING BDE-5140062-47.A16 5140062-47	£1.50	£1.80
56 - WHEEL BDE-5170002-63.A2 5170002-63	£14.57	£17.48
57 - FLANGE BDE-5170002-61.A4 5170002-61	£1.50	£1.80
58 - BOLT BDE-5170002-60.A2 5170002-60	-
59 - O RING BDE-5170003-15.A2 5170003-15	£1.50	£1.80
60 - BOLT BDE-5170002-68.A6 5170002-68	£1.50	£1.80
61 - NUT BDE-5140062-60.A4 5140062-60	£1.50	£1.80
62 - WASHER BDE-5140062-76.A4 5140062-76	£1.50	£1.80
63 - NUT BDE-5170002-69.A0 5170002-69	£1.50	£1.80
64 - SCREW BDE-5170003-16.A3 5170003-16	£1.50	£1.80
65 - BOLT BDE-5140062-66.A2 5140062-66	£1.50	£1.80
66 - SCREW BDE-5170002-73.A2 5170002-73	£3.80	£4.56
67 - SPRING TORSION BDE-N403460 N403460	£7.18	£8.62
68 - LOCK NUT BDE-5140062-50.A2 5140062-50	£1.50	£1.80
69 - SUPPORT PLATE BDE-6010394-35 6010394-35	£5.72	£6.87
70 - LOCK BUTTON BDE-N403444 N403444	£1.50	£1.80
71 - SCREW BDE-N403442 N403442	£1.50	£1.80
72 - PIN BDE-N403458 N403458	£1.50	£1.80
73 - PROTECTOR BDE-6010394-36 6010394-36	£2.71	£3.25
74 - SCREW BDE-N403462 N403462	£1.50	£1.80
75 - RETAINER BDE-5170002-80.A4 5170002-80	£1.50	£1.80
76 - CRANK BDE-5170002-83.A2 5170002-83	£1.50	£1.80
77 - WRENCH SPECIAL BDE-5170002-71.A0 5170002-71	£2.78	£3.34
78 - HANDLE SA BDE-5170002-82.A4 5170002-82	£7.85	£9.42
79 - FOOT BDE-5140062-68.A4 5140062-68	£1.50	£1.80
80 - WRENCH SPECIAL BDE-5170002-70.A6 5170002-70	£1.50	£1.80
81 - WASHER BDE-5170002-81.A2 5170002-81	£1.50	£1.80
82 - SEAT BDE-5170002-86.A4 5170002-86	£7.18	£8.62
83 - SCREW BDE-5170002-79.A2 5170002-79	£1.50	£1.80
84 - BASE BDE-6010394-37 6010394-37	£50.60	£60.72
85 - CLAMP BDE-5170002-78.A3 5170002-78	£4.69	£5.63
86 - SHAFT BDE-5170002-77.A2 5170002-77	£3.30	£3.96
87 - FENCE BDE-5170002-75.A2 5170002-75	£14.57	£17.48
88 - PIN BDE-5170002-85.A2 5170002-85	£1.50	£1.80
89 - NUT BDE-5170002-84.A4 5170002-84	£2.78	£3.34
90 - RETAINER BDE-5140063-27.A4 5140063-27	£1.50	£1.80
91 - BOLT BDE-5170002-76.A4 5170002-76	£1.50	£1.80
93 - SPINDLE & GEAR SA BDE-6010394-38 6010394-38	£36.42	£43.70
94 - ARMATURE 220/240V BDE-5170002-92.A3 5170002-92	£110.62	£132.74
95 - HANDLE SA BDE-5170003-11.A6 5170003-11	£18.91	£22.69
800 - GREASE 90 GMS BDE-870889-02.A349 870889-02	£7.85	£9.42
