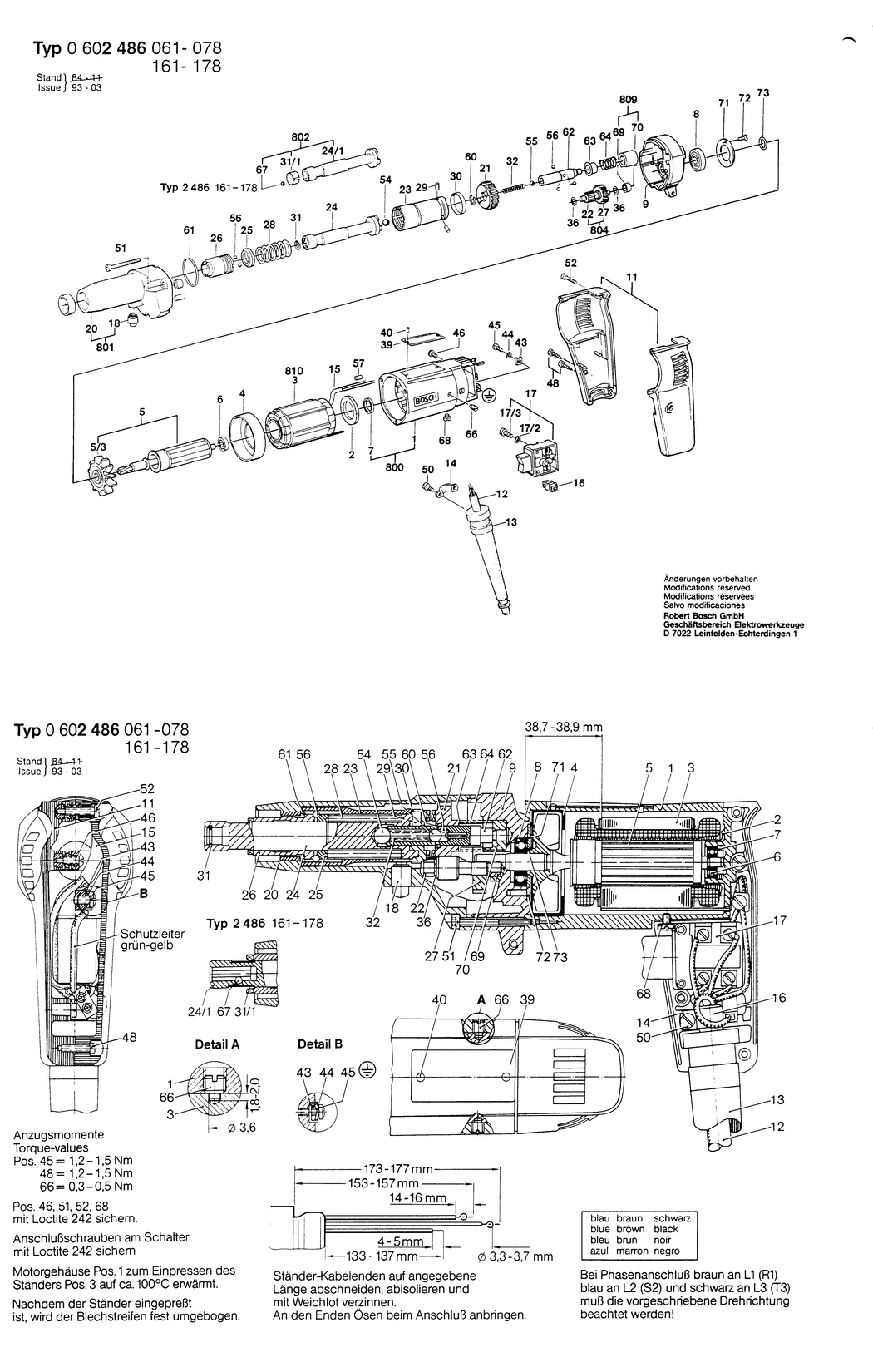

2 - SEAL RING
BSD-1600209011.A13
1600209011
|
£2.94
|
£3.53
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A352
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR
BSD-3604080020.A17
3604080020
|
-
|
|
|
|
5/3 - FAN
BSD-1606610105.A9
1606610105
|
£15.65
|
£18.78
|
|
|
6 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A163
1900900232
|
£16.74
|
£20.09
|
|
|
7 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A27
3600206002
|
-
|
|
|
|
8 - BALL BEARING 7x22x7
BSD-1900905018.A1015
1900905018
|
£19.91
|
£23.89
|
|
|
9 - BEARING HOUSING
BSD-1605820196.A20
1605820196
|
£161.73
|
£194.08
|
|
|
10 - SEALING DISK
BSD-1600108053.A30
1600108053
|
-
|
|
|
|
11 - HANDLE
BSD-3605132045.A14
3605132045
|
-
|
|
|
|
12 - POWER SUPPLY CORD
BSD-3604462058.A14
3604462058
|
-
|
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1186
3600703011
|
£2.94
|
£3.53
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A776
1601302014
|
£2.74
|
£3.29
|
|
|
16 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A253
1901091012
|
£5.57
|
£6.68
|
|
|
17 - ON-OFF SWITCH
BSD-1607200040.A14
1607200040
|
-
|
|
|
|
18 - PRESSURE SPINDLE
BSD-1603203024.A20
1603203024
|
-
|
|
|
|
20 - GEAR HOUSING
BSD-3605806106.A12
3605806106
|
-
|
|
|
|
21 - CYLINDRICAL GEAR Z=43
BSD-1606325021.A27
1606325021
|
-
|
|
|
|
22 - CYLINDRICAL GEAR Z=5
BSD-2606319050.A15
2606319050
|
-
|
|
|
|
24 - CARRIER
BSD-1606455063.A6
1606455063
|
-
|
|
|
|
25 - TAPER RING
BSD-1600250000.A20
1600250000
|
-
|
|
|
|
26 - THREADED BUSHING
BSD-3600364010.A23
3600364010
|
-
|
|
|
|
27 - SPINDLE WITH GEAR Z=11
BSD-1606308017.A8
1606308017
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-1604619015.A27
1604619015
|
£5.01
|
£6.01
|
|
|
29 - ROLLER
BSD-1603200019.A23
1603200019
|
-
|
|
|
|
30 - RETAINING SNAP RING
BSD-2600209018.A21
2600209018
|
-
|
|
|
|
31 - RETAINING RING
BSD-1604601021.A0
1604601021
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-1604612005.A22
1604612005
|
-
|
|
|
|
36 - SHIM 0.50 MM
BSD-2600100613.A221
2600100613
|
£1.75
|
£2.10
|
|
|
39 - NAMEPLATE
BSD-3601106053.A287
3601106053
|
£5.57
|
£6.68
|
|
|
40 - GROOVED NAIL
BSD-3603133000.A122
3603133000
|
£2.61
|
£3.13
|
|
|
43 - CLAMPING SADDLE
BSD-3601321001.A615
3601321001
|
£3.72
|
£4.47
|
|
|
44 - SPRING WASHER dia4.2 MM
BSD-3600150006.A618
3600150006
|
£2.74
|
£3.29
|
|
|
45 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A203
2910110118
|
£1.84
|
£2.21
|
|
|
46 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A326
2910091118
|
£1.84
|
£2.21
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2087
2910211019
|
£1.84
|
£2.21
|
|
|
50 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A43
2910021116
|
£2.27
|
£2.72
|
|
|
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A140
2910141140
|
£1.75
|
£2.10
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8
BSD-2910021128.A22
2910021128
|
-
|
|
|
|
54 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A144
1903230014
|
£1.75
|
£2.10
|
|
|
55 - BALL DIN 5401-6 G28
BSD-1903230011.A63
1903230011
|
£2.74
|
£3.29
|
|
|
56 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A497
1903230006
|
£2.27
|
£2.72
|
|
|
60 - RETAINING RING 10 DIN 9045
BSD-2916600006.A56
2916600006
|
£1.84
|
£2.21
|
|
|
62 - CONTROL SHAFT
BSD-1603124099.A8
1603124099
|
-
|
|
|
|
63 - GUIDE BUSHING
BSD-1600521018.A11
1600521018
|
-
|
|
|
|
64 - COMPRESSION SPRING
BSD-1604616019.A29
1604616019
|
-
|
|
|
|
66 - SET SCREW
BSD-3603402000.A196
3603402000
|
£1.84
|
£2.21
|
|
|
68 - SOCKET HEAD CAP SCREW DIN 84-AM4x5-5.8
BSD-2910011115.A32
2910011115
|
£1.75
|
£2.10
|
|
|
69 - CLAMP BUSHING
BSD-1600300081.A12
1600300081
|
-
|
|
|
|
70 - BUSHING
BSD-2600300058.A89
2600300058
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1599
3601119236
|
£3.91
|
£4.69
|
|
|
650 - SLOTTED SCREWDRIVER
BSD-1607950037.A42
1607950037
|
£51.22
|
£61.47
|
|
|
800 - MOTOR HOUSING
BSD-3605102022.A53
3605102022
|
-
|
|
|
|
801 - GEAR HOUSING
BSD-3605806013.A6
3605806013
|
-
|
|
|
|
804 - SPINDLE WITH GEAR Z=11/34
BSD-1606328102.A7
1606328102
|
-
|
|
|
|
810 - STATOR 265V/200HZ. 200V/150HZ
BSD-1604229200.A26
1604229200
|
£481.43
|
£577.72
|
|
