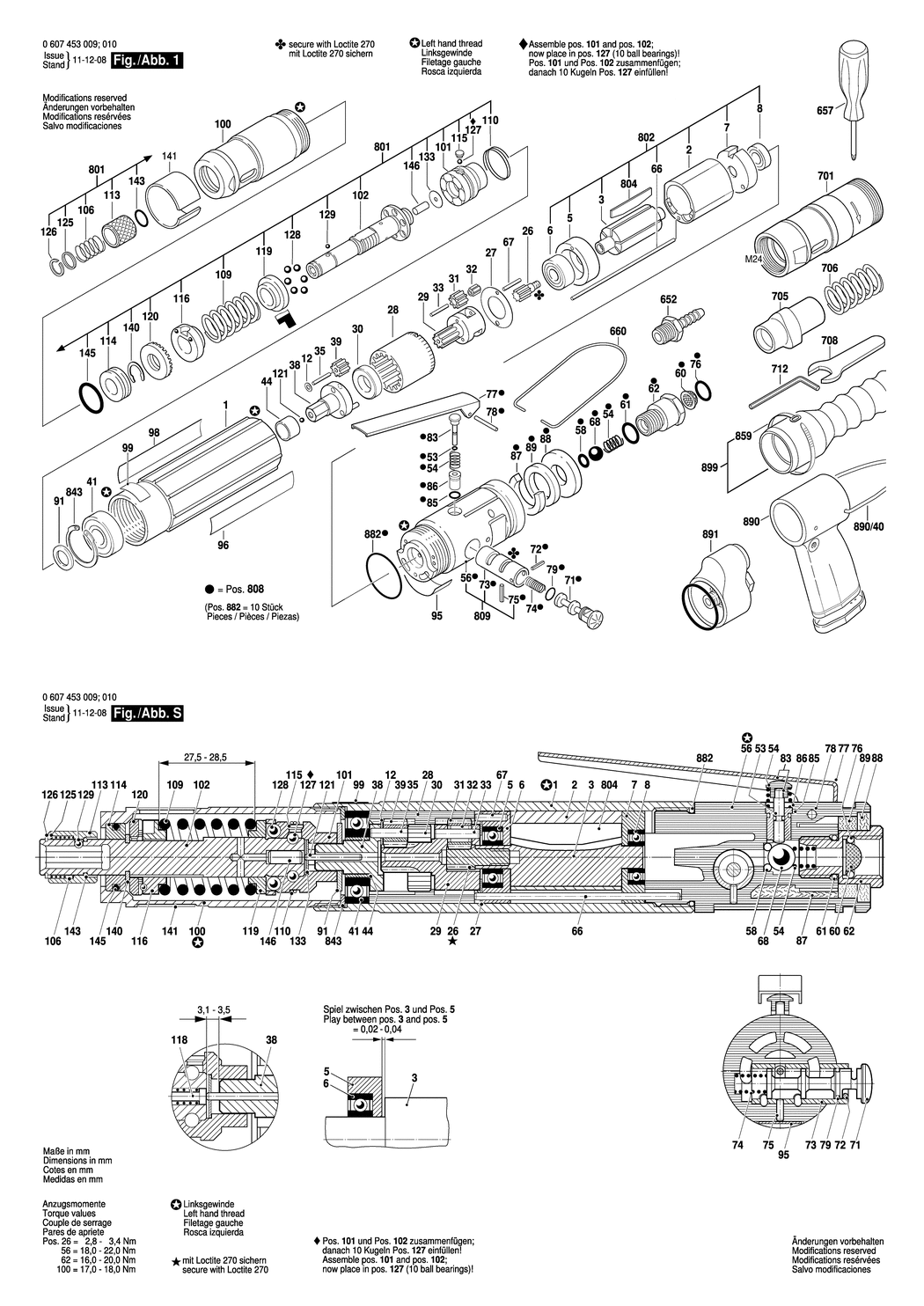

1 - MOTOR HOUSING
BSD-16051082JD.A35
16051082JD
|
-
|
|
|
|
2 - STATOR 180W
BSD-3604090050.A33
3604090050
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220080.A17
3604220080
|
£102.57
|
£123.08
|
|
|
5 - BEARING FLANGE
BSD-3605700107.A62
3605700107
|
£37.27
|
£44.72
|
|
|
6 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A119
1900905044
|
£7.36
|
£8.83
|
|
|
7 - BEARING FLANGE
BSD-3605700108.A11
3605700108
|
£45.67
|
£54.80
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A289
1900905028
|
£33.74
|
£40.49
|
|
|
26 - PINION Z=15
BSD-3606300018.A19
3606300018
|
£27.31
|
£32.77
|
|
|
27 - STOP DISC
BSD-3600101047.A153
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR dia19.5 MM
BSD-3606334085.A39
3606334085
|
£8.67
|
£10.41
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337181.A13
3606337181
|
£48.38
|
£58.06
|
|
|
30 - SPACER RING
BSD-3600209013.A41
3600209013
|
£5.58
|
£6.70
|
|
|
31 - CYLINDRICAL GEAR Z=13
BSD-3606316010.A15
3606316010
|
-
|
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A122
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A244
3603201000
|
£1.75
|
£2.10
|
|
|
35 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A91
1903201042
|
£2.16
|
£2.59
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337191.A7
3606337191
|
£63.50
|
£76.20
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A99
3606316114
|
£13.12
|
£15.75
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A48
3600905015
|
£16.41
|
£19.69
|
|
|
44 - SLEEVE
BSD-3600400029.A23
3600400029
|
£7.36
|
£8.83
|
|
|
53 - O-RING
BSD-3600210092.A30
3600210092
|
£2.16
|
£2.59
|
|
|
54 - COMPRESSION SPRING
BSD-3604611017.A60
3604611017
|
£2.61
|
£3.13
|
|
|
56 - VALVE HOUSING
BSD-3605190174.A2
3605190174
|
£63.50
|
£76.20
|
|
|
58 - SEAL RING
BSD-2600206004.A21
2600206004
|
£7.36
|
£8.83
|
|
|
60 - STRAINER
BSD-3600002000.A28
3600002000
|
£3.72
|
£4.47
|
|
|
61 - O-RING 9.0x1.5 MM
BSD-2600210021.A91
2600210021
|
£1.75
|
£2.10
|
|
|
62 - FITTING
BSD-3603458016.A4
3603458016
|
£11.30
|
£13.56
|
|
|
66 - STRAIGHT PIN
BSD-3603201077.A9
3603201077
|
£11.30
|
£13.56
|
|
|
67 - HALF-LENGTH GROOVED PIN ISO 8741-2x10-ST
BSD-2917690036.A18
2917690036
|
£1.75
|
£2.10
|
|
|
68 - BALL DIN 5401-8 MM III-ST
BSD-1903230014.A59
1903230014
|
£1.75
|
£2.10
|
|
|
71 - CONTROL PISTON
BSD-3608750038.A21
3608750038
|
£23.86
|
£28.63
|
|
|
72 - COILED SPRING PIN DIN 7343-1.5x10
BSD-2917800016.A87
2917800016
|
£1.75
|
£2.10
|
|
|
73 - VALVE BUSHING
BSD-3600340008.A44
3600340008
|
£45.67
|
£54.80
|
|
|
74 - COMPRESSION SPRING
BSD-3604611007.A34
3604611007
|
£2.16
|
£2.59
|
|
|
75 - STRAIGHT PIN DIN6325-2M6X6
BSD-2917550034.A43
2917550034
|
£1.75
|
£2.10
|
|
|
76 - O-RING
BSD-3600210094.A45
3600210094
|
£2.80
|
£3.36
|
|
|
77 - CONTROL LEVER
BSD-3601902001.A25
3601902001
|
£6.52
|
£7.83
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A96
2917700040
|
£2.80
|
£3.36
|
|
|
79 - O-RING
BSD-3600210093.A26
3600210093
|
£1.75
|
£2.10
|
|
|
83 - CONTROL PIN
BSD-3608750048.A32
3608750048
|
£5.30
|
£6.36
|
|
|
85 - O-RING 4.0x1.0 MM
BSD-3600210015.A47
3600210015
|
£3.72
|
£4.47
|
|
|
86 - BUSHING
BSD-3600300064.A9
3600300064
|
£10.10
|
£12.12
|
|
|
87 - SILENCER
BSD-3601010010.A84
3601010010
|
£2.16
|
£2.59
|
|
|
88 - SILENCER
BSD-3601010037.A52
3601010037
|
£11.30
|
£13.56
|
|
|
89 - SILENCER
BSD-3601010044.A24
3601010044
|
£7.36
|
£8.83
|
|
|
91 - SUPPORTING DISC
BSD-2600100648.A1
2600100648
|
£3.72
|
£4.47
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A596
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A137
3601119055
|
£3.72
|
£4.47
|
|
|
97 - REFERENCE PLATE
BSD-3601110574.A64
3601110574
|
£2.61
|
£3.13
|
|
|
98 - STICKER
BSD-3601110204.A72
3601110204
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A413
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125054.A15
3605125054
|
£45.67
|
£54.80
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445043.A103
3606445043
|
£102.57
|
£123.08
|
|
|
102 - OUTPUT SHAFT
BSD-3603124023.A37
3603124023
|
£68.42
|
£82.10
|
|
|
106 - COMPRESSION SPRING
BSD-3604610011.A31
3604610011
|
£2.80
|
£3.36
|
|
|
109 - COMPRESSION SPRING
BSD-3604619003.A81
3604619003
|
£5.58
|
£6.70
|
|
|
110 - RETAINING RING
BSD-3600224053.A92
3600224053
|
£1.75
|
£2.10
|
|
|
113 - CLAMP BUSHING
BSD-3600499023.A121
3600499023
|
£18.96
|
£22.75
|
|
|
114 - PLAIN BEARING
BSD-3600921001.A59
3600921001
|
£10.10
|
£12.12
|
|
|
115 - SEALING PLATE
BSD-3601023011.A172
3601023011
|
£2.61
|
£3.13
|
|
|
116 - SETTING RING
BSD-3600134014.A121
3600134014
|
£31.64
|
£37.97
|
|
|
119 - SUPPORT DISC
BSD-3600190038.A35
3600190038
|
£18.96
|
£22.75
|
|
|
120 - CATCH DISK
BSD-3603344047.A49
3603344047
|
£23.86
|
£28.63
|
|
|
121 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A20
1903230003
|
£2.61
|
£3.13
|
|
|
125 - BACKUP RING
BSD-3600202020.A65
3600202020
|
£8.67
|
£10.41
|
|
|
126 - RETAINING RING
BSD-3600224006.A134
3600224006
|
£2.80
|
£3.36
|
|
|
127 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A4
1903230006
|
£2.16
|
£2.59
|
|
|
128 - BALL 4.5 MM III DIN 5401-ST
BSD-1903230008.A7
1903230008
|
£1.75
|
£2.10
|
|
|
129 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A21
1903230003
|
£2.61
|
£3.13
|
|
|
140 - LOCKING WASHER DIN 6799-9-FSt
BSD-2916080012.A49
2916080012
|
£1.75
|
£2.10
|
|
|
141 - PROTECTION SLEEVE
BSD-3600400022.A38
3600400022
|
£18.96
|
£22.75
|
|
|
143 - O-RING 9.0x1.2 MM
BSD-3600210038.A78
3600210038
|
£2.61
|
£3.13
|
|
|
145 - O-RING
BSD-3600210116.A42
3600210116
|
£2.80
|
£3.36
|
|
|
652 - HOSE FITTING
BSD-3603386066.A43
3603386066
|
£14.91
|
£17.89
|
|
|
657 - SCREWDRIVER
BSD-3607950027.A204
3607950027
|
£14.91
|
£17.89
|
|
|
660 - SUSPENSION LOOP
BSD-2604720004.A34
2604720004
|
£4.26
|
£5.11
|
|
|
701 - HOUSING
BSD-3605125057.A0
3605125057
|
£120.11
|
£144.13
|
|
|
705 - HANDLE
BSD-3600499001.A4
3600499001
|
£31.64
|
£37.97
|
|
|
706 - COMPRESSION SPRING
BSD-3604618003.A128
3604618003
|
£7.36
|
£8.83
|
|
|
708 - SINGLE-HEAD ENG. WRENCH SW22
BSD-1607950505.A19
1607950505
|
£16.41
|
£19.69
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A107
3607950001
|
£2.80
|
£3.36
|
|
|
801 - OVERRIDING CLUTCH
BSD-3607031501.A9
3607031501
|
£357.27
|
£428.72
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031216.A2
3607031216
|
£357.27
|
£428.72
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031304.A82
3607031304
|
£27.23
|
£32.68
|
|
|
808 - ASSEMBLY OF SERVICE PARTS
BSD-3607031359.A2
3607031359
|
£306.65
|
£367.98
|
|
|
809 - VALVE HOUSING
BSD-3607031419.A20
3607031419
|
£135.25
|
£162.30
|
|
|
843 - PARTS SET
BSD-3607010010.A18
3607010010
|
£7.36
|
£8.83
|
|
|
859 - HOLDING BELT
BSD-3604710062.A112
3604710062
|
£1.75
|
£2.10
|
|
|
882 - O-RING
BSD-3607010006.A34
3607010006
|
£31.64
|
£37.97
|
|
|
890 - AUXILIARY HANDLE
BSD-3607031351.A26
3607031351
|
£72.18
|
£86.62
|
|
|
890/40 - SUSPENSION LOOP
BSD-3604720004.A4
3604720004
|
£2.80
|
£3.36
|
|
|
891 - AIR HOSE
BSD-3607000083.A26
3607000083
|
£59.53
|
£71.44
|
|
|
899 - AIR HOSE
BSD-3607000064.A46
3607000064
|
£27.23
|
£32.68
|
|
