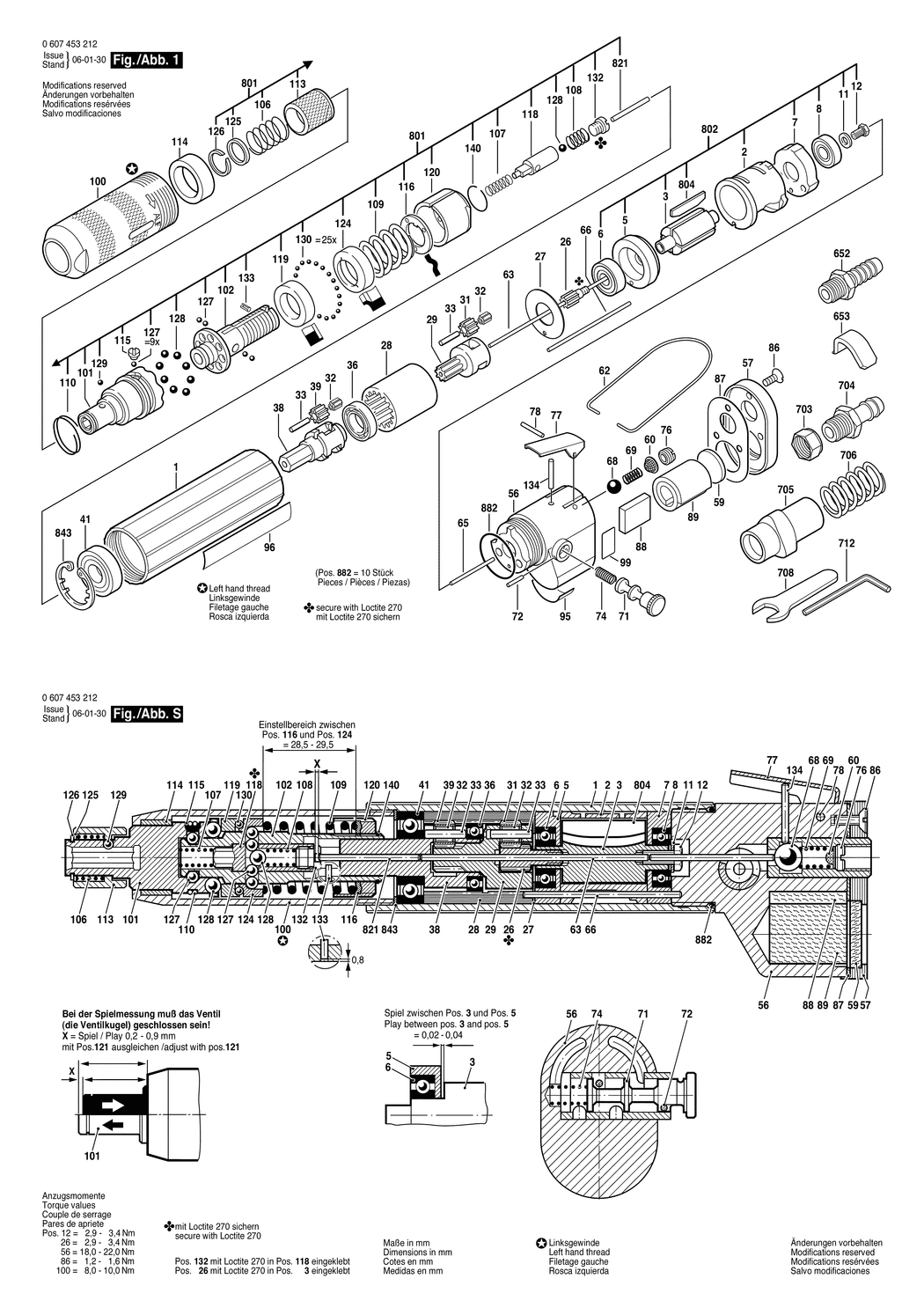

1 - MOTOR HOUSING
BSD-3600760020.A12
3600760020
|
£58.76
|
£70.51
|
|
|
2 - STATOR 180W
BSD-3604090010.A26
3604090010
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220008.A17
3604220008
|
£72.18
|
£86.62
|
|
|
5 - BEARING FLANGE
BSD-3605700015.A77
3605700015
|
£45.67
|
£54.80
|
|
|
6 - BALL BEARING 7x19x6
BSD-2600905032.A2326
2600905032
|
£5.30
|
£6.36
|
|
|
7 - BEARING FLANGE
BSD-3605700017.A28
3605700017
|
£48.38
|
£58.06
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A269
1900905028
|
£33.74
|
£40.49
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A245
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW
BSD-3603450000.A83
3603450000
|
£7.36
|
£8.83
|
|
|
26 - PINION Z=12
BSD-3606300014.A29
3606300014
|
£14.75
|
£17.70
|
|
|
27 - STOP DISC
BSD-3600101047.A135
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR Z=42/54
BSD-3606334021.A26
3606334021
|
£18.96
|
£22.75
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337056.A0
3606337056
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316011.A16
3606316011
|
£7.78
|
£9.33
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A130
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A263
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A37
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337175.A31
3606337175
|
£156.22
|
£187.46
|
|
|
39 - CYLINDRICAL GEAR Z=14
BSD-3606316011.A17
3606316011
|
£7.78
|
£9.33
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A42
3600905015
|
£16.41
|
£19.69
|
|
|
56 - VALVE HOUSING
BSD-3605190154.A0
3605190154
|
-
|
|
|
|
57 - HOUSING COVER
BSD-3605500003.A27
3605500003
|
£2.61
|
£3.13
|
|
|
59 - SILENCER
BSD-3600002002.A19
3600002002
|
£3.72
|
£4.47
|
|
|
60 - STRAINER
BSD-3600002001.A157
3600002001
|
£2.61
|
£3.13
|
|
|
62 - SUSPENSION LOOP
BSD-3604720004.A9
3604720004
|
£2.80
|
£3.36
|
|
|
63 - STRAIGHT PIN 75 MM
BSD-3603201006.A0
3603201006
|
£3.72
|
£4.47
|
|
|
65 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A4
3607031087
|
£12.04
|
£14.45
|
|
|
66 - STRAIGHT PIN
BSD-3603201009.A64
3603201009
|
£5.58
|
£6.70
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A261
1903230013
|
£2.16
|
£2.59
|
|
|
69 - COMPRESSION SPRING
BSD-3604611006.A70
3604611006
|
£2.16
|
£2.59
|
|
|
71 - CONTROL PISTON
BSD-3608750001.A16
3608750001
|
-
|
|
|
|
72 - COILED SPRING PIN DIN 7343-1.5x10
BSD-2917800016.A78
2917800016
|
£1.75
|
£2.10
|
|
|
74 - COMPRESSION SPRING
BSD-3604611007.A30
3604611007
|
£2.16
|
£2.59
|
|
|
76 - THREADED RING
BSD-3603344003.A69
3603344003
|
£2.61
|
£3.13
|
|
|
77 - CONTROL LEVER
BSD-3601902007.A15
3601902007
|
£6.52
|
£7.83
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A106
2917700040
|
£2.80
|
£3.36
|
|
|
86 - COUNTERSUNK-HEAD SCREW M 4x10 DIN 963-4.8
BSD-2910762120.A10
2910762120
|
£1.75
|
£2.10
|
|
|
87 - SEALING PLATE
BSD-3600054001.A3
3600054001
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010003.A1
3601010003
|
-
|
|
|
|
89 - SILENCER
BSD-3601010010.A97
3601010010
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A580
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A433
1601110481
|
£2.16
|
£2.59
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A392
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125007.A23
3605125007
|
£61.98
|
£74.38
|
|
|
101 - CLUTCH ELEMENT
BSD-3606432007.A3
3606432007
|
£102.57
|
£123.08
|
|
|
102 - DRIVE SHAFT
BSD-3606122011.A35
3606122011
|
£120.11
|
£144.13
|
|
|
106 - COMPRESSION SPRING
BSD-3604617000.A3
3604617000
|
£1.75
|
£2.10
|
|
|
107 - COMPRESSION SPRING
BSD-3604610006.A45
3604610006
|
£2.16
|
£2.59
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A68
3604610002
|
£3.72
|
£4.47
|
|
|
109 - COMPRESSION SPRING
BSD-3604619003.A73
3604619003
|
£5.58
|
£6.70
|
|
|
110 - RETAINING RING
BSD-3604601002.A39
3604601002
|
£1.75
|
£2.10
|
|
|
113 - CLAMPING SLEEVE
BSD-3600311016.A27
3600311016
|
£21.52
|
£25.83
|
|
|
114 - SINTERED-METAL BUSHING
BSD-3600301004.A25
3600301004
|
-
|
|
|
|
115 - SEALING PLATE
BSD-3600001002.A37
3600001002
|
£3.72
|
£4.47
|
|
|
116 - ADJUSTING DISC
BSD-3600134003.A41
3600134003
|
£2.61
|
£3.13
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A55
3603150203
|
£45.67
|
£54.80
|
|
|
119 - SUPPORT DISC
BSD-3600114002.A23
3600114002
|
£12.04
|
£14.45
|
|
|
120 - ROUND NUT
BSD-3603344009.A39
3603344009
|
£27.23
|
£32.68
|
|
|
124 - COUPLING PLATE
BSD-3600220001.A24
3600220001
|
£11.30
|
£13.56
|
|
|
125 - BACKUP RING
BSD-3600202006.A54
3600202006
|
£2.80
|
£3.36
|
|
|
126 - RETAINING RING
BSD-3600224006.A127
3600224006
|
£2.80
|
£3.36
|
|
|
127 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A812
1903230007
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-5 G28
BSD-1903230009.A930
1903230009
|
£1.75
|
£2.10
|
|
|
129 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A428
1903230004
|
£2.16
|
£2.59
|
|
|
130 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A35
1903230003
|
£2.61
|
£3.13
|
|
|
132 - SCREW PLUG
BSD-3603463000.A121
3603463000
|
£2.61
|
£3.13
|
|
|
133 - SLOTTED SPRING PIN 2x5 DIN 1481
BSD-2917760033.A4
2917760033
|
£1.75
|
£2.10
|
|
|
134 - NEEDLE ROLLER
BSD-3603201024.A6
3603201024
|
-
|
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A235
2916600008
|
£2.80
|
£3.36
|
|
|
652 - HOSE FITTING
BSD-3603386002.A148
3603386002
|
£3.34
|
£4.01
|
|
|
653 - ANGLE PIECE
BSD-3601329007.A121
3601329007
|
£4.26
|
£5.11
|
|
|
703 - HEX NUT
BSD-3603458003.A10
3603458003
|
£4.26
|
£5.11
|
|
|
704 - HOSE FITTING
BSD-3607010011.A36
3607010011
|
-
|
|
|
|
705 - HANDLE
BSD-3600499001.A19
3600499001
|
£31.64
|
£37.97
|
|
|
706 - COMPRESSION SPRING
BSD-3604618003.A117
3604618003
|
£7.36
|
£8.83
|
|
|
708 - SINGLE-HEAD ENG. WRENCH SW22
BSD-1607950505.A11
1607950505
|
£16.41
|
£19.69
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A112
3607950001
|
£2.80
|
£3.36
|
|
|
801 - CUTOFF COUPLING SP SET
BSD-3607031123.A3
3607031123
|
£357.27
|
£428.72
|
|
|
802 - MOTOR
BSD-3607031045.A2
3607031045
|
-
|
|
|
|
804 - PARTS SET
BSD-3607030256.A84
3607030256
|
£30.42
|
£36.51
|
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A1
3607031087
|
£12.04
|
£14.45
|
|
|
843 - PARTS SET
BSD-3607010010.A1
3607010010
|
£7.36
|
£8.83
|
|
|
882 - O-RING
BSD-3607010006.A44
3607010006
|
£31.64
|
£37.97
|
|
