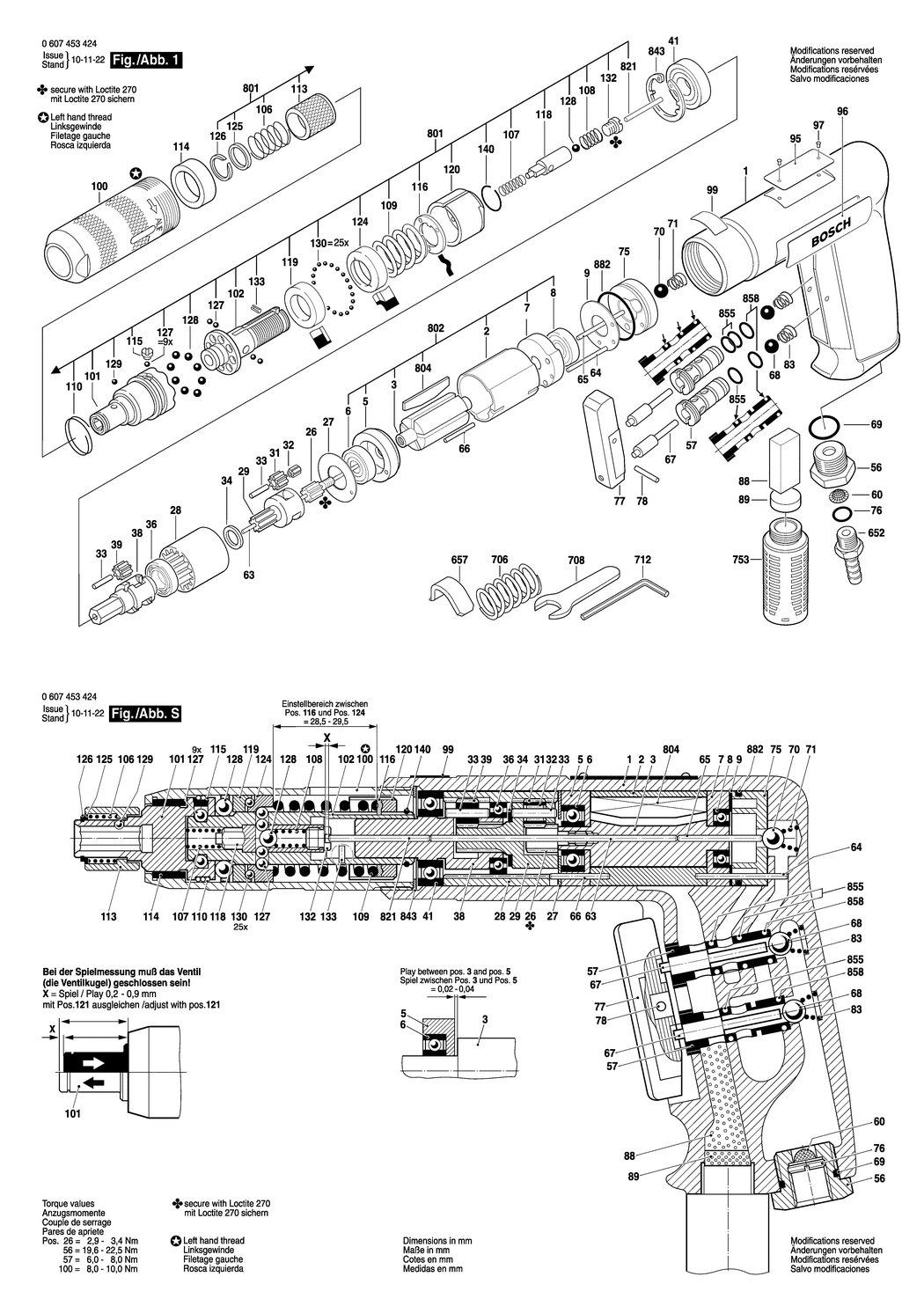

1 - MOTOR HOUSING
BSD-3605108121.A3
3605108121
|
£218.41
|
£262.09
|
|
|
2 - STATOR 180W
BSD-3604090050.A21
3604090050
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220082.A2
3604220082
|
-
|
|
|
|
5 - BEARING FLANGE
BSD-3605700107.A71
3605700107
|
£37.27
|
£44.72
|
|
|
6 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A107
1900905044
|
£7.36
|
£8.83
|
|
|
7 - BEARING FLANGE
BSD-3605700108.A3
3605700108
|
£45.67
|
£54.80
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A197
1900905028
|
£33.74
|
£40.49
|
|
|
9 - STOP DISC
BSD-3600101048.A3
3600101048
|
£6.52
|
£7.83
|
|
|
26 - PINION Z=15
BSD-3606300015.A26
3606300015
|
-
|
|
|
|
27 - STOP DISC
BSD-3600101047.A190
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR dia19.5 MM
BSD-3606334085.A55
3606334085
|
£8.67
|
£10.41
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337181.A1
3606337181
|
£48.38
|
£58.06
|
|
|
31 - CYLINDRICAL GEAR Z=13
BSD-3606316010.A0
3606316010
|
-
|
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A239
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A445
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A10
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337015.A4
3606337015
|
£93.88
|
£112.65
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316114.A67
3606316114
|
£13.12
|
£15.75
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A75
3600905015
|
£16.41
|
£19.69
|
|
|
56 - FITTING
BSD-3603458017.A6
3603458017
|
£10.10
|
£12.12
|
|
|
57 - GUIDE SLEEVE
BSD-3600364002.A7
3600364002
|
£14.91
|
£17.89
|
|
|
60 - STRAINER
BSD-3600002000.A85
3600002000
|
£3.72
|
£4.47
|
|
|
63 - STRAIGHT PIN
BSD-3603201060.A3
3603201060
|
-
|
|
|
|
64 - STRAIGHT PIN 35.3 MM
BSD-3603201002.A10
3603201002
|
£5.30
|
£6.36
|
|
|
65 - NEEDLE ROLLER DIN 5402-A 2x19.8G5
BSD-3603100026.A33
3603100026
|
£2.16
|
£2.59
|
|
|
66 - STRAIGHT PIN
BSD-3603201010.A20
3603201010
|
£8.67
|
£10.41
|
|
|
67 - VALVE SPOOL
BSD-3608750003.A10
3608750003
|
£10.10
|
£12.12
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A511
1903230013
|
£2.16
|
£2.59
|
|
|
69 - O-RING 15x2 MM
BSD-1900210112.A116
1900210112
|
£2.61
|
£3.13
|
|
|
70 - BALL dia9 MM
BSD-3603230004.A23
3603230004
|
£3.72
|
£4.47
|
|
|
71 - COMPRESSION SPRING
BSD-3604643003.A13
3604643003
|
£1.75
|
£2.10
|
|
|
75 - INTERMEDIATE PIECE
BSD-3602305006.A8
3602305006
|
£5.58
|
£6.70
|
|
|
76 - O-RING
BSD-3600210094.A78
3600210094
|
£2.80
|
£3.36
|
|
|
77 - CONTROL LEVER
BSD-3602053002.A6
3602053002
|
£4.26
|
£5.11
|
|
|
78 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A67
2917610083
|
£1.75
|
£2.10
|
|
|
83 - COMPRESSION SPRING
BSD-3604611006.A159
3604611006
|
£2.16
|
£2.59
|
|
|
88 - SILENCER
BSD-3601010004.A28
3601010004
|
£2.16
|
£2.59
|
|
|
89 - SILENCER
BSD-3600009000.A12
3600009000
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A431
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A541
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A639
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A832
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125007.A11
3605125007
|
£61.98
|
£74.38
|
|
|
101 - CLUTCH ELEMENT
BSD-3606432007.A10
3606432007
|
£102.57
|
£123.08
|
|
|
102 - DRIVE SHAFT
BSD-3606122011.A50
3606122011
|
£120.11
|
£144.13
|
|
|
106 - COMPRESSION SPRING
BSD-3604617000.A25
3604617000
|
£1.75
|
£2.10
|
|
|
107 - COMPRESSION SPRING
BSD-3604610006.A31
3604610006
|
£2.16
|
£2.59
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A42
3604610002
|
£3.72
|
£4.47
|
|
|
109 - COMPRESSION SPRING
BSD-3604619003.A146
3604619003
|
£5.58
|
£6.70
|
|
|
110 - RETAINING RING
BSD-3604601002.A55
3604601002
|
£1.75
|
£2.10
|
|
|
113 - CLAMPING SLEEVE
BSD-3600311016.A11
3600311016
|
£21.52
|
£25.83
|
|
|
114 - SINTERED-METAL BUSHING
BSD-3600301004.A14
3600301004
|
-
|
|
|
|
115 - SEALING PLATE
BSD-3600001002.A4
3600001002
|
£3.72
|
£4.47
|
|
|
116 - ADJUSTING DISC
BSD-3600134003.A72
3600134003
|
£2.61
|
£3.13
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A18
3603150203
|
£45.67
|
£54.80
|
|
|
119 - SUPPORT DISC
BSD-3600114002.A14
3600114002
|
£12.04
|
£14.45
|
|
|
120 - ROUND NUT
BSD-3603344009.A17
3603344009
|
£27.23
|
£32.68
|
|
|
124 - COUPLING PLATE
BSD-3600220001.A9
3600220001
|
£11.30
|
£13.56
|
|
|
125 - BACKUP RING
BSD-3600202006.A40
3600202006
|
£2.80
|
£3.36
|
|
|
126 - RETAINING RING
BSD-3600224006.A187
3600224006
|
£2.80
|
£3.36
|
|
|
127 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A582
1903230007
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-5 G28
BSD-1903230009.A582
1903230009
|
£1.75
|
£2.10
|
|
|
129 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A303
1903230004
|
£2.16
|
£2.59
|
|
|
130 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A195
1903230003
|
£2.61
|
£3.13
|
|
|
132 - SCREW PLUG
BSD-3603463000.A77
3603463000
|
£2.61
|
£3.13
|
|
|
133 - COILED SPRING PIN DIN 7343-2x5
BSD-2917800033.A52
2917800033
|
£1.75
|
£2.10
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A186
2916600008
|
£2.80
|
£3.36
|
|
|
652 - HOSE FITTING
BSD-3603386066.A93
3603386066
|
£14.91
|
£17.89
|
|
|
657 - ANGLE PIECE
BSD-3601329007.A194
3601329007
|
£4.26
|
£5.11
|
|
|
706 - COMPRESSION SPRING
BSD-3604618003.A96
3604618003
|
£7.36
|
£8.83
|
|
|
708 - SINGLE-HEAD ENG. WRENCH SW22
BSD-1607950505.A84
1607950505
|
£16.41
|
£19.69
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A16
3607950001
|
£2.80
|
£3.36
|
|
|
753 - SILENCER
BSD-3607000074.A92
3607000074
|
£23.86
|
£28.63
|
|
|
801 - CUTOFF COUPLING SP SET
BSD-3607031123.A8
3607031123
|
£357.27
|
£428.72
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031309.A3
3607031309
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031304.A71
3607031304
|
£27.23
|
£32.68
|
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A45
3607031087
|
£12.04
|
£14.45
|
|
|
828 - ASSEMBLY OF SERVICE PARTS
BSD-3607031583.A2
3607031583
|
£283.50
|
£340.20
|
|
|
843 - PARTS SET
BSD-3607010010.A30
3607010010
|
£7.36
|
£8.83
|
|
|
855 - PARTS SET
BSD-3607010000.A4
3607010000
|
£5.58
|
£6.70
|
|
|
858 - PARTS SET
BSD-3607010023.A13
3607010023
|
£5.58
|
£6.70
|
|
|
882 - O-RING
BSD-3607010006.A75
3607010006
|
£31.64
|
£37.97
|
|
