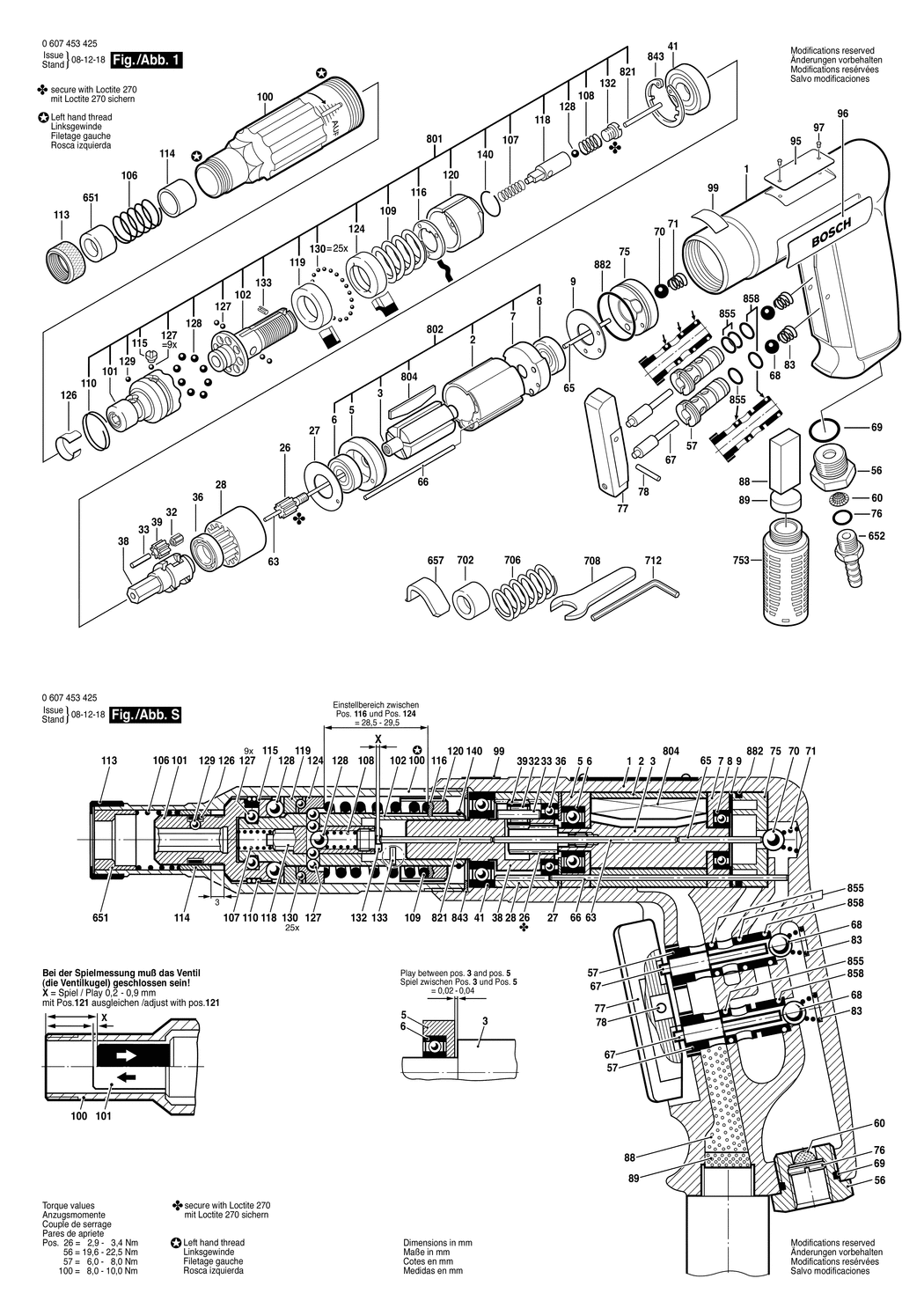

1 - MOTOR HOUSING
BSD-3605108122.A0
3605108122
|
£283.50
|
£340.20
|
|
|
2 - STATOR 180W
BSD-3604090050.A22
3604090050
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220082.A1
3604220082
|
-
|
|
|
|
5 - BEARING FLANGE
BSD-3605700107.A72
3605700107
|
£37.27
|
£44.72
|
|
|
6 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A106
1900905044
|
£7.36
|
£8.83
|
|
|
7 - BEARING FLANGE
BSD-3605700108.A2
3605700108
|
£45.67
|
£54.80
|
|
|
8 - GROOVE BALL BEARING 7x17x5
BSD-1900905028.A198
1900905028
|
£33.74
|
£40.49
|
|
|
9 - STOP DISC
BSD-3600101048.A4
3600101048
|
£6.52
|
£7.83
|
|
|
26 - PINION
BSD-3606300180.A11
3606300180
|
£31.64
|
£37.97
|
|
|
27 - STOP DISC
BSD-3600101047.A189
3600101047
|
£2.16
|
£2.59
|
|
|
28 - RING GEAR Z=42/54
BSD-3606334080.A18
3606334080
|
£23.86
|
£28.63
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A238
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A444
3603201000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x21x5
BSD-3600905002.A9
3600905002
|
£16.41
|
£19.69
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337175.A28
3606337175
|
£156.22
|
£187.46
|
|
|
39 - CYLINDRICAL GEAR
BSD-3606316104.A44
3606316104
|
£21.68
|
£26.01
|
|
|
41 - GROOVE BALL BEARING
BSD-3600905015.A76
3600905015
|
£16.41
|
£19.69
|
|
|
56 - FITTING
BSD-3603458017.A7
3603458017
|
£10.10
|
£12.12
|
|
|
57 - GUIDE SLEEVE
BSD-3600364002.A8
3600364002
|
£14.91
|
£17.89
|
|
|
60 - STRAINER
BSD-3600002000.A84
3600002000
|
£3.72
|
£4.47
|
|
|
63 - STRAIGHT PIN
BSD-3603201063.A0
3603201063
|
-
|
|
|
|
65 - NEEDLE ROLLER DIN 5402-A 2x19.8G5
BSD-3603100026.A32
3603100026
|
£2.16
|
£2.59
|
|
|
66 - STRAIGHT PIN
BSD-3603201010.A21
3603201010
|
£8.67
|
£10.41
|
|
|
67 - VALVE SPOOL
BSD-3608750003.A11
3608750003
|
£10.10
|
£12.12
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A510
1903230013
|
£2.16
|
£2.59
|
|
|
69 - O-RING 15x2 MM
BSD-1900210112.A115
1900210112
|
£2.61
|
£3.13
|
|
|
70 - BALL dia9 MM
BSD-3603230004.A22
3603230004
|
£3.72
|
£4.47
|
|
|
71 - COMPRESSION SPRING
BSD-3604643003.A14
3604643003
|
£1.75
|
£2.10
|
|
|
75 - INTERMEDIATE PIECE
BSD-3602305006.A9
3602305006
|
£5.58
|
£6.70
|
|
|
76 - O-RING
BSD-3600210094.A77
3600210094
|
£2.80
|
£3.36
|
|
|
77 - CONTROL LEVER
BSD-3602053002.A5
3602053002
|
£4.26
|
£5.11
|
|
|
78 - STRAIGHT PIN 3M6x24 DIN 7-C35K
BSD-2917610083.A66
2917610083
|
£1.75
|
£2.10
|
|
|
83 - COMPRESSION SPRING
BSD-3604611006.A160
3604611006
|
£2.16
|
£2.59
|
|
|
88 - SILENCER
BSD-3601010004.A29
3601010004
|
£2.16
|
£2.59
|
|
|
89 - SILENCER
BSD-3600009000.A13
3600009000
|
£2.16
|
£2.59
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A430
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A542
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A640
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A831
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125011.A17
3605125011
|
£48.38
|
£58.06
|
|
|
101 - CLUTCH ELEMENT
BSD-3606432006.A36
3606432006
|
£81.81
|
£98.17
|
|
|
102 - DRIVE SHAFT
BSD-3606122011.A49
3606122011
|
£120.11
|
£144.13
|
|
|
106 - COMPRESSION SPRING
BSD-3604615000.A74
3604615000
|
£1.75
|
£2.10
|
|
|
107 - COMPRESSION SPRING
BSD-3604610006.A29
3604610006
|
£2.16
|
£2.59
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A44
3604610002
|
£3.72
|
£4.47
|
|
|
109 - COMPRESSION SPRING
BSD-3604619003.A144
3604619003
|
£5.58
|
£6.70
|
|
|
110 - RETAINING RING
BSD-3604601002.A53
3604601002
|
£1.75
|
£2.10
|
|
|
113 - UNION NUT
BSD-3603340000.A45
3603340000
|
£4.26
|
£5.11
|
|
|
114 - BUSHING
BSD-3600202000.A39
3600202000
|
£5.58
|
£6.70
|
|
|
115 - SEALING PLATE
BSD-3600001002.A6
3600001002
|
£3.72
|
£4.47
|
|
|
116 - ADJUSTING DISC
BSD-3600134003.A73
3600134003
|
£2.61
|
£3.13
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A17
3603150203
|
£45.67
|
£54.80
|
|
|
119 - SUPPORT DISC
BSD-3600114002.A13
3600114002
|
£12.04
|
£14.45
|
|
|
120 - ROUND NUT
BSD-3603344009.A15
3603344009
|
£27.23
|
£32.68
|
|
|
124 - COUPLING PLATE
BSD-3600220001.A7
3600220001
|
£11.30
|
£13.56
|
|
|
126 - LEAF SPRING
BSD-2601250001.A114
2601250001
|
£3.72
|
£4.47
|
|
|
127 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A585
1903230007
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-5 G28
BSD-1903230009.A579
1903230009
|
£1.75
|
£2.10
|
|
|
129 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A196
1903230003
|
£2.61
|
£3.13
|
|
|
130 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A197
1903230003
|
£2.61
|
£3.13
|
|
|
132 - SCREW PLUG
BSD-3603463000.A80
3603463000
|
£2.61
|
£3.13
|
|
|
133 - COILED SPRING PIN DIN 7343-2x5
BSD-2917800033.A49
2917800033
|
£1.75
|
£2.10
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A183
2916600008
|
£2.80
|
£3.36
|
|
|
651 - GUIDE SLEEVE
BSD-3600329000.A24
3600329000
|
£7.36
|
£8.83
|
|
|
652 - HOSE FITTING
BSD-3603386066.A96
3603386066
|
£14.91
|
£17.89
|
|
|
657 - ANGLE PIECE
BSD-3601329007.A195
3601329007
|
£4.26
|
£5.11
|
|
|
702 - GUIDE SLEEVE
BSD-3600329000.A25
3600329000
|
£7.36
|
£8.83
|
|
|
706 - COMPRESSION SPRING
BSD-3604618003.A98
3604618003
|
£7.36
|
£8.83
|
|
|
708 - SINGLE-HEAD ENG. WRENCH SW22
BSD-1607950505.A86
1607950505
|
£16.41
|
£19.69
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A19
3607950001
|
£2.80
|
£3.36
|
|
|
753 - SILENCER
BSD-3607000074.A94
3607000074
|
£23.86
|
£28.63
|
|
|
801 - CUTOFF COUPLING SP SET
BSD-3607031117.A9
3607031117
|
£251.67
|
£302.00
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031309.A0
3607031309
|
-
|
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031304.A74
3607031304
|
£27.23
|
£32.68
|
|
|
821 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A43
3607031087
|
£12.04
|
£14.45
|
|
|
843 - PARTS SET
BSD-3607010010.A28
3607010010
|
£7.36
|
£8.83
|
|
|
855 - PARTS SET
BSD-3607010000.A2
3607010000
|
£5.58
|
£6.70
|
|
|
858 - PARTS SET
BSD-3607010023.A15
3607010023
|
£5.58
|
£6.70
|
|
|
882 - O-RING
BSD-3607010006.A77
3607010006
|
£31.64
|
£37.97
|
|
