Bosch 180 WATT-SERIE / 0607453627 / --- Spare Parts

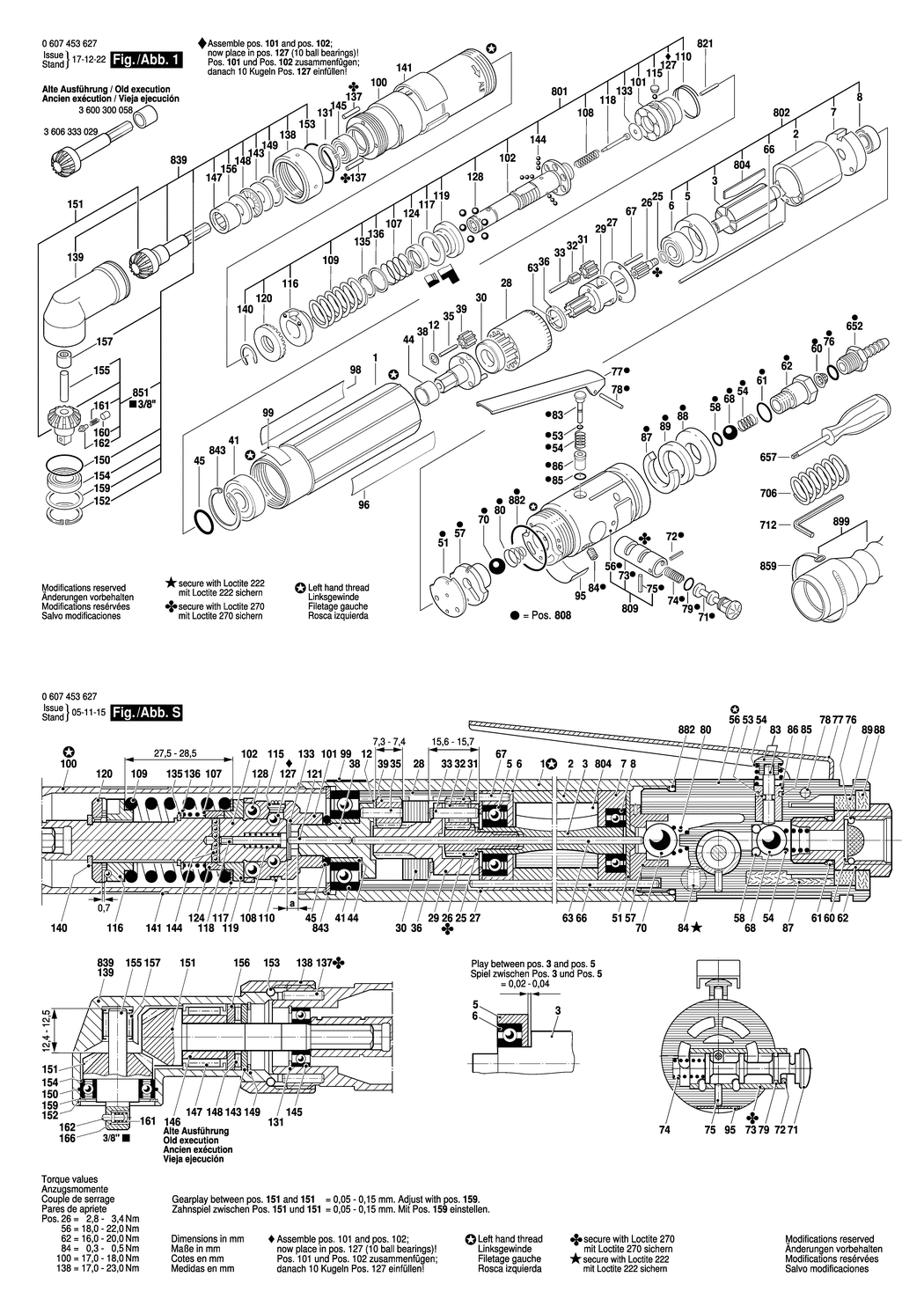

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453627 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-16051082JD.A0 16051082JD	-
2 - STATOR 180W BSD-3604090050.A40 3604090050	£93.88	£112.65
3 - ROTOR BSD-3604220081.A32 3604220081	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700107.A11 3605700107	£37.27	£44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A52 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700108.A40 3605700108	£45.67	£54.80
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A31 1900905028	£33.74	£40.49
12 - SHIM BSD-3600100030.A38 3600100030	£1.75	£2.10
25 - SHIM WASHER BSD-3600100007.A8 3600100007	£1.75	£2.10
26 - PINION Z=6 BSD-3606300115.A0 3606300115	-
27 - STOP DISC BSD-3600101047.A15 3600101047	£2.16	£2.59
28 - RING GEAR dia19.5 MM BSD-3606334085.A3 3606334085	£8.67	£10.41
29 - PLANETARY-GEAR CARRIER BSD-3606337145.A0 3606337145	-
30 - SPACER RING BSD-3600209013.A18 3600209013	£5.58	£6.70
31 - CYLINDRICAL GEAR BSD-3606316104.A4 3606316104	£21.68	£26.01
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A366 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A215 3603201000	£1.75	£2.10
35 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A432 1903201042	£2.16	£2.59
36 - STOP DISC BSD-3600103003.A43 3600103003	£2.80	£3.36
38 - PLANETARY-GEAR CARRIER BSD-3606337192.A9 3606337192	£63.50	£76.20
39 - CYLINDRICAL GEAR BSD-3606316112.A75 3606316112	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-3600905015.A118 3600905015	£16.41	£19.69
44 - SLEEVE BSD-3600400029.A5 3600400029	£7.36	£8.83
45 - O-RING 8x2.5 MM BSD-1900210105.A45 1900210105	£1.75	£2.10
51 - PLATE BSD-3605700116.A6 3605700116	£45.67	£54.80
53 - O-RING BSD-3600210092.A5 3600210092	£2.16	£2.59
54 - COMPRESSION SPRING BSD-3604611017.A48 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190176.A9 3605190176	£68.42	£82.10
57 - INTERMEDIATE PIECE BSD-3605700126.A10 3605700126	£72.18	£86.62
58 - O-RING 4.3x2.4 MM BSD-3600210084.A12 3600210084	£2.61	£3.13
60 - STRAINER BSD-3600002000.A164 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A7 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A46 3603458016	£11.30	£13.56
63 - STRAIGHT PIN BSD-3603201081.A5 3603201081	£14.91	£17.89
66 - STRAIGHT PIN BSD-3603201077.A51 3603201077	£11.30	£13.56
67 - HALF-LENGTH GROOVED PIN ISO 8741-2x10-ST BSD-2917690036.A28 2917690036	£1.75	£2.10
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A81 1903230014	£1.75	£2.10
70 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A25 1903230528	£1.75	£2.10
71 - CONTROL PISTON BSD-3608750038.A31 3608750038	£23.86	£28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A8 2917800016	£1.75	£2.10
73 - VALVE BUSHING BSD-3600340008.A6 3600340008	£45.67	£54.80
74 - COMPRESSION SPRING BSD-3604611007.A46 3604611007	£2.16	£2.59
75 - STRAIGHT PIN DIN6325-2M6X6 BSD-2917550034.A28 2917550034	£1.75	£2.10
76 - O-RING BSD-3600210094.A5 3600210094	£2.80	£3.36
77 - CONTROL LEVER BSD-3601902001.A82 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A11 2917700040	£2.80	£3.36
79 - O-RING BSD-3600210093.A65 3600210093	£1.75	£2.10
80 - COMPRESSION SPRING BSD-3604643008.A1 3604643008	£2.16	£2.59
83 - CONTROL PIN BSD-3608750048.A9 3608750048	£5.30	£6.36
84 - SET SCREW M 5x5-DIN 913-45H BSD-2912041147.A29 2912041147	£2.16	£2.59
85 - O-RING 4.0x1.0 MM BSD-3600210015.A97 3600210015	£3.72	£4.47
86 - BUSHING BSD-3600300064.A25 3600300064	£10.10	£12.12
87 - SILENCER BSD-3601010010.A144 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A36 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A40 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A135 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A59 3601119055	£3.72	£4.47
98 - STICKER BSD-3601110204.A35 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A1359 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125055.A2 3605125055	£120.11	£144.13
101 - CLUTCH ELEMENT BSD-3606445043.A51 3606445043	£102.57	£123.08
102 - OUTPUT SHAFT BSD-3603124022.A30 3603124022	£102.57	£123.08
107 - COMPRESSION SPRING BSD-3604615004.A18 3604615004	£1.75	£2.10
108 - COMPRESSION SPRING BSD-3604610057.A5 3604610057	£2.16	£2.59
109 - COMPRESSION SPRING BSD-3604619020.A63 3604619020	£5.58	£6.70
110 - RETAINING RING BSD-3600224053.A151 3600224053	£1.75	£2.10
115 - SEALING PLATE BSD-3601023011.A45 3601023011	£2.61	£3.13
116 - SETTING RING BSD-3600134014.A41 3600134014	£31.64	£37.97
117 - PLAIN WASHER 0.5 MM BSD-1600101023.A104 1600101023	£1.75	£2.10
118 - ROD BSD-3603003005.A4 3603003005	£13.12	£15.75
119 - SUPPORT DISC BSD-3600190038.A18 3600190038	£18.96	£22.75
120 - CATCH DISK BSD-3603344047.A153 3603344047	£23.86	£28.63
124 - RING BSD-3600250004.A16 3600250004	£8.67	£10.41
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A289 1903230006	£2.16	£2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A116 1903230008	£1.75	£2.10
131 - SPRING RETAINING RING 16x1 MM. DIN 472 BSD-2916660003.A48 2916660003	£1.75	£2.10
133 - WASHER BSD-3600190024.A39 3600190024	£2.16	£2.59
135 - RETAINING RING BSD-3600224059.A28 3600224059	£3.72	£4.47
136 - PLAIN WASHER BSD-2600101513.A41 2600101513	£1.75	£2.10
137 - STRAIGHT PIN DIN 6325-5M2.5x12 BSD-2917530057.A27 2917530057	£1.75	£2.10
138 - UNION NUT BSD-3603342002.A14 3603342002	£16.41	£19.69
139 - SPINDLE HOUSING BSD-3605106071.A24 3605106071	£135.25	£162.30
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A187 2916080012	£1.75	£2.10
141 - PROTECTION SLEEVE BSD-3600400022.A16 3600400022	£18.96	£22.75
143 - SUPPORT DISC BSD-3600100094.A10 3600100094	£18.96	£22.75
144 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A58 1903230002	£2.16	£2.59
145 - GROOVE BALL BEARING BSD-1280905004.A22 1280905004	£31.64	£37.97
147 - NEEDLE BEARING BSD-3600917019.A30 3600917019	£11.30	£13.56
148 - ROLLER THRUST BEARING BSD-3600929003.A16 3600929003	£21.52	£25.83
149 - SPRING RETAINING RING 18x1MM. DIN 472 BSD-2916660004.A23 2916660004	£1.75	£2.10
150 - O-RING 21.0x1.0 MM BSD-3600210127.A10 3600210127	£1.75	£2.10
151 - BEVEL GEAR SET BSD-3606333075.A3 3606333075	£271.18	£325.41
152 - SPRING RETAINING RING DIN 472-21x1MM BSD-2916660045.A6 2916660045	£1.75	£2.10
153 - RETAINING RING DIN 9045-24 BSD-2916600013.A25 2916600013	-
154 - GROOVE BALL BEARING BSD-3600900018.A24 3600900018	£23.86	£28.63
155 - BEARING BOLT BSD-3603120003.A2 3603120003	£37.27	£44.72
156 - SUPPORT DISC BSD-3600100095.A27 3600100095	£18.96	£22.75
157 - NEEDLE BEARING BSD-9001140359.A16 9001140359	£6.52	£7.83
159 - SHIM 0.05 MM BSD-1600101650.A125 1600101650	£2.61	£3.13
159 - SHIM 0.1 MM BSD-1600101648.A113 1600101648	£1.75	£2.10
160 - GUIDE SLEEVE BSD-3600320016.A26 3600320016	£14.91	£17.89
161 - COMPRESSION SPRING BSD-1604611004.A40 1604611004	£2.80	£3.36
162 - PRESSURE SPINDLE BSD-1603124060.A63 1603124060	£5.58	£6.70
652 - HOSE FITTING BSD-3603386066.A27 3603386066	£14.91	£17.89
657 - SCREWDRIVER BSD-3607950027.A4 3607950027	£14.91	£17.89
706 - COMPRESSION SPRING BSD-3604618003.A9 3604618003	£7.36	£8.83
712 - HEXAGON-SOCKET KEY BSD-3607950001.A221 3607950001	£2.80	£3.36
801 - CUTOFF COUPLING SP SET BSD-3607031525.A1 3607031525	£306.65	£367.98
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031217.A28 3607031217	£458.51	£550.21
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A3 3607031304	£27.23	£32.68
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031361.A7 3607031361	£458.51	£550.21
809 - VALVE HOUSING BSD-3607031419.A13 3607031419	£135.25	£162.30
821 - ASSEMBLY OF SERVICE PARTS BSD-3603201080.A6 3603201080	£48.38	£58.06
839 - ANGLE SCREWDRIVER HEAD 3/8 BSD-3607020165.A6 3607020165	£798.41	£958.09
843 - PARTS SET BSD-3607010010.A46 3607010010	£7.36	£8.83
851 - ASSEMBLY OF SERVICE PARTS BSD-3607030151.A5 3607030151	£283.50	£340.20
859 - HOLDING BELT BSD-3604710062.A44 3604710062	£1.75	£2.10
882 - O-RING BSD-3607010006.A98 3607010006	£31.64	£37.97
899 - AIR HOSE BSD-3607000064.A31 3607000064	£27.23	£32.68
