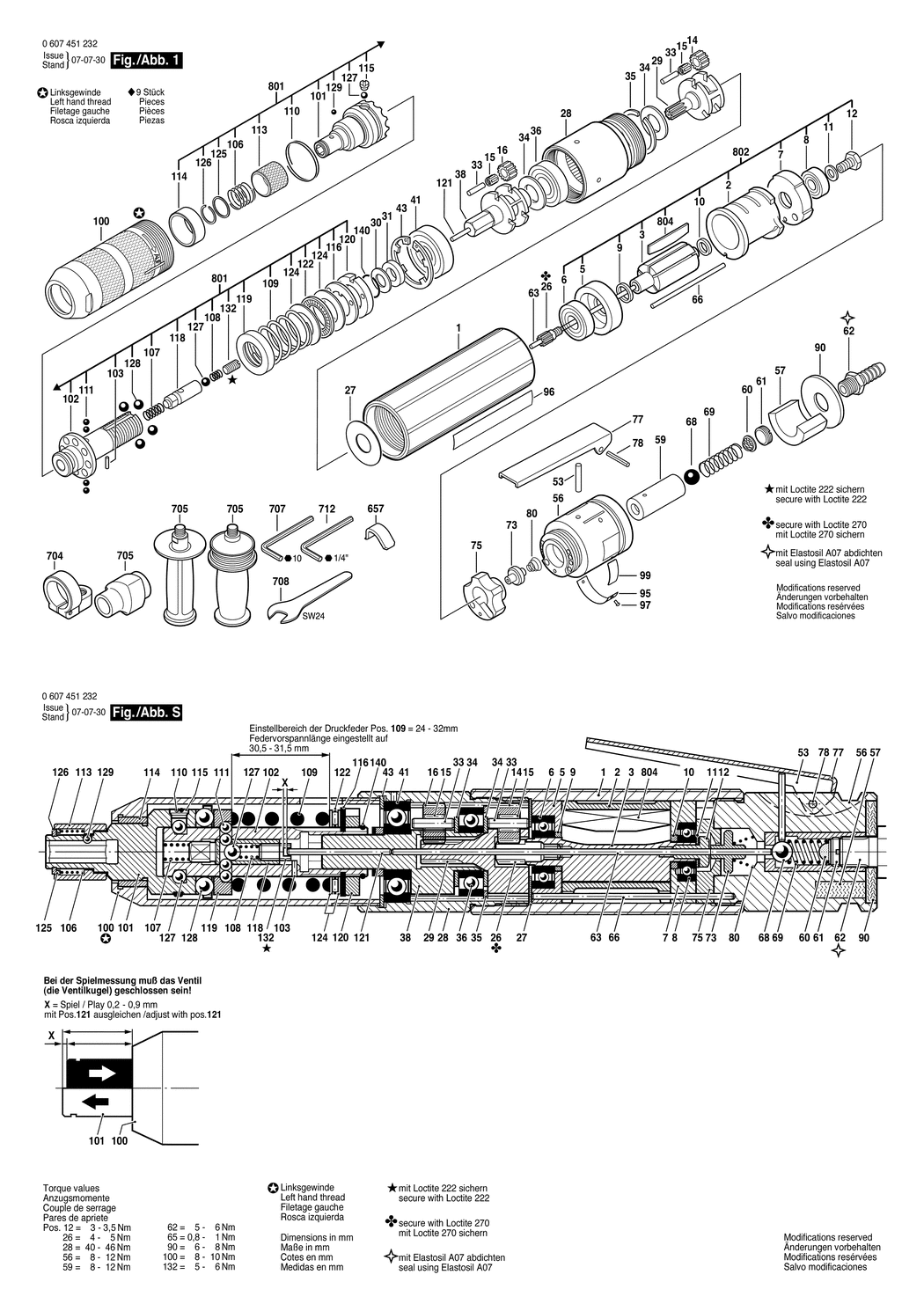

1 - MOTOR HOUSING
BSD-3600760015.A53
3600760015
|
£93.88
|
£112.65
|
|
|
2 - STATOR 370W
BSD-3604090003.A59
3604090003
|
£93.88
|
£112.65
|
|
|
3 - ROTOR
BSD-3604220002.A28
3604220002
|
£93.88
|
£112.65
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A61
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A268
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700007.A25
3605700007
|
£63.50
|
£76.20
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A1340
2600905032
|
£5.30
|
£6.36
|
|
|
9 - SPACER RING
BSD-2600202013.A79
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A112
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A8
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW
BSD-3603450002.A9
3603450002
|
£23.86
|
£28.63
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316100.A42
3606316100
|
£21.52
|
£25.83
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A450
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A95
3606316099
|
£21.68
|
£26.01
|
|
|
26 - PINION Z=23
BSD-3606300001.A15
3606300001
|
£27.31
|
£32.77
|
|
|
27 - STOP DISC
BSD-3600101001.A10
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A131
3606334000
|
£102.57
|
£123.08
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337001.A15
3606337001
|
-
|
|
|
|
30 - SHIM
BSD-1600101627.A3
1600101627
|
-
|
|
|
|
31 - SPACER RING
BSD-3600200012.A0
3600200012
|
-
|
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A103
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A174
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A148
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A36
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337005.A0
3606337005
|
£120.11
|
£144.13
|
|
|
41 - GROOVE BALL BEARING 12x32x10
BSD-1600905007.A115
1600905007
|
£11.30
|
£13.56
|
|
|
43 - SPRING RETAINING RING
BSD-3600119000.A20
3600119000
|
£10.10
|
£12.12
|
|
|
53 - STRAIGHT PIN
BSD-3604710053.A0
3604710053
|
£5.87
|
£7.04
|
|
|
56 - VALVE HOUSING
BSD-3605190103.A0
3605190103
|
-
|
|
|
|
57 - SILENCER
BSD-3601010018.A2
3601010018
|
-
|
|
|
|
60 - STRAINER
BSD-3600002001.A0
3600002001
|
£2.61
|
£3.13
|
|
|
61 - THREADED RING
BSD-3603344003.A17
3603344003
|
£2.61
|
£3.13
|
|
|
62 - FITTING
BSD-3603386010.A0
3603386010
|
-
|
|
|
|
63 - STRAIGHT PIN
BSD-3604710029.A1
3604710029
|
£12.04
|
£14.45
|
|
|
66 - STRAIGHT PIN
BSD-3604710051.A10
3604710051
|
£10.10
|
£12.12
|
|
|
68 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A25
1903230013
|
£2.16
|
£2.59
|
|
|
69 - COMPRESSION SPRING
BSD-3604611006.A0
3604611006
|
£2.16
|
£2.59
|
|
|
73 - VALVE CONE
BSD-3603203012.A0
3603203012
|
£16.41
|
£19.69
|
|
|
75 - INTERMEDIATE PIECE
BSD-3600290003.A10
3600290003
|
£63.50
|
£76.20
|
|
|
77 - CONTROL LEVER
BSD-3601902001.A105
3601902001
|
£6.52
|
£7.83
|
|
|
78 - GROOVED PIN DIN 1475-2x18-ST
BSD-2917700040.A62
2917700040
|
£2.80
|
£3.36
|
|
|
80 - COMPRESSION SPRING
BSD-3604643011.A2
3604643011
|
£6.52
|
£7.83
|
|
|
90 - SILENCER
BSD-3600113011.A0
3600113011
|
£8.49
|
£10.19
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A267
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A93
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A59
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1938
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125024.A13
3605125024
|
-
|
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445032.A38
3606445032
|
£135.25
|
£162.30
|
|
|
102 - DRIVE SHAFT
BSD-3606122008.A56
3606122008
|
£120.11
|
£144.13
|
|
|
103 - SLOTTED SPRING PIN 2x5 DIN 1481
BSD-2917760033.A62
2917760033
|
£1.75
|
£2.10
|
|
|
106 - COMPRESSION SPRING
BSD-3604617000.A39
3604617000
|
£1.75
|
£2.10
|
|
|
107 - COMPRESSION SPRING
BSD-3604610003.A53
3604610003
|
£3.72
|
£4.47
|
|
|
108 - COMPRESSION SPRING
BSD-3604610002.A85
3604610002
|
£3.72
|
£4.47
|
|
|
109 - COMPRESSION SPRING dia 4 MM
BSD-3604619000.A47
3604619000
|
£7.36
|
£8.83
|
|
|
110 - RETAINING RING
BSD-3604601001.A108
3604601001
|
£2.16
|
£2.59
|
|
|
111 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A163
1903230007
|
£1.75
|
£2.10
|
|
|
113 - CLAMPING SLEEVE
BSD-3600311016.A38
3600311016
|
£21.52
|
£25.83
|
|
|
114 - SINTERED-METAL BUSHING
BSD-3600301004.A29
3600301004
|
-
|
|
|
|
115 - SEALING PLATE
BSD-3600001000.A14
3600001000
|
£2.80
|
£3.36
|
|
|
116 - ADJUSTING DISC
BSD-3600134000.A24
3600134000
|
£2.80
|
£3.36
|
|
|
118 - LOCKING BOLT
BSD-3603150203.A96
3603150203
|
£45.67
|
£54.80
|
|
|
119 - COUPLING PLATE
BSD-3600114001.A6
3600114001
|
£18.96
|
£22.75
|
|
|
120 - ROUND NUT
BSD-3603301004.A13
3603301004
|
£21.68
|
£26.01
|
|
|
121 - ASSEMBLY OF SERVICE PARTS
BSD-3607031087.A132
3607031087
|
£12.04
|
£14.45
|
|
|
122 - ROLLER THRUST BEARING
BSD-3600921000.A120
3600921000
|
£6.52
|
£7.83
|
|
|
124 - SUPPORT DISC
BSD-3600101002.A157
3600101002
|
£2.16
|
£2.59
|
|
|
125 - BACKUP RING
BSD-3600202006.A15
3600202006
|
£2.80
|
£3.36
|
|
|
126 - RETAINING RING
BSD-3600224006.A51
3600224006
|
£2.80
|
£3.36
|
|
|
127 - BALL DIN 5401-5 G28
BSD-1903230009.A163
1903230009
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-6 G28
BSD-1903230011.A142
1903230011
|
£2.61
|
£3.13
|
|
|
129 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A100
1903230004
|
£2.16
|
£2.59
|
|
|
132 - SET SCREW
BSD-3603400001.A5
3603400001
|
£2.80
|
£3.36
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A75
2916600008
|
£2.80
|
£3.36
|
|
|
657 - ANGLE PIECE
BSD-3601329007.A37
3601329007
|
£4.26
|
£5.11
|
|
|
704 - SUPPORT CLAMP
BSD-3608040000.A12
3608040000
|
-
|
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A1013
1602025022
|
£13.41
|
£16.09
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A321
1602025030
|
£18.96
|
£22.75
|
|
|
705 - HANDLE
BSD-3600499000.A10
3600499000
|
-
|
|
|
|
707 - OFFSET SCREWDRIVER DIN 911 SW10
BSD-1907950009.A11
1907950009
|
£21.68
|
£26.01
|
|
|
708 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24
BSD-1907950513.A159
1907950513
|
£16.41
|
£19.69
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A184
3607950001
|
£2.80
|
£3.36
|
|
|
801 - ASSEMBLY OF SERVICE PARTS
BSD-3607031172.A0
3607031172
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031017.A10
3607031017
|
£306.65
|
£367.98
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A119
3607030248
|
£31.64
|
£37.97
|
|
