Bosch BS 10-A / 3601H68W00 / EU 10.8 Volt Spare Parts

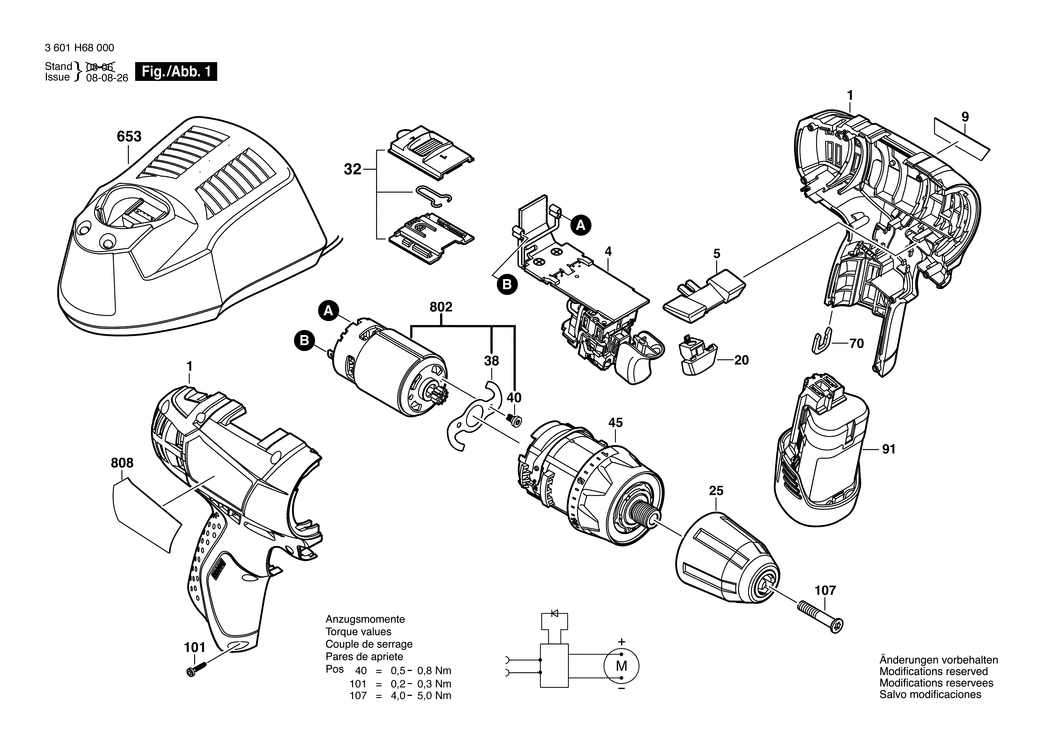

An exploded drawing and listing for the Bosch BS 10-A / 3601H68W00 / EU 10.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100745.A0 2609100745	£21.52	£25.83
4 - ELECTRONICS MODULE BSD-1607233508.A1 1607233508	£52.15	£62.58
5 - BUTTON BSD-2609100747.A0 2609100747	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BS 10-A BSD-2609132103.A0 2609132103	£2.61	£3.13
20 - LIGHT GUIDE BSD-2609100748.A0 2609100748	£1.75	£2.10
25 - KEYLESS CHUCK 10 MM BSD-2609110887.A0 2609110887	£33.74	£40.49
32 - SLIDE SWITCH BSD-2609199221.A0 2609199221	£2.16	£2.59
38 - TAB WASHER BSD-2609110801.A1 2609110801	£2.16	£2.59
40 - SCREW BSD-2609110802.A11 2609110802	£1.75	£2.10
45 - GEAR BOX BSD-2609199234.A0 2609199234	£37.27	£44.72
70 - CLIP BSD-2609110537.A89 2609110537	£1.75	£2.10
91 - BATTERY PACK 10.8V. 1.3Ah LI BSD-2607336017.A2 2607336017	£61.98	£74.38
101 - SCREW BSD-2609110883.A7 2609110883	£2.16	£2.59
107 - PAN HEAD SCREW M 6x30 BSD-2609110635.A10 2609110635	£1.75	£2.10
653 - FAST CHARGER EU 10.8V. 30 MIN. AL 30-LI PL BSD-2607225197.A6 2607225197	£59.53	£71.44
802 - DC MOTOR 10.8V BSD-2609199177.A1 2609199177	£40.80	£48.96
808 - NAMEPLATE BSD-2609132269.A0 2609132269	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
