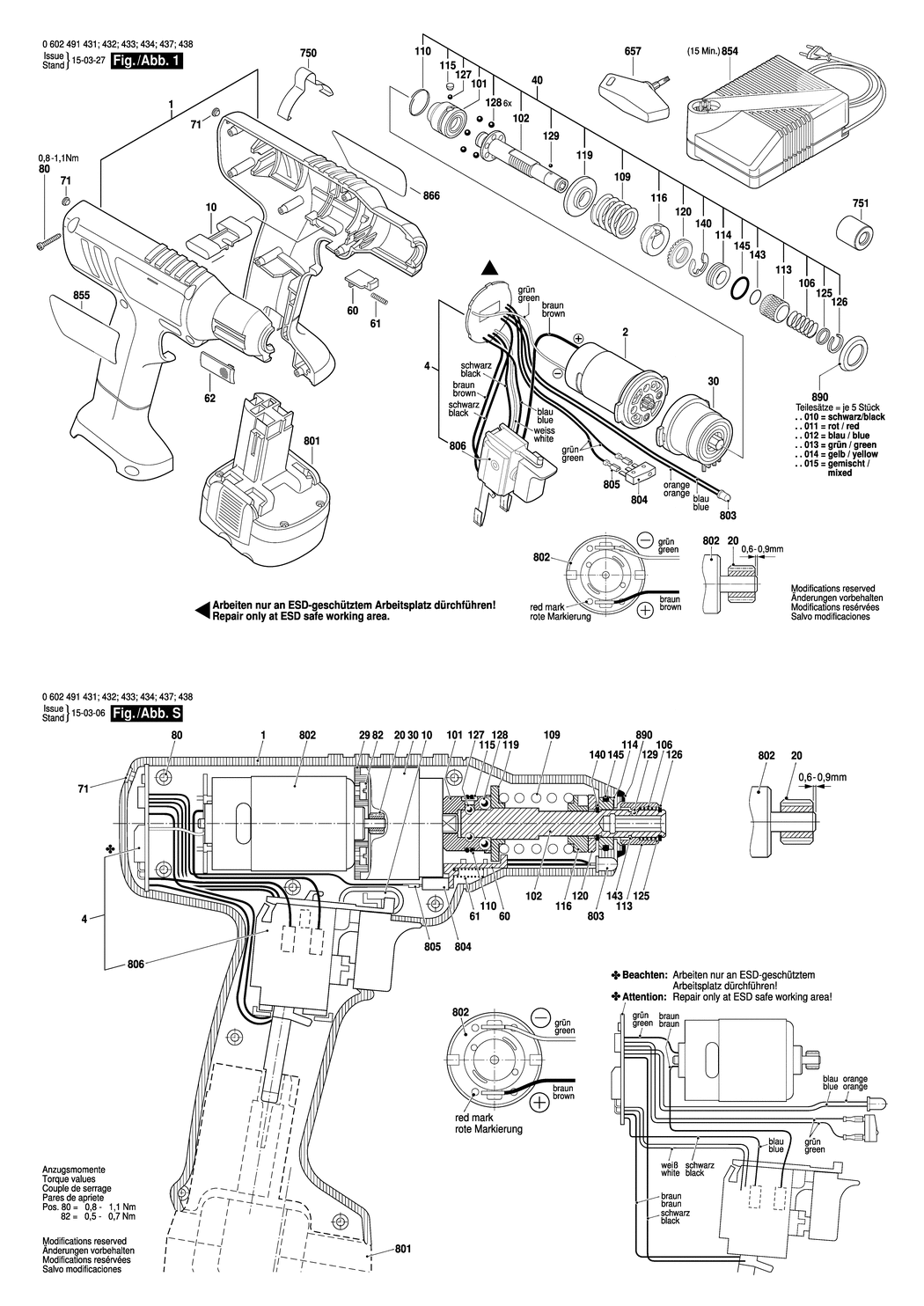

An exploded drawing and listing for the Bosch BT EXACT 1100 / 0602491446 / --- 9.6 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-3605105027.A11 3605105027 £40.80 £48.96
3 - LOCATING RING BSD-3600200043.A3 3600200043 £5.30 £6.36
4 - ELECTRONIC ASSEMBLY BSD-3607200094.A0 3607200094 £458.51 £550.21
10 - SWITCH SLIDE BSD-3601099003.A5 3601099003 £2.80 £3.36
20 - PINION BSD-3606309060.A0 3606309060 £48.38 £58.06
29 - INTERMEDIATE FLANGE BSD-2605719011.A85 2605719011 £3.72 £4.47
30 - PLANETARY GEAR TRAIN BSD-3607030469.A4 3607030469 £72.18 £86.62
40 - ASSEMBLY KIT BSD-3607031534.A0 3607031534 £251.67 £302.00
60 - SWITCHING ELEMENT BSD-3601923022.A111 3601923022 £5.30 £6.36
61 - COMPRESSION SPRING BSD-3604611022.A77 3604611022 £3.72 £4.47
62 - PUSHER BSD-3601923029.A111 3601923029 £5.30 £6.36
71 - LIGHT CONDUCTOR BSD-3604460132.A12 3604460132 £2.80 £3.36
80 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A263 2603490018 £1.75 £2.10
82 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A100 2603414048 £1.75 £2.10
101 - CLUTCH ELEMENT BSD-3606445043.A39 3606445043 £102.57 £123.08
102 - OUTPUT SHAFT BSD-3603124023.A9 3603124023 £68.42 £82.10
106 - COMPRESSION SPRING BSD-3604610011.A147 3604610011 £2.80 £3.36
109 - COMPRESSION SPRING BSD-3604619003.A30 3604619003 £5.58 £6.70
110 - RETAINING RING BSD-3600224053.A102 3600224053 £1.75 £2.10
113 - CLAMP BUSHING BSD-3600499023.A24 3600499023 £18.96 £22.75
114 - PLAIN BEARING BSD-3600921001.A5 3600921001 £10.10 £12.12
115 - SEALING PLATE BSD-3601023011.A32 3601023011 £2.61 £3.13
116 - SETTING RING BSD-3600134014.A34 3600134014 £31.64 £37.97
119 - SUPPORT DISC BSD-3600190036.A94 3600190036 £8.67 £10.41
120 - CATCH DISK BSD-3603344047.A148 3603344047 £23.86 £28.63
125 - BACKUP RING BSD-3600202020.A111 3600202020 £8.67 £10.41
126 - RETAINING RING BSD-3600224006.A24 3600224006 £2.80 £3.36
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A352 1903230006 £2.16 £2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A164 1903230008 £1.75 £2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A391 1903230003 £2.61 £3.13
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A128 2916080012 £1.75 £2.10
143 - O-RING 9.0x1.2 MM BSD-3600210038.A40 3600210038 £2.61 £3.13
145 - O-RING BSD-3600210116.A80 3600210116 £2.80 £3.36
657 - SCREWDRIVER BSD-3607950027.A68 3607950027 £14.91 £17.89
750 - SUSPENSION LOOP BSD-3601923024.A18 3601923024 £11.30 £13.56
751 - PROTECTIVE CAP BSD-3605500210.A34 3605500210 £16.74 £20.09
801 - SLIDE-IN ACCU PACKAGE 9.6V.2.6Ah.NiMh BSD-2607335681.A94 2607335681 £116.15 £139.38
802 - ASSEMBLY KIT BSD-3607031723.A2 3607031723 £72.18 £86.62
803 - LIGHT-EMITTING-DIODE BSD-3607600404.A12 3607600404 £16.41 £19.69
804 - MICROSWITCH BSD-3609202762.A107 3609202762 £27.23 £32.68
805 - PLUG SET BSD-3609202766.A74 3609202766 £6.52 £7.83
806 - SWITCH BSD-3607200083.A1 3607200083 £59.53 £71.44
854 - FAST CHARGER EU 230/7.2-24V. 30 MIN. BSD-2607225027.A55 2607225027 £120.11 £144.13
854 - FAST CHARGER GB 230/7.2-24V. 30 MIN. BSD-2607225029.A107 2607225029 £88.07 £105.68
854 - FAST CHARGER AUS 240/7.2-24V. 30 MIN. BSD-2607225031.A50 2607225031 £98.11 £117.73
854 - FAST CHARGER USA 120/7.2-24V. 30 MIN. BSD-2607225033.A89 2607225033 -
854 - FAST CHARGER SAM 115/7.2-24V. 15 MIN. BSD-2607225035.A41 2607225035 -
854 - FAST CHARGER J 100/7.2-24V. 1h BSD-2607224435.A25 2607224435 £120.11 £144.13
854 - FAST CHARGER ROK 220/7.2-24V. 30 MIN. BSD-2607225039.A87 2607225039 £80.61 £96.73
855 - NAMEPLATE BSD-3601119391.A1 3601119391 -
866 - MANUFACTURER'S NAMEPLATE BSD-3601119392.A0 3601119392 -
890 - PARTS SET BSD-3600106010.A61 3600106010 £23.86 £28.63
890 - PARTS SET BSD-3600106011.A28 3600106011 £21.52 £25.83
890 - PARTS SET BSD-3600106012.A61 3600106012 £23.86 £28.63
890 - PARTS SET BSD-3600106013.A28 3600106013 £21.52 £25.83
890 - PARTS SET BSD-3600106014.A61 3600106014 £23.86 £28.63
890 - PARTS SET BSD-3600106015.A28 3600106015 £27.23 £32.68
890 - PARTS SET BSD-3600106017.A18 3600106017 £23.86 £28.63
