Bosch GSR 12 V / 0601949567 / EU 12 Volt Spare Parts

Bosch GSR 12 V / 0601949567 / EU 12 Volt Spare Parts

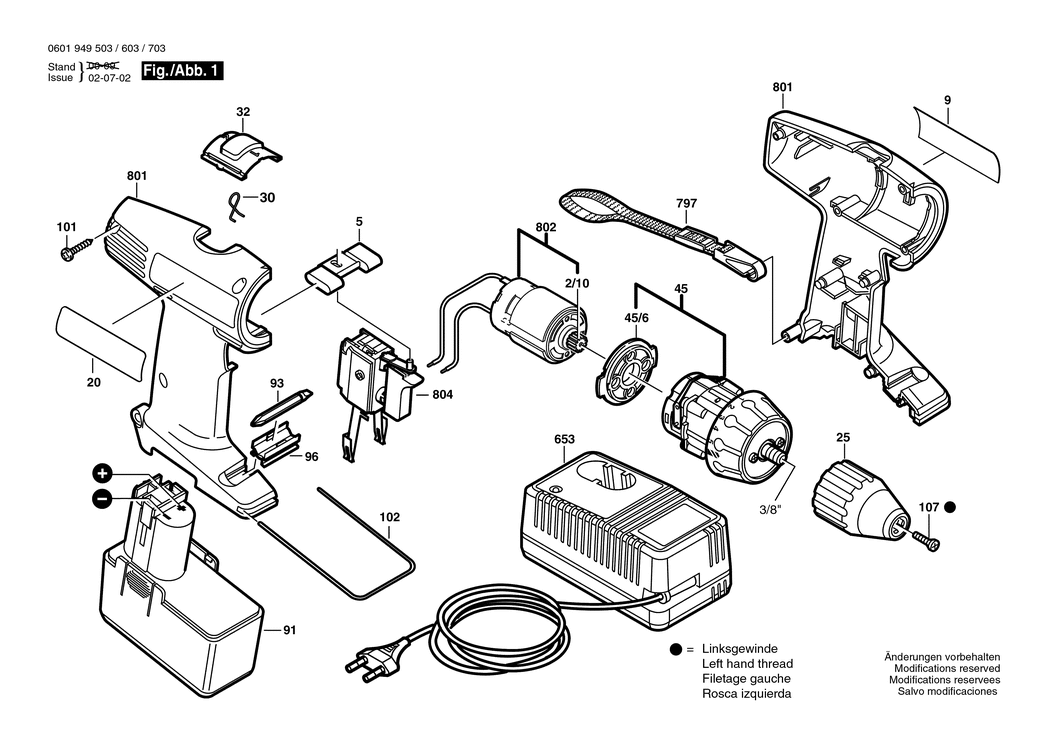

An exploded drawing and listing for the Bosch GSR 12 V / 0601949567 / EU 12 Volt
Ex VAT Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A41 2606316161 -
5 - ADJUSTING SLIDE BSD-2601099055.A39 2601099055 -
9 - MANUFACTURER'S NAMEPLATE BSD-2601119715.A3 2601119715 £3.34 £4.01
20 - REFERENCE PLATE BSD-2601119716.A0 2601119716 £3.34 £4.01
25 - KEYLESS CHUCK BSD-2608572214.A35 2608572214 £45.67 £54.80
30 - CONTROL LEVER BSD-2602033008.A7 2602033008 -
32 - ADJUSTING SLIDE BSD-2601099060.A23 2601099060 £1.75 £2.10
45 - PLANETARY GEAR TRAIN BSD-2606200073.A11 2606200073 -
45/6 - INTERMEDIATE FLANGE BSD-2605719011.A57 2605719011 £3.72 £4.47
91 - SLIDE-IN ACCU PACKAGE 12V.1.4Ah.NiCd BSD-2607335054.A8 2607335054 £61.98 £74.38
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A121 1609200147 £3.72 £4.47
96 - SUPPORT BSD-2608040079.A58 2608040079 £1.75 £2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A503 2603490018 £1.75 £2.10
102 - RETAINING BRACKET BSD-2601329041.A208 2601329041 £2.33 £2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A141 2609110721 £2.16 £2.59
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A176 2607224425 £88.07 £105.68
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A342 2607224701 £88.07 £105.68
797 - CARRYING LOOP BSD-2601398009.A51 2601398009 -
801 - HOUSING SECTION BSD-2605104649.A0 2605104649 -
802 - DC MOTOR 9.6-12V BSD-2607022962.A4 2607022962 -
804 - ON-OFF SWITCH BSD-2607200353.A68 2607200353 -
899 - BATT-OPER SCREWDRIVER BSD-0601949520.A3 0601949520 -
