Bosch GSR 120-LI / 3601JF7020 / EU 12 Volt Spare Parts

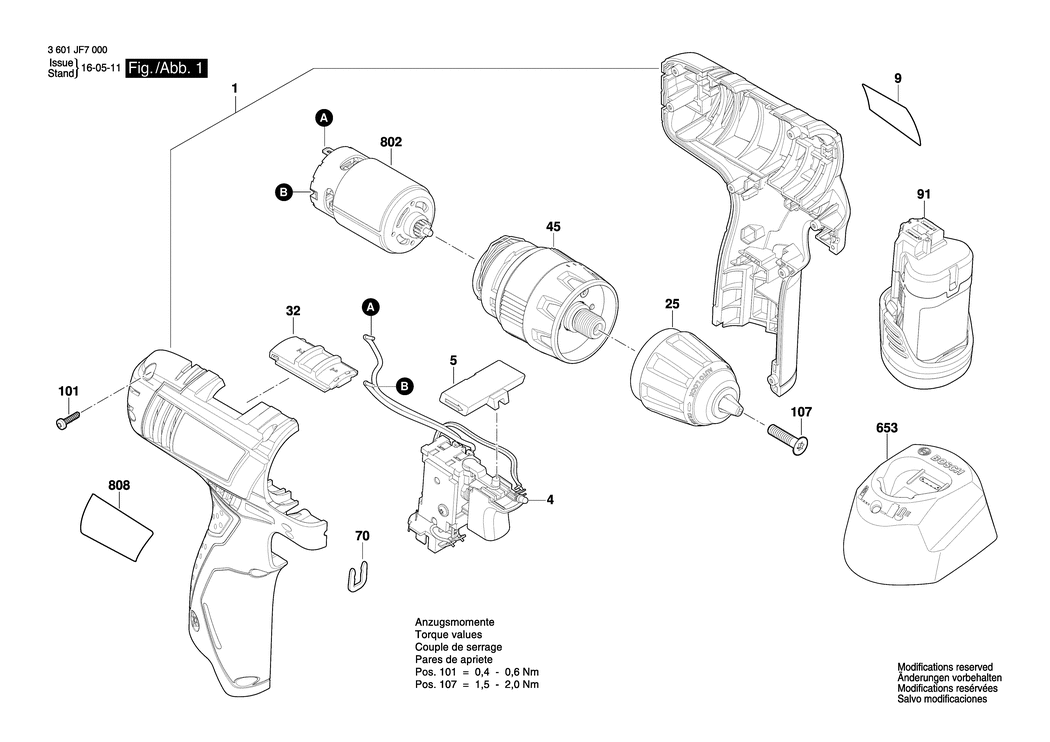

An exploded drawing and listing for the Bosch GSR 120-LI / 3601JF7020 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609101697.A0 2609101697	£12.04	£14.45
4 - ELECTRONICS MODULE BSD-2609125293.A0 2609125293	£33.74	£40.49
5 - ADJUSTING LEVER BSD-2609101391.A9 2609101391	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE GSR 120-LI BSD-2609136914.A1 2609136914	£2.61	£3.13
25 - KEYLESS CHUCK BSD-1600A0103S.A5 1600A0103S	£21.52	£25.83
32 - SWITCHOVER UNIT BSD-2609199279.A8 2609199279	£1.75	£2.10
45 - GEAR BOX BSD-1600A00F8P.A1 1600A00F8P	£33.74	£40.49
70 - CLIP BSD-2609110838.A8 2609110838	£1.75	£2.10
91 - BATTERY PACK 12V. 1.5Ah. LI GBA BSD-1607A3504A.A8 1607A3504A	£51.22	£61.47
101 - SCREW BSD-2609111496.A7 2609111496	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A155 2603421229	£1.75	£2.10
653 - FAST CHARGER EU GAL 1210 CV 230/12V 1A BSD-1600A00HR1.A0 1600A00HR1	£27.23	£32.68
653 - FAST CHARGER EU AL 1115 CV 230/3.6-12V. 1h BSD-2607225513.A14 2607225513	£37.72	£45.27
802 - MOTOR SPARE PARTS SET BSD-1607000C5K.A1 1607000C5K	£21.52	£25.83
808 - NAMEPLATE BSD-160111A4WS.A0 160111A4WS	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
