Bosch GSR 9.6 VE-2 / 0601948655 / EU 9.6 Volt Spare Parts

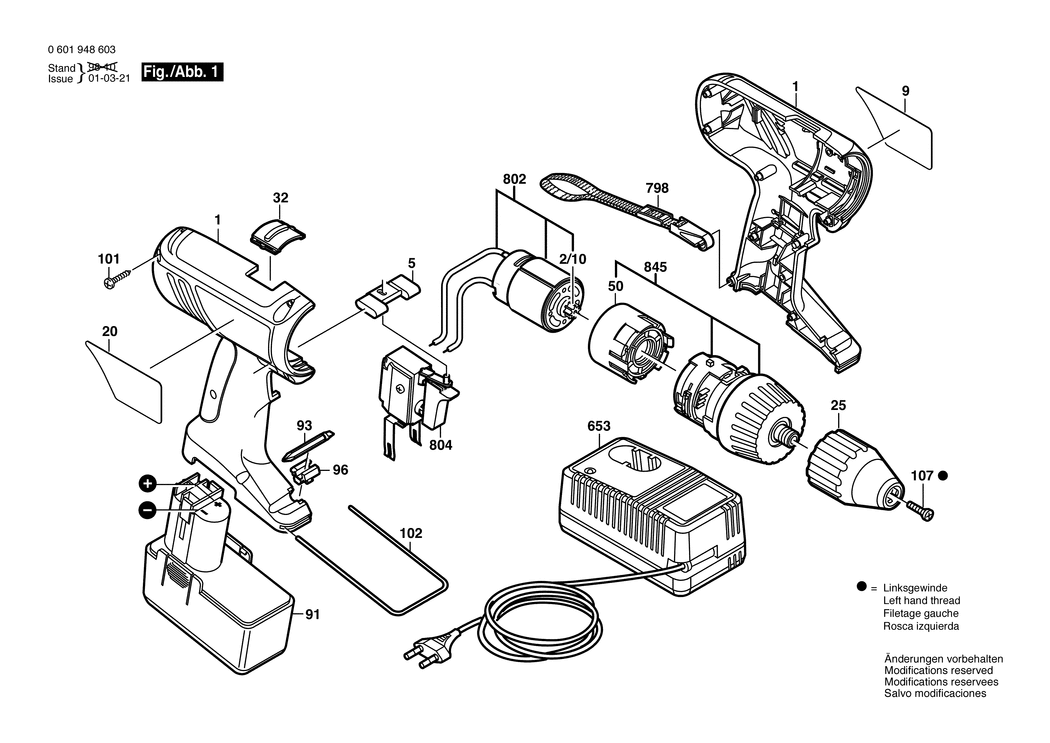

An exploded drawing and listing for the Bosch GSR 9.6 VE-2 / 0601948655 / EU 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104652.A0 2605104652	£19.45	£23.34
2/10 - PINION BSD-2606316182.A9 2606316182	£1.75	£2.10
5 - ADJUSTING SLIDE BSD-2601099085.A25 2601099085	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601119746.A3 2601119746	£3.80	£4.56
20 - REFERENCE PLATE BSD-2601119747.A2 2601119747	£3.80	£4.56
25 - KEYLESS CHUCK BSD-2608572164.A13 2608572164	-
32 - ADJUSTING SLIDE BSD-2601099086.A48 2601099086	£2.16	£2.59
50 - INTERMEDIATE FLANGE BSD-2605719027.A19 2605719027	£2.61	£3.13
91 - SLIDE-IN ACCU PACKAGE 9.6V.2.0Ah.NiCd BSD-2607335149.A13 2607335149	-
93 - SCREWDRIVER BLADE BSD-2608521018.A100 2608521018	£5.01	£6.01
96 - SUPPORT BSD-2608040131.A4 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A483 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A196 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A377 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A181 2607224425	£88.07	£105.68
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A329 2607224701	£88.07	£105.68
798 - CARRYING LOOP BSD-2601398009.A57 2601398009	-
802 - DC MOTOR 9.6V BSD-2607022969.A6 2607022969	-
804 - ON-OFF SWITCH BSD-2607200421.A67 2607200421	£48.38	£58.06
845 - PLANETARY GEAR TRAIN BSD-2606200908.A6 2606200908	-
899 - BATT-OPER SCREWDRIVER BSD-0601948627.A3 0601948627	-

Attribute Name	Value
Brand	Bosch
