Bosch SDI 108 / 3601J9200B / EU 10.8 Volt Spare Parts

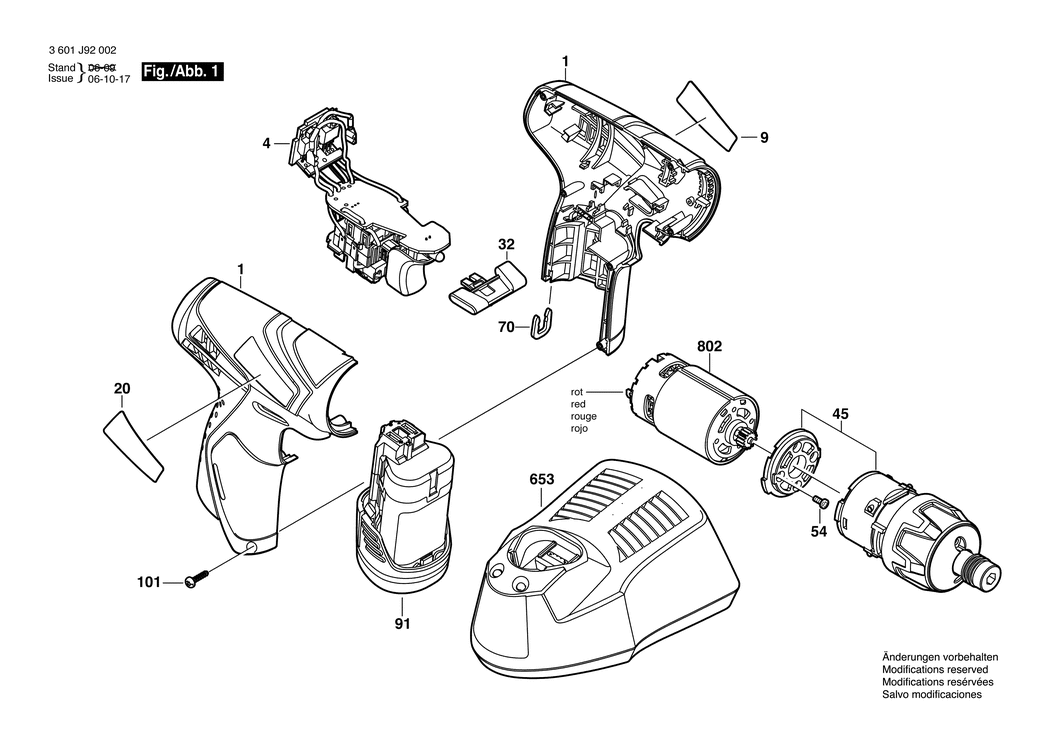

An exploded drawing and listing for the Bosch SDI 108 / 3601J9200B / EU 10.8 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105123.A2 2605105123	£21.42	£25.71
4 - ELECTRONICS MODULE BSD-1607233354.A3 1607233354	-
9 - MANUFACTURER'S NAMEPLATE SDI 108 BSD-2601115547.A1 2601115547	£2.33	£2.80
20 - MANUFACTURER'S NAMEPLATE BSD-2601115734.A0 2601115734	£2.33	£2.80
32 - ADJUSTING SLIDE BSD-2601099173.A0 2601099173	£2.61	£3.13
45 - PLANETARY GEAR TRAIN BSD-2606200229.A2 2606200229	£45.67	£54.80
54 - TORX SH CAP SCREW M3x5-8.8-Z BSD-2603414048.A165 2603414048	£1.75	£2.10
70 - PICKUP CLIP BSD-2601250009.A1 2601250009	£1.75	£2.10
91 - BATTERY PACK 10.8 V. 1.3Ah. Li BSD-2607336139.A1 2607336139	£57.02	£68.42
101 - TORX OVAL-HEAD SCREW BSD-2603415206.A8 2603415206	£1.75	£2.10
653 - FAST CHARGER EU 230/10.8V.30 MIN. BSD-2607225403.A2 2607225403	-
802 - DC MOTOR 10.8V BSD-2607022838.A2 2607022838	£31.64	£37.97

Attribute Name	Value
Brand	Bosch
