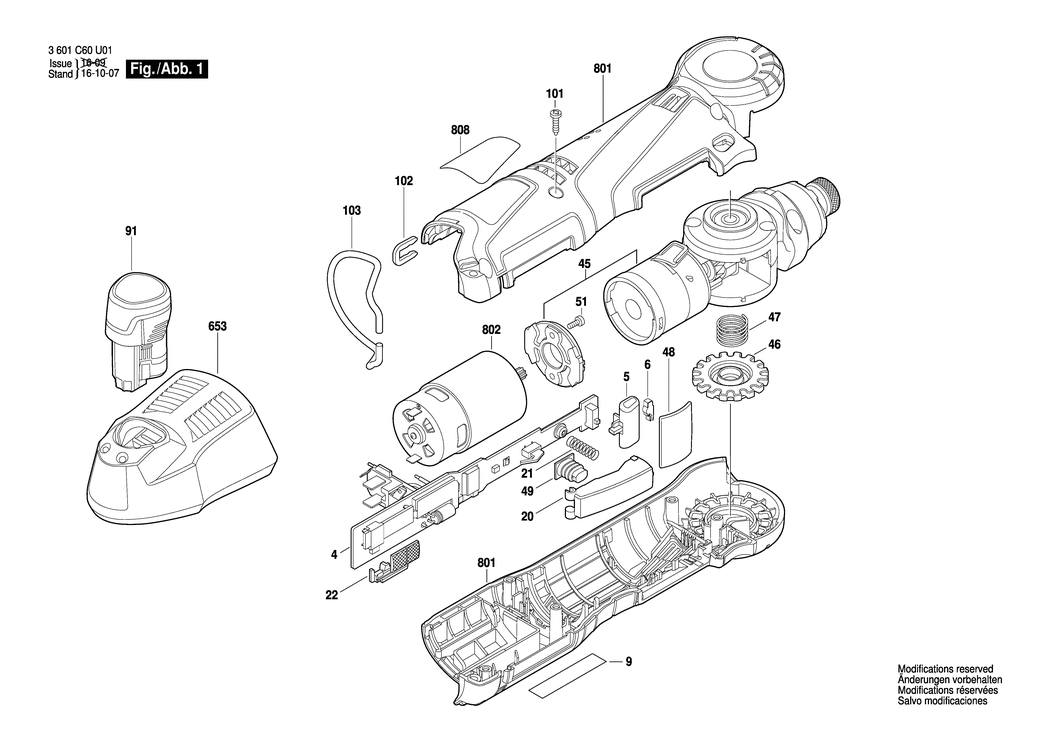

4 - PRINTED CIRCUIT BOARD
BSD-2609120228.A4
2609120228
|
-
|
|
|
5 - CHANGEOVER LEVER
BSD-2609100456.A1
2609100456
|
£1.75
|
£2.10
|
|
6 - SPRING CLIP
BSD-2609110536.A1
2609110536
|
£1.75
|
£2.10
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2609133350.A0
2609133350
|
£2.33
|
£2.80
|
|
20 - SWITCH HANDLE
BSD-2609100455.A3
2609100455
|
£1.75
|
£2.10
|
|
21 - SPRING
BSD-2609110535.A3
2609110535
|
£1.95
|
£2.34
|
|
22 - CLUTCH LEVER
BSD-2609100718.A1
2609100718
|
£4.26
|
£5.11
|
|
45 - GEAR BOX
BSD-2609199197.A1
2609199197
|
£81.81
|
£98.17
|
|
46 - COUPLING PLATE
BSD-2609100719.A0
2609100719
|
£7.36
|
£8.83
|
|
47 - SPRING
BSD-2609110534.A3
2609110534
|
£1.75
|
£2.10
|
|
48 - COVER
BSD-2609100720.A1
2609100720
|
£1.75
|
£2.10
|
|
49 - COVER
BSD-2609170058.A3
2609170058
|
£2.61
|
£3.13
|
|
51 - SCREW
BSD-2609110560.A7
2609110560
|
£1.75
|
£2.10
|
|
91 - BATTERY PACK LI 12V 2.0Ah. Li-Ion. 24 Wh PL
BSD-1607A3506L.A10
1607A3506L
|
£51.22
|
£61.47
|
|
101 - SCREW
BSD-2609110538.A11
2609110538
|
£2.16
|
£2.59
|
|
102 - CLIP
BSD-2609110537.A4
2609110537
|
£1.75
|
£2.10
|
|
103 - HOOK
BSD-2609110539.A4
2609110539
|
£2.16
|
£2.59
|
|
653 - FAST CHARGER EU 10.8-12V. 30 min AL 30-LI PL
BSD-2607226167.A10
2607226167
|
£59.53
|
£71.44
|
|
801 - HOUSING
BSD-2609199198.A0
2609199198
|
£18.96
|
£22.75
|
|
802 - MOTOR
BSD-2609199131.A3
2609199131
|
£21.68
|
£26.01
|
|
808 - NAMEPLATE
BSD-160111A4MS.A0
160111A4MS
|
£2.61
|
£3.13
|
|
