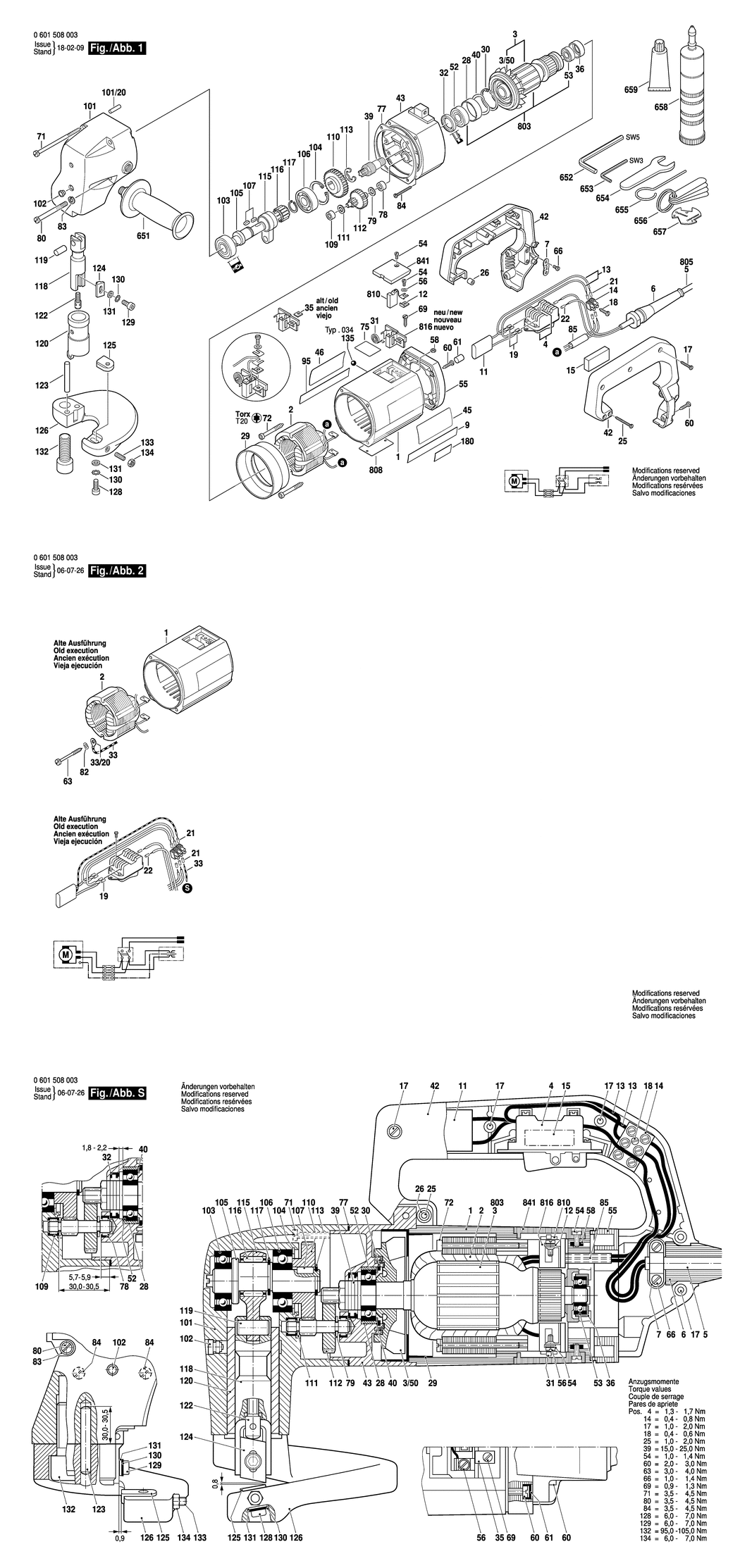

1 - MOTOR HOUSING
BSD-3605108088.A49
3605108088
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220122.A2
1604220122
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-1604011236.A33
1604011236
|
-
|
|
|
|
3/50 - FAN
BSD-1606610133.A1
1606610133
|
-
|
|
|
|
4 - SWITCH
BSD-1607200065.A36
1607200065
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-1604460097.A1
1604460097
|
-
|
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A117
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A604
1601302014
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110005.A115
1601110005
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A235
1607328034
|
£4.26
|
£5.11
|
|
|
13 - POWER SUPPLY CORD
BSD-1604431001.A14
1604431001
|
-
|
|
|
|
14 - STRIP TERMINAL
BSD-1901091110.A106
1901091110
|
£1.75
|
£2.10
|
|
|
15 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A164
1602381006
|
£1.75
|
£2.10
|
|
|
17 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A73
2910211022
|
£1.75
|
£2.10
|
|
|
18 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A196
2910211007
|
£1.75
|
£2.10
|
|
|
19 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A89
1900452003
|
£2.61
|
£3.13
|
|
|
21 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A271
1900452012
|
£1.75
|
£2.10
|
|
|
25 - TAPPING SCREW DIN 7971-3.9x38
BSD-2910215093.A16
2910215093
|
-
|
|
|
|
26 - GUIDE BUSHING
BSD-1610313003.A3
1610313003
|
£5.01
|
£6.01
|
|
|
28 - RUBBER RING 10 MM
BSD-1600206014.A1
1600206014
|
£1.75
|
£2.10
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600502009.A8
1600502009
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 472 38X1.5MM
BSD-2916660017.A62
2916660017
|
£4.26
|
£5.11
|
|
|
31 - SPIRAL SPRING
BSD-1604652006.A324
1604652006
|
£1.75
|
£2.10
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A46
1600290008
|
£2.61
|
£3.13
|
|
|
35 - TAB WASHER
BSD-1601030022.A637
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER BUSHING
BSD-1600502006.A163
1600502006
|
£1.75
|
£2.10
|
|
|
39 - PINION Z=7
BSD-3606312000.A2
3606312000
|
-
|
|
|
|
40 - SPRING WASHER dia27.5x38.4 MM
BSD-1600150007.A78
1600150007
|
£1.75
|
£2.10
|
|
|
42 - HANDLE
BSD-1605133029.A13
1605133029
|
-
|
|
|
|
43 - INTERMEDIATE BEARING
BSD-1605820224.A0
1605820224
|
£167.68
|
£201.22
|
|
|
45 - STICKER
BSD-3601110357.A2
3601110357
|
£3.72
|
£4.47
|
|
|
46 - STICKER
BSD-3601110357.A3
3601110357
|
£3.72
|
£4.47
|
|
|
52 - GROOVE BALL BEARING
BSD-3600905101.A3
3600905101
|
-
|
|
|
|
53 - GROOVE BALL BEARING 10x26x8
BSD-1900900407.A22
1900900407
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A899
2910021118
|
£1.75
|
£2.10
|
|
|
55 - INTERMEDIATE FLANGE
BSD-3605700090.A10
3605700090
|
-
|
|
|
|
56 - SPRING WASHER DIN 137-A 4-ST
BSD-2916060005.A8
2916060005
|
£1.75
|
£2.10
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A271
2915011005
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW B4.8x27 MM
BSD-1603435018.A3
1603435018
|
-
|
|
|
|
61 - PLUG
BSD-3600502001.A10
3600502001
|
£1.95
|
£2.34
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A482
2910021116
|
£2.16
|
£2.59
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A375
2910211011
|
£1.75
|
£2.10
|
|
|
71 - TAPPING SCREW B4.8x115 MM
BSD-1603435015.A41
1603435015
|
-
|
|
|
|
72 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A250
1613435009
|
£1.75
|
£2.10
|
|
|
77 - SEALING PLATE
BSD-1601015017.A4
1601015017
|
£2.33
|
£2.80
|
|
|
78 - NEEDLE BEARING
BSD-1600910013.A40
1600910013
|
£5.58
|
£6.70
|
|
|
79 - SHIM 0.5 MM
BSD-1600100631.A111
1600100631
|
£1.75
|
£2.10
|
|
|
80 - SOCKET HEAD CAP SCREW DIN 84-BM5x50-8.8
BSD-2910021174.A18
2910021174
|
£1.32
|
£1.58
|
|
|
83 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A20
2916690004
|
£1.75
|
£2.10
|
|
|
84 - TAPPING SCREW BZ4.8x63 MM
BSD-1603435008.A80
1603435008
|
£1.32
|
£1.58
|
|
|
85 - SHRINKABLE TUBE 25-1MM
BSD-2600409014.A35
2600409014
|
£1.75
|
£2.10
|
|
|
101 - GEAR HOUSING
BSD-3605110026.A2
3605110026
|
-
|
|
|
|
101/20 - STRAIGHT PIN 4H 8x20 DIN 7
BSD-2917500122.A21
2917500122
|
£1.75
|
£2.10
|
|
|
102 - LUBRICATING NIPPLE
BSD-3607401000.A9
3607401000
|
£2.52
|
£3.02
|
|
|
103 - GROOVE BALL BEARING 17x40x12
BSD-1900905203.A40
1900905203
|
-
|
|
|
|
104 - SPRING RETAINING RING DIN 472-42x1.75MM
BSD-2916660019.A13
2916660019
|
£4.26
|
£5.11
|
|
|
105 - ECCENTRIC SHAFT
BSD-3606110004.A9
3606110004
|
-
|
|
|
|
106 - GROOVE BALL BEARING 15x42x13
BSD-1900900351.A36
1900900351
|
£24.45
|
£29.34
|
|
|
107 - PARALLEL KEY
BSD-3602300002.A3
3602300002
|
-
|
|
|
|
109 - NEEDLE BEARING
BSD-1600910013.A39
1600910013
|
£5.58
|
£6.70
|
|
|
110 - CYLINDRICAL GEAR Z=47
BSD-3606317000.A9
3606317000
|
-
|
|
|
|
111 - SHIM 0.5 MM
BSD-1600100631.A112
1600100631
|
£1.75
|
£2.10
|
|
|
112 - SPINDLE WITH GEAR Z=10/31
BSD-3606320000.A1
3606320000
|
£154.03
|
£184.84
|
|
|
113 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A231
2916650006
|
£1.75
|
£2.10
|
|
|
115 - CONNECTING ROD
BSD-3602001002.A9
3602001002
|
£88.07
|
£105.68
|
|
|
116 - NEEDLE-ROLLER ASSEMBLY
BSD-3600915000.A2
3600915000
|
-
|
|
|
|
117 - SPRING RETAINING RING DIN 471 20x1.2
BSD-2916650011.A68
2916650011
|
£2.16
|
£2.59
|
|
|
118 - TAPPET
BSD-3603070001.A2
3603070001
|
£243.45
|
£292.14
|
|
|
119 - CONROD PIN
BSD-3603200004.A9
3603200004
|
£6.61
|
£7.93
|
|
|
120 - BUSHING
BSD-3600313005.A2
3600313005
|
£70.24
|
£84.29
|
|
|
122 - ADJUSTING SCREW
BSD-3603463003.A13
3603463003
|
-
|
|
|
|
123 - STRAIGHT PIN 8M6x50DIN7C35K
BSD-2917610186.A2
2917610186
|
-
|
|
|
|
124 - UPPER BLADE
BSD-2608635195.A5
2608635195
|
£33.74
|
£40.49
|
|
|
125 - LOWER BLADE
BSD-2608635196.A6
2608635196
|
£21.42
|
£25.71
|
|
|
126 - BLADE HOLDER
BSD-3608042003.A1
3608042003
|
-
|
|
|
|
128 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x14-12.9
BSD-2910141195.A3
2910141195
|
£1.32
|
£1.58
|
|
|
129 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8
BSD-2910141197.A433
2910141197
|
£1.75
|
£2.10
|
|
|
130 - LOCKING WASHER
BSD-2916070233.A0
2916070233
|
-
|
|
|
|
131 - PLAIN WASHER DIN 433-6.4-ST 50
BSD-2916010013.A3
2916010013
|
-
|
|
|
|
132 - HEX SOCKET HEAD CAP SCREW DIN 912-M18x40-8.8
BSD-2910141479.A3
2910141479
|
-
|
|
|
|
133 - SET SCREW M 6x25 DIN 913-45 H
BSD-2912041203.A2
2912041203
|
£1.32
|
£1.58
|
|
|
134 - HEX NUT
BSD-3603435044.A3
3603435044
|
£2.16
|
£2.59
|
|
|
651 - AUXILIARY HANDLE M14
BSD-1602025022.A1243
1602025022
|
£13.41
|
£16.09
|
|
|
652 - HEXAGON SOCKET SCREW KEY 5 MM
BSD-2610364015.A133
2610364015
|
£3.72
|
£4.47
|
|
|
653 - HEXAGON SOCKET SCREW KEY 5 MM
BSD-2610364015.A134
2610364015
|
£3.72
|
£4.47
|
|
|
654 - SINGLE-HEAD ENG. WRENCH DIN 894 SW10
BSD-1907950504.A16
1907950504
|
£12.04
|
£14.45
|
|
|
655 - SLIDING TEE BAR
BSD-1607990001.A4
1607990001
|
-
|
|
|
|
656 - FEELER GAUGE
BSD-3607960010.A2
3607960010
|
£12.04
|
£14.45
|
|
|
657 - GRINDING GAUGE
BSD-3607950011.A3
3607950011
|
-
|
|
|
|
658 - GREASE GUN
BSD-1615437502.A3
1615437502
|
-
|
|
|
|
659 - GREASE TUBE 45 ML
BSD-1615430005.A32
1615430005
|
£7.78
|
£9.33
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A5463
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014106.A64
1607014106
|
£18.96
|
£22.75
|
|
|
816 - BRUSH HOLDER
BSD-3604336012.A175
3604336012
|
£5.58
|
£6.70
|
|
|
841 - SEALING CAP
BSD-3605500063.A147
3605500063
|
£4.26
|
£5.11
|
|
