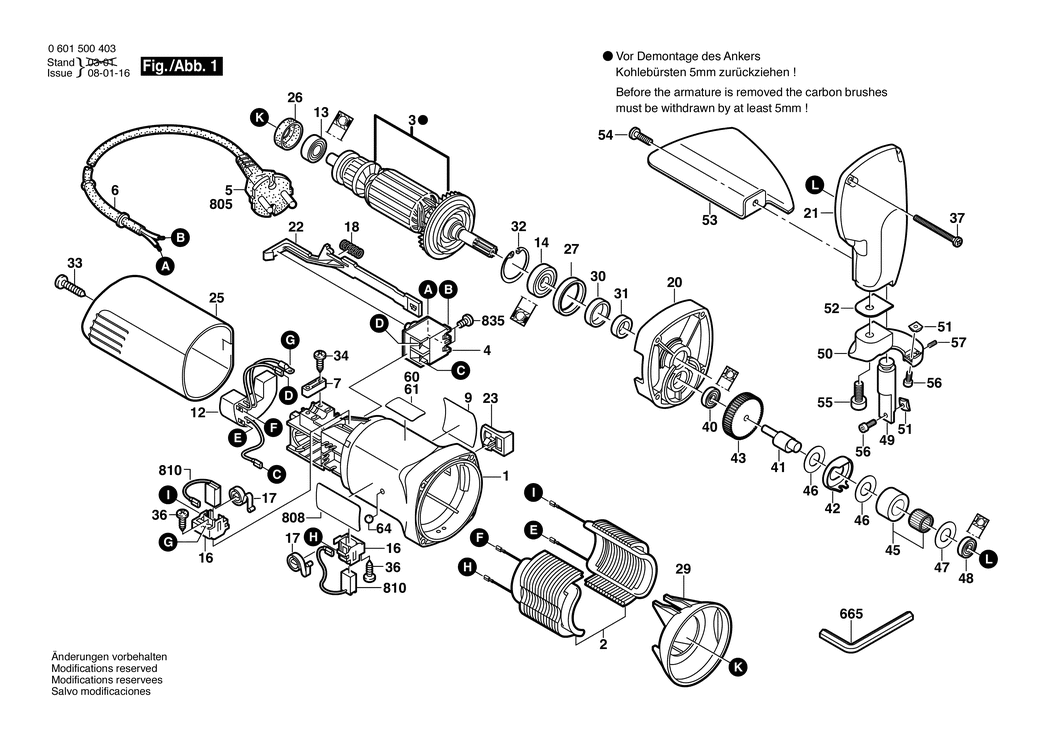

1 - MOTOR HOUSING
BSD-3605102090.A2
3605102090
|
£14.91
|
£17.89
|
|
|
2 - FIELD 220-240V
BSD-2609160011.A0
2609160011
|
£31.64
|
£37.97
|
|
|
3 - ARMATURE 220-240V
BSD-2604011270.A4
2604011270
|
£54.42
|
£65.30
|
|
|
4 - SWITCH
BSD-1607200146.A23
1607200146
|
£10.10
|
£12.12
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A14
2600703013
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1056
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-3601119178.A3
3601119178
|
£3.72
|
£4.47
|
|
|
12 - SUPPRESSION FILTER
BSD-3607328016.A7
3607328016
|
£13.12
|
£15.75
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A874
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A739
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-1619P01811.A132
1619P01811
|
£2.80
|
£3.36
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A872
1604652013
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A161
1604611031
|
£2.80
|
£3.36
|
|
|
20 - INTERMEDIATE FLANGE
BSD-3605700162.A0
3605700162
|
£48.38
|
£58.06
|
|
|
21 - TRANSMISSION CASE
BSD-3605106105.A1
3605106105
|
£59.53
|
£71.44
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319009.A2
1602319009
|
£2.80
|
£3.36
|
|
|
23 - SWITCH HANDLE
BSD-1602026068.A33
1602026068
|
£2.61
|
£3.13
|
|
|
25 - HOUSING COVER
BSD-3605500163.A6
3605500163
|
£10.10
|
£12.12
|
|
|
26 - INTERMEDIATE RING
BSD-1600502024.A6
1600502024
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-3600206015.A4
3600206015
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591023.A15
1600591023
|
£2.61
|
£3.13
|
|
|
30 - ROTARY SHAFT LIP SEAL
BSD-3600929037.A4
3600929037
|
£5.58
|
£6.70
|
|
|
31 - SEAL BUSHING
BSD-2600300047.A102
2600300047
|
£2.61
|
£3.13
|
|
|
32 - SPRING RETAINING RING
BSD-3600283046.A11
3600283046
|
£2.61
|
£3.13
|
|
|
33 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A720
2603490021
|
£1.75
|
£2.10
|
|
|
34 - SCREW 4x16
BSD-2603490022.A182
2603490022
|
£1.75
|
£2.10
|
|
|
36 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A460
1613435034
|
£1.75
|
£2.10
|
|
|
37 - LENS HEAD SCREW 4x32
BSD-2603490026.A44
2603490026
|
£1.75
|
£2.10
|
|
|
40 - GROOVE BALL BEARING 5x16x5
BSD-3600905141.A5
3600905141
|
£5.87
|
£7.04
|
|
|
41 - ECCENTRIC SHAFT
BSD-3600109016.A6
3600109016
|
£21.52
|
£25.83
|
|
|
42 - U-SHEET
BSD-3602311052.A24
3602311052
|
£4.26
|
£5.11
|
|
|
43 - CYLINDRICAL GEAR
BSD-3606316096.A3
3606316096
|
£10.10
|
£12.12
|
|
|
45 - TRACK-SUPPORTING ROLLER
BSD-3600905158.A24
3600905158
|
£21.68
|
£26.01
|
|
|
46 - SHIM RING
BSD-3600102049.A22
3600102049
|
£2.61
|
£3.13
|
|
|
47 - SHIM RING
BSD-3607233009.A3
3607233009
|
£1.95
|
£2.34
|
|
|
48 - GROOVE BALL BEARING 8x22x7
BSD-1900900228.A17
1900900228
|
£6.61
|
£7.93
|
|
|
49 - TAPPET
BSD-3602317041.A5
3602317041
|
£26.18
|
£31.42
|
|
|
50 - CUTTING TABLE
BSD-3606455042.A0
3606455042
|
£68.42
|
£82.10
|
|
|
51 - SET OF KNIVES
BSD-3607031834.A5
3607031834
|
£63.50
|
£76.20
|
|
|
52 - PLAIN WASHER 0.2 mm
BSD-3602311047.A11
3602311047
|
£2.61
|
£3.13
|
|
|
52 - PLAIN WASHER 0.4mm
BSD-3602311048.A3
3602311048
|
£1.75
|
£2.10
|
|
|
52 - PLAIN WASHER 0.6mm
BSD-3602311049.A9
3602311049
|
£1.75
|
£2.10
|
|
|
53 - CHIP DEFLECTOR
BSD-3607233025.A5
3607233025
|
£21.68
|
£26.01
|
|
|
54 - THREAD-FORMING TAP. SCREW DIN 7500-UM5x10-ST
BSD-3603391007.A8
3603391007
|
£2.61
|
£3.13
|
|
|
55 - HEX SOCKET HEAD CAP SCREW DIN 912-M10x20-12.9
BSD-2910401289.A14
2910401289
|
£1.75
|
£2.10
|
|
|
56 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x8-12.9
BSD-2910401118.A0
2910401118
|
£2.61
|
£3.13
|
|
|
57 - SET SCREW DIN 913-M4x8
BSD-2912040118.A9
2912040118
|
-
|
|
|
|
64 - BALL
BSD-2603230001.A16
2603230001
|
-
|
|
|
|
665 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A161
1907950004
|
£5.58
|
£6.70
|
|
|
805 - POWER SUPPLY CORD
BSD-1607000391.A2
1607000391
|
£18.96
|
£22.75
|
|
|
808 - NAMEPLATE
BSD-3601110451.A0
3601110451
|
£4.26
|
£5.11
|
|
|
810 - CARBON-BRUSH SET
BSD-3604321039.A0
3604321039
|
£18.96
|
£22.75
|
|
|
835 - OVAL-HEAD SCREW
BSD-2910641082.A20
2910641082
|
£1.75
|
£2.10
|
|
