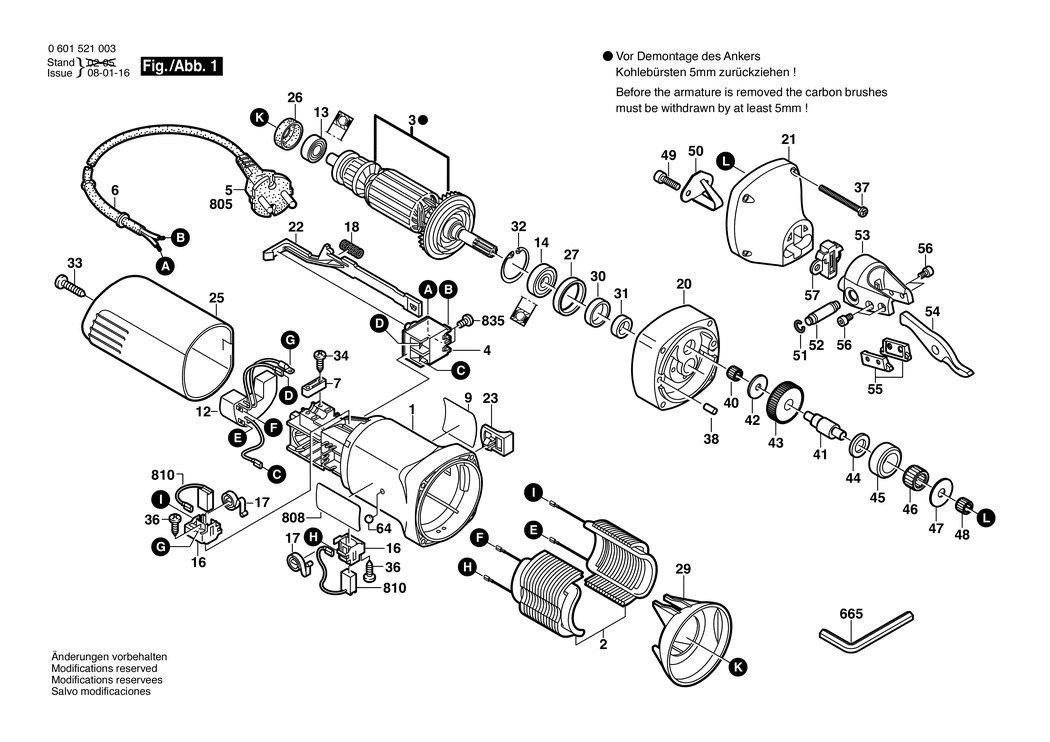

1 - MOTOR HOUSING
BSD-3605102090.A7
3605102090
|
£15.65
|
£18.78
|
|
|
2 - FIELD 220-240V
BSD-2609160011.A3
2609160011
|
£31.64
|
£37.97
|
|
|
3 - ARMATURE 220-240V
BSD-2604011270.A0
2604011270
|
£57.14
|
£68.57
|
|
|
4 - SWITCH
BSD-1607200146.A3
1607200146
|
£10.61
|
£12.73
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A571
2600703013
|
£2.74
|
£3.29
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2333
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-3601119177.A3
3601119177
|
£3.91
|
£4.69
|
|
|
12 - SUPPRESSION FILTER
BSD-3607328016.A1
3607328016
|
£13.78
|
£16.54
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1405
2600905032
|
£5.57
|
£6.68
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A110
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-1619P01811.A163
1619P01811
|
£2.80
|
£3.36
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A177
1604652013
|
£1.84
|
£2.21
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A177
1604611031
|
£2.94
|
£3.53
|
|
|
20 - INTERMEDIATE FLANGE
BSD-3605700160.A2
3605700160
|
-
|
|
|
|
21 - GEAR HOUSING
BSD-3605806191.A1
3605806191
|
£48.38
|
£58.06
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319009.A104
1602319009
|
£2.94
|
£3.53
|
|
|
23 - SWITCH HANDLE
BSD-1602026068.A6
1602026068
|
£2.74
|
£3.29
|
|
|
25 - HOUSING COVER
BSD-3605500163.A1
3605500163
|
£10.10
|
£12.12
|
|
|
26 - INTERMEDIATE RING
BSD-1600502024.A50
1600502024
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-3600206015.A0
3600206015
|
£2.27
|
£2.72
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591023.A106
1600591023
|
£2.74
|
£3.29
|
|
|
30 - ROTARY SHAFT LIP SEAL
BSD-3600929037.A3
3600929037
|
£5.58
|
£6.70
|
|
|
31 - SEAL BUSHING
BSD-2600300047.A9
2600300047
|
£2.74
|
£3.29
|
|
|
32 - SPRING RETAINING RING
BSD-3600283046.A2
3600283046
|
£2.74
|
£3.29
|
|
|
33 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A129
2603490021
|
£1.84
|
£2.21
|
|
|
34 - SCREW 4x16
BSD-2603490022.A2145
2603490022
|
£1.84
|
£2.21
|
|
|
36 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A489
1613435034
|
£1.84
|
£2.21
|
|
|
37 - LENS HEAD SCREW 4x32
BSD-2603490026.A127
2603490026
|
£1.84
|
£2.21
|
|
|
38 - STRAIGHT PIN DIN 7-4 M6x10-ST
BSD-2917510094.A13
2917510094
|
£1.75
|
£2.10
|
|
|
40 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A294
2600914010
|
£2.94
|
£3.53
|
|
|
41 - ECCENTRIC SHAFT
BSD-3606110008.A3
3606110008
|
£42.84
|
£51.41
|
|
|
42 - SHIM RING
BSD-3600200050.A3
3600200050
|
£3.72
|
£4.47
|
|
|
43 - CYLINDRICAL GEAR
BSD-3606320022.A0
3606320022
|
£18.96
|
£22.75
|
|
|
44 - BACKUP RING
BSD-3600200049.A0
3600200049
|
£5.87
|
£7.04
|
|
|
45 - TRACK-SUPPORTING ROLLER
BSD-3600200052.A3
3600200052
|
£21.52
|
£25.83
|
|
|
46 - NEEDLE BEARING
BSD-3600917019.A2
3600917019
|
£11.87
|
£14.24
|
|
|
47 - SHIM RING
BSD-3600200051.A0
3600200051
|
£2.94
|
£3.53
|
|
|
48 - NEEDLE BEARING dia7 MM
BSD-2600910006.A37
2600910006
|
£3.91
|
£4.69
|
|
|
49 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x30-12.9
BSD-2910405166.A0
2910405166
|
£1.84
|
£2.21
|
|
|
50 - SHAPED SPRING
BSD-3607233014.A3
3607233014
|
£19.91
|
£23.89
|
|
|
51 - RETAINING RING 8x0.8MM
BSD-2916550002.A0
2916550002
|
£1.84
|
£2.21
|
|
|
52 - BOLT
BSD-3607233015.A0
3607233015
|
£16.41
|
£19.69
|
|
|
53 - CUTTING HEAD
BSD-3607233016.A3
3607233016
|
-
|
|
|
|
54 - CUTTING KNIFE 1-1.6 MM
BSD-3608635005.A3
3608635005
|
£85.90
|
£103.08
|
|
|
55 - PIN HEADER
BSD-3607233019.A0
3607233019
|
-
|
|
|
|
56 - HEX SOCKET HEAD CAP SCREW DIN 7984-M4x6-8.8
BSD-2910140116.A3
2910140116
|
£1.75
|
£2.10
|
|
|
57 - SEAL
BSD-3607233020.A3
3607233020
|
£4.26
|
£5.11
|
|
|
64 - BALL
BSD-2603230001.A30
2603230001
|
-
|
|
|
|
665 - OFFSET SCREWDRIVER DIN 911 SW2.5
BSD-1907950003.A48
1907950003
|
£2.61
|
£3.13
|
|
|
805 - POWER SUPPLY CORD
BSD-1607000391.A78
1607000391
|
£18.96
|
£22.75
|
|
|
808 - NAMEPLATE
BSD-3601110451.A4
3601110451
|
£4.48
|
£5.37
|
|
|
810 - CARBON-BRUSH SET
BSD-3604321039.A3
3604321039
|
£19.91
|
£23.89
|
|
|
835 - OVAL-HEAD SCREW
BSD-2910641082.A10
2910641082
|
£1.84
|
£2.21
|
|
