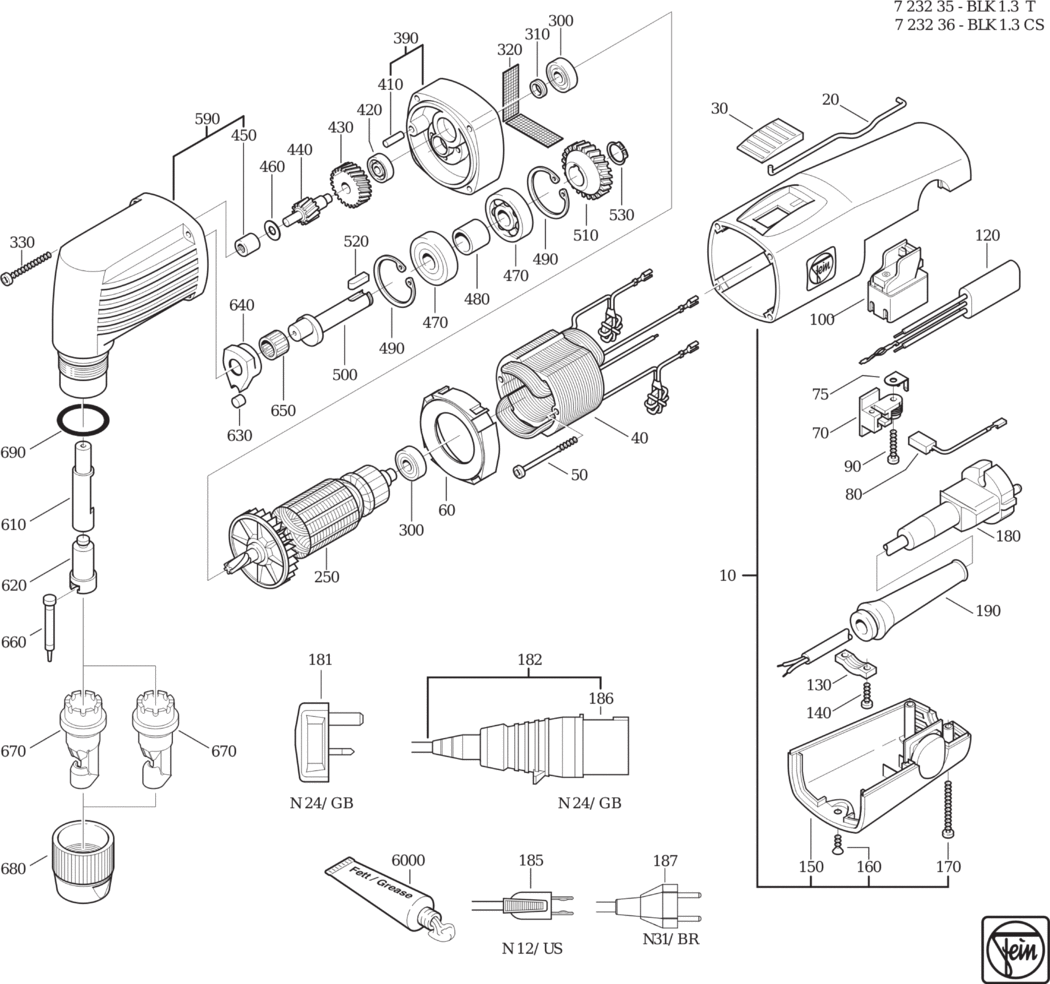

An exploded diagram and spare parts listing for the Fein BLK 1.3 CS (50Hz 110V) / 72323624112
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A24 31901109024 £39.47 £47.36
20 - CONTROL ROD FEI-32816051001.A3 32816051001 £9.34 £11.21
30 - SLIDE SWITCH FEI-32805152009.A19 32805152009 £2.91 £3.49
40 - STATOR FEI-51272004119.A0 51272004119 £79.98 £95.97
50 - SCREW FEI-43070014000.A114 43070014000 £1.60 £1.92
60 - AIR GUIDE RING FEI-31428114008.A1 31428114008 £3.01 £3.61
70 - BRUSH HOLDER FEI-30712087015.A7 30712087015 £7.02 £8.43
75 - CONNECTOR FEI-30717193000.A51 30717193000 £1.60 £1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A62 30711129009 £6.73 £8.08
90 - SCREW FEI-43070015004.A2 43070015004 £1.60 £1.92
100 - SWITCH FEI-30701060000.A3 30701060000 £22.32 £26.78
120 - CAPACITOR FEI-30722178016.A21 30722178016 £10.08 £12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A39 32431026009 £1.60 £1.92
140 - SCREW FEI-43070001006.A15 43070001006 £1.60 £1.92
150 - COVER FEI-32427108016.A24 32427108016 £14.08 £16.90
160 - SCREW FEI-43070036005.A41 43070036005 £1.60 £1.92
170 - SCREW FEI-43070016007.A43 43070016007 £1.60 £1.92
182 - CABLE WITH PLUG FEI-30707381016.A9 30707381016 £40.42 £48.51
186 - PLUG CEE 16A/110V FEI-30728288004.A78 30728288004 £14.25 £17.10
190 - CABLE GROMMET FEI-31413164009.A30 31413164009 £2.59 £3.11
250 - ARMATURE 50HZ110V FEI-53272005115.A6 53272005115 £205.34 £246.41
300 - GROOVED BALL BEARING FEI-41701001257.A10 41701001257 £11.35 £13.62
310 - SEALING RING FEI-32612125000.A37 32612125000 £2.39 £2.87
320 - PROTECTIVE GRILLE FEI-32901047000.A1 32901047000 £3.04 £3.65
330 - SCREW FEI-43070024009.A0 43070024009 -
390 - INTERMEDIATE GEAR BOX FEI-31506349018.A1 31506349018 -
410 - PIN FEI-40242006007.A66 40242006007 -
420 - GROOVED BALL BEARING FEI-41701202018.A21 41701202018 £6.92 £8.30
430 - GEAR-WHEEL FEI-33657163004.A1 33657163004 £48.54 £58.25
440 - SHAFT TOOTHED Z=17 FEI-33757081005.A13 33757081005 £58.39 £70.07
450 - NEEDLE BEARING FEI-41706034001.A42 41706034001 £38.61 £46.33
460 - DISC FEI-32408185009.A4 32408185009 £2.94 £3.53
470 - GROOVED BALL BEARING FEI-41701010032.A14 41701010032 £13.90 £16.68
480 - SLEEVE FEI-30501342007.A33 30501342007 £4.00 £4.80
490 - CIRCLIP FEI-42616027009.A1 42616027009 £1.60 £1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A35 33405045007 £93.68 £112.41
510 - GEAR-WHEEL Z=39 FEI-33657174001.A13 33657174001 £54.63 £65.56
520 - FEATHER KEY FEI-40223016005.A33 40223016005 £1.60 £1.92
530 - CIRCLIP FEI-42616006007.A103 42616006007 £1.60 £1.92
590 - GEARBOX HOUSING FEI-31508244017.A5 31508244017 £242.78 £291.34
610 - PLUNGER FEI-30109146005.A33 30109146005 £121.99 £146.39
620 - HOLDER FEI-30109147009.A2 30109147009 £57.58 £69.09
630 - ROLLER FEI-41709001008.A18 41709001008 £11.78 £14.13
640 - CON ROD FEI-32305016008.A32 32305016008 £93.12 £111.75
650 - NEEDLE CAGE FEI-41715049007.A17 41715049007 £17.50 £21.00
660 - PUNCH FEI-63602050000.A6 63602050000 £29.48 £35.38
670 - DIE FEI-30109169009.A0 30109169009 £225.90 £271.08
680 - NUT FEI-42015064005.A17 42015064005 £28.94 £34.73
690 - SEALING RING FEI-40612041002.A32 40612041002 £3.50 £4.20
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A25 32160003083 -
9000 - OPERATING INSTRUCTIONS FEI-34101100060.A3 34101100060 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A610 34130054061 -
