Fein BLK 1.6 LE (50/60Hz 220/230V) / 72323900230 Spare Parts

Fein BLK 1.6 LE ⡐/60Hz 220/230V) / 72323900230 Spare Parts

Home Details Reviews Delivery

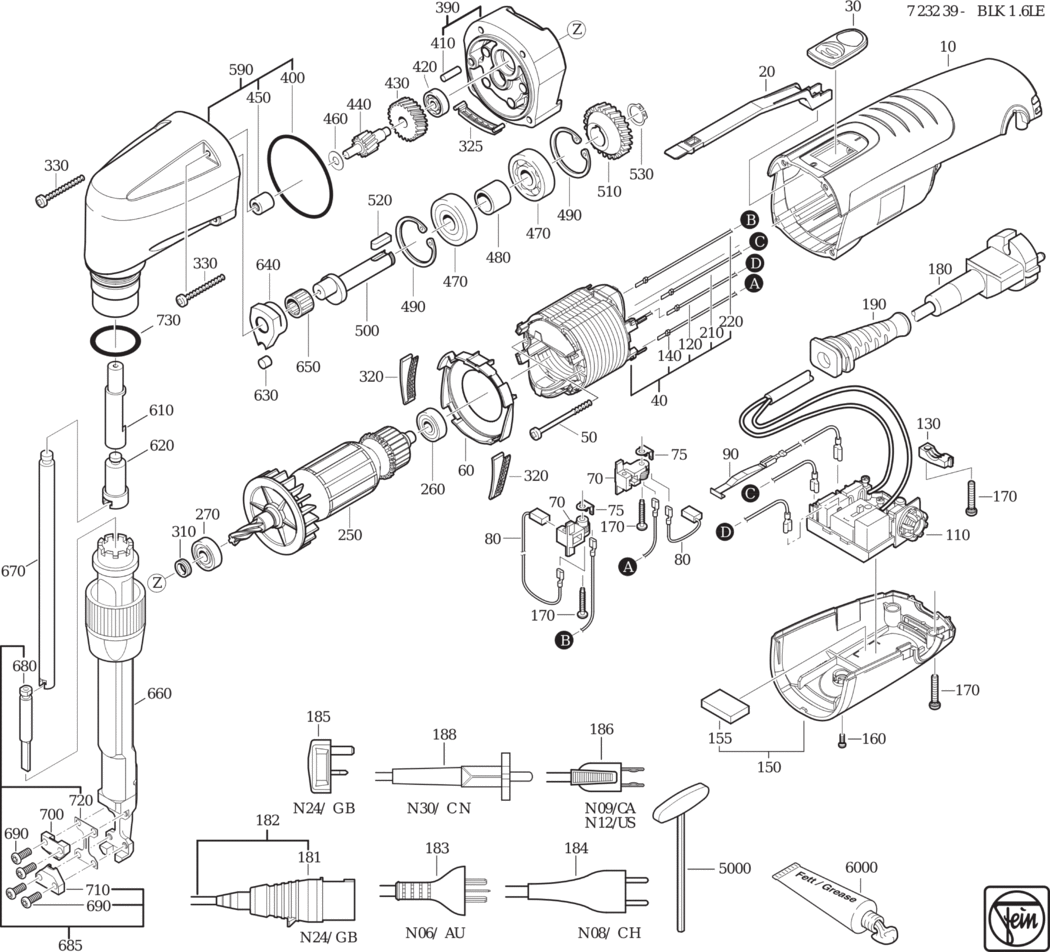

An exploded diagram and spare parts listing for the Fein BLK 1.6 LE (50/60Hz 220/230V) / 72323900230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A16 31901172000	-
20 - CONTROL ROD FEI-32816066000.A51 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A40 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004230.A16 51278004230	£67.46	£80.95
50 - SCREW FEI-43074005000.A23 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A3 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A71 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A10 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711156000.A10 30711156000	£6.47	£7.76
90 - CONTACT SPRING FEI-32803019010.A4 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A30 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A49 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A7 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A2 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A30 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A29 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A22 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A48 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A19 30707373014	£19.11	£22.93
190 - PROTECTIVE HOSE FEI-31413251000.A28 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A48 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A2 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 220/230V 50HZ FEI-53278004230.A8 53278004230	£110.31	£132.37
260 - GROOVED BALL BEARING FEI-41701001032.A33 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A63 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A8 32612125000	£2.39	£2.87
320 - PROTECTIVE GRILLE FEI-32901051000.A2 32901051000	-
325 - PROTECTIVE GRILLE FEI-32901052000.A14 32901052000	-
330 - SCREW FEI-43074015000.A14 43074015000	£1.60	£1.92
390 - FLANGE FEI-31506384010.A7 31506384010	£65.40	£78.48
400 - SEALING RING FEI-40612000000.A11 40612000000	£1.60	£1.92
410 - PIN FEI-40242006007.A10 40242006007	-
420 - GROOVED BALL BEARING FEI-41701202018.A180 41701202018	£6.92	£8.30
430 - GEAR-WHEEL FEI-33657163004.A36 33657163004	£48.54	£58.25
440 - SHAFT TOOTHED Z=15 FEI-33757079004.A8 33757079004	£58.96	£70.75
450 - NEEDLE BEARING FEI-41706034001.A5 41706034001	£38.61	£46.33
460 - DISC FEI-32408185009.A55 32408185009	£2.94	£3.53
470 - GROOVED BALL BEARING FEI-41701010032.A43 41701010032	£13.90	£16.68
480 - SLEEVE FEI-30501342007.A5 30501342007	£4.00	£4.80
490 - CIRCLIP FEI-42616027009.A24 42616027009	£1.60	£1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A1 33405045007	£93.68	£112.41
510 - GEAR-WHEEL FEI-33657168001.A8 33657168001	£58.67	£70.40
520 - FEATHER KEY FEI-40223016005.A6 40223016005	£1.60	£1.92
530 - CIRCLIP FEI-42616006007.A33 42616006007	£1.60	£1.92
590 - GEARBOX HOUSING FEI-31508278130.A19 31508278130	£210.25	£252.30
610 - PLUNGER FEI-30109146005.A6 30109146005	£121.99	£146.39
620 - HOLDER FEI-30109147009.A29 30109147009	£57.58	£69.09
630 - ROLLER FEI-41709001008.A24 41709001008	£11.78	£14.13
640 - CON ROD FEI-32305016008.A6 32305016008	£93.12	£111.75
650 - NEEDLE CAGE FEI-41715049007.A5 41715049007	£17.50	£21.00
660 - HOLDER FEI-30109152020.A3 30109152020	-
670 - EXTENSION FEI-30109153018.A0 30109153018	£68.39	£82.07
680 - PUNCH FEI-63602049008.A2 63602049008	£92.22	£110.66
685 - PUNCHES AND DIES FEI-63602049017.A1 63602049017	£204.23	£245.08
690 - FILLISTER HEAD SCREW FEI-31309123009.A3 31309123009	-
700 - PUNCH GUIDE FEI-31309120003.A2 31309120003	£120.69	£144.83
710 - DIE FEI-31309122005.A2 31309122005	£106.92	£128.30
720 - WEARING PLATE FEI-31309121002.A3 31309121002	£23.16	£27.79
730 - SEALING RING FEI-40612041002.A12 40612041002	£3.50	£4.20
5000 - SCREWDRIVER FEI-62912001004.A3 62912001004	£27.20	£32.64
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A43 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A149 34130054061	-
