Fein BLK 2.0 (50/60Hz 220/230V) / 72322900233 Spare Parts

Fein BLK 2.0 ⡐/60Hz 220/230V) / 72322900233 Spare Parts

Home Details Reviews Delivery

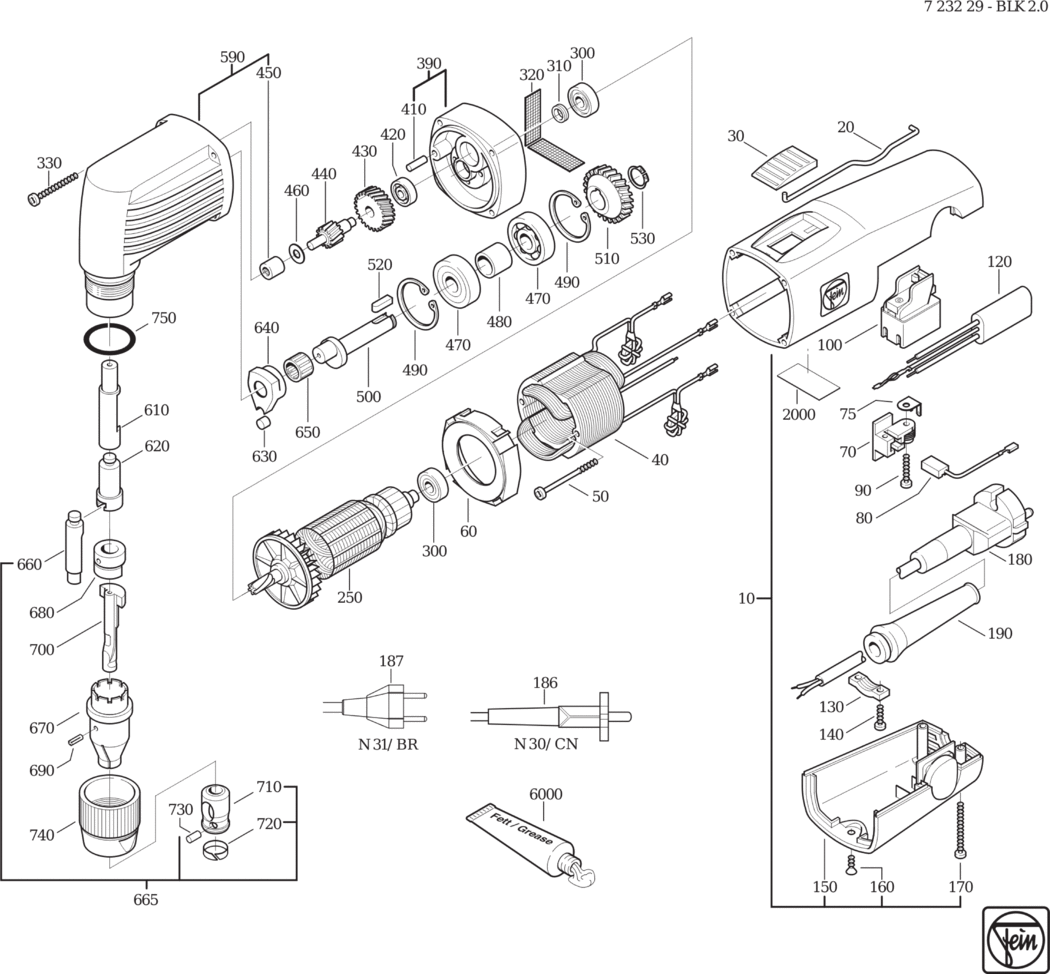

An exploded diagram and spare parts listing for the Fein BLK 2.0 (50/60Hz 220/230V) / 72322900233

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A23 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A1 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A21 32805152009	£2.91	£3.49
40 - STATOR FEI-51272004235.A12 51272004235	-
50 - SCREW FEI-43070014000.A115 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A2 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A6 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A52 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A64 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A1 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A1 30701060000	£22.32	£26.78
120 - CAPACITOR FEI-30722178016.A20 30722178016	£10.08	£12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A41 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A13 43070001006	£1.60	£1.92
150 - COVER FEI-32427108016.A22 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A42 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A44 43070016007	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707373014.A3 30707373014	£19.11	£22.93
190 - CABLE GROMMET FEI-31413164009.A29 31413164009	£2.59	£3.11
250 - ARMATURE 50HZ230V FEI-53272005231.A7 53272005231	£168.29	£201.95
300 - GROOVED BALL BEARING FEI-41701001257.A9 41701001257	£11.35	£13.62
310 - SEALING RING FEI-32612125000.A35 32612125000	£2.39	£2.87
320 - PROTECTIVE GRILLE FEI-32901047000.A0 32901047000	£3.04	£3.65
330 - SCREW FEI-43070024009.A2 43070024009	-
390 - INTERMEDIATE GEAR BOX FEI-31506349018.A0 31506349018	-
410 - PIN FEI-40242006007.A67 40242006007	-
420 - GROOVED BALL BEARING FEI-41701202018.A22 41701202018	£6.92	£8.30
430 - GEAR-WHEEL FEI-33657163004.A4 33657163004	£48.54	£58.25
440 - SHAFT TOOTHED Z=11 FEI-33757078000.A3 33757078000	-
450 - NEEDLE BEARING FEI-41706034001.A41 41706034001	£38.61	£46.33
460 - DISC FEI-32408185009.A0 32408185009	£2.94	£3.53
470 - GROOVED BALL BEARING FEI-41701010032.A12 41701010032	£13.90	£16.68
480 - SLEEVE FEI-30501342007.A34 30501342007	£4.00	£4.80
490 - CIRCLIP FEI-42616027009.A3 42616027009	£1.60	£1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A32 33405045007	£93.68	£112.41
510 - GEAR-WHEEL Z=45 FEI-33657165006.A2 33657165006	-
520 - FEATHER KEY FEI-40223016005.A31 40223016005	£1.60	£1.92
530 - CIRCLIP FEI-42616006007.A101 42616006007	£1.60	£1.92
590 - GEARBOX HOUSING FEI-31508254016.A0 31508254016	-
610 - PLUNGER FEI-30109146005.A34 30109146005	£121.99	£146.39
620 - HOLDER FEI-30109147009.A1 30109147009	£57.58	£69.09
630 - ROLLER FEI-41709001008.A19 41709001008	£11.78	£14.13
640 - CON ROD FEI-32305016008.A35 32305016008	£93.12	£111.75
650 - NEEDLE CAGE FEI-41715049007.A16 41715049007	£17.50	£21.00
660 - PUNCH FEI-63602051009.A1 63602051009	£82.58	£99.10
665 - PUNCHES AND DIES IN A SET FEI-63602051018.A2 63602051018	£161.08	£193.29
670 - SLEEVE FEI-31603039005.A0 31603039005	-
680 - BUSH FEI-31601171007.A3 31601171007	£20.52	£24.63
690 - PIN FEI-40245010004.A0 40245010004	£1.60	£1.92
700 - SUPPORTING PIN FEI-31309039000.A2 31309039000	£161.05	£193.26
710 - DIE FEI-31309040002.A7 31309040002	£83.53	£100.24
720 - CIRCLIP FEI-42615105008.A2 42615105008	£7.02	£8.43
730 - PIN FEI-40242039000.A1 40242039000	£1.60	£1.92
740 - NUT FEI-42015064005.A18 42015064005	£28.94	£34.73
750 - SEALING RING FEI-40612041002.A29 40612041002	£3.50	£4.20
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A21 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A613 34130054061	-
