Fein BLK 2.0 E (50/60Hz 110/120V) / 72324024110 Spare Parts

Fein BLK 2.0 E ⡐/60Hz 110/120V) / 72324024110 Spare Parts

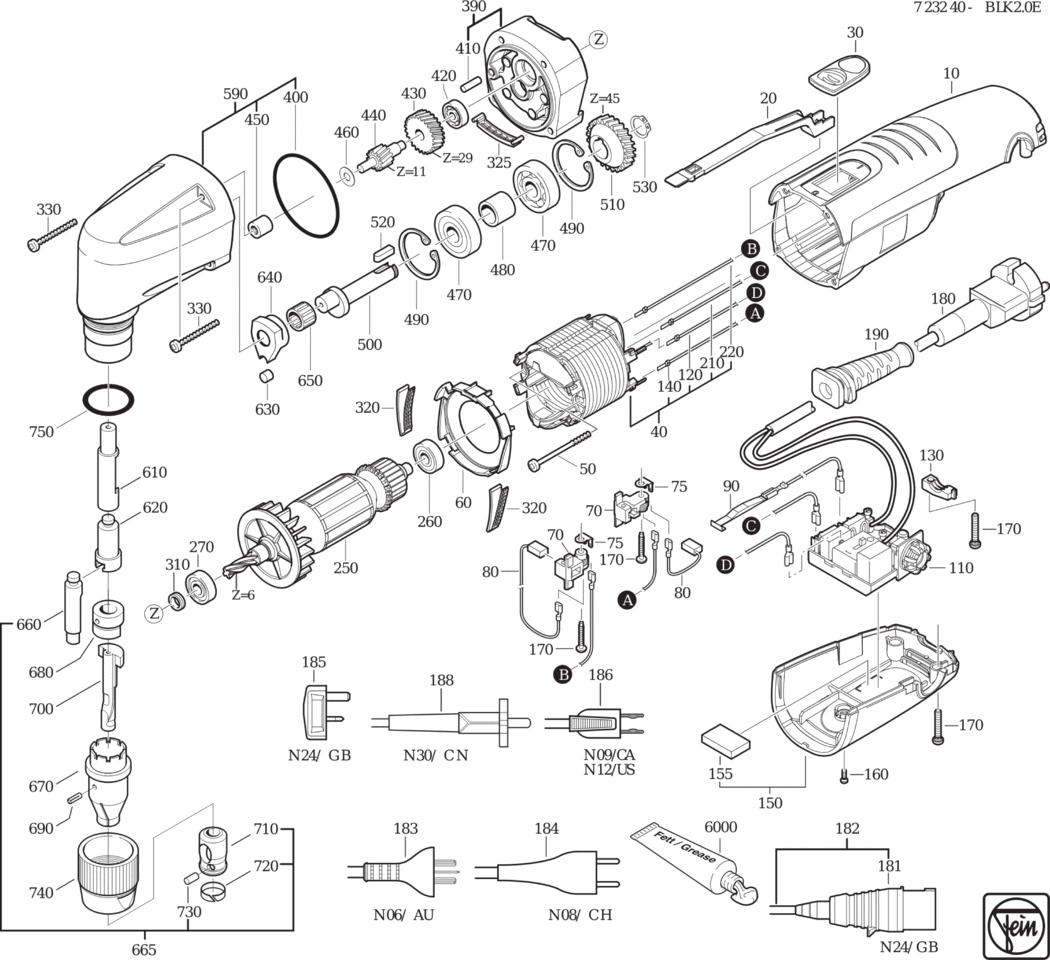

An exploded diagram and spare parts listing for the Fein BLK 2.0 E (50/60Hz 110/120V) / 72324024110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A8 31901172000	-
20 - CONTROL ROD FEI-32816066000.A6 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A16 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004110.A8 51278004110	£51.97	£62.36
50 - SCREW FEI-43074005000.A65 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A29 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A4 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A54 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A66 30711129009	£6.73	£8.08
90 - CONTACT SPRING FEI-32803019010.A32 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A21 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A17 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A40 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A34 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A1 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A19 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A48 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A5 43074002000	£1.60	£1.92
181 - PLUG CEE 16A/110V FEI-30728288004.A79 30728288004	£14.25	£17.10
182 - CABLE WITH PLUG FEI-30707381016.A8 30707381016	£40.42	£48.51
190 - PROTECTIVE HOSE FEI-31413251000.A6 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A17 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A34 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 110/120V 50/60HZ FEI-53278004110.A2 53278004110	£109.72	£131.67
260 - GROOVED BALL BEARING FEI-41701001032.A24 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A132 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A34 32612125000	£2.39	£2.87
320 - PROTECTIVE GRILLE FEI-32901051000.A21 32901051000	-
325 - PROTECTIVE GRILLE FEI-32901052000.A2 32901052000	-
330 - SCREW FEI-43074015000.A2 43074015000	£1.60	£1.92
390 - FLANGE FEI-31506384010.A1 31506384010	£65.40	£78.48
400 - SEALING RING FEI-40612000000.A35 40612000000	£1.60	£1.92
410 - PIN FEI-40242006007.A68 40242006007	-
420 - GROOVED BALL BEARING FEI-41701202018.A23 41701202018	£6.92	£8.30
430 - GEAR-WHEEL FEI-33657163004.A2 33657163004	£48.54	£58.25
440 - SHAFT TOOTHED Z=11 FEI-33757078000.A1 33757078000	-
450 - NEEDLE BEARING FEI-41706034001.A40 41706034001	£38.61	£46.33
460 - DISC FEI-32408185009.A1 32408185009	£2.94	£3.53
470 - GROOVED BALL BEARING FEI-41701010032.A11 41701010032	£13.90	£16.68
480 - SLEEVE FEI-30501342007.A35 30501342007	£4.00	£4.80
490 - CIRCLIP FEI-42616027009.A2 42616027009	£1.60	£1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A33 33405045007	£93.68	£112.41
510 - GEAR-WHEEL Z=45 FEI-33657165006.A3 33657165006	-
520 - FEATHER KEY FEI-40223016005.A30 40223016005	£1.60	£1.92
530 - CIRCLIP FEI-42616006007.A102 42616006007	£1.60	£1.92
590 - GEARBOX HOUSING FEI-31508278140.A0 31508278140	£210.27	£252.32
610 - PLUNGER FEI-30109146005.A35 30109146005	£121.99	£146.39
620 - HOLDER FEI-30109147009.A0 30109147009	£57.58	£69.09
630 - ROLLER FEI-41709001008.A20 41709001008	£11.78	£14.13
640 - CON ROD FEI-32305016008.A34 32305016008	£93.12	£111.75
650 - NEEDLE CAGE FEI-41715049007.A15 41715049007	£17.50	£21.00
660 - PUNCH FEI-63602051009.A0 63602051009	£82.58	£99.10
665 - PUNCHES AND DIES IN A SET FEI-63602051018.A3 63602051018	£161.08	£193.29
670 - SLEEVE FEI-31603039005.A1 31603039005	-
680 - BUSH FEI-31601171007.A2 31601171007	£20.52	£24.63
690 - PIN FEI-40245010004.A1 40245010004	£1.60	£1.92
700 - SUPPORTING PIN FEI-31309039000.A1 31309039000	£161.05	£193.26
710 - DIE FEI-31309040002.A8 31309040002	£83.53	£100.24
720 - CIRCLIP FEI-42615105008.A1 42615105008	£7.02	£8.43
730 - PIN FEI-40242039000.A0 40242039000	£1.60	£1.92
740 - NUT FEI-42015064005.A19 42015064005	£28.94	£34.73
750 - SEALING RING FEI-40612041002.A30 40612041002	£3.50	£4.20
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A22 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A614 34130054061	-

Attribute Name	Value
Brand	Fein
