Fein RSs 638-5 (60Hz 120V) / 72322600361 Spare Parts

Fein RSs 638-5 ⡠Hz 120V) / 72322600361 Spare Parts

Home Details Reviews Delivery

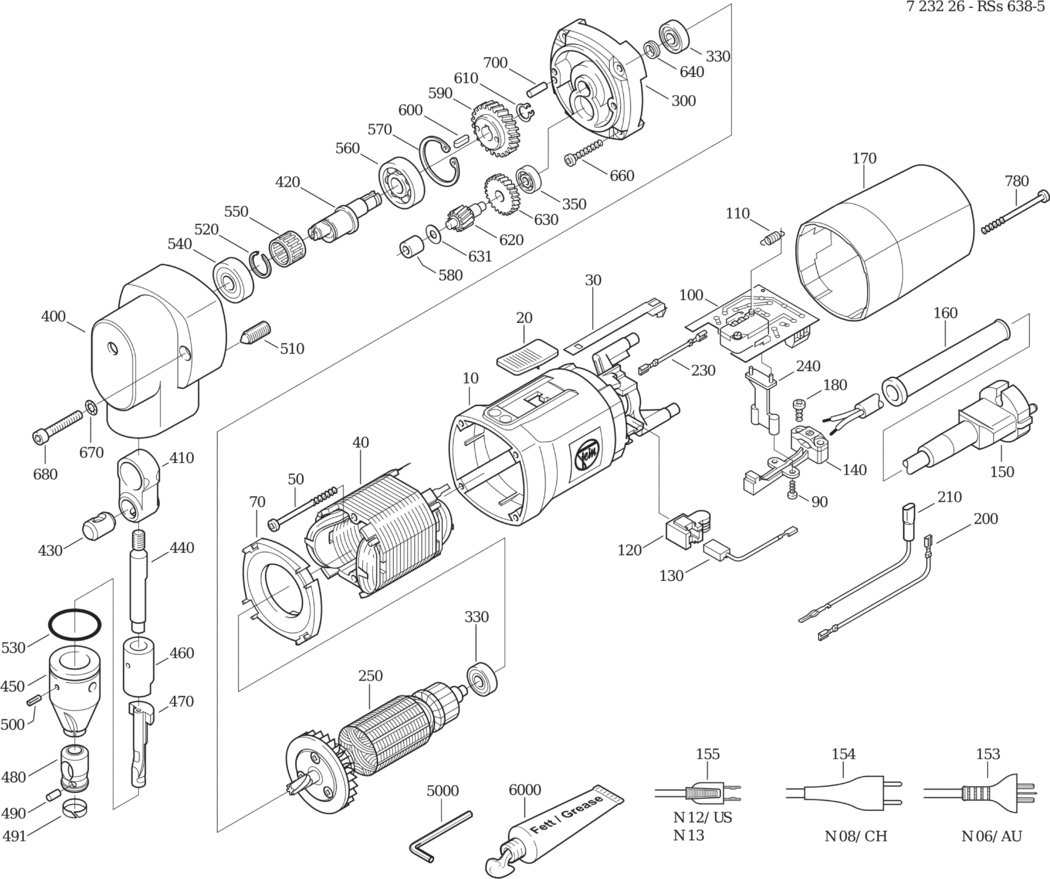

An exploded diagram and spare parts listing for the Fein RSs 638-5 (60Hz 120V) / 72322600361

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901103008.A22 31901103008	£62.53	£75.04
20 - SLIDE SWITCH FEI-32805128003.A6 32805128003	£3.42	£4.10
30 - CONTROL ROD FEI-32816040003.A11 32816040003	£2.88	£3.46
50 - SCREW FEI-43070004001.A48 43070004001	£1.60	£1.92
70 - AIR GUIDE RING FEI-31428075007.A22 31428075007	£4.18	£5.01
90 - SHEET METAL SCREW FEI-43046019009.A4 43046019009	-
100 - ELECTRONICS FEI-30762136008.A11 30762136008	-
110 - SPIRAL SPRING FEI-30902040004.A4 30902040004	£3.17	£3.80
120 - BRUSH HOLDER FEI-30712086011.A25 30712086011	£8.42	£10.11
130 - CARBON BRUSH (SOLD SINGLY) FEI-30711127007.A5 30711127007	£18.88	£22.65
140 - CABLE CLAMPING PIECE FEI-32431036008.A18 32431036008	£3.75	£4.50
150 - CABLE FEI-30706325010.A0 30706325010	-
160 - CABLE GROMMET FEI-31413007007.A38 31413007007	£1.60	£1.92
170 - COVER FEI-31201072020.A11 31201072020	£10.81	£12.97
180 - SCREW FEI-43070001006.A78 43070001006	£1.60	£1.92
210 - CONNECTING CABLE FEI-30719340018.A20 30719340018	£1.60	£1.92
240 - HOLDER FEI-31428086009.A2 31428086009	£4.09	£4.91
250 - ARMATURE FEI-53270003362.A0 53270003362	-
300 - INTERMEDIATE GEAR BOX FEI-31506333009.A3 31506333009	£82.21	£98.65
330 - GROOVED BALL BEARING FEI-41701001172.A34 41701001172	£9.63	£11.56
350 - GROOVED BALL BEARING FEI-41701202018.A136 41701202018	£6.92	£8.30
400 - GEARBOX HOUSING FEI-31309062002.A3 31309062002	-
410 - CON ROD FEI-31309063006.A4 31309063006	-
420 - ECCENTRIC SHAFT FEI-31309064004.A3 31309064004	-
430 - BOLT FEI-31309035001.A3 31309035001	-
440 - PUNCH FEI-31309036004.A3 31309036004	£87.28	£104.73
450 - PUNCH GUIDE FEI-31309065008.A3 31309065008	-
460 - SLEEVE FEI-31309038006.A2 31309038006	-
470 - SUPPORTING PIN FEI-31309039000.A7 31309039000	£161.05	£193.26
480 - DIE FEI-31309040002.A2 31309040002	£83.53	£100.24
490 - PIN FEI-40242039000.A7 40242039000	£1.60	£1.92
491 - CIRCLIP FEI-42615105008.A7 42615105008	£7.02	£8.43
500 - PIN FEI-40203010002.A2 40203010002	-
510 - SET SCREW FEI-31309041001.A3 31309041001	-
520 - CIRCLIP FEI-42615104004.A4 42615104004	-
530 - SEALING RING FEI-31309126004.A4 31309126004	£3.61	£4.33
540 - GROOVED BALL BEARING FEI-41701207055.A7 41701207055	£21.58	£25.89
550 - NEEDLE CAGE FEI-41715043006.A5 41715043006	£25.42	£30.51
560 - GROOVED BALL BEARING FEI-41701210021.A24 41701210021	£8.89	£10.67
570 - CIRCLIP FEI-42616002008.A2 42616002008	-
580 - NEEDLE BEARING FEI-41706034001.A13 41706034001	£38.61	£46.33
590 - GEAR-WHEEL FEI-33657151008.A2 33657151008	-
600 - FEATHER KEY FEI-40221003006.A24 40221003006	£1.60	£1.92
610 - CIRCLIP FEI-42616034007.A10 42616034007	-
620 - SHAFT TOOTHED FEI-33757072009.A4 33757072009	-
630 - GEAR-WHEEL FEI-33657150009.A4 33657150009	-
631 - DISC FEI-32408185009.A39 32408185009	£2.94	£3.53
640 - SEALING RING FEI-32612056001.A4 32612056001	£2.69	£3.23
660 - SCREW FEI-43070010006.A6 43070010006	-
670 - CIRCLIP M5 FEI-42443004057.A133 42443004057	£1.60	£1.92
680 - CYLINDER HEAD SCREW FEI-43035019059.A18 43035019059	-
700 - STRAIGHT PIN FEI-40201036006.A9 40201036006	£1.60	£1.92
780 - SCREW FEI-43070004001.A40 43070004001	£1.60	£1.92
5000 - ALLEN KEY SW4 FEI-62907010000.A7 62907010000	£3.35	£4.02
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A427 32160003014	-
