Black & Decker D140 Type 1 Drill Spare Parts

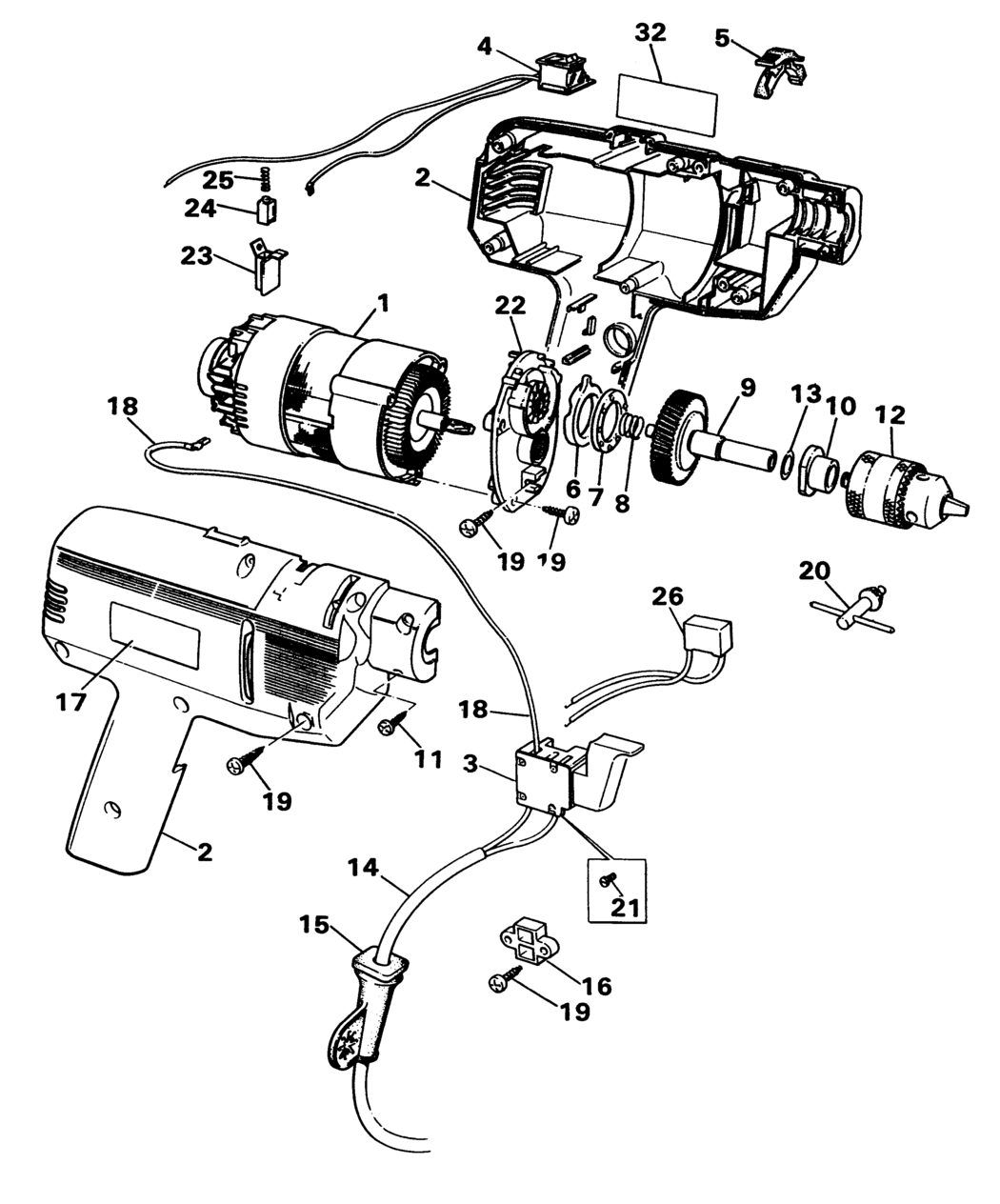

An exploded drawing and spare parts listing for the Black & Decker D140 Type 1 Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A2363 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A2364 000000-00	-
3 - SWITCH GB BDE-794158.A7 794158	-
5 - NO LONGER AVAILABLE BDE-000000-00.A2365 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A2366 000000-00	-
7 - BEARING BDE-892261.A129 892261	-
8 - SPRING BDE-821986.A29 821986	-
9 - NO LONGER AVAILABLE TYPE H1A-H1B-H1C BDE-000000-00.A2367 000000-00	-
10 - BEARING BDE-812973.A51 812973	-
11 - NO LONGER AVAILABLE BDE-000000-00.A2368 000000-00	-
12 - NO LONGER AVAILABLE CHUCK S2A BDE-000000-00.A2369 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A2370 000000-00	-
14 - NO LONGER AVAILABLE GB BDE-000000-00.A2371 000000-00	-
15 - PROTECTOR BDE-770236.A101 770236	£1.50	£1.80
16 - CABLE CLAMP BDE-994808.A167 994808	£1.42	£1.70
18 - NO LONGER AVAILABLE BDE-000000-00.A2372 000000-00	-
19 - SCREW BDE-849256.A226 849256	-
20 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A5 330034-00	-
20 - CHUCK KEY CHUCK S2A BDE-330034-07.A414 330034-07	£1.50	£1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A2373 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A2374 000000-00	-
24 - BRUSH BDE-376143.A111 376143	-
25 - SPRING BDE-847709.A101 847709	£3.30	£3.96
32 - NO LONGER AVAILABLE GB BDE-000000-00.A2375 000000-00	-

Attribute Name	Value
Brand	Black & Decker
