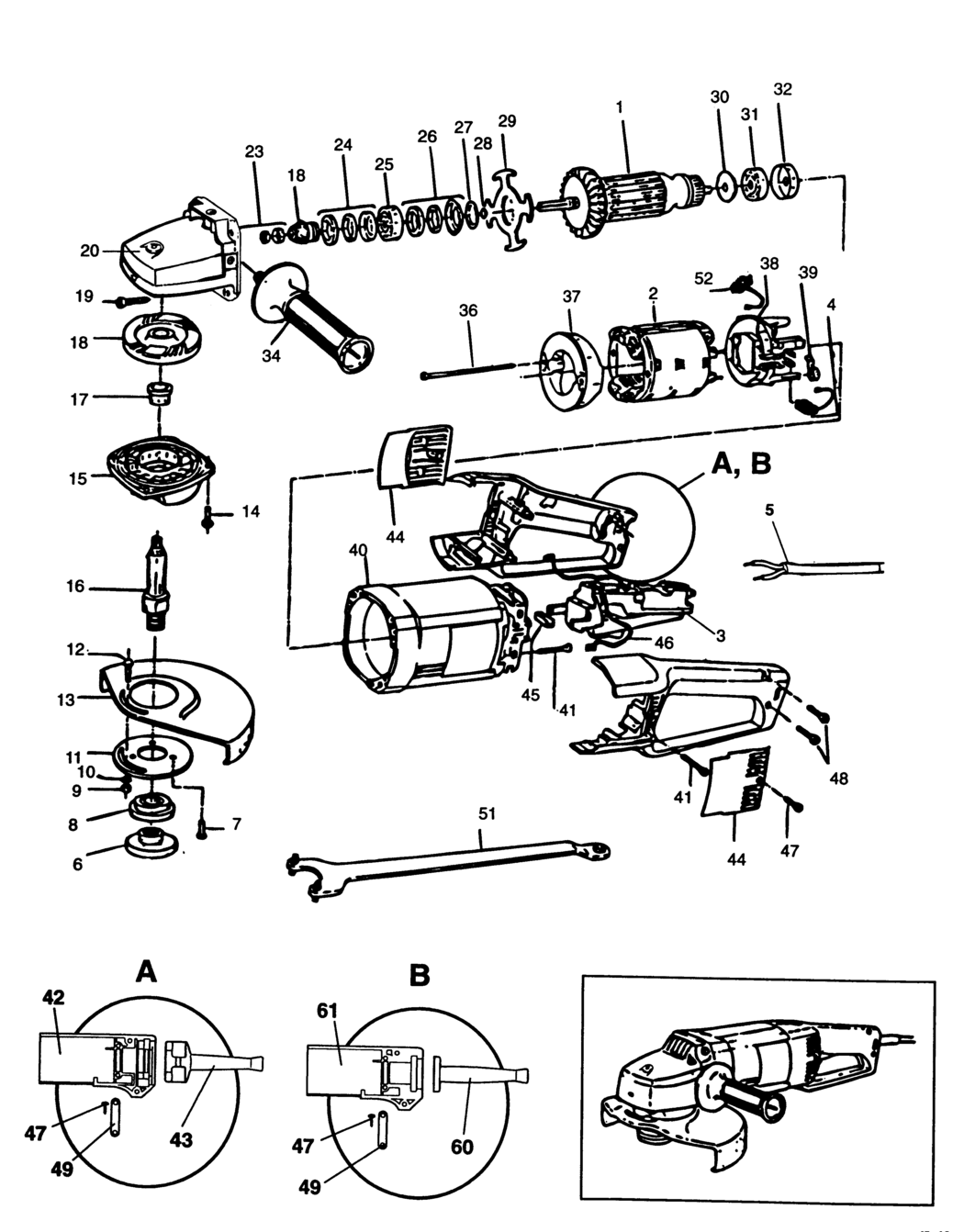

An exploded drawing and spare parts listing for the Black & Decker BD1823 Type 1 Angle Grinder
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A101022 000000-00 -
2 - FIELD BDE-940480-49.A31 940480-49 £96.96 £116.35
3 - NO LONGER AVAILABLE BDE-000000-00.A101023 000000-00 -
4 - BRUSH CUT OFF 230V BDE-940160-03.A20 940160-03 £14.57 £17.48
5 - NO LONGER AVAILABLE BDE-000000-00.A101024 000000-00 -
6 - FLANGE BDE-931771.A117 931771 £10.85 £13.02
7 - NO LONGER AVAILABLE BDE-000000-00.A101025 000000-00 -
8 - FLANGE BDE-930927.A96 930927 -
9 - NUT BDE-860083-03.A75 860083-03 £1.50 £1.80
10 - WASHER BDE-930925.A25 930925 -
11 - NO LONGER AVAILABLE BDE-000000-00.A101026 000000-00 -
12 - SCREW BDE-949892-07.A89 949892-07 £1.42 £1.70
13 - NO LONGER AVAILABLE BDE-000000-00.A101027 000000-00 -
14 - SCREW BDE-949887-01.A26 949887-01 £1.42 £1.70
15 - GEARCASE COVER BDE-933354-01.A5 933354-01 -
16 - SPINDLE BDE-578243-00.A89 578243-00 £19.40 £23.28
17 - SPACER BDE-930922.A95 930922 £1.42 £1.70
18 - GEAR & PINION SA BDE-932522.A54 932522 -
19 - NO LONGER AVAILABLE BDE-000000-00.A101028 000000-00 -
20 - NO LONGER AVAILABLE BDE-000000-00.A101029 000000-00 -
23 - CLIP SA BDE-937098-49.A74 937098-49 -
24 - SEAL SA BDE-930909.A27 930909 -
25 - BEARING BDE-330003-14.A15 330003-14 £7.85 £9.42
26 - SEAL SA BDE-931067-00.A138 931067-00 £1.50 £1.80
27 - SPACER BDE-931062.A15 931062 £1.50 £1.80
28 - O RING BDE-930028-00.A77 930028-00 £1.50 £1.80
29 - FLANGE BDE-931066-00.A20 931066-00 £1.82 £2.19
30 - SPACER BDE-N174055.A41 N174055 £1.50 £1.80
31 - BEARING BDE-577745-00.A172 577745-00 £7.85 £9.42
32 - SLEEVE BDE-938332-00.A131 938332-00 £1.50 £1.80
34 - NO LONGER AVAILABLE BDE-000000-00.A101030 000000-00 -
36 - SCREW BDE-931072.A12 931072 -
37 - BAFFLE BDE-931073-00.A91 931073-00 £1.42 £1.70
38 - NO LONGER AVAILABLE BDE-000000-00.A101031 000000-00 -
39 - SPRING BDE-931076-00.A14 931076-00 £1.42 £1.70
40 - NO LONGER AVAILABLE BDE-000000-00.A101032 000000-00 -
41 - SCREW BDE-931297-00.A74 931297-00 £1.50 £1.80
42 - NO LONGER AVAILABLE BDE-000000-00.A101033 000000-00 -
43 - CORD PROTECTOR BDE-930981-00.A11 930981-00 £1.42 £1.70
44 - COVER BDE-933364-02.A54 933364-02 £1.50 £1.80
45 - SHOCK ABSORBER BDE-930934-00.A24 930934-00 £1.50 £1.80
46 - NO LONGER AVAILABLE BDE-000000-00.A101034 000000-00 -
47 - SCREW BDE-931469-02.A90 931469-02 £1.50 £1.80
48 - NO LONGER AVAILABLE BDE-000000-00.A101035 000000-00 -
49 - CORD CLAMP BDE-931477-00.A78 931477-00 £1.50 £1.80
51 - WRENCH PIN BDE-938733.A140 938733 £7.18 £8.62
52 - BRUSH CUT OFF 230V BDE-940160-03.A21 940160-03 £14.57 £17.48
60 - CORD PROTECTOR BDE-947964-01.A119 947964-01 £3.80 £4.56
61 - NO LONGER AVAILABLE BDE-000000-00.A101036 000000-00 -
