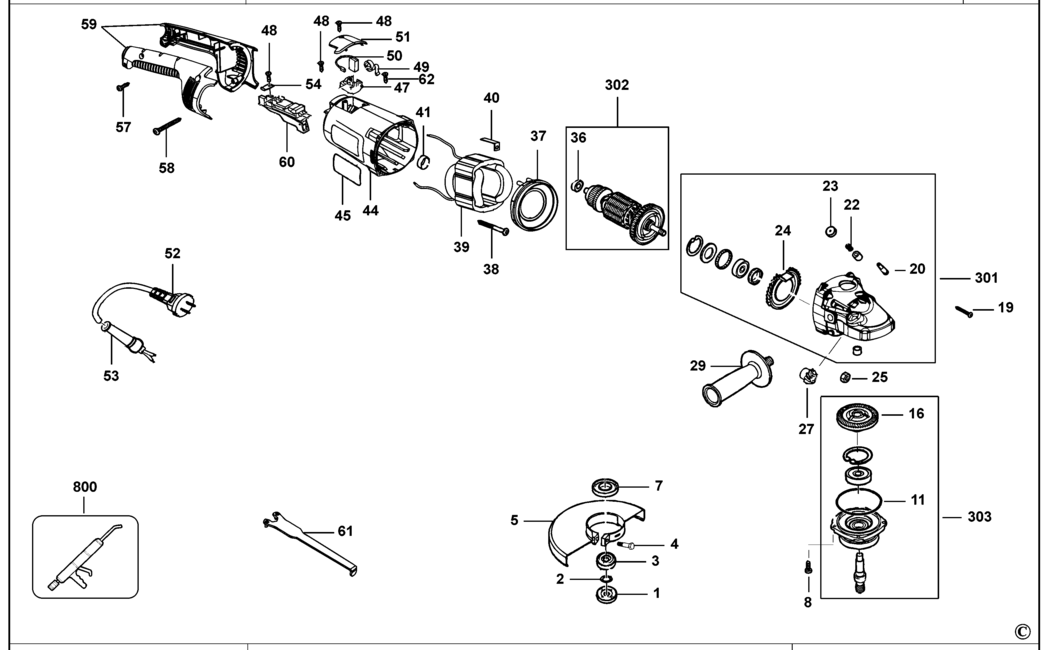

1 - OUTER FLANGE
BDE-4145104008.A1
4145104008
|
£1.50
|
£1.80
|
|
|
2 - O RING
BDE-4240203001.A6
4240203001
|
£1.50
|
£1.80
|
|
|
3 - INNER FLANGE
BDE-4145104002.A19
4145104002
|
£1.50
|
£1.80
|
|
|
4 - SCREW
BDE-49202029.A4
49202029
|
£1.50
|
£1.80
|
|
|
5 - GUARD
BDE-4149104001.A1
4149104001
|
£10.85
|
£13.02
|
|
|
7 - SEAL
BDE-4149101605.A4
4149101605
|
£1.50
|
£1.80
|
|
|
8 - SCREW
BDE-49203009.A7
49203009
|
£1.50
|
£1.80
|
|
|
11 - O RING
BDE-4148003001.A5
4148003001
|
£1.50
|
£1.80
|
|
|
16 - GEAR
BDE-4149110005.A1
4149110005
|
£17.48
|
£20.97
|
|
|
19 - SCREW
BDE-49206048.A2
49206048
|
£1.50
|
£1.80
|
|
|
20 - LOCKING PIN
BDE-4148004007.A5
4148004007
|
£1.50
|
£1.80
|
|
|
22 - SPRING
BDE-4148008003.A0
4148008003
|
£1.50
|
£1.80
|
|
|
23 - CAP
BDE-4149101606.A2
4149101606
|
£1.50
|
£1.80
|
|
|
24 - DEFLECTOR
BDE-4149101607.A4
4149101607
|
£1.50
|
£1.80
|
|
|
25 - NUT
BDE-49205025.A4
49205025
|
£1.50
|
£1.80
|
|
|
27 - BEVEL GEAR
BDE-4149110006.A2
4149110006
|
£9.41
|
£11.29
|
|
|
29 - SIDE HANDLE
BDE-4148001001.A5
4148001001
|
£2.78
|
£3.34
|
|
|
36 - BEARING
BDE-49111013.A28
49111013
|
£1.50
|
£1.80
|
|
|
37 - DEFLECTOR
BDE-4149101604.A2
4149101604
|
£1.50
|
£1.80
|
|
|
38 - SCREW
BDE-49206041.A3
49206041
|
£1.50
|
£1.80
|
|
|
39 - FIELD SA
BDE-60314065.A4
60314065
|
£55.30
|
£66.36
|
|
|
40 - BRACKET
BDE-4148004003.A1
4148004003
|
£1.50
|
£1.80
|
|
|
41 - COVER BEARING
BDE-4149103601.A5
4149103601
|
£1.50
|
£1.80
|
|
|
47 - BRUSH HOLDER PAIR
BDE-4148007001.A0
4148007001
|
£1.82
|
£2.19
|
|
|
48 - SCREW
BDE-49206019.A5
49206019
|
£1.50
|
£1.80
|
|
|
49 - BRUSH SPRING
BDE-4148008002.A6
4148008002
|
£1.50
|
£1.80
|
|
|
50 - BRUSH PAIR
BDE-4148006603.A4
4148006603
|
£7.18
|
£8.62
|
|
|
51 - BRUSH COVER
BDE-4149101603.A4
4149101603
|
£1.50
|
£1.80
|
|
|
53 - CORD PROTECTOR
BDE-49303012.A4
49303012
|
£1.50
|
£1.80
|
|
|
54 - CORD CLAMP
BDE-4148004011.A1
4148004011
|
£1.50
|
£1.80
|
|
|
57 - SCREW
BDE-49206020.A12
49206020
|
£1.50
|
£1.80
|
|
|
58 - SCREW
BDE-49206004.A5
49206004
|
£1.50
|
£1.80
|
|
|
59 - HOUSING PAIR
BDE-4149101602.A2
4149101602
|
£7.85
|
£9.42
|
|
|
61 - WRENCH SET
BDE-4148004004.A9
4148004004
|
£2.78
|
£3.34
|
|
|
62 - SCREW
BDE-49203006.A10
49203006
|
£1.50
|
£1.80
|
|
|
301 - GEARCASE SA
BDE-4149150008.A23
4149150008
|
£25.70
|
£30.84
|
|
|
302 - ARMATURE SA
BDE-4149150003.A1
4149150003
|
£65.52
|
£78.62
|
|
|
303 - SPINDLE & GEAR SA
BDE-4149150009.A0
4149150009
|
£30.08
|
£36.10
|
|
|
800 - GREASE 50 GMS 45G
BDE-583534-00.A69
583534-00
|
£144.10
|
£172.92
|
|
