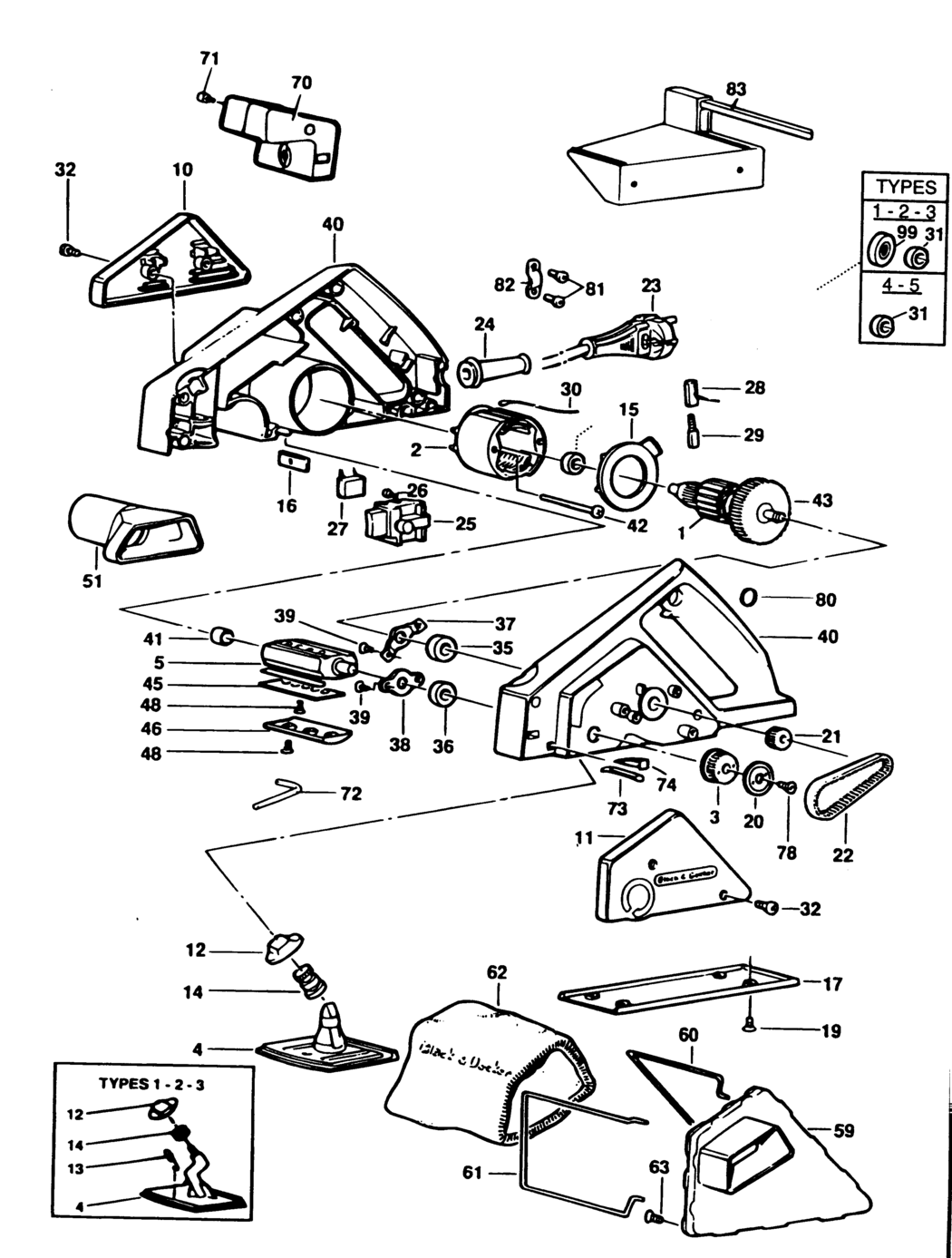

An exploded drawing and spare parts listing for the Black & Decker BD711 Type 1 Planer
Ex VAT Inc VAT
2 - NO LONGER AVAILABLE BDE-000000-00.A4118 000000-00 -
3 - PULLEY TYPE 5 BDE-323002.A17 323002 -
3 - PULLEY TYPE 4 BDE-323002.A18 323002 -
5 - NO LONGER AVAILABLE FROM DATE CODE 18-92 BDE-000000-00.A4107 000000-00 -
10 - NO LONGER AVAILABLE BDE-000000-00.A4108 000000-00 -
11 - NO LONGER AVAILABLE FROM DATE CODE 18-92 BDE-000000-00.A4109 000000-00 -
12 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A4110 000000-00 -
12 - NO LONGER AVAILABLE TYPE 5 BDE-000000-00.A4111 000000-00 -
12 - NO LONGER AVAILABLE TYPE 1-2-3 BDE-000000-00.A4112 000000-00 -
13 - NO LONGER AVAILABLE TYPE 1-2-3 BDE-000000-00.A4113 000000-00 -
14 - NO LONGER AVAILABLE TYPE 1-2-3 BDE-000000-00.A4114 000000-00 -
14 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A4115 000000-00 -
14 - NO LONGER AVAILABLE TYPE 5 BDE-000000-00.A4116 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A4117 000000-00 -
16 - PLATE BDE-918405.A16 918405 £1.50 £1.80
17 - NO LONGER AVAILABLE BDE-000000-00.A4119 000000-00 -
19 - NO LONGER AVAILABLE BDE-000000-00.A4120 000000-00 -
20 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A4121 000000-00 -
20 - NO LONGER AVAILABLE TYPE 5 BDE-000000-00.A4122 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A4123 000000-00 -
22 - BELT DRIVE BDE-321200.A7 321200 £3.96 £4.75
23 - NO LONGER AVAILABLE GB BDE-000000-00.A4124 000000-00 -
24 - NO LONGER AVAILABLE GB BDE-000000-00.A4125 000000-00 -
25 - NO LONGER AVAILABLE GB BDE-000000-00.A4126 000000-00 -
26 - SCREW GB BDE-911026.A92 911026 £1.50 £1.80
27 - CAPACITOR BDE-321384.A111 321384 £1.50 £1.80
28 - NO LONGER AVAILABLE BDE-000000-00.A4127 000000-00 -
29 - BRUSH & SPRING GB BDE-915068-01.A19 915068-01 £4.69 £5.63
30 - LEAD 360MM BDE-878846.A34 878846 £1.50 £1.80
31 - NO LONGER AVAILABLE TYPE 5 BDE-000000-00.A4133 000000-00 -
31 - BEARING TYPE 1-2-3 BDE-330003-31.A27 330003-31 £2.78 £3.34
31 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A4128 000000-00 -
32 - NO LONGER AVAILABLE BDE-000000-00.A4129 000000-00 -
35 - BEARING BDE-330003-31.A25 330003-31 £2.78 £3.34
36 - BEARING BDE-330003-39.A92 330003-39 £2.78 £3.34
37 - NO LONGER AVAILABLE BDE-000000-00.A4130 000000-00 -
38 - NO LONGER AVAILABLE BDE-000000-00.A4131 000000-00 -
39 - NO LONGER AVAILABLE BDE-000000-00.A4132 000000-00 -
40 - CLAMSHELL SET TYPE 4 BDE-372937-05.A24 372937-05 -
40 - CLAMSHELL SET TYPE 5 BDE-372937-05.A25 372937-05 -
41 - BEARING NEEDLE BDE-330004-02.A60 330004-02 £1.50 £1.80
42 - NO LONGER AVAILABLE BDE-000000-00.A4134 000000-00 -
43 - NO LONGER AVAILABLE BDE-000000-00.A4135 000000-00 -
45 - NO LONGER AVAILABLE BDE-000000-00.A4136 000000-00 -
46 - NO LONGER AVAILABLE BDE-000000-00.A4137 000000-00 -
48 - SCREW.TEMP BDE-325377-00.A9 325377-00 £1.50 £1.80
59 - NO LONGER AVAILABLE BD720 DN720 BDE-000000-00.A4138 000000-00 -
60 - NO LONGER AVAILABLE BD720 DN720 BDE-000000-00.A4139 000000-00 -
61 - NO LONGER AVAILABLE BD720 DN720 BDE-000000-00.A4140 000000-00 -
62 - NO LONGER AVAILABLE BD720 DN720 BDE-000000-00.A4141 000000-00 -
63 - SCREW BD720 DN720 BDE-911059.A22 911059 £1.42 £1.70
70 - NO LONGER AVAILABLE BD711 BDE-000000-00.A4142 000000-00 -
70 - NO LONGER AVAILABLE BD720 DN720 BDE-000000-00.A4143 000000-00 -
71 - NO LONGER AVAILABLE BD711 BDE-000000-00.A4144 000000-00 -
71 - NO LONGER AVAILABLE BD720 DN720 BDE-000000-00.A4145 000000-00 -
72 - WRENCH BDE-807043.A124 807043 £1.50 £1.80
73 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A4154 000000-00 -
73 - NO LONGER AVAILABLE TYPE 5 BDE-000000-00.A4155 000000-00 -
74 - NO LONGER AVAILABLE BDE-000000-00.A4156 000000-00 -
78 - NO LONGER AVAILABLE BDE-000000-00.A4157 000000-00 -
83 - NO LONGER AVAILABLE BD720 DN720 BDE-000000-00.A4158 000000-00 -
99 - HOLDER TYPE 1-2-3 BDE-911897.A109 911897 -
