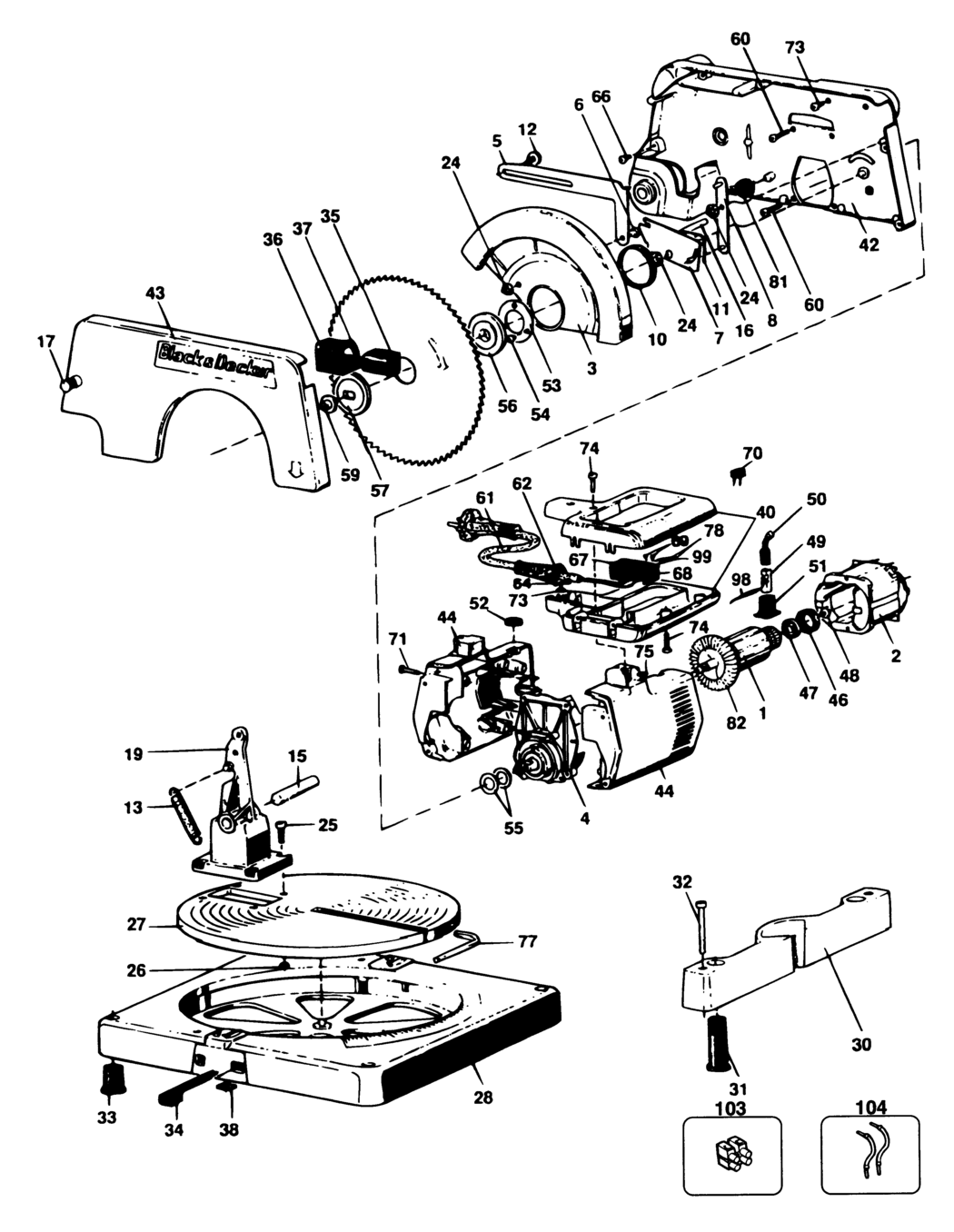

An exploded drawing and spare parts listing for the Black & Decker BD800 Type 1 Saw
Ex VAT Inc VAT
1 - ARMATURE SA BDE-368877-01.A7 368877-01 £57.22 £68.66
2 - NO LONGER AVAILABLE BDE-000000-00.A103111 000000-00 -
3 - NO LONGER AVAILABLE BDE-000000-00.A103112 000000-00 -
4 - NO LONGER AVAILABLE BDE-000000-00.A103113 000000-00 -
5 - NO LONGER AVAILABLE BDE-000000-00.A103114 000000-00 -
6 - NO LONGER AVAILABLE BDE-000000-00.A103115 000000-00 -
7 - NO LONGER AVAILABLE BDE-000000-00.A103116 000000-00 -
8 - NO LONGER AVAILABLE BDE-000000-00.A103117 000000-00 -
10 - NO LONGER AVAILABLE BDE-000000-00.A103118 000000-00 -
11 - NO LONGER AVAILABLE BDE-000000-00.A103119 000000-00 -
12 - SCREW BDE-324776-00.A28 324776-00 £1.42 £1.70
13 - NO LONGER AVAILABLE BDE-000000-00.A103137 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A103138 000000-00 -
16 - NO LONGER AVAILABLE BDE-000000-00.A103139 000000-00 -
17 - NO LONGER AVAILABLE BDE-000000-00.A103140 000000-00 -
19 - NO LONGER AVAILABLE BDE-000000-00.A103141 000000-00 -
24 - NO LONGER AVAILABLE BDE-000000-00.A103142 000000-00 -
25 - SCREW BDE-911281-00.A20 911281-00 £1.50 £1.80
26 - NO LONGER AVAILABLE BDE-000000-00.A103120 000000-00 -
27 - NO LONGER AVAILABLE BDE-000000-00.A103121 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A103122 000000-00 -
30 - NO LONGER AVAILABLE BDE-000000-00.A103123 000000-00 -
31 - NO LONGER AVAILABLE BDE-000000-00.A103124 000000-00 -
32 - NO LONGER AVAILABLE BDE-000000-00.A103125 000000-00 -
33 - NO LONGER AVAILABLE BDE-000000-00.A103126 000000-00 -
34 - NO LONGER AVAILABLE BDE-000000-00.A103127 000000-00 -
35 - NO LONGER AVAILABLE BDE-000000-00.A103128 000000-00 -
36 - NO LONGER AVAILABLE BDE-000000-00.A103129 000000-00 -
37 - NO LONGER AVAILABLE BDE-000000-00.A103130 000000-00 -
38 - PLATE BDE-918405.A39 918405 £1.50 £1.80
42 - NO LONGER AVAILABLE TYPE 1-2-3-4 BDE-000000-00.A103131 000000-00 -
42 - NO LONGER AVAILABLE TYPE 5 BDE-000000-00.A103132 000000-00 -
43 - NO LONGER AVAILABLE TYPE 1-2-3-4 BDE-000000-00.A103133 000000-00 -
43 - NO LONGER AVAILABLE TYPE 5 BDE-000000-00.A103134 000000-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A103135 000000-00 -
46 - NO LONGER AVAILABLE BDE-000000-00.A103136 000000-00 -
47 - BEARING BDE-330003-31.A111 330003-31 £2.78 £3.34
48 - SCREW BDE-911276.A76 911276 £1.42 £1.70
49 - BRUSH HOLDER BDE-321337.A40 321337 -
50 - BRUSH SA 230V BDE-321338.A22 321338 £14.57 £17.48
51 - INSERT BDE-321328.A24 321328 -
52 - NO LONGER AVAILABLE BDE-000000-00.A103143 000000-00 -
53 - NO LONGER AVAILABLE BDE-000000-00.A103144 000000-00 -
54 - NO LONGER AVAILABLE BDE-000000-00.A103145 000000-00 -
55 - WASHER BDE-910623.A16 910623 -
56 - NO LONGER AVAILABLE BDE-000000-00.A103146 000000-00 -
57 - FLANGE BDE-911795.A20 911795 -
59 - NO LONGER AVAILABLE BDE-000000-00.A103147 000000-00 -
60 - SCREW BDE-324006-02.A31 324006-02 £1.50 £1.80
64 - CABLE CLAMP BDE-910556.A49 910556 £1.42 £1.70
66 - SCREW BDE-324006-00.A97 324006-00 £1.50 £1.80
67 - NO LONGER AVAILABLE BDE-000000-00.A103148 000000-00 -
68 - SWITCH BDE-911726-S.A9 911726-S -
69 - SCREW BDE-911026.A178 911026 £1.50 £1.80
70 - NO LONGER AVAILABLE BDE-000000-00.A103149 000000-00 -
71 - SCREW BDE-911325.A107 911325 -
73 - SCREW BDE-894748.A153 894748 £1.42 £1.70
74 - NO LONGER AVAILABLE BDE-000000-00.A103150 000000-00 -
75 - NO LONGER AVAILABLE BDE-000000-00.A103151 000000-00 -
77 - HEX KEY BDE-322929.A1 322929 -
78 - NO LONGER AVAILABLE BDE-000000-00.A103160 000000-00 -
81 - NO LONGER AVAILABLE BDE-000000-00.A103161 000000-00 -
82 - NO LONGER AVAILABLE BDE-000000-00.A103162 000000-00 -
98 - NO LONGER AVAILABLE BDE-000000-00.A103163 000000-00 -
99 - LEAD 360MM BDE-878846.A71 878846 £1.50 £1.80
101 - SCREW BDE-330065-08.A401 330065-08 £1.50 £1.80
