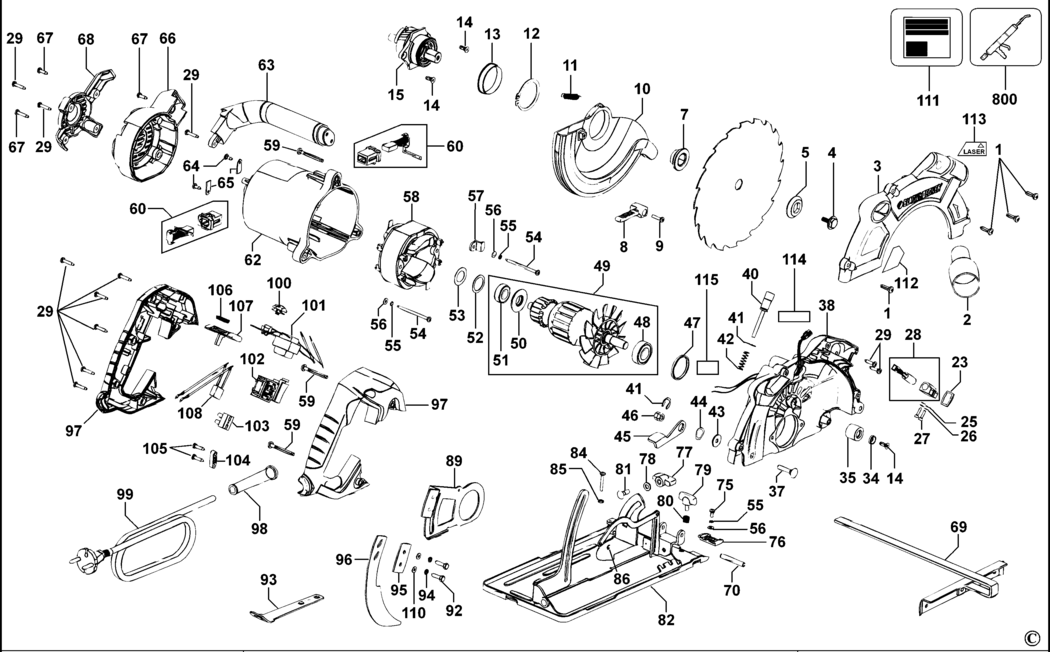

An exploded drawing and spare parts listing for the Black & Decker KS1500L Type 1 Circular Saw
Ex VAT Inc VAT
1 - SCREW BDE-1002392-00.A1 1002392-00 £1.42 £1.70
2 - VACUUM ADAPTOR BDE-1003531-00.A0 1003531-00 £1.78 £2.13
3 - GUARD UPPER BDE-1003532-00.A3 1003532-00 £23.75 £28.50
4 - SCREW.SPECIAL BDE-1003533-00.A0 1003533-00 £4.58 £5.49
5 - OUTER FLANGE BDE-1002393-00.A4 1002393-00 £7.01 £8.41
7 - INNER FLANGE BDE-1003534-00.A4 1003534-00 -
8 - LEVER BDE-1003535-00.A0 1003535-00 £1.42 £1.70
9 - SCREW BDE-1003536-00.A4 1003536-00 £1.42 £1.70
10 - GUARD LOWER BDE-1003537-00.A0 1003537-00 £24.39 £29.27
11 - SPRING BDE-1003538-00.A4 1003538-00 £3.22 £3.86
12 - CIRCLIP BDE-1002388-00.A0 1002388-00 £7.01 £8.41
13 - LINER BDE-1002384-00.A4 1002384-00 £1.42 £1.70
14 - SCREW BDE-1003539-00.A0 1003539-00 £1.42 £1.70
15 - SPINDLE & GEAR SA BDE-1003540-00.A3 1003540-00 £44.00 £52.80
23 - LENS BDE-1003541-00.A0 1003541-00 £1.42 £1.70
25 - WASHER BDE-1003542-00.A3 1003542-00 £1.42 £1.70
26 - WASHER SPRING BDE-1003543-00.A0 1003543-00 £1.42 £1.70
27 - SCREW BDE-1003544-00.A3 1003544-00 £1.42 £1.70
28 - LASER BDE-1003545-00.A0 1003545-00 £37.82 £45.38
29 - SCREW BDE-1003546-00.A4 1003546-00 £1.42 £1.70
34 - WASHER BDE-1002360-00.A4 1002360-00 £1.42 £1.70
35 - STOP RUBBER BDE-1002359-00.A0 1002359-00 £1.42 £1.70
37 - CARRIAGE BOLT BDE-1003547-00.A0 1003547-00 £1.42 £1.70
38 - GEAR CASE SA BDE-1003548-00.A3 1003548-00 £76.16 £91.39
40 - SPINDLE LOCK BDE-1003549-00.A0 1003549-00 £5.72 £6.87
41 - RETAINER BDE-1002345-00.A1 1002345-00 £1.42 £1.70
42 - SPRING BDE-1003550-00.A4 1003550-00 £1.42 £1.70
43 - WASHER BDE-1002372-00.A6 1002372-00 £1.42 £1.70
44 - WASHER SPECIAL BDE-1003551-00.A0 1003551-00 £1.42 £1.70
45 - LEVER LOCK BDE-1003552-00.A4 1003552-00 £2.71 £3.25
46 - LOCK NUT BDE-1003553-00.A0 1003553-00 £1.42 £1.70
47 - O RING BDE-1002349-00.A1 1002349-00 £5.72 £6.87
48 - BEARING BDE-1002400-00.A1 1002400-00 £7.01 £8.41
49 - NO LONGER AVAILABLE Inc items 48-50-51 BDE-000000-00.A95298 000000-00 -
50 - SEAL BDE-1003555-00.A3 1003555-00 £1.42 £1.70
51 - BEARING BDE-1002399-00.A3 1002399-00 £4.69 £5.63
52 - WASHER BDE-1002336-00.A1 1002336-00 £1.42 £1.70
53 - WASHER BDE-1002337-00.A3 1002337-00 £1.42 £1.70
54 - SCREW BDE-597764-00.A2 597764-00 £1.42 £1.70
55 - WASHER SPRING BDE-597796-00.A6 597796-00 £1.42 £1.70
56 - WASHER BDE-1002347-00.A3 1002347-00 £1.42 £1.70
57 - CLAMP BDE-1003556-00.A1 1003556-00 £1.42 £1.70
58 - FIELD SA 230V BDE-1003557-00.A1 1003557-00 £85.60 £102.72
59 - SCREW BDE-1003558-00.A4 1003558-00 £1.42 £1.70
60 - BRUSH PAIR BDE-1003559-00.A0 1003559-00 £25.70 £30.84
62 - MOTOR HOUSING SA BDE-1003560-00.A3 1003560-00 £29.32 £35.18
63 - LOOP HANDLE BDE-1003561-00.A0 1003561-00 £23.75 £28.50
64 - SCREW BDE-597743-00.A1 597743-00 £1.42 £1.70
65 - CLAMP BDE-1003562-00.A4 1003562-00 £1.42 £1.70
66 - END CAP BDE-1003563-00.A0 1003563-00 £7.64 £9.17
67 - SCREW BDE-1003564-00.A4 1003564-00 £1.42 £1.70
68 - COVER BDE-1003565-00.A0 1003565-00 £5.72 £6.87
69 - RIP FENCE BDE-1003566-00.A4 1003566-00 £10.57 £12.68
70 - ROLL PIN BDE-1003567-00.A0 1003567-00 £1.42 £1.70
75 - SCREW BDE-1003568-00.A4 1003568-00 £1.42 £1.70
76 - GUIDE BDE-1003569-00.A0 1003569-00 £1.42 £1.70
77 - WING NUT BDE-1003570-00.A4 1003570-00 £2.21 £2.65
78 - WASHER BDE-1003571-00.A0 1003571-00 £1.42 £1.70
79 - SCREW WING BDE-1003572-00.A4 1003572-00 £1.42 £1.70
80 - SPRING BDE-1002375-00.A1 1002375-00 £1.42 £1.70
81 - CARRIAGE BOLT BDE-1003573-00.A1 1003573-00 £1.42 £1.70
82 - SHOE SA BDE-1003574-00.A2 1003574-00 £37.82 £45.38
84 - SCREW BDE-1003575-00.A0 1003575-00 £1.42 £1.70
85 - NUT M4 BDE-1003576-00.A4 1003576-00 £1.42 £1.70
86 - RETAINER BDE-1003577-00.A0 1003577-00 £1.42 £1.70
89 - BRACKET BDE-1003578-00.A4 1003578-00 £9.17 £11.00
92 - BOLT BDE-1002369-00.A5 1002369-00 £1.42 £1.70
93 - WRENCH SPECIAL BDE-1003579-00.A0 1003579-00 £3.22 £3.86
94 - WASHER SPRING BDE-1002368-00.A1 1002368-00 £1.42 £1.70
95 - SUPPORT BDE-1002366-00.A1 1002366-00 £1.42 £1.70
96 - RIVING KNIFE BDE-1003580-00.A4 1003580-00 £7.01 £8.41
97 - HANDLE & COVER BDE-1003581-00.A0 1003581-00 £29.32 £35.18
98 - CORD PROTECTOR BDE-1003582-00.A4 1003582-00 £1.42 £1.70
99 - CORDSET GB BDE-1003584-00.A0 1003584-00 £37.82 £45.38
100 - LOCK BUTTON BDE-1003585-00.A3 1003585-00 £1.42 £1.70
101 - PCB SA BDE-1003586-00.A0 1003586-00 £19.40 £23.28
102 - SWITCH BDE-1003587-00.A4 1003587-00 £18.91 £22.69
103 - TERMINAL BLOCK BDE-1003588-00.A0 1003588-00 £3.22 £3.86
104 - CORD CLAMP BDE-1003589-00.A4 1003589-00 £1.42 £1.70
105 - SCREW BDE-1002331-00.A4 1002331-00 £1.42 £1.70
106 - SPRING BDE-1003590-00.A0 1003590-00 £1.42 £1.70
107 - TRIGGER BDE-1003591-00.A4 1003591-00 £1.78 £2.13
108 - CAPACITOR SA BDE-1003592-00.A0 1003592-00 £7.01 £8.41
110 - WASHER BDE-1003593-00.A4 1003593-00 £1.42 £1.70
111 - RATING PLATE BDE-1003595-00.A1 1003595-00 £1.42 £1.70
112 - LABEL BDE-1003597-00.A1 1003597-00 £1.42 £1.70
113 - LABEL BDE-1003598-00.A0 1003598-00 £1.42 £1.70
114 - LABEL BDE-1003599-00.A3 1003599-00 £1.42 £1.70
115 - WARNING LABEL BDE-1003600-00.A3 1003600-00 £1.42 £1.70
800 - GREASE BDE-870889-03.A85 870889-03 £7.85 £9.42
