Black & Decker KS800SL Type 1 Jigsaw Spare Parts

Black & Decker KS800SL Type 1 Jigsaw Spare Parts

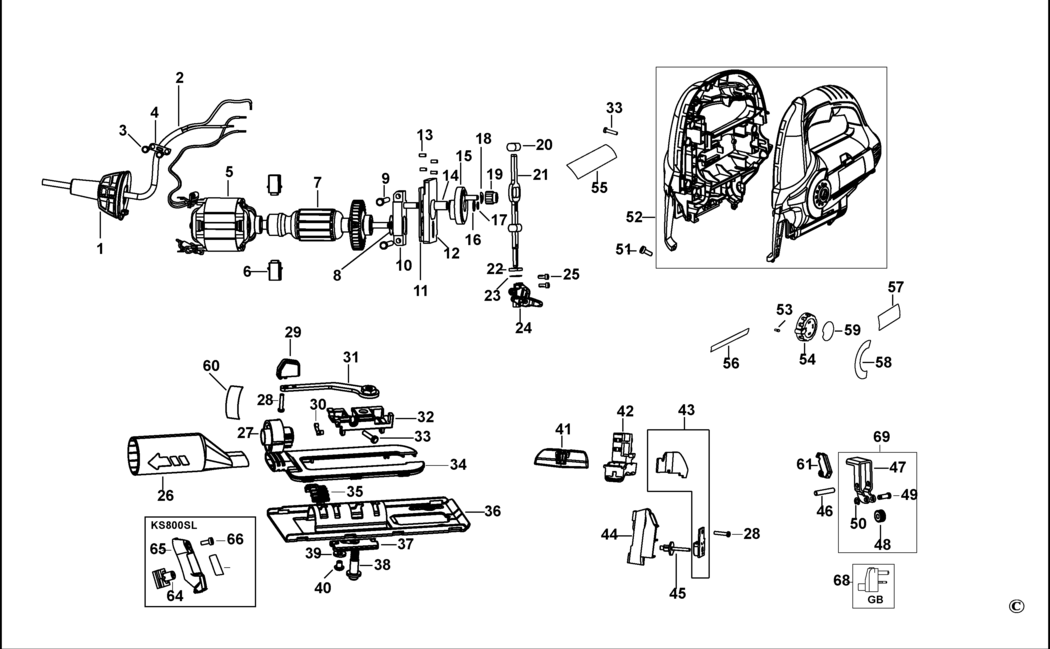

An exploded drawing and spare parts listing for the Black & Decker KS800SL Type 1 Jigsaw
Ex VAT Inc VAT
1 - CORD PROTECTOR BDE-90514628.A10 90514628 £1.50 £1.80
2 - CORDSET GB BDE-90523264.A17 90523264 £16.03 £19.24
3 - SCREW BDE-370748.A5 370748 £1.50 £1.80
4 - CORD CLAMP BDE-329301-00.A210 329301-00 £1.50 £1.80
5 - FIELD 230V GB BDE-90525754.A1 90525754 £30.08 £36.10
6 - BRUSHBOX SA BDE-90510508.A4 90510508 £1.82 £2.19
7 - ARMATURE SA GB BDE-90513113.A6 90513113 £34.00 £40.80
8 - WASHER BDE-90525755.A11 90525755 £1.42 £1.70
9 - SCREW BDE-330019-17.A24 330019-17 £1.50 £1.80
10 - BEARING PLATE BDE-90525756.A1 90525756 £1.42 £1.70
11 - FORK BDE-90525758.A10 90525758 £1.50 £1.80
12 - COUNTERWEIGHT BDE-90525759.A3 90525759 £3.80 £4.56
13 - PIN BDE-90517281.A2 90517281 £1.50 £1.80
14 - BEARING BDE-90526098.A1 90526098 £1.42 £1.70
15 - GEAR BDE-90526099.A12 90526099 £7.85 £9.42
16 - WASHER BDE-90526100.A1 90526100 £1.42 £1.70
17 - CLIP BDE-90526101.A10 90526101 £1.42 £1.70
18 - WASHER BDE-823954.A22 823954 £1.50 £1.80
19 - ROLLER BDE-795688-00.A3 795688-00 £1.50 £1.80
20 - BEARING BDE-810893.A61 810893 £1.50 £1.80
21 - RECIPROCATOR BDE-90514115.A2 90514115 £7.18 £8.62
22 - FELT SEAL BDE-582949-00.A5 582949-00 £1.50 £1.80
23 - PLATE BDE-582948-00.A16 582948-00 £1.50 £1.80
24 - BLADE CLAMP BDE-582593-00.A3 582593-00 £4.69 £5.63
25 - SCREW BDE-583173-00.A25 583173-00 £1.50 £1.80
26 - VACUUM ADAPTOR BDE-90501915.A17 90501915 £1.50 £1.80
27 - INDICATOR BDE-90514273.A15 90514273 £1.50 £1.80
28 - SCREW BDE-330019-31.A2 330019-31 £1.50 £1.80
29 - HANDLE BDE-90514276.A9 90514276 £1.50 £1.80
30 - SPRING BDE-620271-00.A1 620271-00 £1.42 £1.70
31 - LEVER SA BDE-90517427.A8 90517427 £1.42 £1.70
32 - BLOCK BDE-90515286.A5 90515286 £3.80 £4.56
33 - SCREW BDE-330019-13.A194 330019-13 £1.50 £1.80
34 - COVER BDE-90521038.A0 90521038 £1.50 £1.80
35 - INSERT BDE-90514228.A16 90514228 £2.26 £2.71
36 - SHOE BDE-90521037.A11 90521037 -
37 - PLATE LOCK BDE-90513772.A0 90513772 £1.50 £1.80
38 - BOLT BDE-90514219.A8 90514219 £1.50 £1.80
39 - WASHER BDE-90514216.A20 90514216 £1.50 £1.80
40 - BOLT BDE-582827-00.A37 582827-00 £1.50 £1.80
41 - ACTUATOR BDE-90517413.A11 90517413 -
42 - SWITCH SA BDE-585385-00.A2 585385-00 £3.80 £4.56
43 - PCB 230V BDE-90518917.A7 90518917 £25.05 £30.06
44 - SUPPORT BDE-90525568.A6 90525568 £1.42 £1.70
45 - CAM BDE-90514375.A12 90514375 £1.50 £1.80
46 - PIN BDE-90521041.A0 90521041 -
47 - BRACKET BDE-90521039.A11 90521039 £1.42 £1.70
48 - ROLLER BDE-90514422.A13 90514422 £1.50 £1.80
49 - PIN BDE-90514409.A4 90514409 -
50 - LOCKING RING BDE-587375-00.A16 587375-00 £1.50 £1.80
51 - SCREW BDE-330019-00.A78 330019-00 £1.50 £1.80
53 - DETENT BDE-N403227.A23 N403227 £1.50 £1.80
54 - KNOB BDE-90514622.A8 90514622 £1.50 £1.80
55 - RATING PLATE GB BDE-90527444 90527444 £1.42 £1.70
56 - LABEL PIVOT BDE-90520273.A15 90520273 £1.50 £1.80
57 - BRAND LABEL BDE-90521533.A8 90521533 £1.42 £1.70
58 - LABEL BDE-90523047.A5 90523047 £1.42 £1.70
59 - LABEL BDE-90523049.A2 90523049 £1.42 £1.70
60 - LABEL BDE-90520107.A2 90520107 £1.42 £1.70
61 - DUST PORT BDE-90514324.A14 90514324 £1.50 £1.80
64 - INSERT BDE-489246-00.A12 489246-00 £1.42 £1.70
65 - LASER BDE-90516180.A0 90516180 £19.40 £23.28
66 - SCREW BDE-489427-00.A5 489427-00 £1.42 £1.70
68 - ADAPTOR SA GB BDE-588384-00.A56 588384-00 -
69 - SUPPORT SA BDE-90570680.A0 90570680 -
