Black & Decker P3304 Type 1 Site Saw Spare Parts

Home Details Reviews Delivery

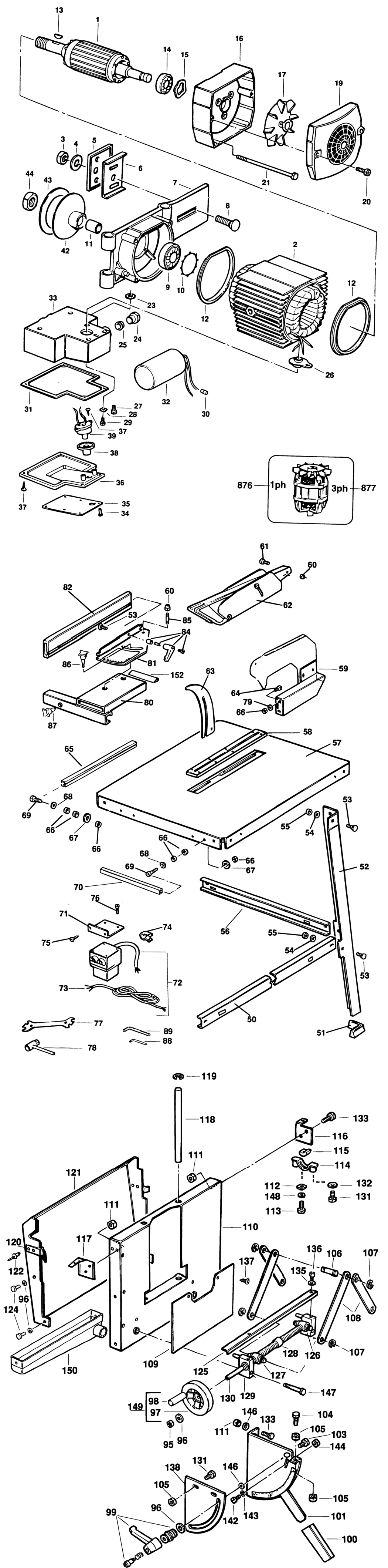

An exploded drawing and spare parts listing for the Black & Decker P3304 Type 1 Site Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A9231 000000-00	-
1 - ROTOR 3 PH IT 220V BDE-868496-00.A5 868496-00	£131.95	£158.34
1 - ROTOR 3 PH IT 380V BDE-868496-00.A6 868496-00	£131.95	£158.34
1 - ROTOR 3 PH DE 220V BDE-868496-00.A7 868496-00	£131.95	£158.34
1 - ROTOR 3 PH GB 240V BDE-868496-00.A8 868496-00	£131.95	£158.34
2 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A9232 000000-00	-
2 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A9233 000000-00	-
2 - NO LONGER AVAILABLE DE 220V BDE-000000-00.A9234 000000-00	-
2 - NO LONGER AVAILABLE IT 220V BDE-000000-00.A9235 000000-00	-
2 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A9236 000000-00	-
3 - NUT RH BDE-860083-05.A98 860083-05	£1.50	£1.80
4 - WASHER BDE-860074-04.A45 860074-04	£1.50	£1.80
5 - PLATE BDE-944360-00.A0 944360-00	£1.50	£1.80
6 - PLATE BDE-944359-00.A15 944359-00	£1.50	£1.80
7 - HOUSING BDE-868661-00.A3 868661-00	£96.55	£115.86
8 - SCREW BDE-860301-15.A5 860301-15	£1.50	£1.80
9 - BEARING BDE-868768-10.A58 868768-10	£14.57	£17.48
10 - RING BDE-860806-01.A13 860806-01	£1.42	£1.70
11 - BUSH BDE-942490-00.A28 942490-00	-
12 - SEAL BDE-860718-00.A53 860718-00	£7.18	£8.62
13 - KEY BDE-860318-00.A14 860318-00	-
14 - BEARING BDE-861721-01.A17 861721-01	£7.85	£9.42
15 - RING BDE-860080-02.A87 860080-02	£1.50	£1.80
16 - HOUSING BDE-860701-00.A12 860701-00	-
17 - FAN BDE-945841-00.A29 945841-00	£2.78	£3.34
19 - END CAP BDE-860687-04.A21 860687-04	£7.18	£8.62
20 - SCREW BDE-860094-01.A51 860094-01	£1.50	£1.80
21 - ROD BDE-860446-00.A26 860446-00	£1.50	£1.80
23 - GROMMET BDE-944653-00.A26 944653-00	£3.30	£3.96
24 - RETAINER BDE-944654-00.A36 944654-00	£1.50	£1.80
25 - NUT BDE-944590-00.A85 944590-00	£1.50	£1.80
26 - GROMMET BDE-944652-00.A43 944652-00	£4.69	£5.63
27 - SCREW.TEMP BDE-860094-00.A78 860094-00	£1.50	£1.80
28 - WASHER SPRING BDE-944650-00.A37 944650-00	£1.50	£1.80
29 - SCREW BDE-860094-01.A50 860094-01	£1.50	£1.80
30 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A9237 000000-00	-
30 - NO LONGER AVAILABLE IT 220V BDE-000000-00.A9238 000000-00	-
30 - NO LONGER AVAILABLE DE 220V BDE-000000-00.A9239 000000-00	-
30 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A9240 000000-00	-
30 - CONNECTOR IT 380V BDE-946085-00.A26 946085-00	£1.82	£2.19
31 - GASKET IT 380V BDE-860708-00.A12 860708-00	-
31 - GASKET IT 220V BDE-860708-00.A13 860708-00	-
31 - GASKET DE 220V BDE-860708-00.A14 860708-00	-
31 - GASKET GB 115 BDE-860708-00.A15 860708-00	-
31 - GASKET GB 240V BDE-860708-00.A16 860708-00	-
32 - CONDENSOR DE 220V BDE-944455-00.A10 944455-00	-
32 - CONDENSOR GB 115 BDE-944455-01.A12 944455-01	£24.39	£29.27
32 - CONDENSOR IT 220V BDE-944455-00.A11 944455-00	-
32 - CONDENSOR GB 240V BDE-944455-00.A12 944455-00	-
33 - HOUSING GB 115 BDE-860702-00.A7 860702-00	-
33 - HOUSING IT 220V BDE-860702-00.A8 860702-00	-
33 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A9246 000000-00	-
33 - HOUSING DE 220V BDE-860702-00.A5 860702-00	-
33 - HOUSING GB 240V BDE-860702-00.A6 860702-00	-
34 - RIVET BDE-860060-01.A29 860060-01	£1.42	£1.70
35 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A9241 000000-00	-
35 - NO LONGER AVAILABLE IT 220V BDE-000000-00.A9242 000000-00	-
35 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A9243 000000-00	-
35 - NO LONGER AVAILABLE DE 220V BDE-000000-00.A9244 000000-00	-
35 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A9245 000000-00	-
36 - COVER DE 220V BDE-944454-00.A30 944454-00	£10.57	£12.68
36 - COVER GB 240V BDE-944454-00.A31 944454-00	£10.57	£12.68
36 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A9247 000000-00	-
36 - COVER GB 115 BDE-944454-00.A28 944454-00	£10.57	£12.68
36 - COVER IT 220V BDE-944454-00.A29 944454-00	£10.57	£12.68
37 - SCREW BDE-860094-03.A156 860094-03	£1.50	£1.80
38 - CAP BDE-860133-00.A19 860133-00	£1.42	£1.70
39 - KLIXON DE 220V BDE-860692-00.A33 860692-00	-
39 - KLIXON IT 220V BDE-860692-00.A34 860692-00	-
39 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A9248 000000-00	-
39 - KLIXON GB 240V BDE-860692-00.A35 860692-00	-
42 - FLANGE BDE-945842-00.A12 945842-00	-
43 - FLANGE BDE-945843-00.A22 945843-00	£7.18	£8.62
44 - NUT BDE-944460-00.A1 944460-00	£24.39	£29.27
50 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A9255 000000-00	-
50 - NO LONGER AVAILABLE IT 220V BDE-000000-00.A9256 000000-00	-
50 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A9257 000000-00	-
50 - NO LONGER AVAILABLE DE 220V BDE-000000-00.A9258 000000-00	-
50 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A9259 000000-00	-
51 - FEET BDE-862419-00.A15 862419-00	£9.41	£11.29
52 - NO LONGER AVAILABLE BDE-000000-00.A9260 000000-00	-
53 - SCREW BDE-860301-16.A30 860301-16	£1.50	£1.80
54 - WASHER BDE-860074-02.A73 860074-02	£1.50	£1.80
55 - NUT BDE-860083-03.A247 860083-03	£1.50	£1.80
56 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A9249 000000-00	-
56 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A9250 000000-00	-
56 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A9251 000000-00	-
56 - NO LONGER AVAILABLE DE 220V BDE-000000-00.A9252 000000-00	-
56 - NO LONGER AVAILABLE IT 220V BDE-000000-00.A9253 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A9254 000000-00	-
58 - INSERT GB 115 BDE-944373-01.A8 944373-01	-
58 - INSERT GB 240V BDE-944373-01.A9 944373-01	-
58 - INSERT IT 380V BDE-944373-01.A10 944373-01	-
58 - INSERT DE 220V BDE-944373-01.A11 944373-01	-
58 - INSERT IT 220V BDE-944373-01.A12 944373-01	-
59 - SUPPORT DE 220V BDE-945852-00.A19 945852-00	£57.22	£68.66
59 - SUPPORT GB 240V BDE-945852-00.A20 945852-00	£57.22	£68.66
59 - SUPPORT GB 115 BDE-945852-00.A21 945852-00	£57.22	£68.66
59 - SUPPORT IT 220V BDE-945852-00.A22 945852-00	£57.22	£68.66
59 - SUPPORT IT 380V BDE-945852-00.A23 945852-00	£57.22	£68.66
60 - NUT BDE-860092-00.A178 860092-00	£1.50	£1.80
61 - SCREW BDE-860093-20.A27 860093-20	£1.50	£1.80
62 - GUARD SA GB 240V BDE-945853-00.A4 945853-00	-
62 - GUARD SA IT 380V BDE-945853-00.A5 945853-00	-
62 - GUARD SA GB 115 BDE-945853-00.A6 945853-00	-
62 - GUARD SA IT 220V BDE-945853-00.A7 945853-00	-
63 - RIVING KNIFE GB 115 BDE-944365-00.A19 944365-00	-
63 - RIVING KNIFE DE 220V BDE-944365-00.A20 944365-00	-
63 - RIVING KNIFE GB 240V BDE-944365-00.A21 944365-00	-
63 - RIVING KNIFE IT 220V BDE-944365-00.A22 944365-00	-
63 - RIVING KNIFE IT 380V BDE-944365-00.A23 944365-00	-
64 - BOLT DE 220V BDE-860085-03.A23 860085-03	£1.50	£1.80
64 - BOLT GB 115 BDE-860085-03.A24 860085-03	£1.50	£1.80
64 - BOLT IT 220V BDE-860085-03.A25 860085-03	£1.50	£1.80
64 - BOLT GB 240V BDE-860085-03.A26 860085-03	£1.50	£1.80
64 - BOLT IT 380V BDE-860085-03.A27 860085-03	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A107779 000000-00	-
66 - NUT IT 220V BDE-860083-04.A395 860083-04	£1.50	£1.80
66 - NUT IT 380V BDE-860083-04.A396 860083-04	£1.50	£1.80
66 - NUT DE 220V BDE-860083-04.A397 860083-04	£1.50	£1.80
66 - NUT GB 240V BDE-860083-04.A398 860083-04	£1.50	£1.80
66 - NUT GB 115 BDE-860083-04.A399 860083-04	£1.50	£1.80
67 - WASHER BDE-941602-00.A22 941602-00	£1.50	£1.80
68 - WASHER M8 BDE-860073-03.A288 860073-03	£1.50	£1.80
69 - SCREW BDE-860093-18.A10 860093-18	-
70 - NO LONGER AVAILABLE BDE-000000-00.A107780 000000-00	-
71 - BRACKET GB 240V BDE-944341-00.A38 944341-00	£7.18	£8.62
71 - BRACKET IT 380V BDE-944341-00.A39 944341-00	£7.18	£8.62
71 - PLATE GB 115 BDE-946023-00.A4 946023-00	£2.71	£3.25
71 - BRACKET DE 220V BDE-944341-00.A36 944341-00	£7.18	£8.62
71 - BRACKET IT 220V BDE-944341-00.A37 944341-00	£7.18	£8.62
72 - NO LONGER AVAILABLE DE 220V BDE-000000-00.A107781 000000-00	-
72 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A107782 000000-00	-
72 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A107783 000000-00	-
72 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A107784 000000-00	-
72 - NO LONGER AVAILABLE IT 220V BDE-000000-00.A107785 000000-00	-
73 - NO LONGER AVAILABLE IT 380V BDE-000000-00.A107786 000000-00	-
73 - NO LONGER AVAILABLE DE 220V BDE-000000-00.A107787 000000-00	-
73 - NO LONGER AVAILABLE IT 220V BDE-000000-00.A107788 000000-00	-
73 - NO LONGER AVAILABLE GB 115 BDE-000000-00.A107789 000000-00	-
73 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A107790 000000-00	-
74 - CLIP BDE-945848-00.A9 945848-00	£1.50	£1.80
75 - SCREW BDE-860084-21.A50 860084-21	£1.50	£1.80
76 - SCREW BDE-930076-00.A1 930076-00	£1.50	£1.80
77 - SPANNER MULTI BDE-944463-00.A13 944463-00	£9.41	£11.29
78 - SPANNER BOX BDE-760601-00.A17 760601-00	£2.26	£2.71
79 - WASHER IT 220V BDE-860074-03.A135 860074-03	£1.50	£1.80
79 - WASHER IT 380V BDE-860074-03.A136 860074-03	£1.50	£1.80
79 - WASHER GB 240V BDE-860074-03.A137 860074-03	£1.50	£1.80
79 - WASHER DE 220V BDE-860074-03.A138 860074-03	£1.50	£1.80
79 - WASHER GB 115 BDE-860074-03.A139 860074-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A107791 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A107792 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A107793 000000-00	-
84 - LEVER SA BDE-861840-01.A1 861840-01	£5.72	£6.87
85 - NO LONGER AVAILABLE BDE-000000-00.A107794 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A107795 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A107796 000000-00	-
88 - HEX KEY 5 MM BDE-930574-00.A111 930574-00	£1.50	£1.80
89 - HEX KEY 8 MM BDE-860098-05.A31 860098-05	£3.30	£3.96
95 - NUT BDE-860092-00.A26 860092-00	£1.50	£1.80
96 - WASHER BDE-860075-00.A84 860075-00	£1.50	£1.80
97 - NO LONGER AVAILABLE PRE SERIAL No. 2218 BDE-000000-00.A107797 000000-00	-
98 - NO LONGER AVAILABLE PRE SERIAL No. 2218 BDE-000000-00.A107798 000000-00	-
99 - HANDLE BDE-861840-00.A26 861840-00	£7.85	£9.42
100 - HANDLE BDE-860367-00.A11 860367-00	£1.50	£1.80
101 - NO LONGER AVAILABLE BDE-000000-00.A107799 000000-00	-
103 - SCREW BDE-860301-16.A13 860301-16	£1.50	£1.80
104 - SCREW BDE-860085-10.A21 860085-10	£1.50	£1.80
105 - NUT BDE-860083-13.A13 860083-13	£1.50	£1.80
106 - PIN BDE-945844-00.A15 945844-00	£1.50	£1.80
107 - CIRCLIP BDE-860322-01.A9 860322-01	£1.50	£1.80
108 - ARM LINK BDE-944368-00.A8 944368-00	£1.50	£1.80
109 - PLATE BDE-944322-02.A0 944322-02	£11.87	£14.24
110 - NO LONGER AVAILABLE BDE-000000-00.A107800 000000-00	-
111 - NUT BDE-860083-04.A394 860083-04	£1.50	£1.80
112 - NO LONGER AVAILABLE BDE-000000-00.A107801 000000-00	-
113 - SCREW BDE-941518-00.A24 941518-00	£1.50	£1.80
114 - NO LONGER AVAILABLE BDE-000000-00.A107802 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A107803 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A107804 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A107805 000000-00	-
118 - ADJUSTER HEIGHT BDE-944353-00.A0 944353-00	£3.80	£4.56
119 - CIRCLIP BDE-860322-05.A6 860322-05	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A107806 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A107807 000000-00	-
122 - NO LONGER AVAILABLE BDE-000000-00.A107808 000000-00	-
124 - SCREW BDE-860085-07.A19 860085-07	£1.50	£1.80
125 - PLATE BDE-944437-00.A7 944437-00	£1.42	£1.70
126 - BUSH BDE-944366-00.A15 944366-00	£1.42	£1.70
127 - BUSH BDE-944366-01.A0 944366-01	£1.42	£1.70
128 - NO LONGER AVAILABLE BDE-000000-00.A107809 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A107810 000000-00	-
130 - NO LONGER AVAILABLE AFTER SERIAL 2218 BDE-000000-00.A107811 000000-00	-
130 - NO LONGER AVAILABLE PRE SERIAL No. 2218 BDE-000000-00.A107812 000000-00	-
131 - SCREW BDE-860085-15.A25 860085-15	£1.50	£1.80
132 - WASHER BDE-860074-02.A157 860074-02	£1.50	£1.80
133 - SCREW BDE-860085-04.A97 860085-04	£1.50	£1.80
135 - WASHER BDE-860073-00.A88 860073-00	£1.50	£1.80
136 - NO LONGER AVAILABLE BDE-000000-00.A107813 000000-00	-
137 - SCREW BDE-860094-03.A118 860094-03	£1.50	£1.80
138 - NO LONGER AVAILABLE BDE-000000-00.A107814 000000-00	-
142 - SCREW.TEMP BDE-760992-00.A9 760992-00	£1.50	£1.80
143 - WASHER BDE-725163.A74 725163	£1.50	£1.80
144 - NUT BDE-860083-01.A16 860083-01	£1.50	£1.80
146 - WASHER M8 BDE-860073-03.A287 860073-03	£1.50	£1.80
147 - SCREW BDE-860086-09.A7 860086-09	£1.50	£1.80
148 - WASHER BDE-933055-00.A14 933055-00	£1.50	£1.80
149 - NO LONGER AVAILABLE PRE SERIAL No. 2218 BDE-000000-00.A107815 000000-00	-
149 - HANDLE SA AFTER SERIAL 2218 BDE-946474-00.A15 946474-00	£18.91	£22.69
150 - NO LONGER AVAILABLE BDE-000000-00.A107816 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A107817 000000-00	-

Attribute Name	Value
Brand	Black & Decker

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Black & Decker P3304 Type 1 Site Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Black & Decker P3304 Type 1 Site Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Black & Decker P3304 Type 1 Site Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
