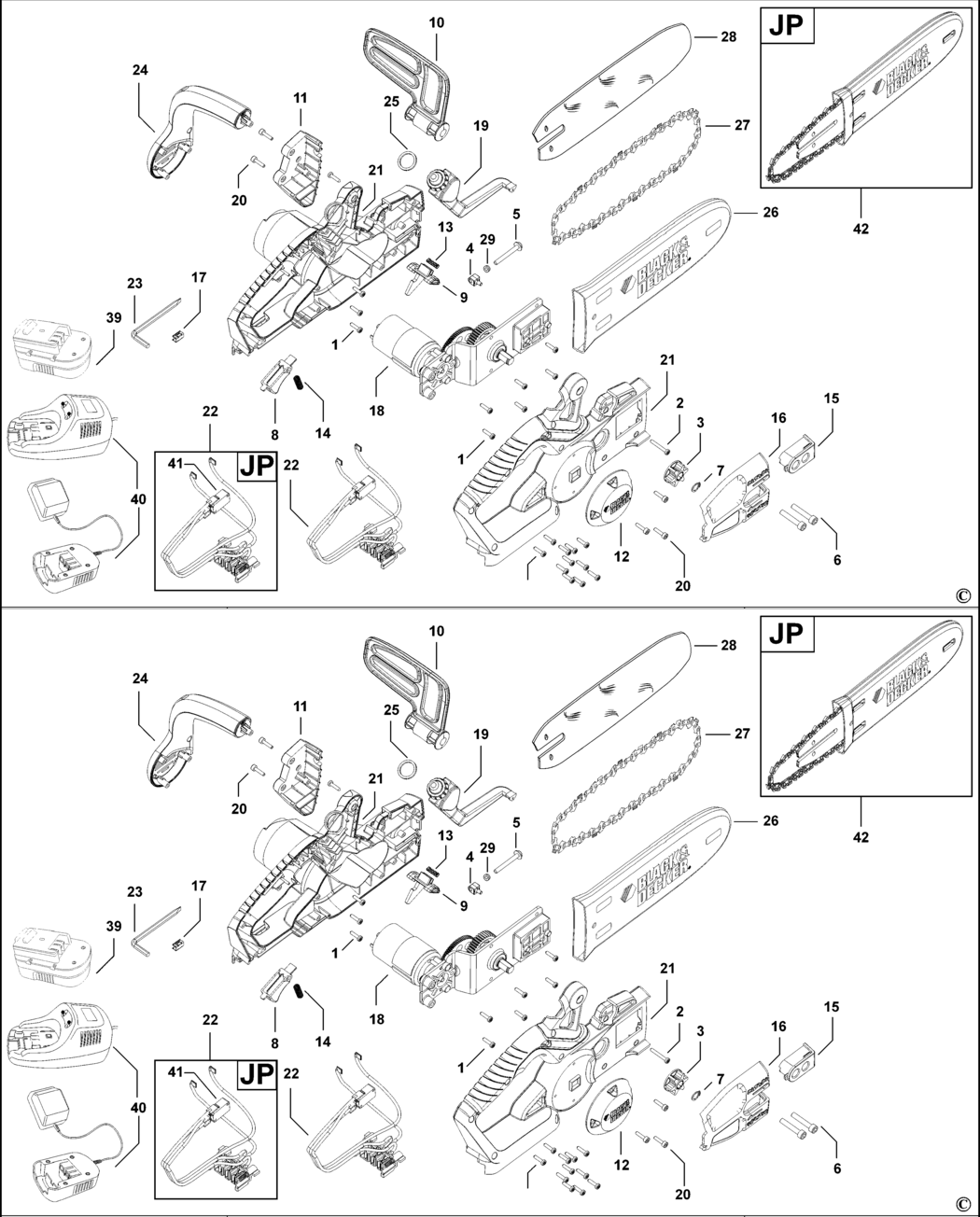

An exploded drawing and spare parts listing for the Black & Decker CCS818 Type 1 Chainsaw
Ex VAT Inc VAT
1 - SCREW BDE-330019-03.A246 330019-03 £1.50 £1.80
1 - SCREW BDE-330019-03.A247 330019-03 £1.50 £1.80
2 - SCREW BDE-330019-05.A45 330019-05 £1.50 £1.80
2 - SCREW BDE-330019-05.A46 330019-05 £1.50 £1.80
3 - SPROCKET BDE-622895-00.A3 622895-00 £2.26 £2.71
3 - SPROCKET BDE-622895-00.A4 622895-00 £2.26 £2.71
4 - CLAMP BDE-623963-00.A5 623963-00 -
4 - CLAMP BDE-623963-00.A6 623963-00 -
5 - SCREW BDE-623964-00.A0 623964-00 £1.42 £1.70
5 - SCREW BDE-623964-00.A1 623964-00 £1.42 £1.70
6 - SCREW BDE-N629425.A11 N629425 £1.51 £1.81
6 - SCREW BDE-N629425.A12 N629425 £1.51 £1.81
7 - LOCKING RING BDE-624521-00.A4 624521-00 £1.50 £1.80
7 - LOCKING RING BDE-624521-00.A5 624521-00 £1.50 £1.80
8 - TRIGGER BDE-90550462.A5 90550462 £1.50 £1.80
8 - TRIGGER BDE-90550462.A6 90550462 £1.50 £1.80
9 - ACTUATOR BDE-90502128.A7 90502128 £1.50 £1.80
9 - ACTUATOR BDE-90502128.A8 90502128 £1.50 £1.80
10 - GUARD BDE-90502132.A1 90502132 £1.50 £1.80
10 - GUARD BDE-90502132.A2 90502132 £1.50 £1.80
11 - ANTI KICK BACK BDE-90502134.A7 90502134 £1.50 £1.80
11 - ANTI KICK BACK BDE-90502134.A8 90502134 £1.50 £1.80
12 - COVER BDE-90502135.A1 90502135 £1.82 £2.19
12 - COVER BDE-90502135.A2 90502135 £1.82 £2.19
13 - SPRING BDE-90502136.A1 90502136 £1.42 £1.70
13 - SPRING BDE-90502136.A2 90502136 £1.42 £1.70
14 - SPRING BDE-90502137.A0 90502137 £1.50 £1.80
14 - SPRING BDE-90502137.A1 90502137 £1.50 £1.80
15 - CLAMP BDE-90502141.A8 90502141 £4.69 £5.63
15 - CLAMP BDE-90502141.A9 90502141 £4.69 £5.63
16 - COVER BDE-90502142.A0 90502142 £1.50 £1.80
16 - COVER BDE-90502142.A1 90502142 £1.50 £1.80
17 - CLIP BDE-90502143.A8 90502143 £1.50 £1.80
17 - CLIP BDE-90502143.A9 90502143 £1.50 £1.80
18 - TRANSMISSION SA BDE-90502145-02.A0 90502145-02 £87.82 £105.39
18 - TRANSMISSION SA BDE-90502145-02.A1 90502145-02 £87.82 £105.39
19 - TANK BDE-90502171.A7 90502171 £7.18 £8.62
19 - TANK BDE-90502171.A8 90502171 £7.18 £8.62
20 - SCREW BDE-90502469.A7 90502469 £1.50 £1.80
20 - SCREW BDE-90502469.A8 90502469 £1.50 £1.80
21 - CLAMSHELL SET BDE-90502712.A0 90502712 £16.03 £19.24
21 - CLAMSHELL SET BDE-90502712.A1 90502712 £16.03 £19.24
22 - SWITCH SA BDE-90502720.A1 90502720 £16.03 £19.24
22 - SWITCH SA BDE-90502720.A2 90502720 £16.03 £19.24
23 - HEX KEY BDE-90502723.A0 90502723 £1.50 £1.80
23 - HEX KEY BDE-90502723.A1 90502723 £1.50 £1.80
24 - HANDLE SA BDE-90502764.A8 90502764 £3.30 £3.96
24 - HANDLE SA BDE-90502764.A9 90502764 £3.30 £3.96
25 - SEAL BDE-90504642.A7 90504642 £1.50 £1.80
25 - SEAL BDE-90504642.A8 90504642 £1.50 £1.80
26 - SHEATH BDE-624734-00.A0 624734-00 -
26 - SHEATH BDE-624734-00.A1 624734-00 -
27 - CHAIN BDE-A6158.A6 A6158 £15.73 £18.88
27 - CHAIN BDE-A6158.A7 A6158 £15.73 £18.88
28 - BAR CHAIN BDE-90506030 90506030 -
29 - WASHER BDE-90519433.A10 90519433 £1.50 £1.80
29 - WASHER BDE-90519433.A11 90519433 £1.50 £1.80
39 - BATTERY 18V - 1.7AH BDE-90511681 90511681 -
40 - CHARGER SA BDE-90578873 90578873 -
