Black & Decker GL686 Type 1 String Trimmer Spare Parts

Black & Decker GL686 Type 1 String Trimmer Spare Parts
Home Details Reviews Delivery

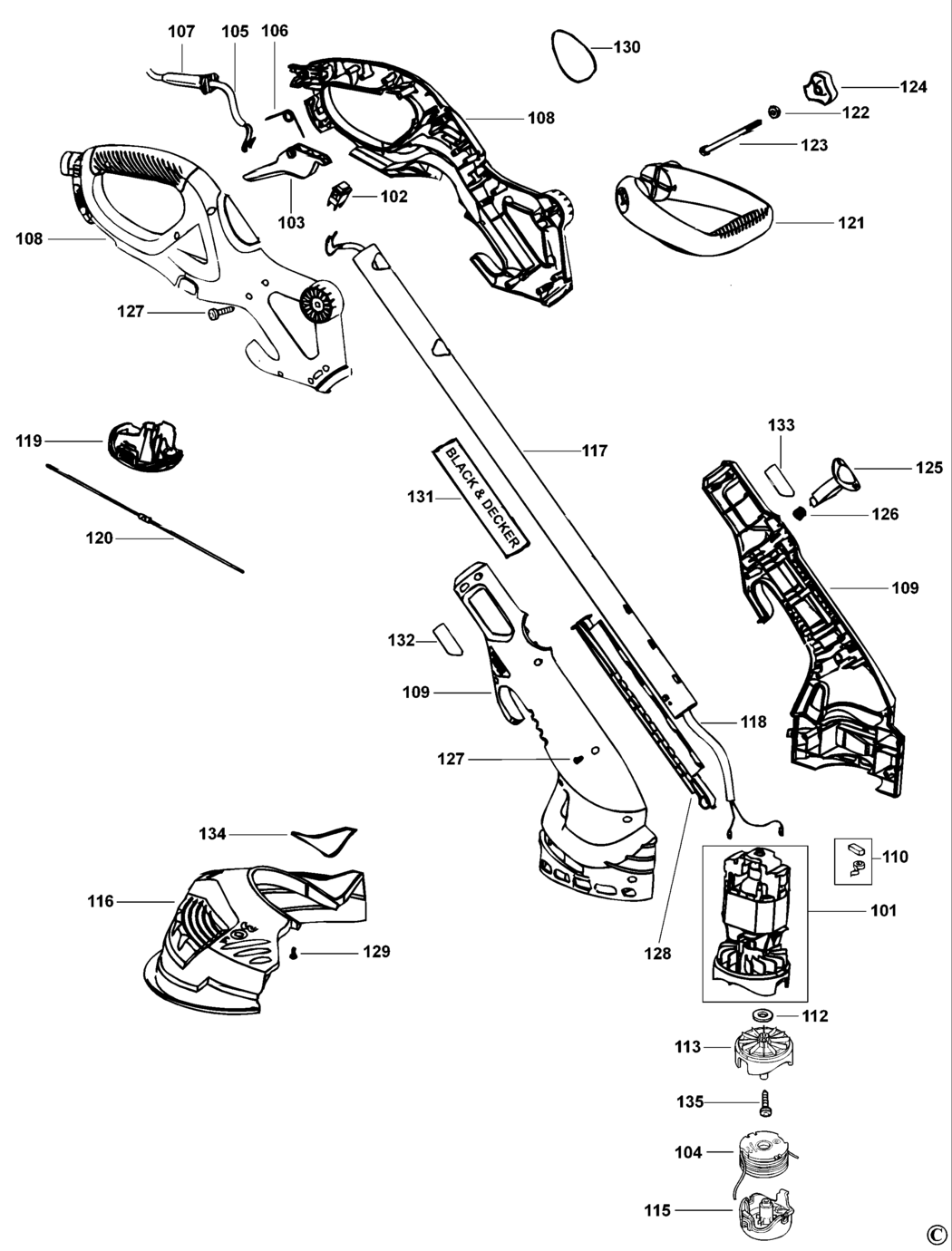

An exploded drawing and spare parts listing for the Black & Decker GL686 Type 1 String Trimmer
Ex VAT Inc VAT
101 - MOTOR SA BDE-583316-00.A2 583316-00 -
102 - SWITCH BDE-579318-00.A6 579318-00 £4.69 £5.63
103 - NO LONGER AVAILABLE BDE-000000-00.A26383 000000-00 -
104 - SPOOL & LINE BDE-575462-00.A15 575462-00 -
105 - NO LONGER AVAILABLE GB BDE-000000-00.A26384 000000-00 -
106 - NO LONGER AVAILABLE BDE-000000-00.A26385 000000-00 -
107 - CORD PROTECTOR BDE-806603.A27 806603 -
108 - NO LONGER AVAILABLE BDE-000000-00.A26386 000000-00 -
109 - CLAMSHELL SET BDE-579806-00.A4 579806-00 -
110 - NO LONGER AVAILABLE BDE-000000-00.A26387 000000-00 -
112 - CLIP BDE-581162-00.A1 581162-00 -
113 - HOUSING BDE-581237-00.A4 581237-00 -
115 - COVER SA BDE-575648-03.A5 575648-03 -
116 - NO LONGER AVAILABLE BDE-000000-00.A26388 000000-00 -
117 - NO LONGER AVAILABLE BDE-000000-00.A26389 000000-00 -
118 - NO LONGER AVAILABLE BDE-000000-00.A26390 000000-00 -
119 - COVER SA BDE-579838-00.A4 579838-00 -
120 - BLADE Heavy Duty BDE-580203-01.A3 580203-01 -
121 - NO LONGER AVAILABLE BDE-000000-00.A26391 000000-00 -
122 - NO LONGER AVAILABLE BDE-000000-00.A26392 000000-00 -
123 - NO LONGER AVAILABLE BDE-000000-00.A26393 000000-00 -
124 - NO LONGER AVAILABLE BDE-000000-00.A26394 000000-00 -
125 - NO LONGER AVAILABLE BDE-000000-00.A26395 000000-00 -
126 - SPRING BDE-580936-00.A10 580936-00 £1.50 £1.80
127 - SCREW BDE-747329.A108 747329 £1.50 £1.80
128 - NO LONGER AVAILABLE BDE-000000-00.A26396 000000-00 -
129 - NO LONGER AVAILABLE BDE-000000-00.A26397 000000-00 -
130 - NO LONGER AVAILABLE BDE-000000-00.A26398 000000-00 -
131 - NO LONGER AVAILABLE BDE-000000-00.A26399 000000-00 -
132 - NO LONGER AVAILABLE BDE-000000-00.A26400 000000-00 -
133 - NO LONGER AVAILABLE BDE-000000-00.A26401 000000-00 -
134 - NO LONGER AVAILABLE BDE-000000-00.A26402 000000-00 -
135 - NO LONGER AVAILABLE BDE-000000-00.A26403 000000-00 -
