Black & Decker EMAX34 Type 3 Rotary Mower Spare Parts

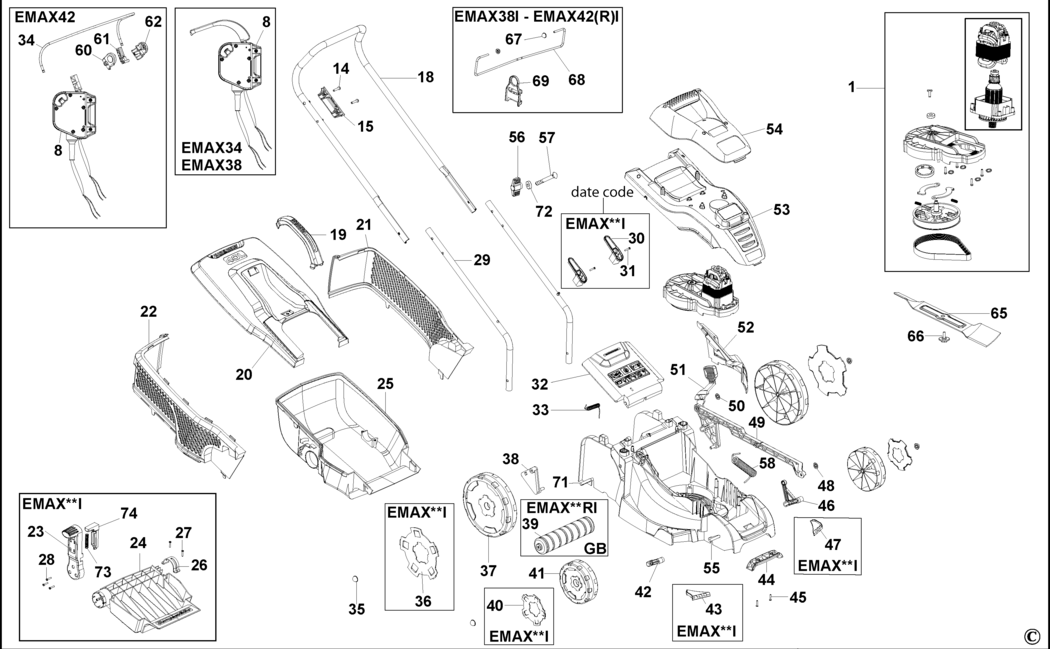

An exploded drawing and spare parts listing for the Black & Decker EMAX34 Type 3 Rotary Mower

	Ex VAT	Inc VAT
1 - TRANSMISSION SA GB BDE-90635482.A0 90635482	£125.16	£150.19
2 - BEARING BDE-574853-05.A13 574853-05	£3.30	£3.96
3 - BOLT BDE-90639221.A8 90639221	£1.66	£1.99
4 - BEARING BDE-574853-12.A0 574853-12	-
5 - BRACKET BDE-90560309.A0 90560309	-
6 - PULLEY BDE-90560305.A7 90560305	-
7 - BELT BDE-90560308.A10 90560308	£16.03	£19.24
8 - SWITCHBOX & CABLE GB BDE-90577008-01.A5 90577008-01	£53.92	£64.70
9 - BRAKE BDE-90563941.A0 90563941	£5.88	£7.06
10 - WASHER SPECIAL BDE-605111-00.A2 605111-00	-
11 - SCREW BDE-330019-14.A180 330019-14	£1.50	£1.80
13 - HOUSING LOWER EMAX34i BDE-90577334-02 90577334-02	-
13 - HOUSING LOWER EMAX34s BDE-90577334-03 90577334-03	-
14 - SCREW BDE-747329.A464 747329	£1.50	£1.80
15 - BRACKET BDE-90563921-01.A10 90563921-01	£1.50	£1.80
18 - HANDLE UPPER BDE-90568480.A0 90568480	£34.00	£40.80
19 - HANDLE BDE-90567333.A25 90567333	£2.78	£3.34
20 - COVER BDE-90567971.A2 90567971	£12.17	£14.60
21 - GRASSBOX LEFT BDE-90567929.A0 90567929	£19.90	£23.88
22 - GRASSBOX RIGHT BDE-90567930.A5 90567930	£19.90	£23.88
23 - PEDAL BDE-90566450.A6 90566450	£2.21	£2.65
23 - PEDAL EMAX34i BDE-90566450.A7 90566450	£2.21	£2.65
24 - FLAP BDE-90568628.A2 90568628	£11.87	£14.24
24 - FLAP EMAX34i BDE-90568628.A3 90568628	£11.87	£14.24
25 - GRASSBOX EMAX34i BDE-90567928-01.A3 90567928-01	£17.48	£20.97
25 - GRASSBOX BDE-90567928.A0 90567928	£17.48	£20.97
25 - GRASSBOX EMAX34s BDE-90567928.A1 90567928	£17.48	£20.97
25 - GRASSBOX BDE-90567928-01.A2 90567928-01	£17.48	£20.97
26 - CLAMP BDE-90567440.A7 90567440	£1.50	£1.80
26 - CLAMP EMAX34i BDE-90567440.A8 90567440	£1.50	£1.80
27 - SCREW EMAX34i BDE-747329.A460 747329	£1.50	£1.80
27 - SCREW BDE-747329.A461 747329	£1.50	£1.80
28 - SCREW EMAX34i BDE-747329.A462 747329	£1.50	£1.80
28 - SCREW BDE-747329.A463 747329	£1.50	£1.80
29 - HANDLE EMAX34I BDE-90560302-03.A1 90560302-03	£7.18	£8.62
29 - HANDLE EMAX34S BDE-90560302-04 90560302-04	£7.18	£8.62
30 - CLIP CABLE To DC WK7 10/02/2014 BDE-90571019.A5 90571019	£1.50	£1.80
31 - SCREW To DC WK7 10/02/2014 BDE-90589823.A6 90589823	£1.50	£1.80
32 - GRASSFLAP GB BDE-90566433.A1 90566433	£7.18	£8.62
33 - SPRING BDE-90571059.A9 90571059	£1.50	£1.80
35 - WASHER LOCK BDE-90574276.A10 90574276	£1.50	£1.80
36 - COVER BDE-90567334.A1 90567334	£1.50	£1.80
36 - COVER EMAX34i BDE-90567334.A2 90567334	£1.50	£1.80
37 - WHEEL BDE-90560300.A13 90560300	£7.01	£8.41
38 - BRACKET BDE-90561676.A8 90561676	£4.69	£5.63
38 - BRACKET BDE-90561676-01.A0 90561676-01	£2.26	£2.71
39 - ROLLER BDE-90560648.A3 90560648	£5.88	£7.06
40 - COVER EMAX34i BDE-90567335.A12 90567335	£1.50	£1.80
40 - COVER BDE-90567335.A13 90567335	£1.50	£1.80
41 - WHEEL BDE-90560001.A8 90560001	£3.22	£3.86
42 - BRACKET BDE-90561653.A0 90561653	£1.50	£1.80
43 - CAP BDE-90567226.A1 90567226	-
44 - HANDLE BDE-90566526 90566526	£1.50	£1.80
45 - SCREW BDE-747329.A465 747329	£1.50	£1.80
46 - BRACKET BDE-90561677.A19 90561677	£1.50	£1.80
47 - CAP BDE-90567227.A1 90567227	£1.42	£1.70
48 - WASHER LOCK BDE-90579431.A12 90579431	£1.50	£1.80
49 - LEVER BDE-90562576.A3 90562576	£5.88	£7.06
50 - WASHER LOCK BDE-90579432.A9 90579432	£1.50	£1.80
51 - LEVER BDE-90567592-02.A8 90567592-02	£5.88	£7.06
52 - COVER BDE-90565736.A5 90565736	£3.30	£3.96
53 - HOUSING BDE-90577338.A1 90577338	£34.00	£40.80
54 - CAP BDE-90567115 90567115	£7.18	£8.62
55 - AXLE FRONT BDE-90561652.A5 90561652	£5.88	£7.06
56 - WING NUT BDE-90570279-01.A109 90570279-01	£1.50	£1.80
56 - WING NUT BDE-90570279-01.A119 90570279-01	£1.50	£1.80
57 - BOLT BDE-90570805.A9 90570805	£1.50	£1.80
58 - SPRING BDE-90569681.A11 90569681	£1.50	£1.80
63 - PAD BDE-90561984.A6 90561984	-
64 - SPRING BDE-90571573.A9 90571573	-
65 - BLADE BDE-90560644-01.A1 90560644-01	£10.85	£13.02
65 - BLADE BDE-90560644.A1 90560644	£12.17	£14.60
66 - BOLT BDE-90516533.A29 90516533	£1.50	£1.80
71 - AXLE REAR BDE-90561606.A1 90561606	£7.18	£8.62
72 - WASHER BDE-490624-00.A16 490624-00	£1.50	£1.80
73 - SPRING BDE-90570095.A6 90570095	£1.50	£1.80
73 - SPRING EMAX34i BDE-90570095.A7 90570095	£1.50	£1.80
74 - LEVER BDE-90567408.A8 90567408	£1.50	£1.80
74 - LEVER EMAX34i BDE-90567408.A9 90567408	£1.50	£1.80
75 - WASHER BDE-90573272.A5 90573272	£1.50	£1.80
76 - SCREW BDE-330019-13.A162 330019-13	£1.50	£1.80
77 - WEIGHT BDE-90578645.A1 90578645	-
78 - BRUSH PAIR BDE-90604379.A7 90604379	-
79 - MOTOR COVER BDE-90600261.A1 90600261	-

Attribute Name	Value
Brand	Black & Decker
