Black & Decker 1317 Type 1 Drill Spare Parts

Black & Decker 1317 Type 1 Drill Spare Parts

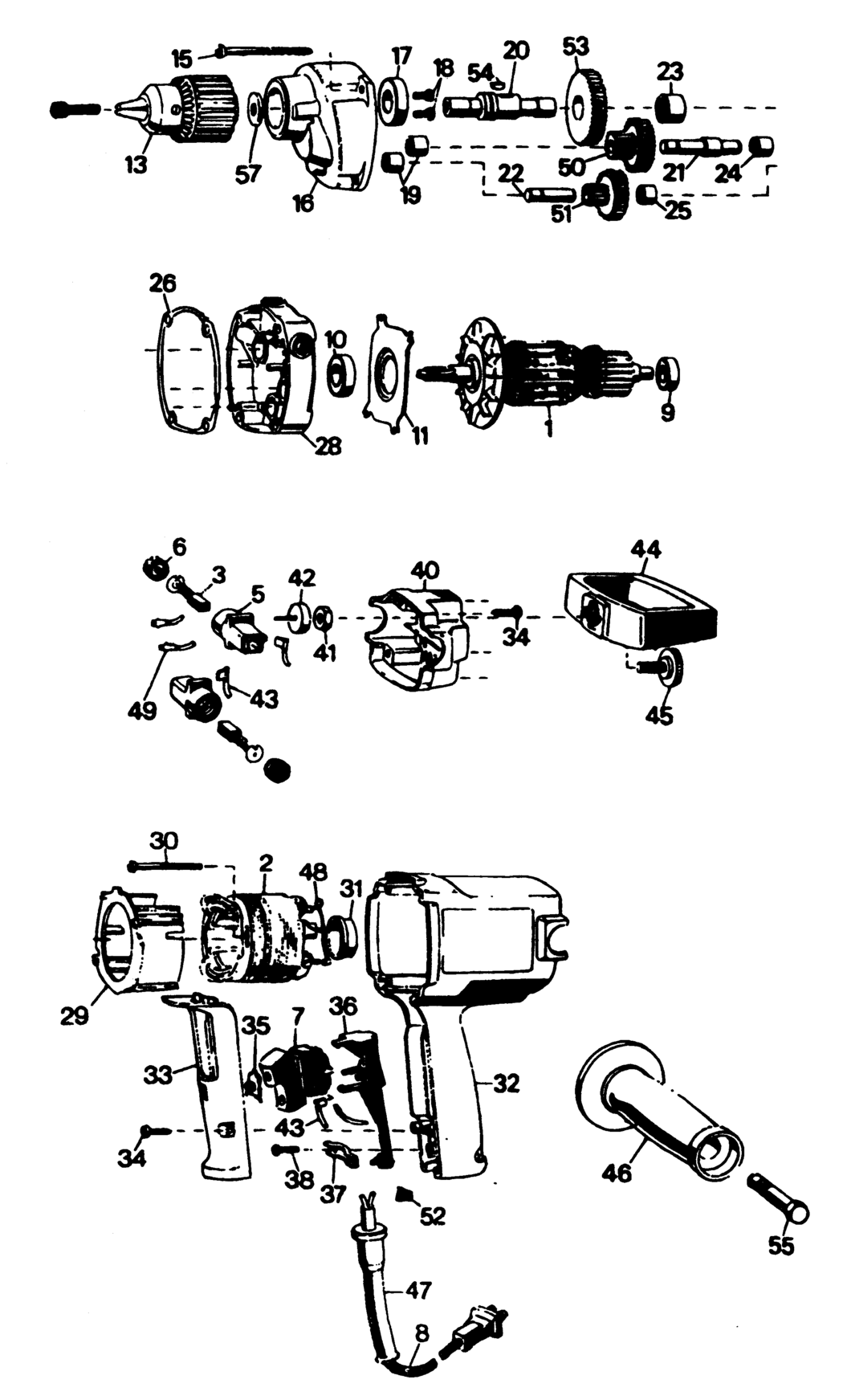

An exploded drawing and spare parts listing for the Black & Decker 1317 Type 1 Drill
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A71850 000000-00 -
2 - FIELD BDE-450379-00.A5 450379-00 -
3 - NO LONGER AVAILABLE BDE-000000-00.A71851 000000-00 -
5 - BRUSHBOX SA BDE-448083-01.A37 448083-01 £5.88 £7.06
6 - BRUSH CAP BDE-448084-01.A28 448084-01 -
8 - NO LONGER AVAILABLE BDE-000000-00.A71852 000000-00 -
9 - BEARING BDE-605040-20.A228 605040-20 £4.69 £5.63
10 - BEARING BDE-605040-06.A69 605040-06 £3.80 £4.56
11 - NO LONGER AVAILABLE BDE-000000-00.A71853 000000-00 -
13 - NO LONGER AVAILABLE BDE-000000-00.A71854 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A71855 000000-00 -
16 - NO LONGER AVAILABLE BDE-000000-00.A71856 000000-00 -
17 - NO LONGER AVAILABLE BDE-000000-00.A71857 000000-00 -
18 - SCREW BDE-52819-00.A5 52819-00 £1.50 £1.80
19 - BEARING NEEDLE BDE-330004-02.A38 330004-02 £1.50 £1.80
20 - NO LONGER AVAILABLE BDE-000000-00.A71858 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A71859 000000-00 -
22 - NO LONGER AVAILABLE BDE-000000-00.A71860 000000-00 -
23 - NO LONGER AVAILABLE BDE-000000-00.A71861 000000-00 -
24 - BEARING NEEDLE BDE-330004-02.A39 330004-02 £1.50 £1.80
25 - NO LONGER AVAILABLE BDE-000000-00.A71862 000000-00 -
26 - NO LONGER AVAILABLE BDE-000000-00.A71863 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A71864 000000-00 -
29 - NO LONGER AVAILABLE BDE-000000-00.A71865 000000-00 -
30 - SCREW BDE-330019-50.A59 330019-50 £1.50 £1.80
31 - SLEEVE BDE-445217-02.A77 445217-02 £1.50 £1.80
34 - SCREW BDE-330019-13.A362 330019-13 £1.50 £1.80
37 - CABLE CLAMP BDE-142519-00.A7 142519-00 £1.50 £1.80
38 - SCREW BDE-330013-03.A7 330013-03 £1.50 £1.80
40 - NO LONGER AVAILABLE BDE-000000-00.A71884 000000-00 -
41 - NUT BDE-99371-06.A6 99371-06 £1.50 £1.80
42 - NO LONGER AVAILABLE BDE-000000-00.A71885 000000-00 -
43 - NO LONGER AVAILABLE BDE-000000-00.A71886 000000-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A71887 000000-00 -
45 - KNOB BDE-382531-00.A5 382531-00 £16.03 £19.24
46 - NO LONGER AVAILABLE BDE-000000-00.A71866 000000-00 -
48 - NO LONGER AVAILABLE BDE-000000-00.A71867 000000-00 -
49 - NO LONGER AVAILABLE BDE-000000-00.A71868 000000-00 -
50 - NO LONGER AVAILABLE BDE-000000-00.A71869 000000-00 -
51 - NO LONGER AVAILABLE BDE-000000-00.A71870 000000-00 -
53 - NO LONGER AVAILABLE BDE-000000-00.A71871 000000-00 -
54 - NO LONGER AVAILABLE BDE-000000-00.A71872 000000-00 -
55 - NO LONGER AVAILABLE BDE-000000-00.A71873 000000-00 -
57 - NO LONGER AVAILABLE BDE-000000-00.A71874 000000-00 -
