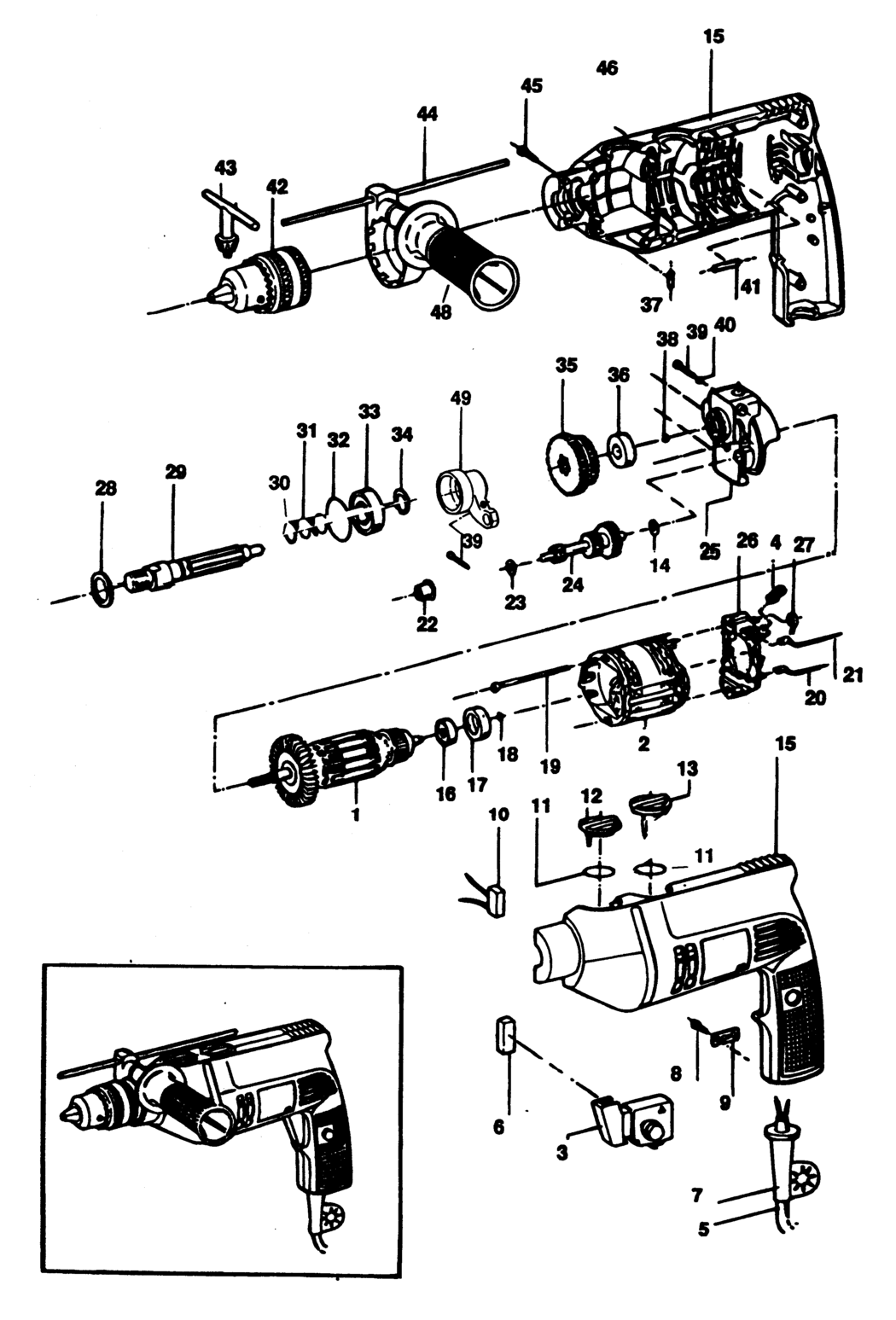

An exploded drawing and spare parts listing for the Black & Decker P2270 Type 1 Drill
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE AE-MX-PA 115V BDE-000000-00.A7734 000000-00 -
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A7735 000000-00 -
1 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A7736 000000-00 -
1 - NO LONGER AVAILABLE SG-TW-VE 115V BDE-000000-00.A7737 000000-00 -
2 - NO LONGER AVAILABLE AE-MX-PA 115V BDE-000000-00.A7738 000000-00 -
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A7739 000000-00 -
2 - NO LONGER AVAILABLE SG-TW-VE 115V BDE-000000-00.A7740 000000-00 -
2 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A7741 000000-00 -
3 - NO LONGER AVAILABLE BDE-000000-00.A7742 000000-00 -
4 - BRUSH 230V GB 240V BDE-930760-00.A25 930760-00 £5.88 £7.06
4 - BRUSH GB 115V BDE-930802-00.A39 930802-00 £7.18 £8.62
4 - BRUSH SG-TW-VE 115V BDE-930802-00.A40 930802-00 £7.18 £8.62
4 - BRUSH AE-MX-PA 115V BDE-930802-00.A41 930802-00 £7.18 £8.62
5 - NO LONGER AVAILABLE AE-MX-PA 115V BDE-000000-00.A7772 000000-00 -
5 - NO LONGER AVAILABLE SG-TW-VE 115V BDE-000000-00.A7773 000000-00 -
5 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A7774 000000-00 -
5 - CORDSET (M/PLUG) GB 115V BDE-330061-04.A13 330061-04 £12.17 £14.60
6 - NO LONGER AVAILABLE BDE-000000-00.A7775 000000-00 -
7 - NO LONGER AVAILABLE AE-MX-PA 115V BDE-000000-00.A7776 000000-00 -
7 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A7777 000000-00 -
7 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A7778 000000-00 -
7 - NO LONGER AVAILABLE SG-TW-VE 115V BDE-000000-00.A7779 000000-00 -
8 - NO LONGER AVAILABLE BDE-000000-00.A7780 000000-00 -
9 - CORD CLAMP BDE-930103-00.A199 930103-00 £1.50 £1.80
10 - CAPACITOR GB 115V BDE-949877-01.A91 949877-01 £1.50 £1.80
10 - CAPACITOR GB 240V BDE-949877-01.A92 949877-01 £1.50 £1.80
11 - SEAL BDE-930039.A14 930039 £1.42 £1.70
12 - SELECTOR BDE-939637.A3 939637 -
13 - NO LONGER AVAILABLE BDE-000000-00.A7794 000000-00 -
14 - WASHER BDE-931407-00.A33 931407-00 £5.88 £7.06
15 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A7782 000000-00 -
15 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A7783 000000-00 -
15 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A7784 000000-00 -
16 - BEARING BDE-330003-02.A180 330003-02 -
17 - SLEEVE BDE-930275-00.A110 930275-00 £2.26 £2.71
18 - NO LONGER AVAILABLE BDE-000000-00.A7785 000000-00 -
19 - NO LONGER AVAILABLE BDE-000000-00.A7786 000000-00 -
20 - NO LONGER AVAILABLE BDE-000000-00.A7787 000000-00 -
21 - NO LONGER AVAILABLE BDE-000000-00.A7788 000000-00 -
22 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A7789 000000-00 -
22 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A7790 000000-00 -
23 - WASHER BDE-930102-00.A5 930102-00 £1.50 £1.80
24 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A7791 000000-00 -
24 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A7792 000000-00 -
24 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A7793 000000-00 -
26 - BRUSH HOLDER SA GB 240V BDE-930746-00.A0 930746-00 £3.22 £3.86
26 - BRUSH HOLDER PLATE AE-MX-PA 115V BDE-930749-00.A36 930749-00 £4.58 £5.49
26 - BRUSH HOLDER PLATE GB 115V BDE-930749-00.A37 930749-00 £4.58 £5.49
26 - BRUSH HOLDER PLATE SG-TW-VE 115V BDE-930749-00.A38 930749-00 £4.58 £5.49
27 - BRUSH SPRING BDE-930090-00.A204 930090-00 £1.50 £1.80
28 - SEAL BDE-1006305-00.A33 1006305-00 £1.50 £1.80
29 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A7795 000000-00 -
29 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A7796 000000-00 -
29 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A7797 000000-00 -
30 - O RING BDE-930028-00.A256 930028-00 £1.50 £1.80
31 - SPRING BDE-931890.A64 931890 £1.50 £1.80
32 - NO LONGER AVAILABLE BDE-000000-00.A7798 000000-00 -
33 - BEARING BDE-605040-25.A152 605040-25 £4.69 £5.63
34 - RETAINER TYPE A1 BDE-930098-00.A16 930098-00 £1.50 £1.80
34 - RETAINER TYPE A2 BDE-930098-00.A17 930098-00 £1.50 £1.80
34 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A7799 000000-00 -
35 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A7800 000000-00 -
35 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A7801 000000-00 -
35 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A7802 000000-00 -
36 - RATCHET BDE-945706-00.A30 945706-00 £1.50 £1.80
37 - NO LONGER AVAILABLE TYPE A1 BDE-000000-00.A7803 000000-00 -
37 - NO LONGER AVAILABLE TYPE A2 BDE-000000-00.A7804 000000-00 -
38 - BALL BDE-930012.A2 930012 £1.42 £1.70
39 - NO LONGER AVAILABLE BDE-000000-00.A7805 000000-00 -
40 - WASHER BDE-932839-00.A3 932839-00 £1.50 £1.80
41 - NO LONGER AVAILABLE BDE-000000-00.A7806 000000-00 -
42 - NO LONGER AVAILABLE BDE-000000-00.A7807 000000-00 -
43 - CHUCK KEY BDE-330034-07.A387 330034-07 £1.50 £1.80
44 - DEPTH STOP BDE-940357-00.A52 940357-00 £17.48 £20.97
45 - SCREW BDE-930284-01.A83 930284-01 £1.50 £1.80
46 - SCREW BDE-930079-01.A26 930079-01 £1.42 £1.70
48 - HANDLE SIDE SA BDE-939794-02.A173 939794-02 £14.57 £17.48
49 - NO LONGER AVAILABLE TYPE A3 BDE-000000-00.A7808 000000-00 -
