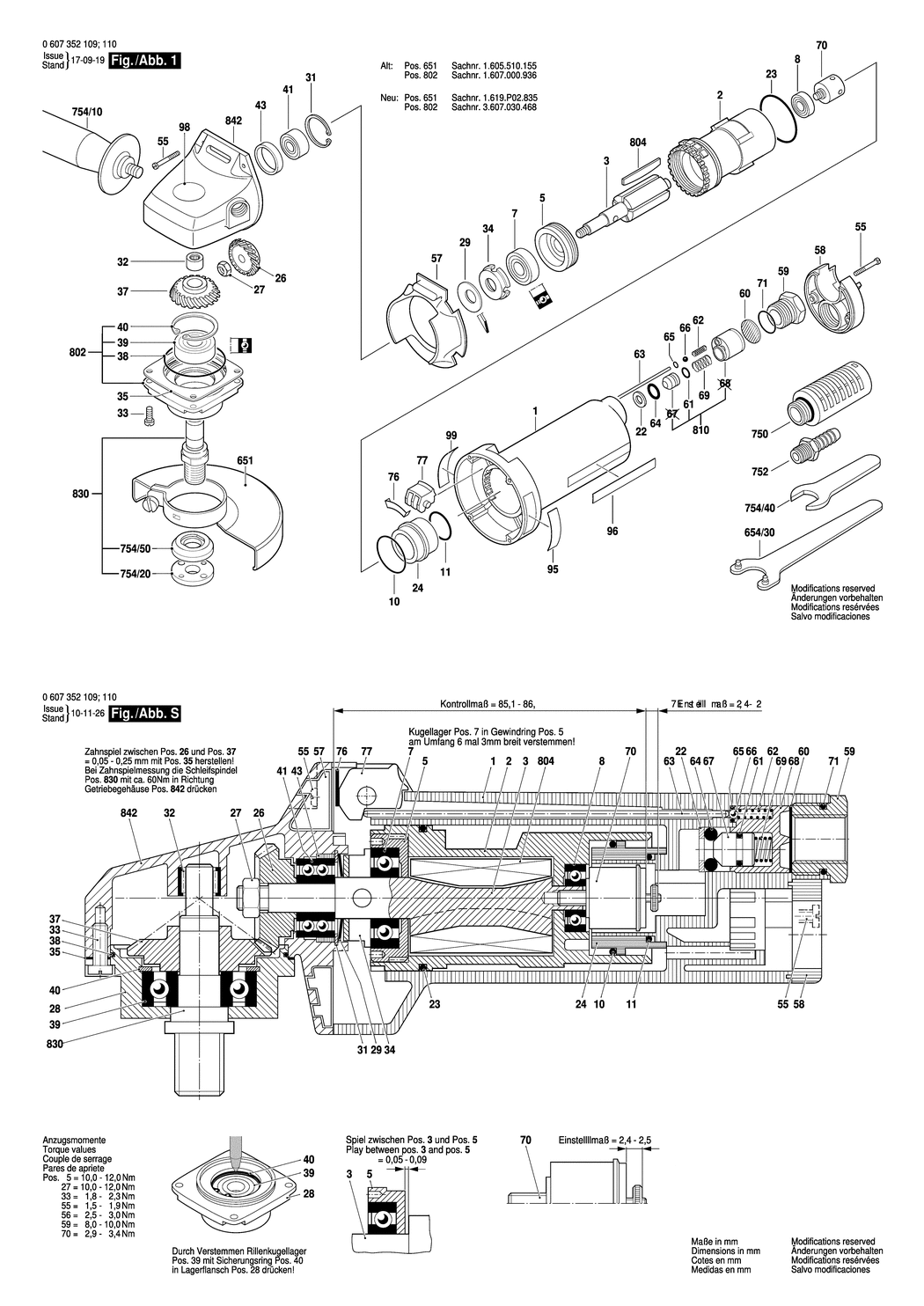

1 - MOTOR HOUSING
BSD-3605108059.A24
3605108059
|
£27.23
|
£32.68
|
|
2 - STATOR 550W
BSD-3604090049.A13
3604090049
|
£93.88
|
£112.65
|
|
3 - ROTOR
BSD-3604220077.A0
3604220077
|
£102.57
|
£123.08
|
|
5 - BEARING FLANGE
BSD-3605700074.A15
3605700074
|
£27.23
|
£32.68
|
|
7 - GROOVE BALL BEARING
BSD-3600905038.A11
3600905038
|
£14.91
|
£17.89
|
|
8 - GROOVE BALL BEARING DIN 625-7x19x6
BSD-3600905148.A15
3600905148
|
£8.49
|
£10.19
|
|
10 - O-RING 28x2 MM
BSD-1900210127.A7
1900210127
|
£5.30
|
£6.36
|
|
11 - O-RING 20x2 MM
BSD-1900210118.A57
1900210118
|
£2.80
|
£3.36
|
|
22 - STOP DISC
BSD-3600100022.A27
3600100022
|
£2.16
|
£2.59
|
|
23 - O-RING 39.0x2.0 MM
BSD-3600210022.A39
3600210022
|
£3.72
|
£4.47
|
|
24 - GUIDE SLEEVE
BSD-3600327000.A7
3600327000
|
£3.72
|
£4.47
|
|
26 - BEVEL GEAR Z=23
BSD-3606333045.A2
3606333045
|
£40.80
|
£48.96
|
|
27 - HEX NUT
BSD-1603300017.A34
1603300017
|
-
|
|
|
29 - DISC SPRING DIN 2093-C25G21
BSD-2916160109.A2
2916160109
|
£2.16
|
£2.59
|
|
31 - SPRING RETAINING RING DIN 472-25x1.2MM
BSD-2916660009.A154
2916660009
|
£2.16
|
£2.59
|
|
32 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A839
1600910018
|
£5.30
|
£6.36
|
|
33 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12
BSD-2914471401.A50
2914471401
|
£1.75
|
£2.10
|
|
34 - THRUST RING
BSD-3600203002.A0
3600203002
|
£33.74
|
£40.49
|
|
35 - SHIM 0.1 MM
BSD-1600136012.A86
1600136012
|
£1.75
|
£2.10
|
|
35 - SHIM 0.2 MM
BSD-1600136010.A86
1600136010
|
£2.61
|
£3.13
|
|
35 - SHIM 0.3 MM
BSD-1600136011.A237
1600136011
|
£2.16
|
£2.59
|
|
37 - CROWN GEAR Z=31
BSD-3606334049.A6
3606334049
|
£48.38
|
£58.06
|
|
38 - O-RING 46.0x1.1 MM
BSD-3600210124.A198
3600210124
|
£2.80
|
£3.36
|
|
39 - GROOVE BALL BEARING 12x32x10
BSD-1600905007.A70
1600905007
|
£11.30
|
£13.56
|
|
40 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A447
2916660013
|
£2.16
|
£2.59
|
|
41 - ANG. CONTACT BALL BEARING
BSD-3600905037.A4
3600905037
|
£33.74
|
£40.49
|
|
43 - RUBBER RING
BSD-1600206025.A729
1600206025
|
£2.16
|
£2.59
|
|
55 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A853
2910211021
|
£1.75
|
£2.10
|
|
57 - COVER PLATE
BSD-3600591000.A3
3600591000
|
£11.30
|
£13.56
|
|
58 - CONNECTION COVER
BSD-3605500032.A11
3605500032
|
£8.67
|
£10.41
|
|
59 - FITTING
BSD-3603462011.A45
3603462011
|
£14.91
|
£17.89
|
|
60 - FILTER SCREEN
BSD-3600002004.A24
3600002004
|
£2.80
|
£3.36
|
|
61 - O-RING 6.0x2.0 MM
BSD-3600210023.A10
3600210023
|
£3.72
|
£4.47
|
|
62 - COMPRESSION SPRING
BSD-2604611025.A11
2604611025
|
£2.80
|
£3.36
|
|
63 - STRAIGHT PIN
BSD-3604710054.A3
3604710054
|
£3.72
|
£4.47
|
|
64 - O-RING 5.94x3.53 MM
BSD-3600210024.A45
3600210024
|
£2.16
|
£2.59
|
|
65 - O-RING 2.7x1.5 MM
BSD-3600210025.A11
3600210025
|
£2.16
|
£2.59
|
|
66 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A155
1903230004
|
£2.16
|
£2.59
|
|
69 - COMPRESSION SPRING
BSD-3604610024.A23
3604610024
|
£1.75
|
£2.10
|
|
70 - CENTRIFUGAL GOVERNOR
BSD-3607021012.A10
3607021012
|
£40.80
|
£48.96
|
|
71 - O-RING 15x2 MM
BSD-1900210112.A53
1900210112
|
£2.61
|
£3.13
|
|
76 - LEAF SPRING
BSD-3604682002.A9
3604682002
|
£10.10
|
£12.12
|
|
77 - TOGGLE SWITCH
BSD-3602033001.A11
3602033001
|
£3.72
|
£4.47
|
|
95 - NAMEPLATE
BSD-160111A3HF.A69
160111A3HF
|
£3.72
|
£4.47
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A236
1601110481
|
£2.16
|
£2.59
|
|
98 - REFERENCE PLATE
BSD-3601119238.A5
3601119238
|
£3.72
|
£4.47
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1429
3601119236
|
£3.72
|
£4.47
|
|
651 - PROTECTIVE COVER dia125 MM
BSD-1600A00XU7.A10
1600A00XU7
|
£9.49
|
£11.39
|
|
654/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A257
1607950052
|
£3.72
|
£4.47
|
|
750 - SILENCER
BSD-3607000073.A185
3607000073
|
£18.96
|
£22.75
|
|
752 - HOSE FITTING
BSD-3603386068.A49
3603386068
|
£21.52
|
£25.83
|
|
754/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A827
160202509T
|
£3.72
|
£4.47
|
|
754/20 - ROUND NUT M14
BSD-1603345043.A510
1603345043
|
£8.67
|
£10.41
|
|
754/40 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A880
2607950511
|
£4.26
|
£5.11
|
|
754/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A811
2605703014
|
£7.36
|
£8.83
|
|
802 - BEARING FLANGE
BSD-3607030468.A17
3607030468
|
£93.88
|
£112.65
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030260.A20
3607030260
|
£21.68
|
£26.01
|
|
810 - PISTON ASSEMBLY GROUP
BSD-3607030494.A3
3607030494
|
£18.96
|
£22.75
|
|
830 - ASSEMBLY OF SERVICE PARTS M14
BSD-1607000933.A18
1607000933
|
-
|
|
|
842 - GEAR HOUSING
BSD-3605806050.A2
3605806050
|
£54.42
|
£65.30
|
|
