Bosch ---- / 0607550591 / --- Spare Parts

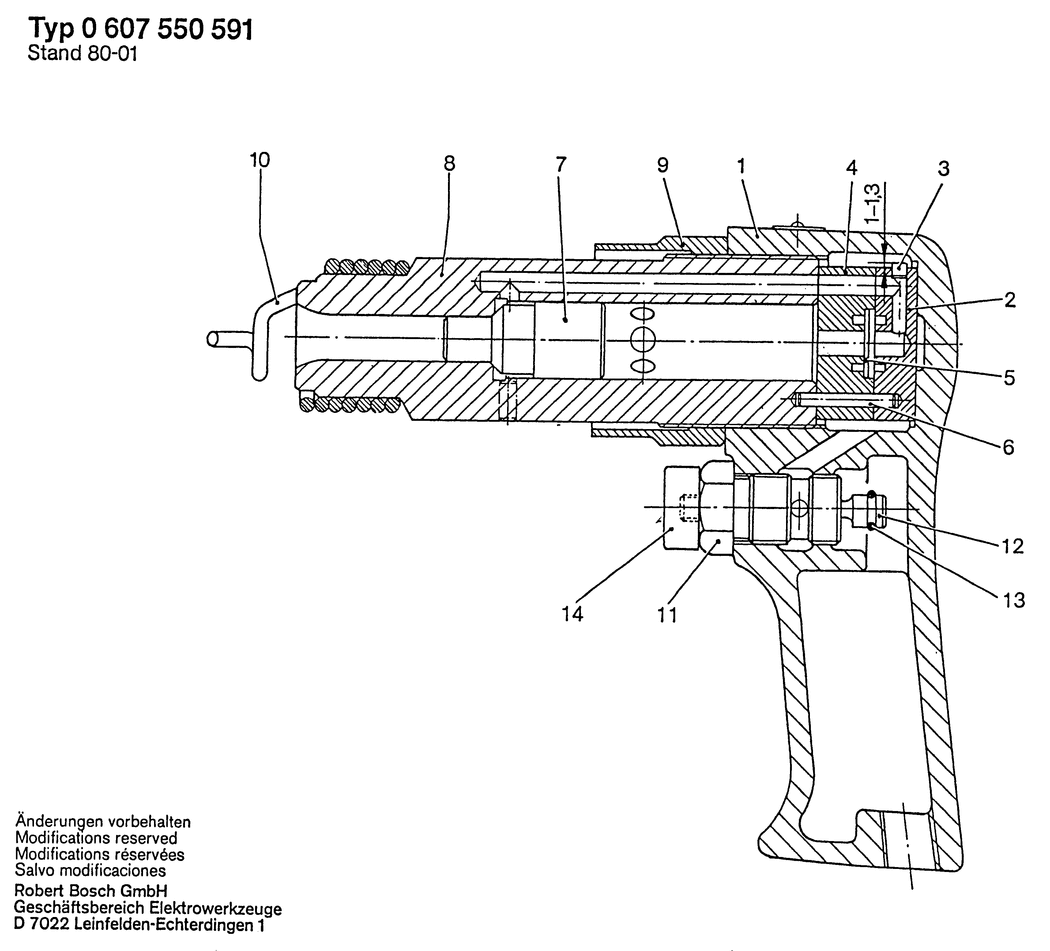

An exploded drawing and listing for the Bosch ---- / 0607550591 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-1609301457.A0 1609301457	-
2 - VALVE HOUSING BSD-1609301458.A0 1609301458	-
3 - STRAIGHT PIN BSD-1609301459.A0 1609301459	-
4 - VALVE PLATE BSD-1609301460.A0 1609301460	-
5 - ADAPTOR PLATE BSD-1609301461.A0 1609301461	-
6 - STRAIGHT PIN BSD-1609301462.A0 1609301462	-
7 - STRIKER BSD-1609301463.A0 1609301463	-
8 - IMPACT MECHANISM HOUSING BSD-1609301464.A0 1609301464	-
9 - SELF-LOCKING NUT BSD-1609301465.A0 1609301465	-
10 - HOLDING SPRING BSD-1609301466.A0 1609301466	-
11 - VALVE BUSHING BSD-1609301467.A0 1609301467	-
12 - PRESSURE SPINDLE BSD-1609301468.A0 1609301468	-
13 - O-RING BSD-1609301469.A0 1609301469	-
14 - PUSH-BUTTON BSD-1609301470.A0 1609301470	-
95 - NAMEPLATE BSD-1601107009.A0 1601107009	-
96 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A34 2917721034	£1.75	£2.10
650 - FITTING BSD-1609301471.A0 1609301471	-

Attribute Name	Value
Brand	Bosch
