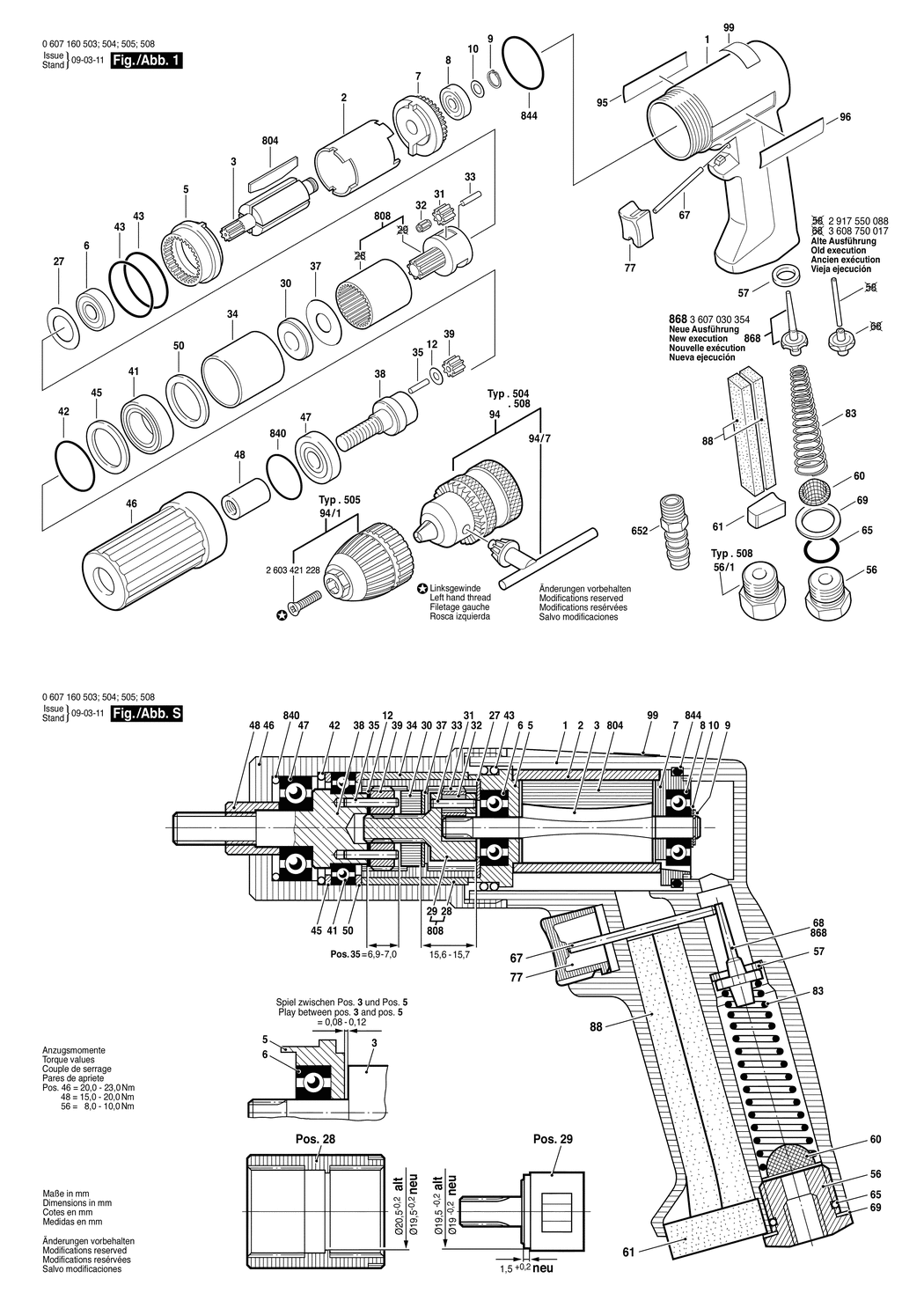

1 - MOTOR HOUSING
BSD-3605108040.A4
3605108040
|
£21.52
|
£25.83
|
|
|
2 - STATOR 320W
BSD-3604090029.A7
3604090029
|
£21.52
|
£25.83
|
|
|
3 - ROTOR
BSD-3604220039.A9
3604220039
|
£81.81
|
£98.17
|
|
|
5 - BEARING FLANGE
BSD-3605700065.A8
3605700065
|
£10.10
|
£12.12
|
|
|
6 - GROOVE BALL BEARING 8x22x7
BSD-3600905124.A5
3600905124
|
£14.91
|
£17.89
|
|
|
7 - BEARING FLANGE
BSD-3605700039.A13
3605700039
|
£8.67
|
£10.41
|
|
|
8 - GROOVE BALL BEARING 7x22x7
BSD-3600905122.A10
3600905122
|
£5.58
|
£6.70
|
|
|
9 - SPRING RETAINING RING DIN 471-7x0.8-FST
BSD-2916640004.A5
2916640004
|
£1.75
|
£2.10
|
|
|
10 - SHIM
BSD-3600150005.A14
3600150005
|
£2.16
|
£2.59
|
|
|
12 - SHIM
BSD-3600100030.A21
3600100030
|
£1.75
|
£2.10
|
|
|
27 - SHIM
BSD-3600100090.A2
3600100090
|
£4.26
|
£5.11
|
|
|
30 - SPACER RING
BSD-3600209003.A4
3600209003
|
£5.58
|
£6.70
|
|
|
31 - CYLINDRICAL GEAR Z=14
BSD-3606316093.A74
3606316093
|
£2.61
|
£3.13
|
|
|
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A42
3600913000
|
£4.26
|
£5.11
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A341
3603201000
|
£1.75
|
£2.10
|
|
|
34 - RETAINING SNAP RING
BSD-3600400008.A0
3600400008
|
£18.96
|
£22.75
|
|
|
35 - NEEDLE ROLLER A 3x15.8G2DIN5402
BSD-1903201044.A61
1903201044
|
£2.33
|
£2.80
|
|
|
37 - SHIM 0.3 MM
BSD-1600101618.A70
1600101618
|
£2.61
|
£3.13
|
|
|
38 - DRIVE SHAFT
BSD-3603050005.A2
3603050005
|
£48.38
|
£58.06
|
|
|
39 - CYLINDRICAL GEAR Z=14
BSD-3606316073.A6
3606316073
|
£2.61
|
£3.13
|
|
|
41 - GROOVE BALL BEARING
BSD-3600900011.A7
3600900011
|
£27.23
|
£32.68
|
|
|
42 - O-RING 28x2 MM
BSD-1900210327.A1
1900210327
|
£4.26
|
£5.11
|
|
|
43 - O-RING 30x2.5 MM
BSD-1900210131.A72
1900210131
|
£4.26
|
£5.11
|
|
|
45 - SHIM
BSD-2600102036.A63
2600102036
|
£2.61
|
£3.13
|
|
|
46 - TRANSMISSION CASE
BSD-3605125033.A1
3605125033
|
£23.86
|
£28.63
|
|
|
47 - GROOVE BALL BEARING
BSD-3600905015.A6
3600905015
|
£16.41
|
£19.69
|
|
|
48 - THREADED BUSHING
BSD-3600390003.A39
3600390003
|
£12.04
|
£14.45
|
|
|
50 - SHIM
BSD-2600102036.A64
2600102036
|
£2.61
|
£3.13
|
|
|
56 - FITTING
BSD-3603462019.A1
3603462019
|
£16.41
|
£19.69
|
|
|
57 - VALVE BUSHING
BSD-3600209004.A16
3600209004
|
£2.16
|
£2.59
|
|
|
60 - STRAINER
BSD-3600002006.A31
3600002006
|
£3.72
|
£4.47
|
|
|
61 - SILENCER
BSD-2607000179.A6
2607000179
|
£8.67
|
£10.41
|
|
|
65 - O-RING 15x2 MM
BSD-1900210112.A189
1900210112
|
£2.61
|
£3.13
|
|
|
67 - STRAIGHT PIN
BSD-3603201043.A3
3603201043
|
£2.16
|
£2.59
|
|
|
69 - SHIM WASHER
BSD-3600105001.A22
3600105001
|
£1.75
|
£2.10
|
|
|
77 - PUSH-BUTTON
BSD-3602053003.A7
3602053003
|
£2.61
|
£3.13
|
|
|
83 - COMPRESSION SPRING
BSD-3604643012.A1
3604643012
|
£1.75
|
£2.10
|
|
|
88 - SILENCER
BSD-3601010001.A138
3601010001
|
£2.16
|
£2.59
|
|
|
94 - KEY CHUCK dia1.5-10 MM. 3/8
BSD-1608571053.A20
1608571053
|
£20.99
|
£25.19
|
|
|
94/7 - CHUCK WRENCH SG2
BSD-2607950007.A339
2607950007
|
£6.52
|
£7.83
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A554
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A152
3601119055
|
£3.72
|
£4.47
|
|
|
99 - REFERENCE PLATE
BSD-3601110574.A51
3601110574
|
£2.61
|
£3.13
|
|
|
652 - HOSE FITTING
BSD-3603386068.A6
3603386068
|
£21.52
|
£25.83
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030244.A15
3607030244
|
£23.86
|
£28.63
|
|
|
808 - ASSEMBLY OF SERVICE PARTS
BSD-3607031322.A5
3607031322
|
£63.50
|
£76.20
|
|
|
840 - O-RING
BSD-3607010005.A6
3607010005
|
-
|
|
|
|
844 - PARTS SET
BSD-3607010026.A20
3607010026
|
£8.67
|
£10.41
|
|
|
868 - VALVE CONE
BSD-3607030354.A12
3607030354
|
£14.91
|
£17.89
|
|
