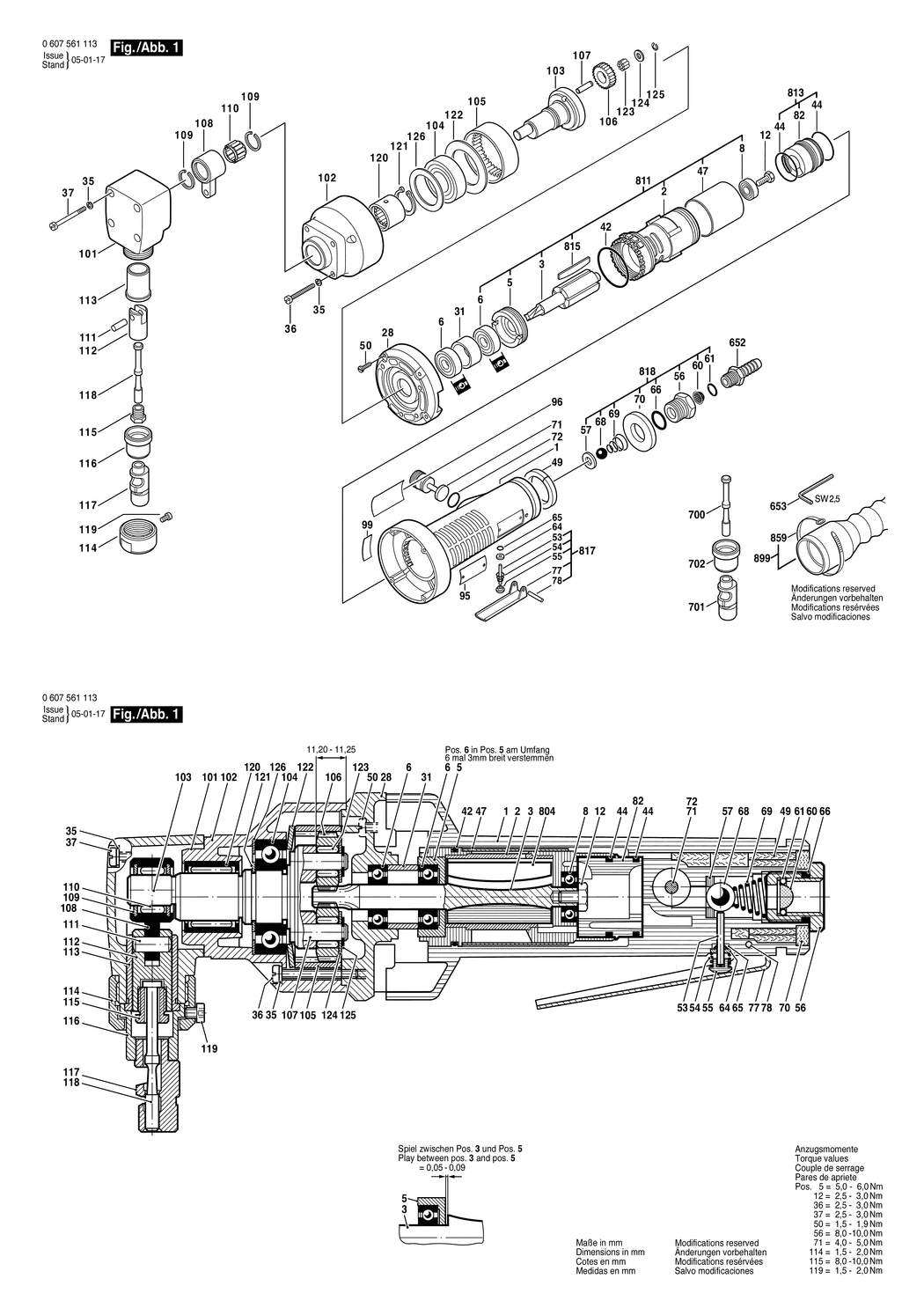

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607561113 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108084.A0 3605108084 £40.80 £48.96
2 - STATOR 400W BSD-3604090046.A8 3604090046 £102.57 £123.08
3 - ROTOR BSD-3604220044.A0 3604220044 £102.57 £123.08
5 - BEARING FLANGE BSD-3605700076.A62 3605700076 £48.38 £58.06
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A349 3600905039 £12.04 £14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A5 1900905028 £33.74 £40.49
12 - HEX SCREW BSD-3603450006.A12 3603450006 £5.30 £6.36
28 - INTERMEDIATE FLANGE BSD-3605700077.A5 3605700077 £48.38 £58.06
31 - INTERMEDIATE RING BSD-3600200009.A1 3600200009 -
35 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A1 2916690003 £1.75 £2.10
36 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8 BSD-2910021134.A156 2910021134 £1.75 £2.10
37 - SOCKET HEAD CAP SCREW DIN 84-BM4x40-8.8 BSD-2910021138.A54 2910021138 £2.61 £3.13
42 - O-RING 33.0x2.0 MM BSD-2600210019.A38 2600210019 £1.75 £2.10
44 - O-RING 26.0x1.5 MM BSD-2600210018.A9 2600210018 £3.72 £4.47
47 - SPIGOT BSD-3600700032.A16 3600700032 £21.68 £26.01
49 - SILENCER BSD-3601010006.A92 3601010006 £1.75 £2.10
50 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A30 2910211022 £1.75 £2.10
53 - NEEDLE ROLLER BSD-3603201050.A24 3603201050 £1.75 £2.10
54 - COMPRESSION SPRING BSD-3604611006.A58 3604611006 £2.16 £2.59
55 - VALVE CONE BSD-3603132000.A63 3603132000 £2.80 £3.36
56 - FITTING BSD-3603458010.A1 3603458010 £16.41 £19.69
57 - SEALING DISK BSD-3600206006.A6 3600206006 -
60 - STRAINER BSD-3600002000.A194 3600002000 £3.72 £4.47
61 - SHIM 0.5 MM BSD-1600100617.A46 1600100617 £1.75 £2.10
64 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A30 2916011006 £1.75 £2.10
65 - VALVE CONE BSD-3603132000.A64 3603132000 £2.80 £3.36
66 - O-RING 16x1.25 MM BSD-3600210036.A52 3600210036 £2.16 £2.59
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A17 1903230528 £1.75 £2.10
69 - COMPRESSION SPRING BSD-3604616008.A4 3604616008 -
70 - SILENCER BSD-3600105002.A4 3600105002 £10.10 £12.12
71 - VALVE PISTON BSD-3608750028.A13 3608750028 £5.58 £6.70
72 - O-RING BSD-1900210307.A1 1900210307 £4.26 £5.11
77 - CONTROL LEVER BSD-3601902001.A89 3601902001 £6.52 £7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A3 2917700040 £2.80 £3.36
82 - INTERMEDIATE PIECE BSD-3608750027.A9 3608750027 £14.91 £17.89
95 - NAMEPLATE BSD-160111A3HF.A146 160111A3HF £3.72 £4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110039.A10 3601110039 £5.30 £6.36
99 - REFERENCE PLATE BSD-3601119236.A1311 3601119236 £3.72 £4.47
101 - GEAR COVER BSD-2605500042.A24 2605500042 £48.38 £58.06
102 - GEAR HOUSING BSD-2605806312.A10 2605806312 £48.38 £58.06
103 - ECCENTRIC SHAFT BSD-2606122001.A9 2606122001 £102.57 £123.08
104 - GROOVE BALL BEARING 20x42x12 BSD-1900900274.A41 1900900274 £27.23 £32.68
105 - RING GEAR Z=66 BSD-2606334040.A7 2606334040 £27.23 £32.68
106 - CYLINDRICAL GEAR Z=30 BSD-3606316057.A22 3606316057 £7.36 £8.83
107 - BEARING BOLT BSD-2603105021.A0 2603105021 £2.61 £3.13
108 - CONNECTING ROD BSD-2602001001.A33 2602001001 £54.42 £65.30
109 - RETAINING RING BSD-2600224009.A21 2600224009 £1.75 £2.10
110 - NEEDLE-ROLLER CAGE BSD-2600913035.A33 2600913035 £11.30 £13.56
111 - BEARING BOLT BSD-2603100003.A65 2603100003 £2.61 £3.13
112 - POWER PISTON BSD-2603104001.A30 2603104001 £54.42 £65.30
113 - BUSHING BSD-2600422005.A0 2600422005 £18.96 £22.75
114 - UNION NUT BSD-3603340017.A24 3603340017 £33.74 £40.49
115 - HOLLOW BOLT BSD-2603455006.A30 2603455006 £2.80 £3.36
116 - LOWER DIE RING BSD-3608639030.A6 3608639030 £21.68 £26.01
117 - LOWER DIE BSD-3608639029.A2 3608639029 -
118 - NIBBLING PUNCH BSD-3608639026.A5 3608639026 £31.64 £37.97
119 - HEX SOCKET HEAD CAP SCREW BSD-2603414003.A20 2603414003 £6.52 £7.83
120 - NEEDLE BEARING BSD-2600914011.A0 2600914011 £21.52 £25.83
121 - SPRING RETAINING RING DIN 471 20x1.2 BSD-2916650011.A26 2916650011 £2.16 £2.59
122 - DISC SPRING BSD-2600550017.A1 2600550017 £5.58 £6.70
123 - NEEDLE ROLLER BSD-1903201520.A6 1903201520 £1.75 £2.10
124 - SHIM 1.2 MM BSD-1600100611.A44 1600100611 £1.75 £2.10
125 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A198 2916080908 £1.75 £2.10
126 - SHIM RING 30X42X0.3 BSD-3600102019.A1 3600102019 £1.75 £2.10
652 - HOSE FITTING BSD-3603386068.A35 3603386068 £21.52 £25.83
653 - OFFSET SCREWDRIVER DIN 911 SW2.5 BSD-1907950003.A28 1907950003 £2.61 £3.13
700 - NIBBLING PUNCH BSD-2608639013.A32 2608639013 £24.49 £29.39
701 - LOWER DIE BSD-2608639014.A0 2608639014 -
702 - LOWER DIE RING BSD-2608639015.A8 2608639015 -
811 - ASSEMBLY OF SERVICE PARTS BSD-3607030126.A0 3607030126 £306.65 £367.98
813 - ASSEMBLY OF SERVICE PARTS BSD-3607030028.A9 3607030028 £12.04 £14.45
815 - ROTOR LAMELLA BSD-3607030030.A5 3607030030 £31.64 £37.97
817 - CONTROL LEVER BSD-3607030032.A18 3607030032 £13.12 £15.75
818 - ASSEMBLY OF SERVICE PARTS BSD-3607030033.A2 3607030033 £31.64 £37.97
859 - HOLDING BELT BSD-3604710062.A39 3604710062 £1.75 £2.10
899 - AIR HOSE BSD-3607000027.A5 3607000027 £33.74 £40.49
