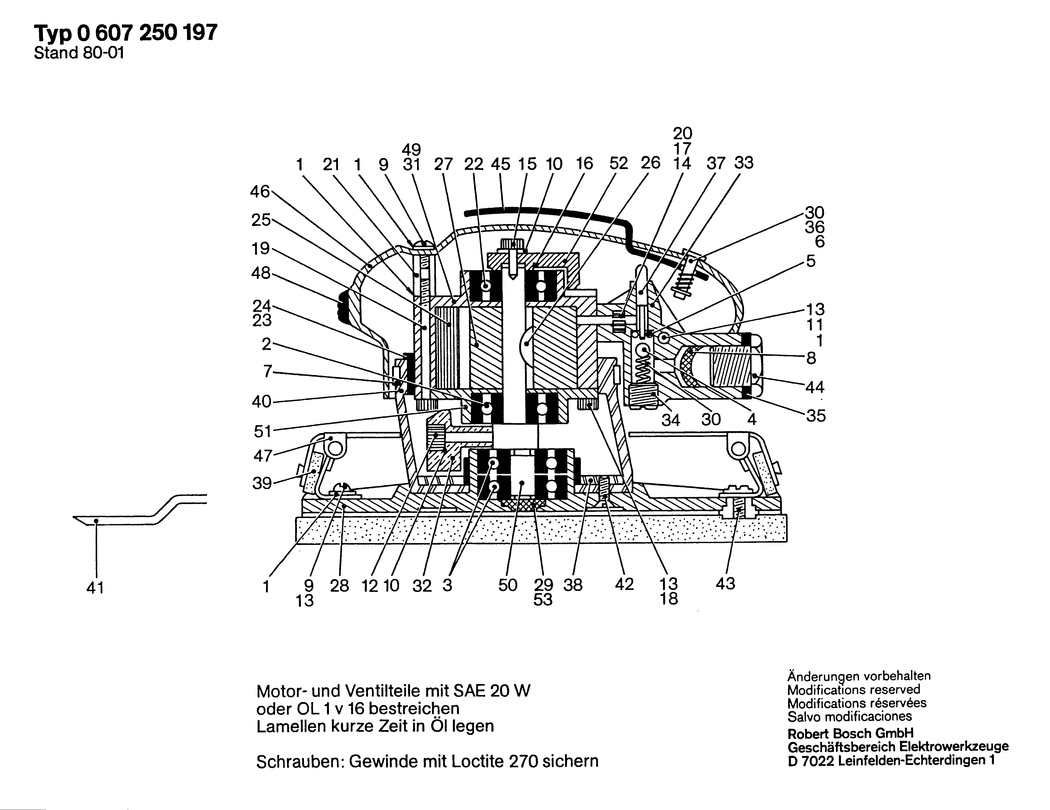

1 - SERRATED LOCK-WASHER A 4.3 DIN 6798-ST
BSD-2916070106.A1
2916070106
|
-
|
|
|
|
2 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A167
1900905232
|
£21.68
|
£26.01
|
|
|
3 - GROOVE BALL BEARING 6200-2 RS/C 3
BSD-1900905276.A28
1900905276
|
-
|
|
|
|
4 - BALL 7.144 MM DIN 5401
BSD-1903230521.A0
1903230521
|
-
|
|
|
|
5 - O-RING
BSD-1609390066.A0
1609390066
|
-
|
|
|
|
6 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A290
2916011010
|
£1.75
|
£2.10
|
|
|
7 - HOSE CLAMP
BSD-1609390067.A0
1609390067
|
-
|
|
|
|
8 - STRAINER
BSD-1609390068.A0
1609390068
|
-
|
|
|
|
9 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A62
2910021118
|
£1.75
|
£2.10
|
|
|
10 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A969
2916690003
|
£1.75
|
£2.10
|
|
|
11 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A163
2910021134
|
£1.75
|
£2.10
|
|
|
12 - HEX SOCKET HEAD CAP SCREW M 4x25 DIN 912-8.8
BSD-2910140132.A0
2910140132
|
-
|
|
|
|
13 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A181
2915011005
|
£1.75
|
£2.10
|
|
|
14 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A11
2910141154
|
£1.75
|
£2.10
|
|
|
15 - HEX SOCKET HEAD CAP SCREW M 4x16 DIN 912-8.8
BSD-2910140126.A1
2910140126
|
-
|
|
|
|
16 - SPRING WASHER
BSD-1609390069.A1
1609390069
|
-
|
|
|
|
17 - TOOTHED LOCK WASHER V 5.3 DIN 6797
BSD-2916053006.A0
2916053006
|
-
|
|
|
|
17 - SET SCREW DIN 916-M4x5-45H
BSD-2912060115.A0
2912060115
|
-
|
|
|
|
18 - HEX SOCKET HEAD CAP SCREW M 4x40 DIN 912-8.8
BSD-2910141138.A29
2910141138
|
£1.75
|
£2.10
|
|
|
19 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A11
2910141140
|
£1.75
|
£2.10
|
|
|
20 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8
BSD-2910141166.A84
2910141166
|
£1.75
|
£2.10
|
|
|
21 - SPACER BUSHING
BSD-1609390070.A0
1609390070
|
-
|
|
|
|
22 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A370
1900905120
|
-
|
|
|
|
23 - VENTILATION PLATE
BSD-1609390071.A0
1609390071
|
-
|
|
|
|
24 - RETAINING BRACKET
BSD-1609390072.A0
1609390072
|
-
|
|
|
|
26 - WOODRUFF KEY DIN6888-3x6.5-ST60-2K
BSD-1900023007.A0
1900023007
|
-
|
|
|
|
27 - ROTOR
BSD-1609390074.A2
1609390074
|
-
|
|
|
|
28 - BASE PLATE
BSD-1609390075.A0
1609390075
|
-
|
|
|
|
29 - COVER DISC
BSD-1609390076.A0
1609390076
|
-
|
|
|
|
30 - COMPRESSION SPRING
BSD-1609390077.A0
1609390077
|
-
|
|
|
|
31 - SLOTTED SPRING PIN 3x10 DIN 1481
BSD-2917760076.A3
2917760076
|
-
|
|
|
|
32 - COUNTERWEIGHT
BSD-1609390078.A0
1609390078
|
-
|
|
|
|
33 - VALVE HOUSING
BSD-1609390079.A0
1609390079
|
-
|
|
|
|
34 - GUIDE SLEEVE
BSD-1609390080.A0
1609390080
|
-
|
|
|
|
35 - FLAT SEAL RING DIN7603-A16x20-FIBER
BSD-1900209005.A2
1900209005
|
-
|
|
|
|
36 - HOLDING PIN
BSD-1609390081.A0
1609390081
|
-
|
|
|
|
37 - VALVE PISTON
BSD-1609390082.A0
1609390082
|
-
|
|
|
|
38 - FASTENING FLANGE
BSD-1609390083.A0
1609390083
|
-
|
|
|
|
39 - CLAMPING PIECE
BSD-1609390084.A0
1609390084
|
-
|
|
|
|
40 - PROTECTIVE HOUSING
BSD-1609390085.A0
1609390085
|
-
|
|
|
|
41 - GUIDE TUBE
BSD-1609390086.A0
1609390086
|
-
|
|
|
|
42 - COUNTERSUNK-HEAD SCREW
BSD-1609390087.A0
1609390087
|
-
|
|
|
|
43 - PAN HEAD SCREW
BSD-1609390088.A0
1609390088
|
-
|
|
|
|
44 - REDUCING FITTING
BSD-1609390089.A1
1609390089
|
-
|
|
|
|
45 - CONTROL LEVER
BSD-1609390090.A0
1609390090
|
-
|
|
|
|
46 - HANDLE COVER
BSD-1609390091.A0
1609390091
|
-
|
|
|
|
47 - SUPPORT CLAMP
BSD-1609390092.A0
1609390092
|
-
|
|
|
|
48 - RETAINING SNAP RING
BSD-1609390093.A0
1609390093
|
-
|
|
|
|
50 - ROTOR SHAFT
BSD-1609390095.A0
1609390095
|
-
|
|
|
|
51 - BEARING FLANGE
BSD-1609390096.A0
1609390096
|
-
|
|
|
|
52 - COUNTERWEIGHT
BSD-1609390097.A0
1609390097
|
-
|
|
|
|
53 - SHIM WASHER
BSD-1609390098.A0
1609390098
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A935
3601119236
|
£3.72
|
£4.47
|
|
|
652 - HOSE FITTING
BSD-2603386002.A47
2603386002
|
£5.30
|
£6.36
|
|
|
816 - SET OF CLUTCH PLATES
BSD-3609202A03.A1
3609202A03
|
£18.96
|
£22.75
|
|
