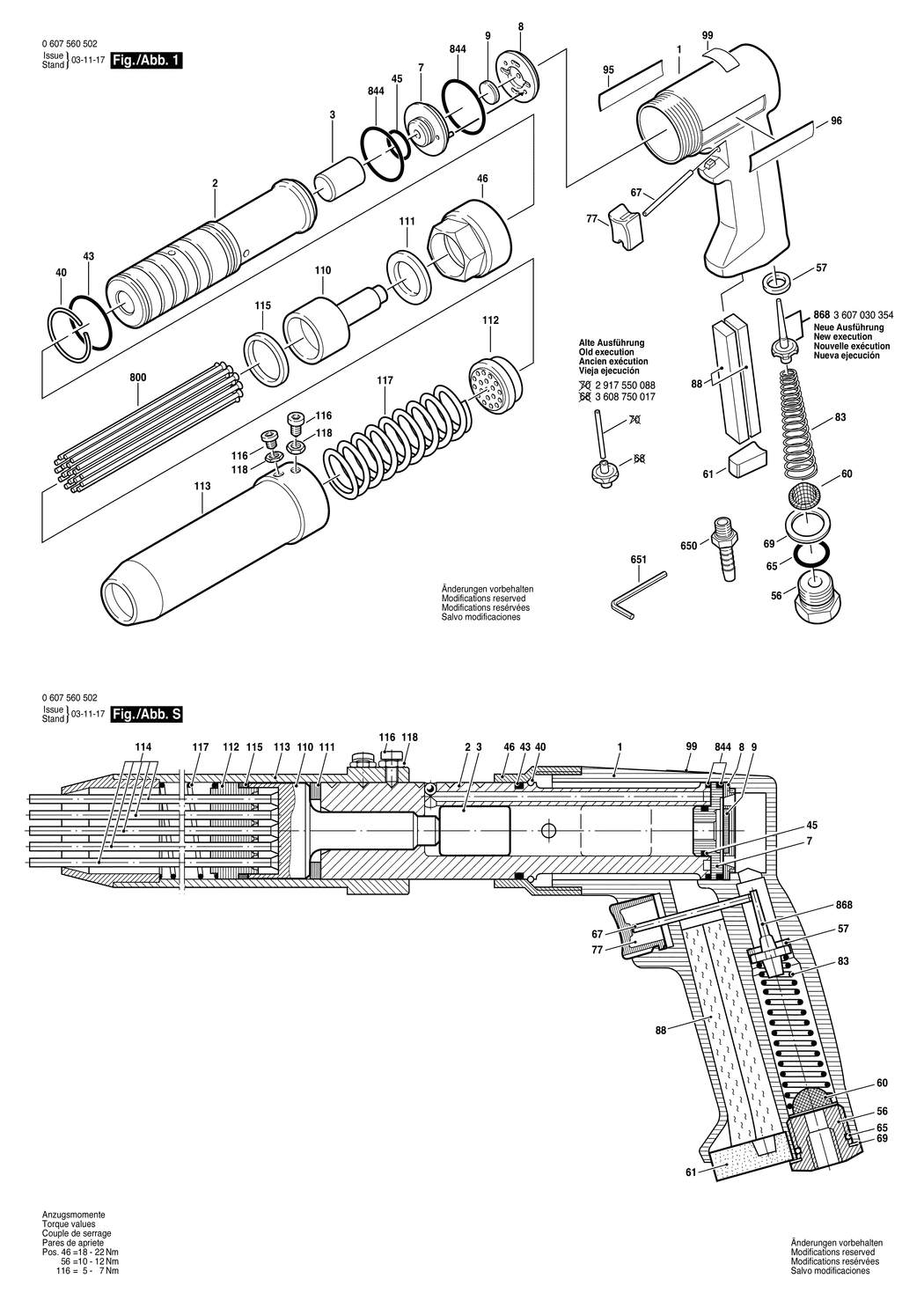

1 - MOTOR HOUSING
BSD-3605108040.A16
3605108040
|
£21.52
|
£25.83
|
|
2 - IMPACT MECHANISM HOUSING
BSD-3605190200.A1
3605190200
|
£156.22
|
£187.46
|
|
3 - STRIKER
BSD-3603200007.A2
3603200007
|
£5.58
|
£6.70
|
|
7 - VALVE PLATE
BSD-3605500025.A0
3605500025
|
£2.16
|
£2.59
|
|
8 - VALVE PLATE
BSD-3605500026.A5
3605500026
|
£4.26
|
£5.11
|
|
9 - VALVE PLATE
BSD-3600009001.A3
3600009001
|
£2.16
|
£2.59
|
|
40 - RETAINING RING 35 DIN 9045
BSD-2916600018.A28
2916600018
|
£1.75
|
£2.10
|
|
43 - O-RING 30x2.5 MM
BSD-1900210131.A8
1900210131
|
£4.26
|
£5.11
|
|
45 - O-RING 12x3 MM
BSD-1900210111.A8
1900210111
|
£2.33
|
£2.80
|
|
46 - UNION NUT
BSD-3603313007.A3
3603313007
|
£31.64
|
£37.97
|
|
56 - FITTING
BSD-3603462019.A14
3603462019
|
£16.41
|
£19.69
|
|
57 - VALVE BUSHING
BSD-3600209004.A32
3600209004
|
£2.16
|
£2.59
|
|
60 - STRAINER
BSD-3600002006.A20
3600002006
|
£3.72
|
£4.47
|
|
61 - SILENCER
BSD-2607000179.A28
2607000179
|
£8.67
|
£10.41
|
|
65 - O-RING 15x2 MM
BSD-1900210112.A0
1900210112
|
£2.61
|
£3.13
|
|
67 - STRAIGHT PIN
BSD-3603201043.A26
3603201043
|
£2.16
|
£2.59
|
|
69 - SHIM WASHER
BSD-3600105001.A53
3600105001
|
£1.75
|
£2.10
|
|
77 - PUSH-BUTTON
BSD-3602053003.A27
3602053003
|
£2.61
|
£3.13
|
|
83 - COMPRESSION SPRING
BSD-3604643012.A25
3604643012
|
£1.75
|
£2.10
|
|
88 - SILENCER
BSD-3601010001.A6
3601010001
|
£2.16
|
£2.59
|
|
95 - NAMEPLATE
BSD-160111A3HF.A225
160111A3HF
|
£3.72
|
£4.47
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601119055.A27
3601119055
|
£3.72
|
£4.47
|
|
99 - REFERENCE PLATE
BSD-3601110574.A106
3601110574
|
£2.61
|
£3.13
|
|
110 - INTERMEDIATE PIECE
BSD-3603123021.A1
3603123021
|
£31.64
|
£37.97
|
|
111 - DAMPING DISC
BSD-3600113014.A0
3600113014
|
£10.10
|
£12.12
|
|
112 - GUIDE PLATE
BSD-3600031002.A0
3600031002
|
£54.42
|
£65.30
|
|
113 - GUIDE PIECE
BSD-3600700029.A1
3600700029
|
£59.53
|
£71.44
|
|
115 - DAMPING DISC
BSD-3600113015.A1
3600113015
|
£10.10
|
£12.12
|
|
116 - SOCKET HEAD CAP SCREW
BSD-3603414011.A1
3603414011
|
£4.26
|
£5.11
|
|
117 - COMPRESSION SPRING
BSD-3604616013.A0
3604616013
|
£2.80
|
£3.36
|
|
118 - HEX NUT
BSD-3603435044.A27
3603435044
|
£2.16
|
£2.59
|
|
650 - HOSE FITTING
BSD-3603386068.A65
3603386068
|
£21.52
|
£25.83
|
|
651 - OFFSET SCREWDRIVER
BSD-3607950003.A1
3607950003
|
£4.26
|
£5.11
|
|
800 - PARTS SET
BSD-1607000027.A1
1607000027
|
£31.64
|
£37.97
|
|
844 - PARTS SET
BSD-3607010026.A2
3607010026
|
£8.67
|
£10.41
|
|
868 - VALVE CONE
BSD-3607030354.A4
3607030354
|
£14.91
|
£17.89
|
|
