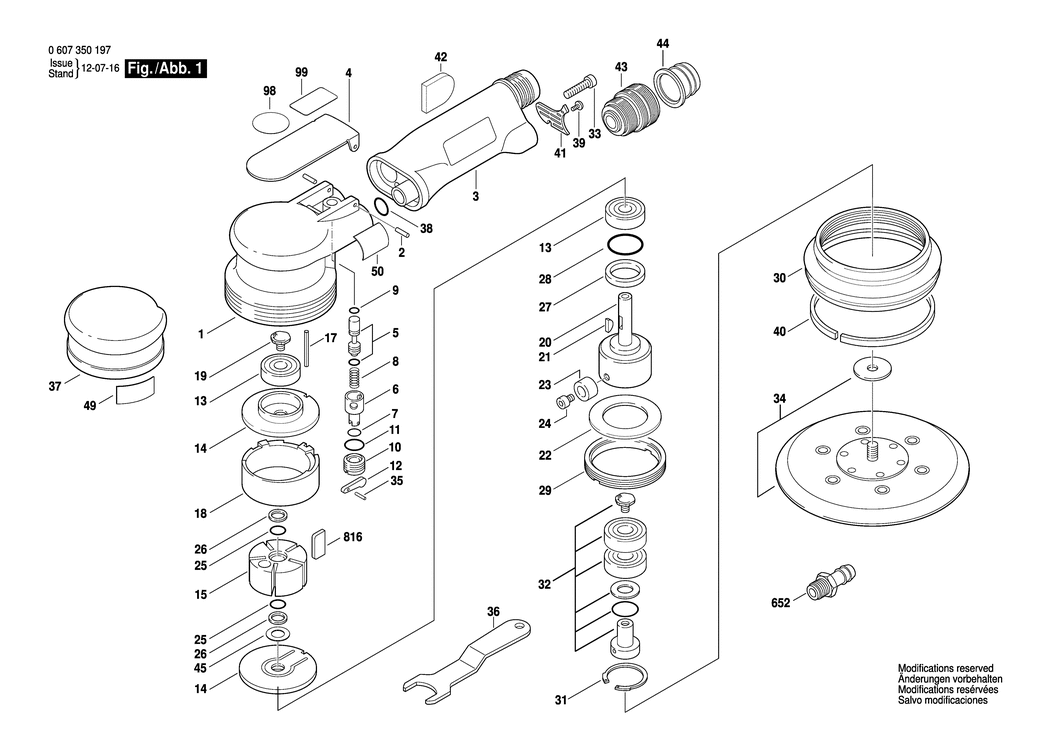

An exploded drawing and listing for the Bosch 170 WATT-SERIE / 0607350197 / ---
Ex VAT Inc VAT
1 - HOUSING BSD-3609202433.A1 3609202433 £59.53 £71.44
2 - SLOTTED SPRING PIN BSD-3609202435.A1 3609202435 £2.61 £3.13
3 - HANDLE BSD-3609202805.A0 3609202805 £59.53 £71.44
4 - ON-OFF SWITCH BSD-3609202438.A2 3609202438 £11.30 £13.56
5 - TAPPET BSD-3609202439.A0 3609202439 £10.10 £12.12
6 - VALVE BUSHING BSD-3609202440.A2 3609202440 £8.67 £10.41
7 - O-RING BSD-3609202441.A0 3609202441 £2.61 £3.13
8 - COMPRESSION SPRING BSD-3609202442.A2 3609202442 £2.80 £3.36
9 - O-RING BSD-3609202443.A0 3609202443 £2.61 £3.13
10 - NUT BSD-3609202444.A2 3609202444 £7.36 £8.83
11 - O-RING BSD-3609202445.A0 3609202445 £2.80 £3.36
12 - REGULATOR BSD-3609202446.A2 3609202446 £3.72 £4.47
13 - GROOVE BALL BEARING 10x30x9 BSD-3609202447.A0 3609202447 £13.12 £15.75
14 - BEARING FLANGE BSD-3609202448.A2 3609202448 £21.52 £25.83
15 - ROTOR BSD-3609202449.A0 3609202449 £33.74 £40.49
17 - STRAIGHT PIN BSD-3609202451.A2 3609202451 £2.80 £3.36
18 - CYLINDER BSD-3609202452.A0 3609202452 £40.80 £48.96
19 - SCREW BSD-3609202453.A2 3609202453 £4.26 £5.11
20 - SPINDLE BSD-3609202454.A0 3609202454 £48.38 £58.06
21 - WEDGE BSD-3609202456.A2 3609202456 £5.30 £6.36
22 - SHIM WASHER BSD-3609202457.A0 3609202457 £8.67 £10.41
23 - COUNTER WEIGHT BSD-3609202459.A1 3609202459 £5.58 £6.70
24 - SCREW BSD-3609202461.A0 3609202461 £3.72 £4.47
25 - O-RING BSD-3609202462.A1 3609202462 £2.80 £3.36
26 - PLAIN WASHER BSD-3609202463.A1 3609202463 £5.30 £6.36
27 - O-RING BSD-3609202464.A1 3609202464 £3.72 £4.47
28 - SHIM WASHER BSD-3609202465.A0 3609202465 £11.30 £13.56
29 - THREADED RING BSD-3609202466.A1 3609202466 £23.86 £28.63
30 - COVER BSD-3609202467.A0 3609202467 £16.41 £19.69
31 - SPRING RETAINING RING BSD-3609202469.A1 3609202469 £5.30 £6.36
32 - SPINDLE BSD-3609202471.A0 3609202471 £40.80 £48.96
33 - SCREW BSD-3609202472.A0 3609202472 -
34 - BACKING PAD BSD-3609202475.A3 3609202475 £93.88 £112.65
35 - SLOTTED SPRING PIN BSD-3609202476.A0 3609202476 £2.16 £2.59
36 - SINGLE-HEAD ENG. WRENCH BSD-3609202800.A1 3609202800 £13.12 £15.75
37 - PROTECTIVE CAP BSD-3609202480.A2 3609202480 £14.91 £17.89
38 - HOSE CLAMP BSD-3609202489.A2 3609202489 £6.52 £7.83
39 - HOSE BSD-3609202500.A1 3609202500 £23.86 £28.63
40 - FELT WASHER BSD-3609202485.A0 3609202485 £2.80 £3.36
41 - DEFLECTOR BSD-3609202502.A0 3609202502 £10.10 £12.12
42 - DAMPER BSD-3609202803.A1 3609202803 £7.36 £8.83
43 - FITTING BSD-3609202806.A0 3609202806 £31.64 £37.97
44 - HOSE FITTING BSD-3609202807.A0 3609202807 £8.67 £10.41
45 - SHIM WASHER BSD-3609202804.A0 3609202804 £6.52 £7.83
49 - MANUFACTURER'S NAMEPLATE BSD-3609202657.A4 3609202657 £3.34 £4.01
50 - NAMEPLATE BSD-3609202667.A0 3609202667 -
98 - REFERENCE PLATE BSD-3601119282.A0 3601119282 £3.72 £4.47
99 - REFERENCE PLATE BSD-3601119236.A1440 3601119236 £3.72 £4.47
652 - HOSE FITTING BSD-3609202661.A2 3609202661 £7.36 £8.83
816 - SET OF CLUTCH PLATES BSD-3609202A03.A4 3609202A03 £18.96 £22.75
