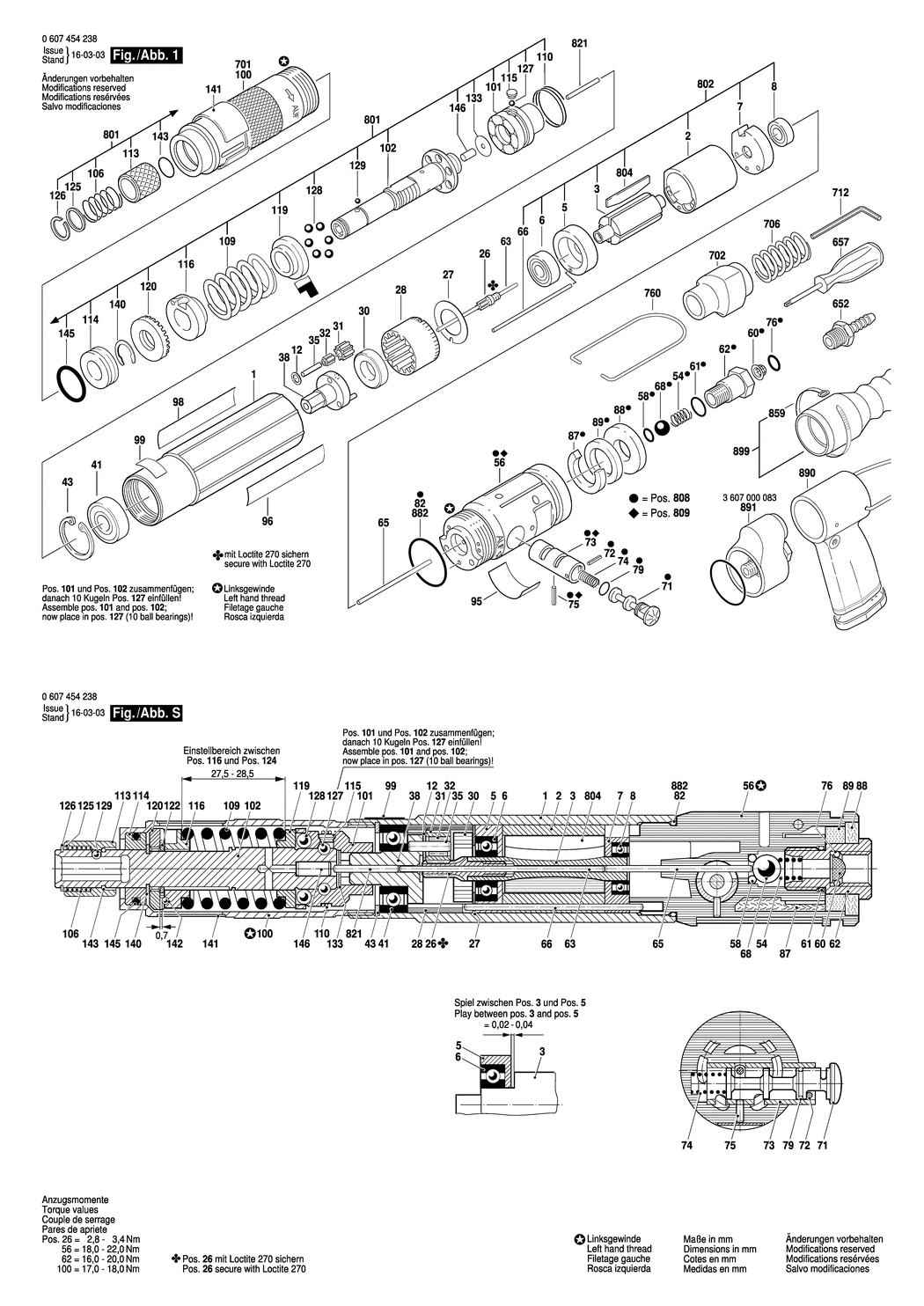

An exploded drawing and listing for the Bosch 120 WATT-SERIE / 0607454238 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3600760096.A9 3600760096 £37.72 £45.27
2 - STATOR 120W BSD-3604090058.A25 3604090058 £135.25 £162.30
3 - ROTOR BSD-3604220087.A1 3604220087 £102.57 £123.08
5 - BEARING FLANGE BSD-3605700111.A2 3605700111 £40.80 £48.96
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A145 1900905044 £7.36 £8.83
7 - BEARING FLANGE BSD-3605700112.A22 3605700112 £48.38 £58.06
8 - GROOVE BALL BEARING 7x14x5 BSD-1900905030.A58 1900905030 £33.74 £40.49
12 - SHIM BSD-3600100030.A23 3600100030 £1.75 £2.10
26 - PINION BSD-3606300180.A1 3606300180 £31.64 £37.97
27 - STOP DISC BSD-3600101008.A9 3600101008 £1.75 £2.10
28 - RING GEAR BSD-3606334084.A0 3606334084 £37.27 £44.72
30 - SPACER RING BSD-3600209013.A47 3600209013 £5.58 £6.70
31 - CYLINDRICAL GEAR BSD-3606316104.A21 3606316104 £21.68 £26.01
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A160 3600913000 £4.26 £5.11
35 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A93 1903201042 £2.16 £2.59
38 - PLANETARY-GEAR CARRIER BSD-3606337193.A4 3606337193 £59.53 £71.44
41 - GROOVE BALL BEARING BSD-3600905023.A44 3600905023 £21.52 £25.83
43 - SPRING RETAINING RING BSD-3600118006.A46 3600118006 £2.61 £3.13
54 - COMPRESSION SPRING BSD-3604611017.A62 3604611017 £2.61 £3.13
56 - VALVE HOUSING BSD-3605190178.A8 3605190178 £37.27 £44.72
58 - O-RING 4.3x2.4 MM BSD-3600210084.A30 3600210084 £2.61 £3.13
60 - STRAINER BSD-3600002000.A21 3600002000 £3.72 £4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A114 2600210021 £1.75 £2.10
62 - FITTING BSD-3603458016.A25 3603458016 £11.30 £13.56
63 - STRAIGHT PIN L=62 MM BSD-3603201070.A3 3603201070 £5.30 £6.36
65 - STRAIGHT PIN BSD-3603201001.A2 3603201001 £4.26 £5.11
66 - STRAIGHT PIN BSD-3604710044.A19 3604710044 £8.67 £10.41
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A56 1903230014 £1.75 £2.10
71 - CONTROL PISTON BSD-3608750038.A20 3608750038 £23.86 £28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A67 2917800016 £1.75 £2.10
74 - COMPRESSION SPRING BSD-3604611007.A25 3604611007 £2.16 £2.59
76 - O-RING BSD-3600210094.A69 3600210094 £2.80 £3.36
79 - O-RING BSD-3600210093.A4 3600210093 £1.75 £2.10
82 - O-RING 26.0x1.0 MM BSD-3600210056.A38 3600210056 £1.75 £2.10
87 - SILENCER BSD-3601010010.A59 3601010010 £2.16 £2.59
88 - SILENCER BSD-3601010037.A70 3601010037 £11.30 £13.56
89 - SILENCER BSD-3601010044.A6 3601010044 £7.36 £8.83
95 - NAMEPLATE BSD-160111A3HF.A660 160111A3HF £3.72 £4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A134 3601119055 £3.72 £4.47
98 - STICKER BSD-3601110204.A55 3601110204 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601110574.A67 3601110574 £2.61 £3.13
100 - HOUSING BSD-3605125056.A7 3605125056 £59.53 £71.44
101 - CLUTCH ELEMENT BSD-3606445043.A100 3606445043 £102.57 £123.08
102 - OUTPUT SHAFT BSD-3603124022.A25 3603124022 £102.57 £123.08
106 - COMPRESSION SPRING BSD-3604610011.A52 3604610011 £2.80 £3.36
109 - COMPRESSION SPRING BSD-3604619003.A100 3604619003 £5.58 £6.70
110 - RETAINING RING BSD-3600224053.A84 3600224053 £1.75 £2.10
113 - CLAMP BUSHING BSD-3600499023.A129 3600499023 £18.96 £22.75
114 - PLAIN BEARING BSD-3600921001.A65 3600921001 £10.10 £12.12
115 - SEALING PLATE BSD-3601023011.A178 3601023011 £2.61 £3.13
116 - SETTING RING BSD-3600134014.A126 3600134014 £31.64 £37.97
119 - SUPPORT DISC BSD-3600190038.A26 3600190038 £18.96 £22.75
120 - CATCH DISK BSD-3603344047.A54 3603344047 £23.86 £28.63
125 - BACKUP RING BSD-3600202020.A73 3600202020 £8.67 £10.41
126 - RETAINING RING BSD-3600224006.A145 3600224006 £2.80 £3.36
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A15 1903230006 £2.16 £2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A16 1903230008 £1.75 £2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A55 1903230003 £2.61 £3.13
133 - WASHER BSD-3600190024.A31 3600190024 £2.16 £2.59
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A33 2916080012 £1.75 £2.10
141 - PROTECTION SLEEVE BSD-3600400030.A8 3600400030 £7.36 £8.83
143 - O-RING 9.0x1.2 MM BSD-3600210038.A122 3600210038 £2.61 £3.13
145 - O-RING BSD-3600210116.A29 3600210116 £2.80 £3.36
146 - STRAIGHT PIN BSD-3604710069.A5 3604710069 £4.26 £5.11
652 - HOSE FITTING BSD-3603386066.A77 3603386066 £14.91 £17.89
657 - SCREWDRIVER BSD-3607950027.A121 3607950027 £14.91 £17.89
701 - HOUSING BSD-3605125058.A10 3605125058 £81.81 £98.17
702 - HANDLE BSD-3600499002.A41 3600499002 £21.68 £26.01
706 - COMPRESSION SPRING BSD-3604618003.A84 3604618003 £7.36 £8.83
712 - HEXAGON-SOCKET KEY BSD-3607950001.A37 3607950001 £2.80 £3.36
760 - SUSPENSION LOOP BSD-2604720004.A8 2604720004 £4.26 £5.11
801 - OVERRIDING CLUTCH BSD-3607031501.A8 3607031501 £357.27 £428.72
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031303.A19 3607031303 £410.78 £492.94
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031305.A23 3607031305 £23.86 £28.63
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031425.A12 3607031425 £251.67 £302.00
809 - ASSEMBLY OF SERVICE PARTS BSD-3607031422.A13 3607031422 £156.22 £187.46
821 - STRAIGHT PIN BSD-3604710064.A9 3604710064 £3.72 £4.47
859 - HOLDING BELT BSD-3604710062.A82 3604710062 £1.75 £2.10
882 - PARTS SET BSD-3607031524.A2 3607031524 £10.10 £12.12
890 - AUXILIARY HANDLE BSD-3607031352.A0 3607031352 £93.88 £112.65
891 - AIR HOSE BSD-3607000083.A0 3607000083 £59.53 £71.44
899 - AIR HOSE BSD-3607000064.A73 3607000064 £27.23 £32.68
